FAW J5M 30000L Diesel Transportation Tanker Truck With Flow Meter
  • FAW J5M 30000L Diesel Transportation Tanker Truck With Flow Meter
  • FAW J5M 30000L Diesel Transportation Tanker Truck With Flow Meter
  • FAW J5M 30000L Diesel Transportation Tanker Truck With Flow Meter
  • FAW J5M 30000L Diesel Transportation Tanker Truck With Flow Meter
  • FAW J5M 30000L Diesel Transportation Tanker Truck With Flow Meter

FAW J5M 30000L Diesel Transportation Tanker Truck With Flow Meter

FAW J5M Fuel Truck
30000L / 8000 Gal Tank
Weichai Engine 310Hp

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw j5m 30000l diesel transportation tanker truck with flow meter in China. If you're going to buy high quality faw j5m 30000l diesel transportation tanker truck with flow meter, welcome to get more information from our factory. For price consultation, contact us.




FAW J5M 30000L Diesel Transportation Tanker Truck with Flow meter


Description:

Type: CA1310P1K2L7T4EA80
Cabin: Sailong
Engine Model: CA6DM2-31E3F
Emission standard: Euro 3
Power (KW): 310HP
Clutch model: 430mm, single plate, dry,
Gearbox Model: 9JS150/ 12JS180TA
Rear Axle: CA457 wheel reduction axle
Rear Axle speed ratio: 5.725
Wheel & tire: 12.00R20, Model 16Ply Rating.
Axle Base: 1800+4750+1350
Fuel Tank: 400L

30CBM FAW Fuel Tank Truck


Item

Specifications

Item

Specifications

Truck

Model

CLW5316GYYC

Gross Weight (kg)

31000kg

Overall dimensions

11990X2500X3580mm

Cerb Weight (kg)

12255kg

Wheelbase (mm)

2100+4700+1350mm

Approach Angle

18°

Front Track (mm)

2020/2020mm

Departure Angle

13°

Rear Track (mm)

1847/1847mm

Number of Tyres

12

Number of axles

4

Front Overhang (mm)

1470/2370mm

Max speed (km/h)

79km/h

Rear Overhang (mm)

1470/2570mm

Traction system

8*4

Tyre

12R22.5

Transmission

Manual

Allowable Cab Passengers

3

Chassis

Model

CA5310GYYP66K2L7T4E4

Brand

FAW

Emission Level

Euro 2

Front Axle Load

6500/6500kg

Leaf Spring

10/10/12

Rear Axle Load

18000kg

Engine (Motor)

Brands

Model

Displacement

Rated Power

FAW

CA6DL2-35E4

8600ml

261kw (355hp)

FAW

CA6DL2-33E4

8600ml

249kw (339hp)

FAW

CA6DL2-31E4

8600ml

231kw (314hp)

Superstructure

Fuel Tank Capacity

28CBM

Density (kg/cbm)

700

Fuel Tank Dimension

9200×2480×1820mm

ABS

CM4XL

Remarks

The material for the side and bottom protectie device adopting Q235, bolted connection; size 100×50mm, clearance 540mm.

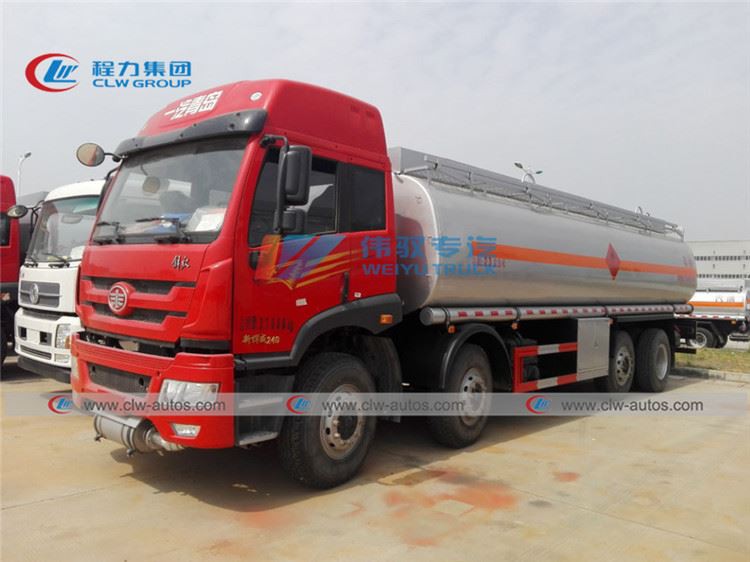

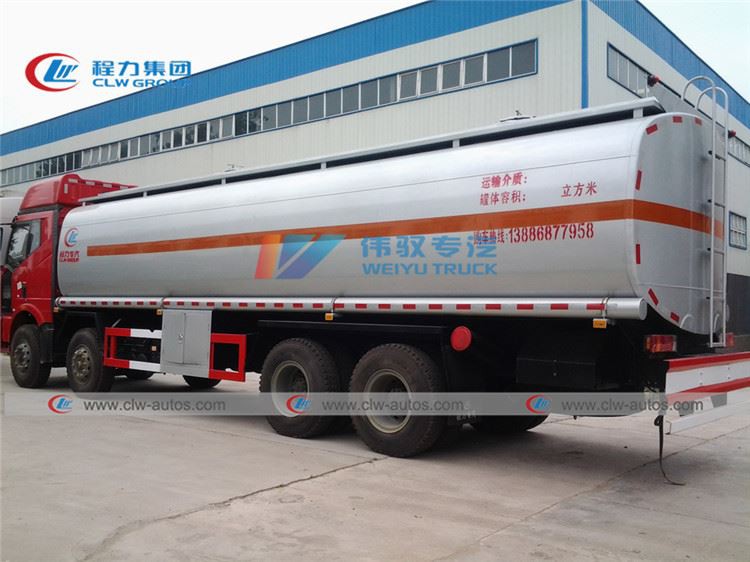

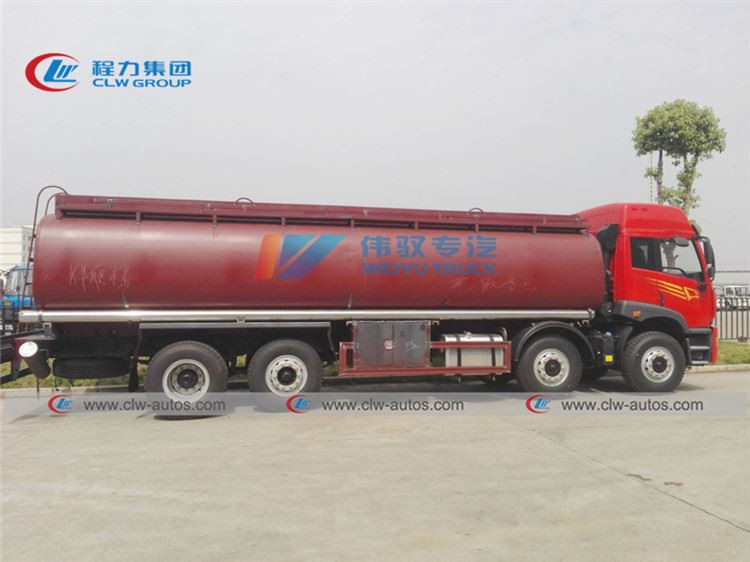

Reference Photos

Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.



Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
