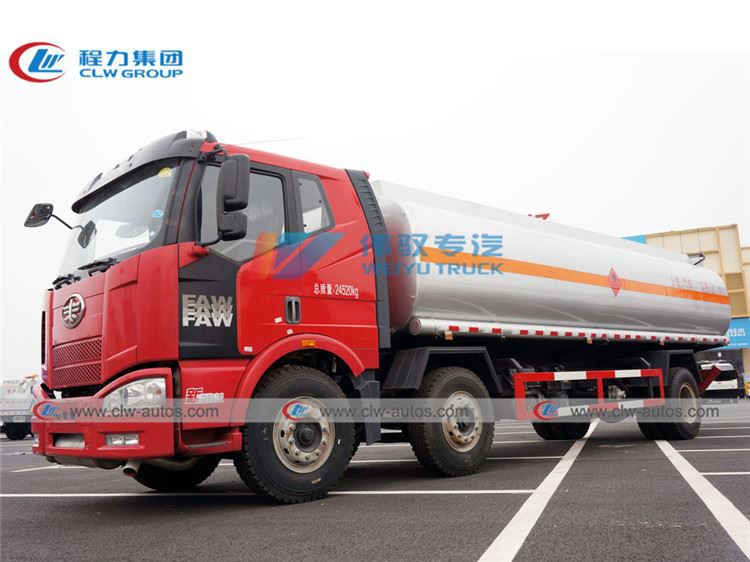

20m3 20ton FAW J5 Diesel Refilling Tank Truck For Mining Construction Equipment
FAW oil tank truck is used for oil fuel transportation, such as gasoline, diesel, heavy oil, etc. 1. Tank Capacity:22000L 2. Overall dimension:11200*2500*3350mm 3. Tank dimension:8400*2450*1650mm 4. Optional Material: carbon steel, stainless steel, aluminum alloy Main products: 1. Oil Tank Truck...
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20m3 20ton faw j5 diesel refilling tank truck for mining construction equipment in China. If you're going to buy high quality 20m3 20ton faw j5 diesel refilling tank truck for mining construction equipment, welcome to get more information from our factory. For price consultation, contact us.
FAW oil tank truck is used for oil fuel transportation, such as gasoline, diesel, heavy oil, etc.
1. Tank Capacity:22000L
2. Overall dimension:11200*2500*3350mm
3. Tank dimension:8400*2450*1650mm
4. Optional Material: carbon steel, stainless steel, aluminum alloy
Main products:
1. Oil Tank Truck
2. Refueling Truck
3.Water Tank Truck
4.Sewage Suction Truck
5. Garbage Truck
6.Fuel Tank Semi Trailer
7.Oilfield Truck
8. Chemical Liquid Tank Truck
9. Bulk Powder Material Tank truck
10. Flatbed Trailer
11.Container Semi Trailer
Chassis | |
Driving model | 6x2 |
Cabin | LHD, with Air Conditioner |
Overall dimensions | 9500×2490×3350 (mm) |
Curb Weight | 10460kg |
Loading Weight | 14540kg |
Wheel base | 4300+1350(mm) |
Engine | Diesel, 6-cylinder in-line with water cooling |
336hp, EuroIII | |
Gearbox | 10 forwards and 2 reverse |
Axle Load(kg) | 7000/16000 |
Tire | 12R22.5 tubeless tire, 11pcs |
Max speed | 90 km/h |
Steering Gear | Power steering, hydraulic steering with power assistance |
Tank Body | |
Shape | Square Round Cylinder |
Tanker Body Material | Carbon steel |
Tank thickness | 5mm |
Total Volume(m3) | 20CBM |
Compartment | Optional |
Transport oil type | Diesel/Petrol |
Manhole cover | Manhole cover with breath valves, 500mm |
Bottom Valve | 1 set |
Discharging valve | 1 set |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Remarks | Oil pump: self-priming pump,gear pump optional |
