CLW Chengli Launches CL5180TWQAQZ Dongfeng Tianjin Road Pollution Removal Truck - Dual Dry/Wet Mode All-Season Cleaner
Products Description
The street sweeper (also called road sweeper, mechanical broom, or sanitation truck) is a specialized municipal maintenance vehicle designed for urban debris collection, dust suppression, and pavement cleaning. Modern variants include regenerative-air, vacuum-assisted, and pure-water washing systems, each serving distinct environmental cleaning scenarios.
Whole Vehicle Technical Parameters
| Product Announcement Brand | Chengli | Product Name | Road Pollution Cleaning Vehicle |
| Total Mass (kg) | 18000 | Front Seating Capacity (persons) | 2, 3 |
| Curb Mass (kg) | 10700 | Overall Dimensions (mm) | 8500X2500X3200 |
| Rated Load Capacity (kg) | 7170, 7105 | Front/Rear Overhang (mm) | 1400/2100, 1430/2070 |
| Axles | 6500/11500 | Maximum Speed (km/h) | 110 |
Chassis Technical Parameters
| Chassis Model | DFH1180EXX8 | Chassis Name | Commercial Vehicle Chassis |
| Product Trademark | Dongfeng | Company Name | Dongfeng Commercial Vehicle Co., Ltd. |
| Number of Axles | 2 | Number of Tires | 6 |
| Wheelbase (mm) | 5000 | Front/Rear Track (mm) | 1876, 1896, 1920, 1950 / 1820, 1860, 1800, 1840 |
| Approach/Departure Angles | 17/24, 17/18, 17/13, 19/20 | Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Fuel Type | Diesel | Power (kW)/Horsepower (ps) | 169/229 |
| Engine Model | B6.2NS6B230 | Displacement (ml) | 6700 |
Superstructure Technical Parameters
| Water Tank Capacity | 4.5m³ | Garbage Tank Capacity | 7.5m³ |
| Filter Tank Capacity | 4m³ | Auxiliary Engine Model | Cummins |
| Blower Model | 6.3 | Water Pump Model | 2850 (GTM) |
| Maximum Pressure (mpa) | 27 | Water Pump Displacement | 92L/min |
| Operating Speed (km/h) | 5~20kw/h | Operating Width (mm) | 3500 |
| Operating Area (m2) | 17500~70000 | Maximum Intake Particle Size | 50mm |
| Operating Mode | Sweeping and Suction Combined | Garbage Tank Tilt Angle | >42° |
| Suction Pipe Diameter | Φ300 | Number of Suction Pipes | 1 |
| Suction Disk Width (mm) | 2200 | Number of Sweeping Disks | 2 |
| Sweeping Disk Rotation Speed (r/min) | 60~200 | Sweeping Disk Diameter (mm) | 900 |
Product Overview
The Chengli brand CL5180TWQAQZ Road Pollution Cleaning Vehicle, also known as the Wet and Dry Four-Section Sweeping Vehicle, is a uniquely developed model by our company, tailored to diverse vehicle usage environments nationwide in recent years. This vehicle features strong comprehensive capabilities, integrating the washing and sweeping functions of a wash-sweep vehicle with the dust suction capabilities of a dust suction vehicle. It ensures all-weather operation, unaffected by weather, road conditions, or environmental factors during sweeping tasks.

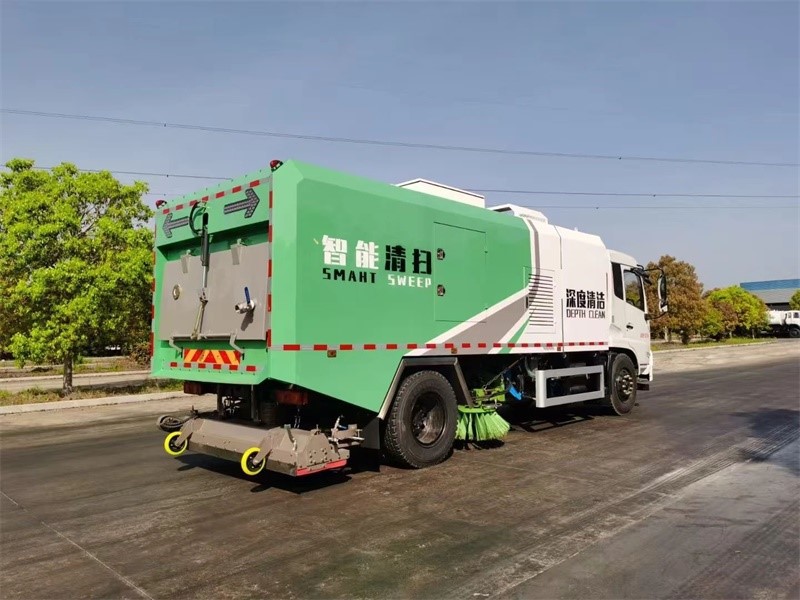

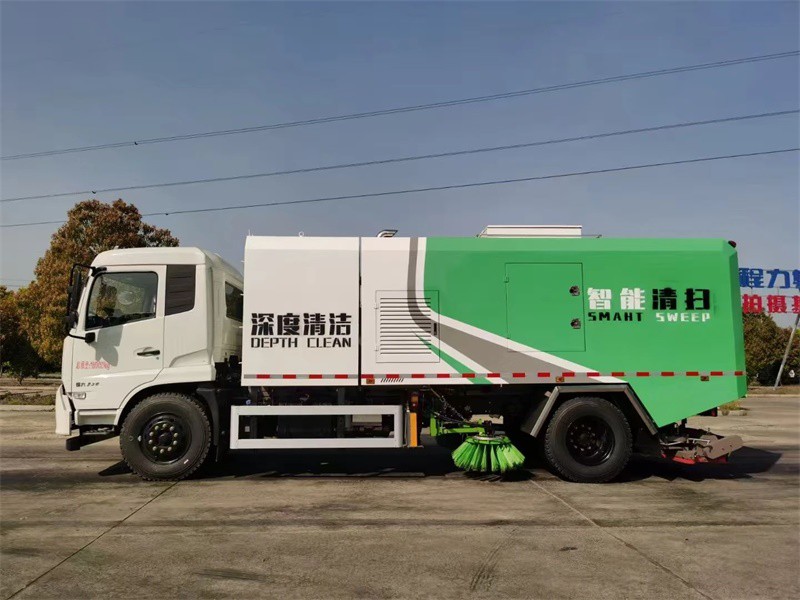

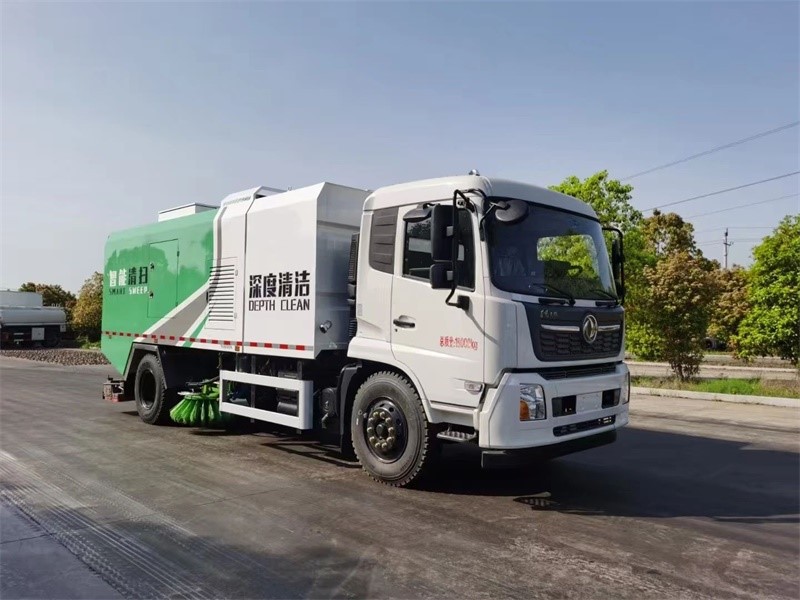

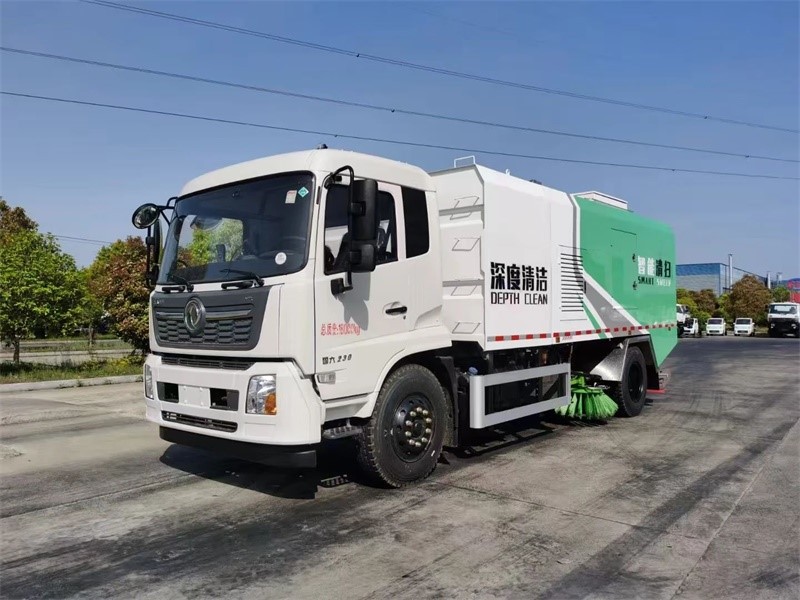

Product pictures:
Function, Applications & Features
1. Design Structure
- Central left/right brooms, rear roller suction with internal high-pressure spray, left/right high-pressure side sprays.
- Front water tank, central filter compartment, rear double-layer garbage bin.
- Weather-adaptive air duct for dry/wet operation.
2. Operational Capability
- High-pressure wash and roller sweep/dust suction.
- Effective on various road contaminants.
- All-weather, all-road condition operation.
3. Operational Scope
- Suitable for milled road surfaces, cement-stabilized layers, and daily municipal cleaning.
- Ideal for dust-heavy areas like ports, docks, mines, steel plants, cement plants.
4. Operational Modes
- Seven modes: full/left/right wash-sweep, full/left/right sweep, pure suction.
- High-pressure spray for wash-sweep; dust removal for sweep/suction.
- Dual dust suppression: water flow in wash-sweep, filter cartridge in dry sweep. Mode selectable by road condition.

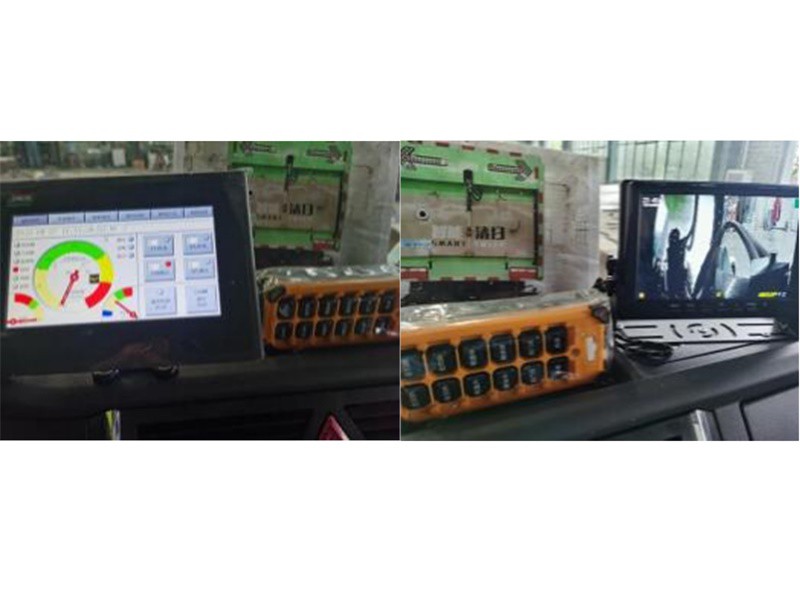

5. One-Touch Control Platform
- Simplifies operation with one-touch mode selection and start.
- Sequential opening of brooms, suction nozzle, valves, and cylinders.
- Equipped with reversing camera, remote control, and voice prompts.
6. Dual-Layer Garbage Bin
- Separates dust and wet garbage, with self-cleaning spray bars.
- Facilitates efficient garbage separation and cleaning.
7. Square-Cover Flange Dust Filter Cartridge
- Easy filter cartridge replacement via side doors.
- No bolts required; simple rotation for installation/removal.
- 10 sets of filter cartridges for optimal dust removal.
8. Dry and Wet Switching Air Duct
- Adjusts air duct for dry or wet operation via cylinder control.
- Ensures efficient dust and fluid management in different modes.
