Dongfeng 6-wheel 3Tons 4Tons Freezer Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6-wheel 3tons 4tons freezer truck in China. If you're going to buy high quality dongfeng 6-wheel 3tons 4tons freezer truck, welcome to get more information from our factory. For price consultation, contact us.



Function

--Freezer truck(also called cooling van truck,refrigerated truck,refrigerator truck,refrigerator wagon,refrigerated box car,freezer wagon,temperature controlled vehicle,preservation vehicle) is used to deliver and transport perishable stuff at specific temperature.

--The refrigerated unit brand is optional,such as themo king,carrier,chinese brand hanxue,huatai and so on.

--according to power supplying method,ohe type is vehicle engine powered refrigerated unit through PTO and another is powered by seperately carried power unit.

--The freezer box is with high quality temperature preservation material.The surface is optional for fiberglass,color plate,aluminum alloy or stainless steel,and 80mm PU foam in middle to ensure perfect insulation.

-- Freezer can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc freezer truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 freezer truck;

3) according to temperature request during delivery,there are fresh transport freezer truck with temperature request around -5 ℃ and frozen cargo(meat,seafood,icecream) transport with temperature request around -16 ℃ .

Feature

--high quality howo truck chassis;

--Spacious truck cabin with A/C;

--Powerful engine for tough road with reliable performance;

--high quality temperature preservation van body;

--Reliable chinese hanxue cooling unit or USA brand refrigerated unit;

Reference picture

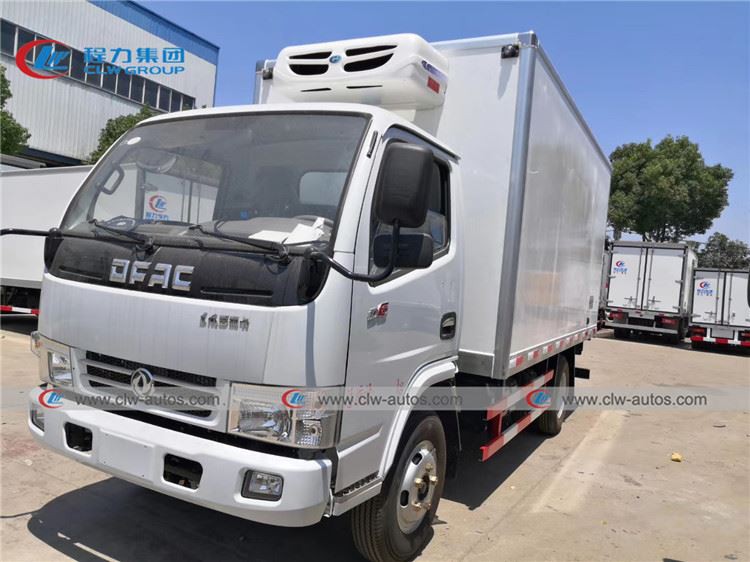

★left side of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck

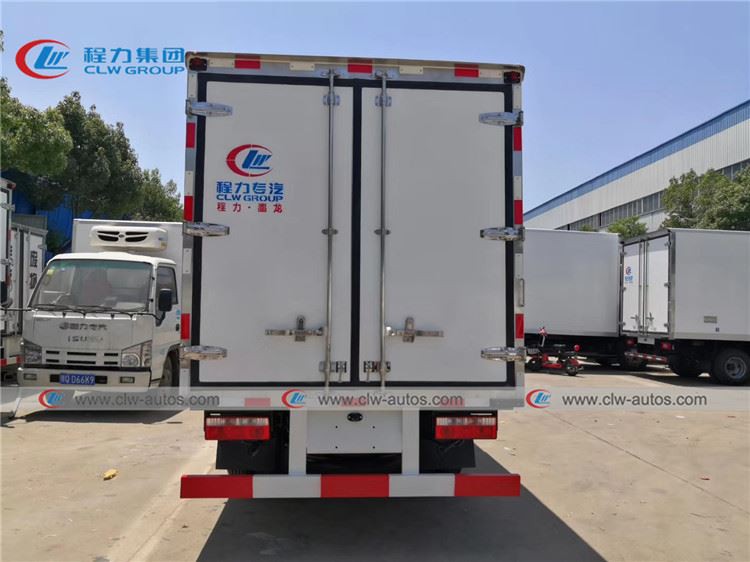

★rear side of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck

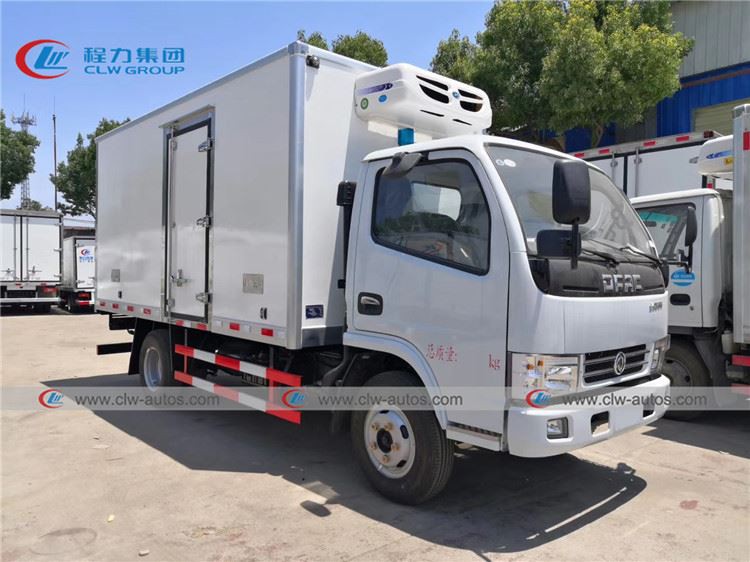

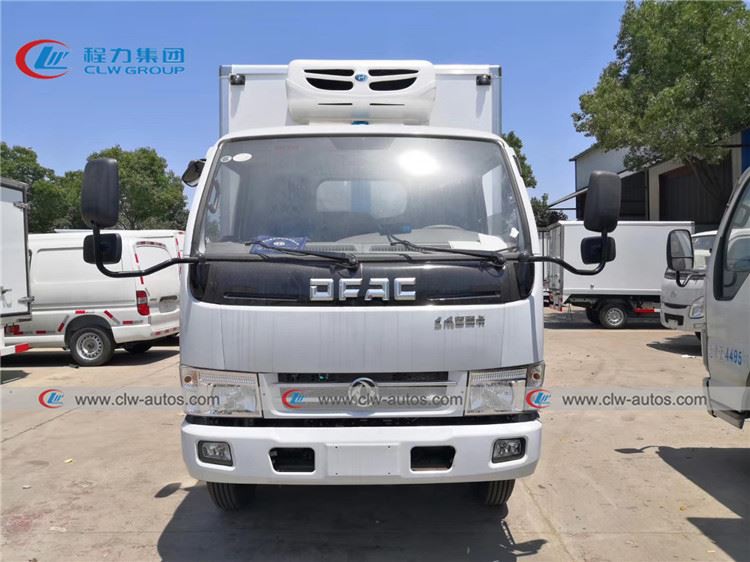

★front face of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck

★side door of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck,optional part of a freezer truck

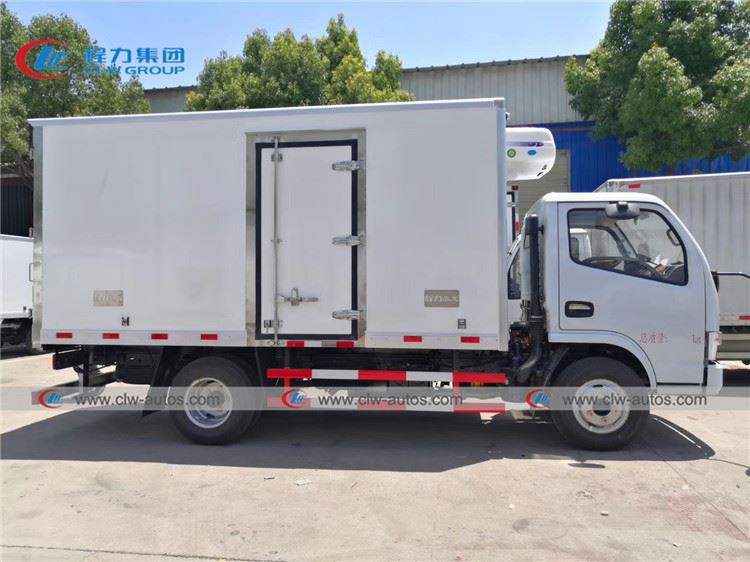

★right side of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck

Specification

Main Technical Parameters
Product Name	Dongfeng 4X2 4tons freezer truck	Gross Vehicle Weight (kg)	4495
Curb Weight (kg)	3150	Cab Allowed Persons	2-3
Overall Dimension	5995x2090x2950	loading  Capacity(Kg)	3~4tons
Axle No.	2	Wheelbase (mm)	3308
Chassis Technical Parameters
Chassis Brand	Dongfeng
Tire No.	12 with 1 spare tire
App./ Dep. Angle(º)	23/18	Tire Spec.	7.00R16
Leaf Spring No.	10/12	Front Track (mm)	1503
Fuel Type	Diesel	Rear Track (mm)	1494
Drive Type	4X2	Brake System	Oil brake
Engine Technical Parameters
Engine Model	/	Emission Standard	Euro III
Displacement  ( ml )	2982	Power (KW)	85KW
Engine Type	Water cooling, inter-cooling charged
Superstructure Parameters
Van size(kg)	4000X1880X1850 mm	Van material(m)	Fiberglass for box outside and Inside bottom Aluminum pattern plate
Insulation material	80mm Polyurethane foam	Working temperature	-5 ℃
Cooling unit	Chinese Hanxue cooling unit,optional for thermo king		3
