Product

7MT Propane Bobtail Truck

Brand: SINOTRUK HOWO
Horsepower: 160hp
Tank volume:15,000liters
Wheelbase: 4700mm
Emission standard: Euro Ⅲ

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 7mt propane bobtail truck in China. If you're going to buy high quality 7mt propane bobtail truck, welcome to get more information from our factory. For price consultation, contact us.

Sinotruk HOWO 4X2 7MT 15,000 liters LPG Bobtail Truck

Products Description

The LPG Bobtail Truck is also called LPG tanker truck/ Propane bobtail/ Heavy-duty gas delivery solution/ Autogas bowser/ LPG skid unit/LPG dispenser truck, etc. It is a specialized commercial vehicle designed for safe and efficient transportation and on-site refueling of liquefied petroleum gas (LPG). With a 15-cubic-meter storage capacity and 7-ton payload capacity, it integrates a high-pressure LPG tank, pumping system, and metered dispensing equipment into a single mobile unit, making it ideal for bulk LPG logistics and direct-to-consumer delivery.

Primary Applications

Industrial Zones: Supply LPG to factories, welding shops, or forklift fleets.
Agricultural Support: Fuel crop dryers, irrigation pumps, and greenhouse heating systems.
Remote Communities: Act as a mobile refueling station for off-grid households.
Emergency Response: Rapid deployment during pipeline outages or natural disasters.

Chassis Technical Parameters
Driving mode	4X2
Overall dimension	780025003250mm
Gross weight	16,000kg
Curb weight	8,460kg
Payload	7,000kg
Wheelbase	4700mm
Cabin	HOWO 2080 type cabin; One row and one half with A/C
Engine	Brand	YUCHAI engine, YC4E160-33
	Horsepower	160hp; 118kw
	Emission standard	Euro Ⅲ
	Displacement	4,260ml
Gear box	DC6J65TC, 6 forward gears and 1 reverse
Max driving speed	95km/h
Tyre	9.00R20 (6pcs with 1 spare)
Front axle loading	3,600kg
Rear axle loading	10,500kg
Tank body parameters
LPG tank volume	15,000 liters
Tank material	Q345R
Tank diameter	2,000mm
Tank thickness	10mm
End plate	10mm
Tank length	As designed
Gas phase	DN25 or DN50 or customized
Liquid phase	DN 50 or DN80 or customized
Filling gas	Propane (LPG)
Design pressure	1.61Mpa
Hydraulic temperature	2.21Mpa
Working temperature	-20~50℃
Design code	GB150.1~2011
Accessories
Level gauge	Float ball type at the rear of tank
Safety valve	DN80*1
Tool and valve box	Equipped
Radiator of hydraulic oil	Equipped
LPG pump	CORKEN Z2000, driven by truck engine through PTO
Dispenser machine	Single nozzle with English remarks
Filling hose	15 meters
Pressure gauge	0ne set
thermometer	One set
Emergency valve	Controlled valve box and installed at the rear of truck
Fender	Steel material
Fire extinguisher holder	Installed at left and right sides of rear truck *2
Exhaust shaft	At the front of truck cabin for safety

Why do you choose us?

Benefits and Features:

Dual-Function Design

Combines transportation and on-demand refueling capabilities in one vehicle.

All-Terrain Adaptability: Reinforced chassis and ABS braking for stable operation in rural/urban areas.
Robust Safety Systems

Equipped with emergency shutoff valves, pressure relief devices, and leak detection sensors compliant with NFPA 58/ASME standards.

Fast-Fill Technology: High-flow dispensers with precision meters and auto-cutoff nozzles.
Cost Efficiency

Reduces logistics expenses by eliminating intermediate transfers.

Operational Flexibility: Operates as a "gas station on wheels" without fixed infrastructure.
Regulatory Compliance

Meets DOT/TPED certifications for cross-border operations.

Scalability: Modular design allows customization for varying tank sizes (10-20 m³).

Referece Pictures

Bulk Transport: Safely moves LPG from terminals to storage facilities or retail stations.

Direct-to-Customer Delivery: Enables doorstep refueling for residential/commercial tanks.

Fleet Management: Services LPG-powered vehicles (e.g., taxis, buses) at depots.

Inventory Control: Real-time tank level monitoring prevents stockouts.

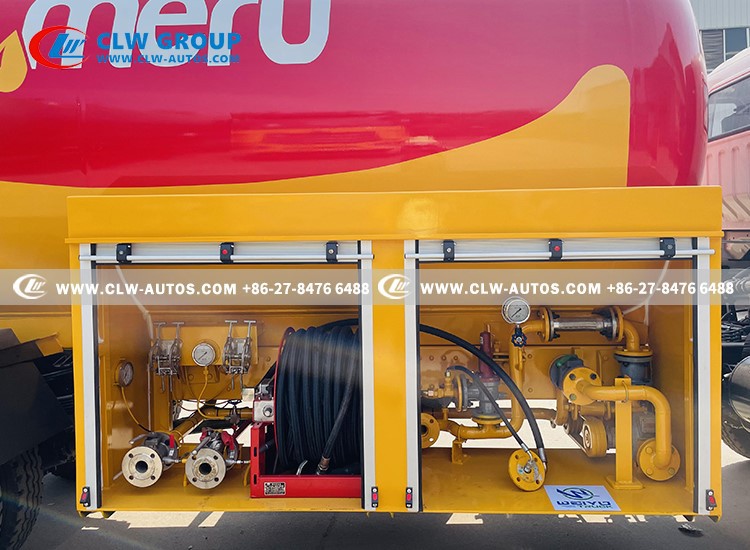

Valve Systems:

Emergency Shutoff Valve (ESV): Automatically triggers on leak detection.

Check Valves: Prevent backflow during multi-truck refueling operations.

Float-Type Level Gauges: Provide real-time LPG volume tracking with ±2% accuracy, resistant to sloshing effects.

Vapor/Liquid Phase System:

Liquid Withdrawal Valve: Ensures stable flow during high-demand dispensin.

Vapor Return Line: Recovers excess gas to maintain tank pressure equilibrium.

Quick-Connect Couplings: Enable 90-second nozzle attachment/detachment, minimizing downtime.
Modular Skid Design: Allows seamless transfer between chassis types (e.g., Isuzu, Volvo) for fleet scalability.
Anti-Corrosion Coating: Tank interiors use epoxy-phenolic linings to withstand H₂S contaminants in low-grade LPG.

Mobile Fueling Stations: Deployable in disaster zones or remote areas lacking fixed infrastructure.
Fleet Management Integration: IoT-enabled telematics systems track fuel consumption, route efficiency, and maintenance schedules.
Hybrid Energy Solutions: Compatible with LPG-CNG dual-fuel systems for fleets transitioning to greener alternatives.

Core Advantages:

Economic Efficiency: Reduces fuel costs by 20-30% compared to diesel counterparts, with annual savings exceeding for high-mileage fleets.
Environmental Compliance: Emits 30% fewer CO₂ emissions and near-zero particulate matter, aligning with Euro Ⅲ .
Dual-Phase Operation: Supports liquid-phase dispensing for high-volume refueling and vapor-phase recovery to minimize gas loss during transfers.
Market Flexibility: Adaptable to autogas (LPG) and bio-LPG blends, future-proofing investments amid energy transitions.
