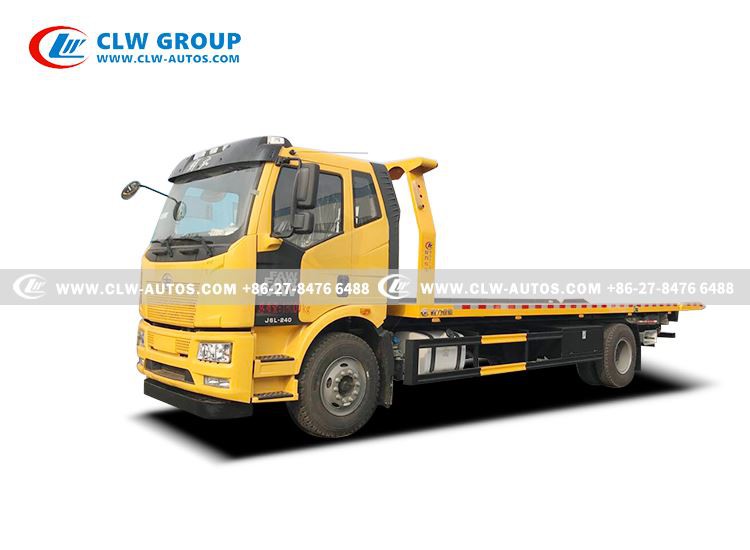

FAW J6L 4x2 10 Tons Tilt Tray Flatbed Tow Truck
FAW J6L 4X2 Truck Chassis 10Tons Winch, 15Tons Loading Capacity. Road Rescue, Recovery, Towing Services for Breakdown Trucks and Cars
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw j6l 4x2 10 tons tilt tray flatbed tow truck in China. If you're going to buy high quality faw j6l 4x2 10 tons tilt tray flatbed tow truck, welcome to get more information from our factory. For price consultation, contact us.
FAW J6L 4X2 10 Tons Flat Bed Towing Wrecker
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Products Descriptions
FAW J6L 10 tons one Truck tow two Breakdown Trucks
Chassis Parameter:
1. 5300mm wheelbase, 2020 J6L half floating flat top row half.
2. CA6DH1-22E5, DACHAI Disel Engine, 220HP. EURO-5.
3. Right Hand Drive, or Left Hand Drive both available.
4. 10.00R20 all steel radial tire, with one spare.
Upper Equipment Parameter:
1. Flatbed Size: 8.3*2.5 meters, 6mm thickness checker plate
2. 10 tons Winch, 10 Tons Under Wheel Lift.
3. Foshan Haizhanli Brand Hydraulic system.
4. Italy Hydrocontrol Multi-way Valve
For more information of Wrecker Tow truck, please contact:
WhatsApp: +86 135 5419 5719 Helen Jiang
Email: helen@clw-autos.com
Mob: +86 135 5419 5719
Products Parameters
|
Chassis Specification |
|||
|
Chassis Parameters |
Chassis Brand |
FAW J6L truck chassis |
|
|
Cabin |
3 persons, Left Hand Driving , with air conditioner |
||
|
Engine |
Engine Brand |
DACHAI brand |
|
|
Model |
CA6DH1-22E5, 6 Cylinders |
||
|
Power |
162KW/220HP |
||
|
Emission Standard |
EURO III |
||
|
Displacement |
5700ml |
||
|
Fuel Type |
Diesel |
||
|
Gearbox |
FAST8JS85TC, Manual, 8 Forward & 2 Reverse Gear |
||
|
Front and Rear Axle Load |
6.5T/11.5T |
||
|
Wheel Base |
5300(mm) |
||
|
Overhang( Front/Rear) |
1410/2290(mm) |
||
|
Wheel track (front/rear) (mm) |
1938/1860 |
||
|
Angle(Approach/departure) |
20/14(°) |
||
|
Brake System |
Air Brake |
||
|
Steering Gear |
Power Assistant |
||
|
Tire |
10.00R20, 6 pieces+1 spare tire |
||
|
Maximum Speed |
95(km/h) |
||
|
Fuel tank |
200L |
||
|
Superstructure |
|||
|
Flatbed |
Dimensions |
6800x2550 (mm) |
|
|
Max. Loading Weight |
10000(kg) |
||
|
Operating Stroke |
3700 (mm) |
||
|
Min. Angle of Slope |
15(°) |
||
|
Platform Height from the Ground |
1250(mm) |
||
|
Checker Plate thickness |
5mm |
||
|
Winch |
Quantity |
1pc |
|
|
Winch Rating Pulling Capacity |
10000 (kg) |
||
|
Length of Steel Cable |
25 (m) |
||
|
Hoisting Organ |
Rating Under-Pulling Capacity |
10000 (kg) |
|
Fully Extended Max Under-Hoisting Capacity |
7500 (kg) |
|
|
Max Under-Hoist Useful Length |
1340 (mm) |
|
|
Remarks |
1. Equipped with One Set of Auxiliary Wheels 2. Bandages 6pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars |
|
|
Others |
With CLW brand, 6.3tons Straight arm crane, 4 sections. Other Brand XCMG brand optional. |
|

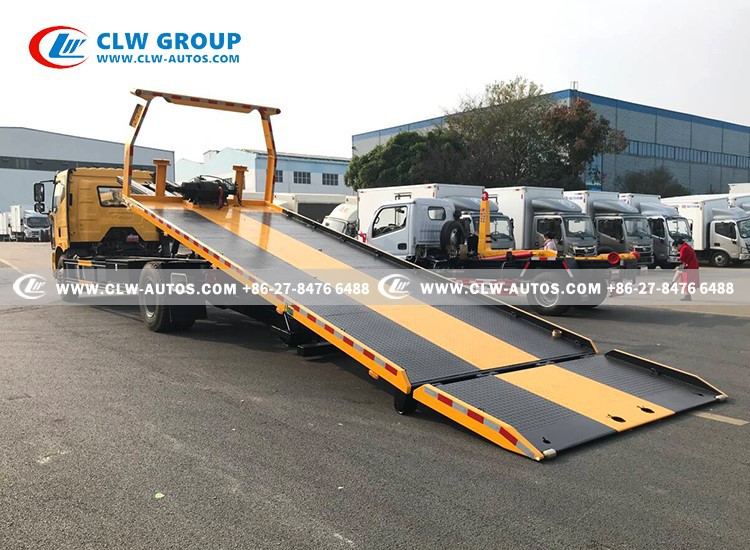

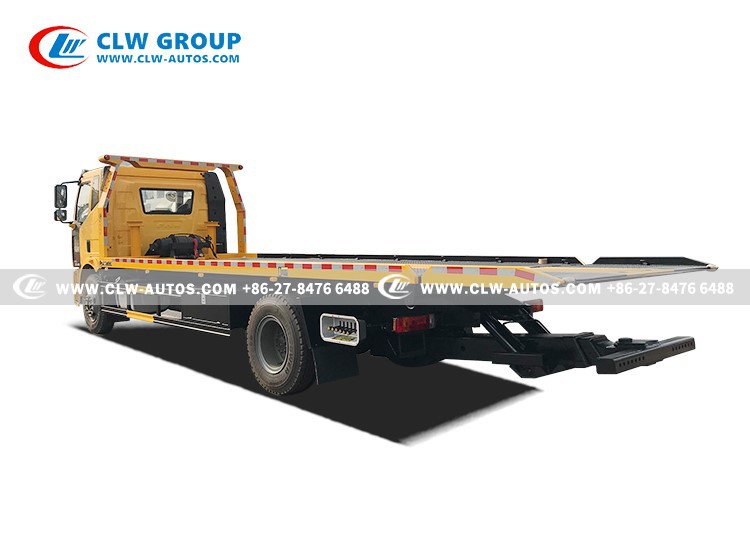

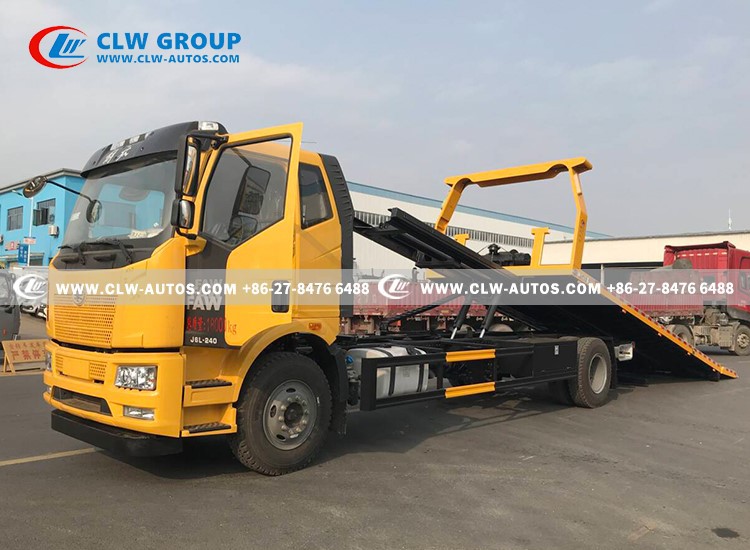

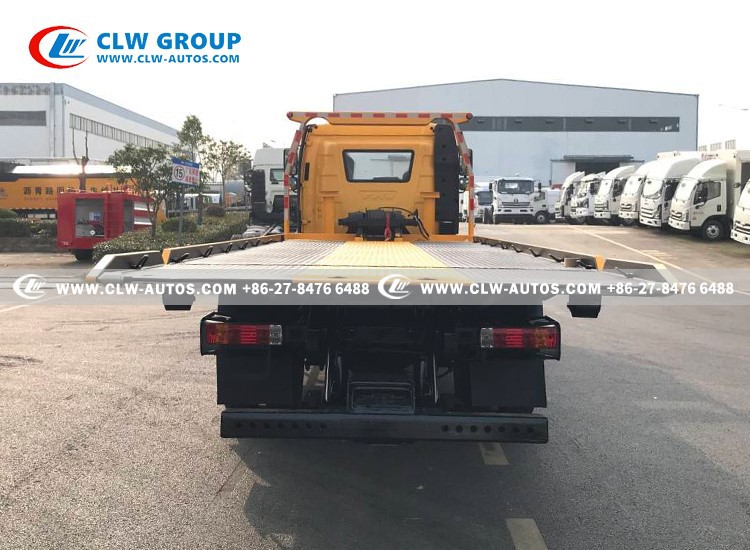

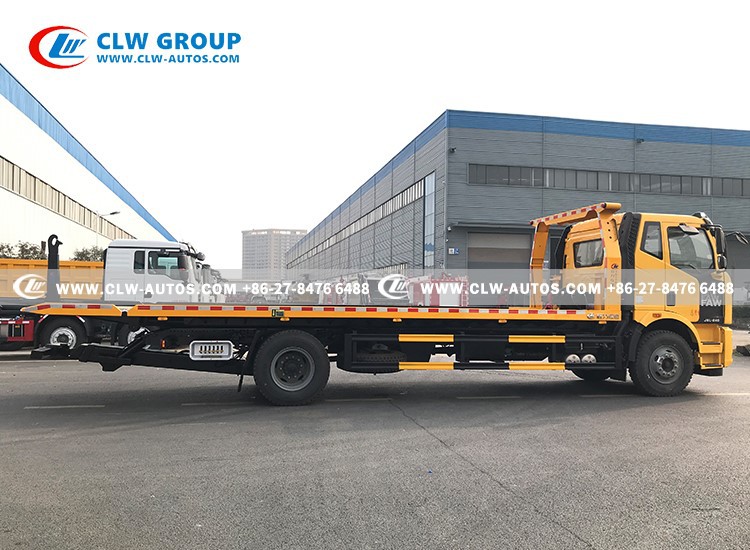

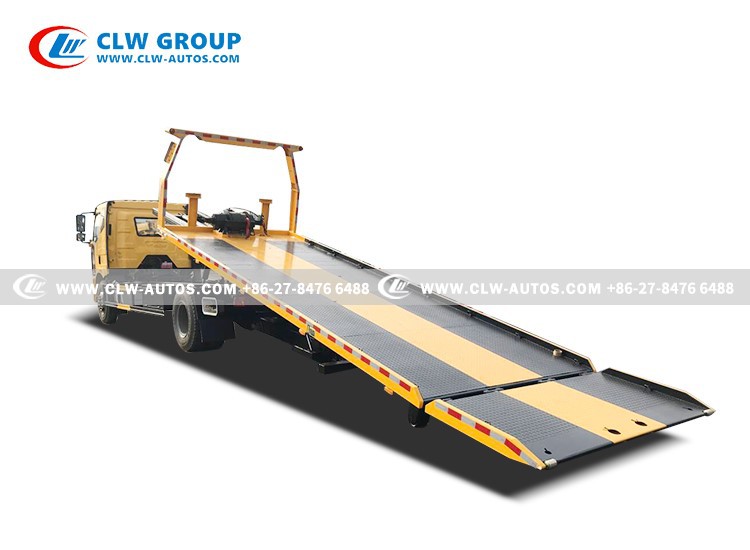

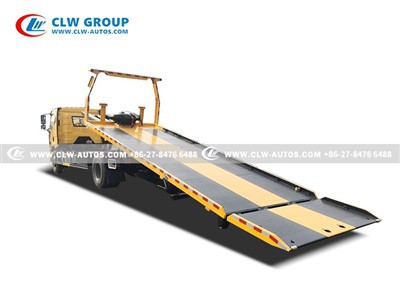

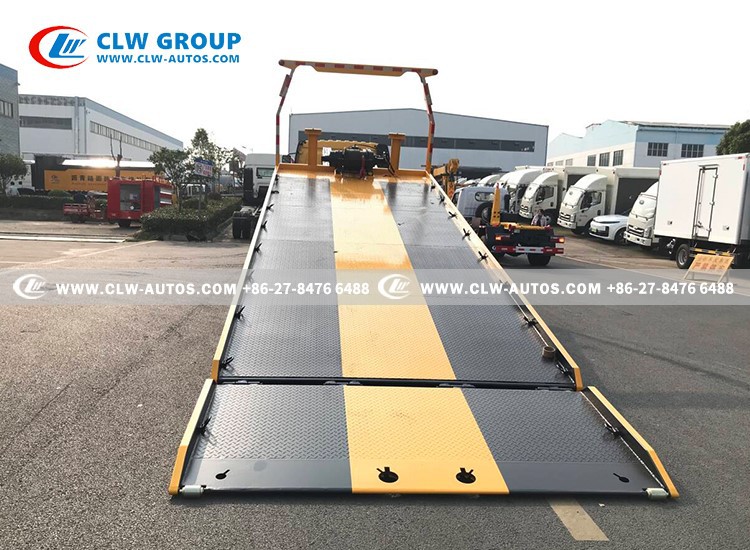

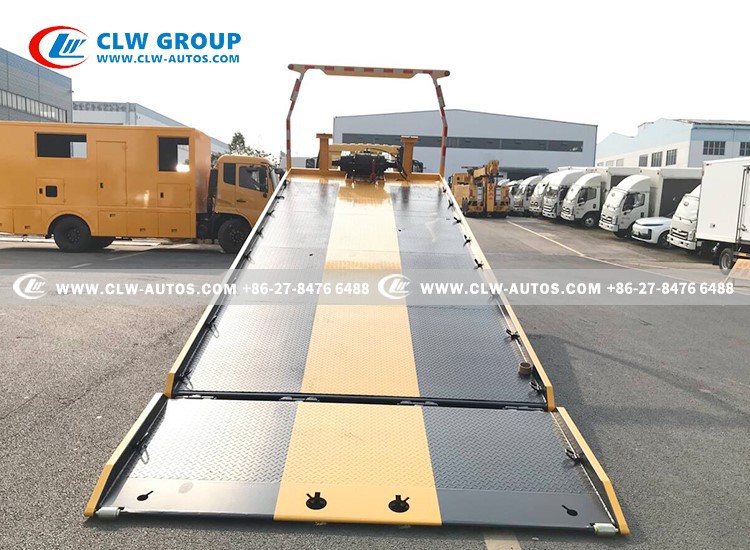

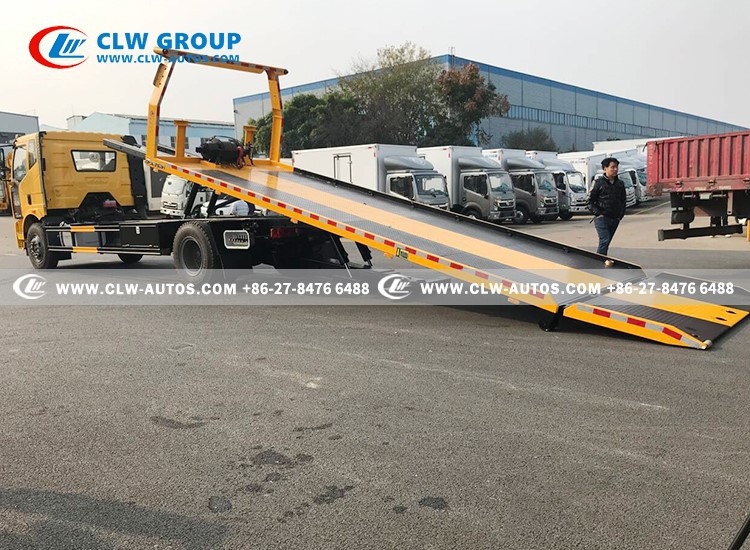

Reference Pictures
