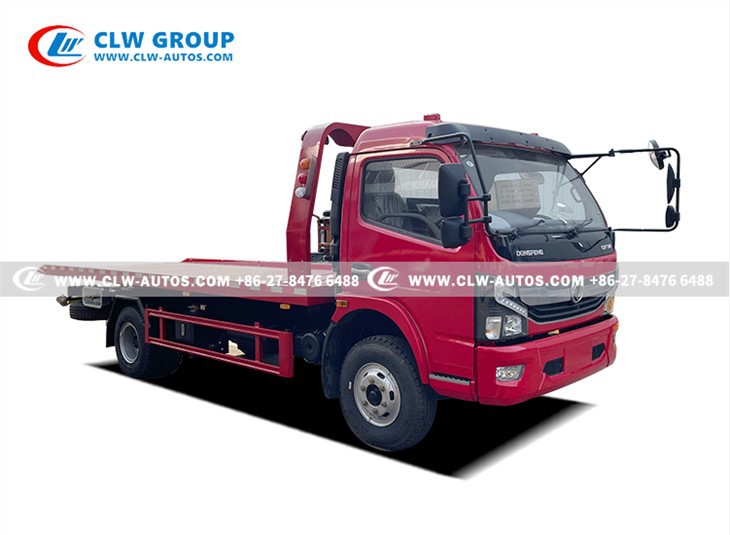

DONGFENG CAPTAIN 5 Tons Flatbed Rollback Wrecker Truck
5 Tons Flatbed Tow Truck
5 Tons Rollback Wrecker
5 Tons Wheel-lift Tow Truck
5T Flatbed Recovery Truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng captain 5 tons flatbed rollback wrecker truck in China. If you're going to buy high quality dongfeng captain 5 tons flatbed rollback wrecker truck, welcome to get more information from our factory. For price consultation, contact us.
Production Introduction
-
China flatbed wrecker truck(also called 5 tons rollback wrecker,5 tons wheel lift tow truck,breakdown rescue truck,flatbed recovery truck,flat platform recovery truck) is used to move disabled,breakdown cars,vehicles,bus,improperly parks vehicles or acts as a car carrier temperarily.
-
Flatbed wrecker truck is optional for knuckle boom crane or straight boom crane.
-
Flatbed tow truck is optional for electrophoretic painting for better auti rust effect
-
Flatbed recovery truck is optional for remote control
-
Both left hand drive and Right hand drive are available
-
ISUZU wrecker,Howo wrecker truck,JAC wrecker,Foton Wrecker,FAW tow truck,shacman towing truck is optional.
whatsapp for quick inquiry +86 135 45064324
Technical Parameters
|
Chassis |
||
|
Drive Model |
4X2, Right hand drive/Left Hand drive |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)(mm) |
7500X2300X2570 mm |
|
Wheelbase (mm) |
3800 |
|
|
Weight in KGS |
Curb Weight (kg) |
5120kg |
|
Front/Rear axle loading(kg) |
2700/6800 |
|
|
Max. driving speed(km/h) |
95 |
|
|
Engine |
Model |
YC4FA120-33 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
120HP/88KW |
|
|
Emission standard |
Euro II |
|
|
Max. Torque |
345 N.m |
|
|
Displacement(ml) |
2982 |
|
|
Brakes |
Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. |
|
|
Cabin |
|
|
|
Gearbox |
l 6 forwards & 1 reverse |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
8.25R16 tire , 6 + 1(spare tire) |
|
|
Upper & Equipment |
||
|
Platform material |
|
|
|
Lifting and Towing device |
Max. Towing capacity(kgs) |
5000 |
|
Max. Lifting capacity(kgs) |
5000~6000 |
|
|
Platform |
Max. Loading capacity(kgs) |
5,000 |
|
Length(mm) |
5600/5800 |
|
|
Width(mm) |
2250 |
|
|
Minimum inclination angle(°) |
8° |
|
|
Platform working itinerary(mm) |
2700 |
|
|
Ground clearance(mm) |
1100 |
|
|
Winch device |
Quantity(pcs) |
1 pc |
|
Rated traction(KN) |
50 KN |
|
|
Wire rope diameter(mm) |
φ12 |
|
|
Wire rope length(m) |
25 m |
|
|
Minimum linear speed of wire rope(m/min) |
3.23 m/min |
|
|
Remarks |
1. Auxiliary trolley two units 2. Top electronic lamp one unit 3. 1 pair “L” bracket fork 4. 4 units fastening strap |
|
|
Control |
|
|
Reference pictures
-

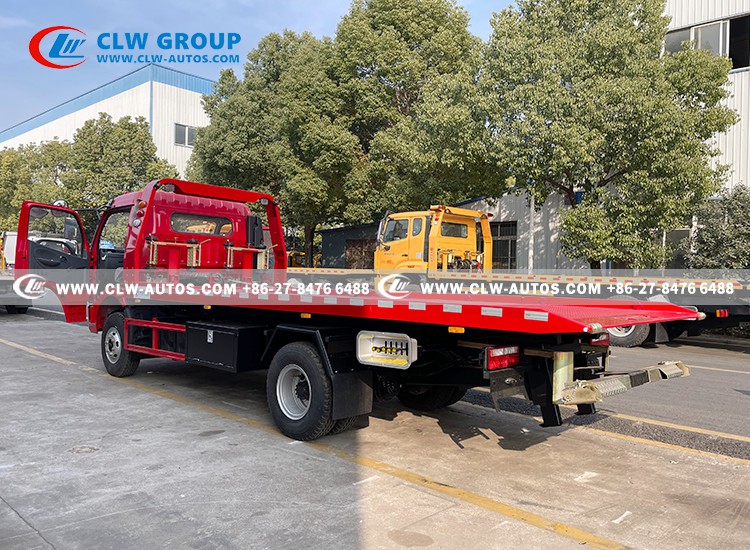

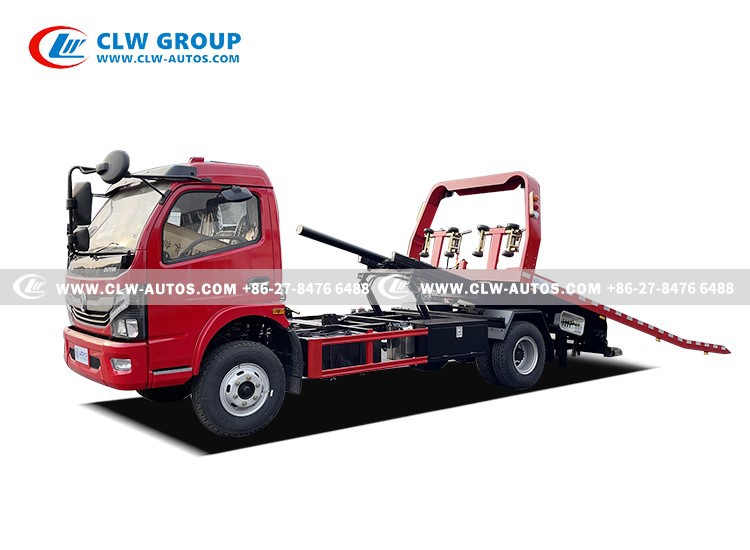

3 Tons/4 Tons/5 Tons Rollback tow truck
-

-

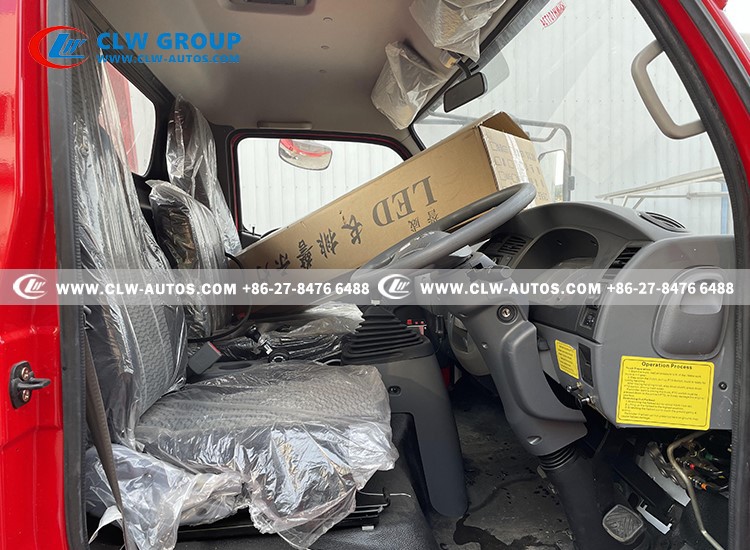

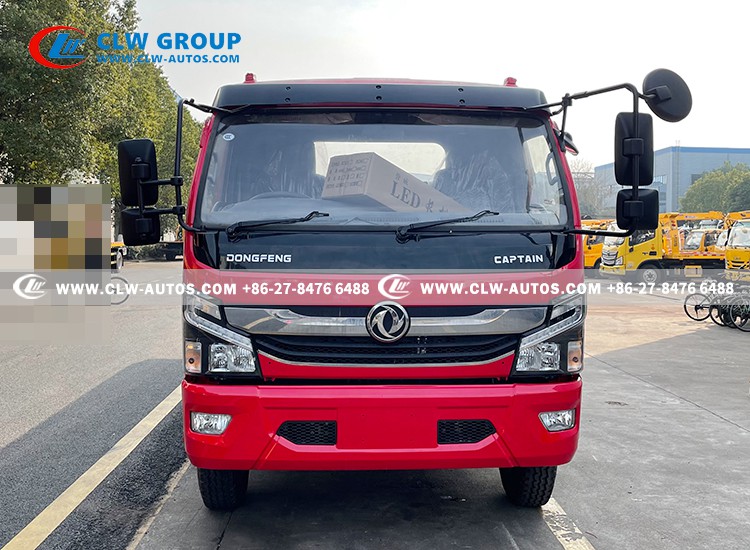

DONGFENG CAPTAIN cabin with Right hand drive

-
Right hand drive cabin
-

-

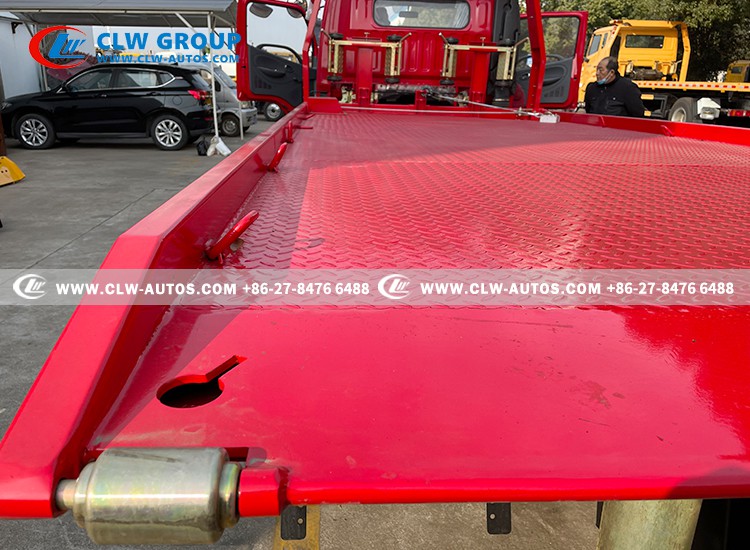

4mm checked plate
-

-

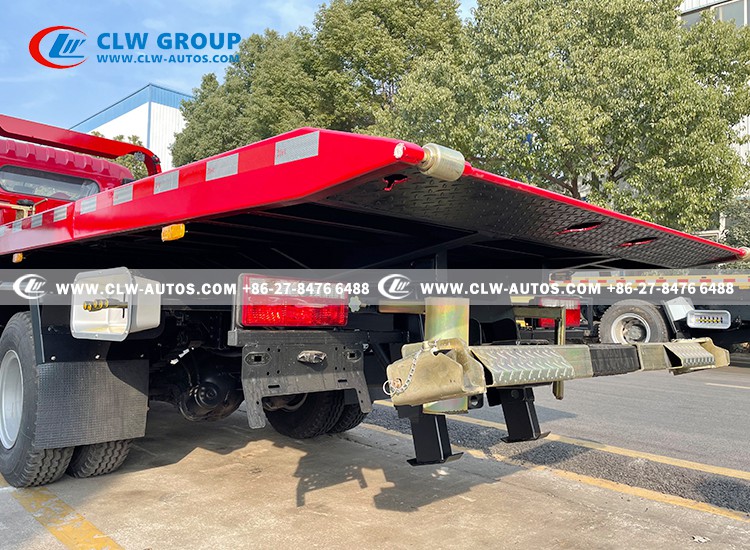

3.5 tons under lift boom
-

-

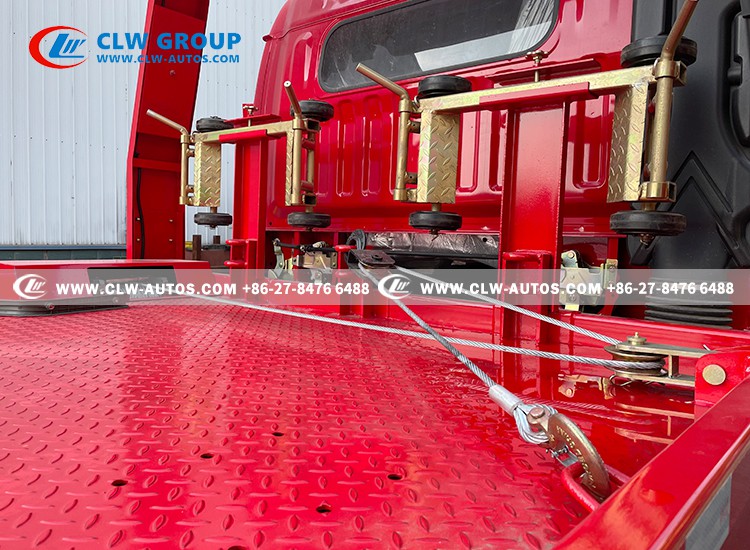

5 Tons winch and 2 Auxiliary trolle

-

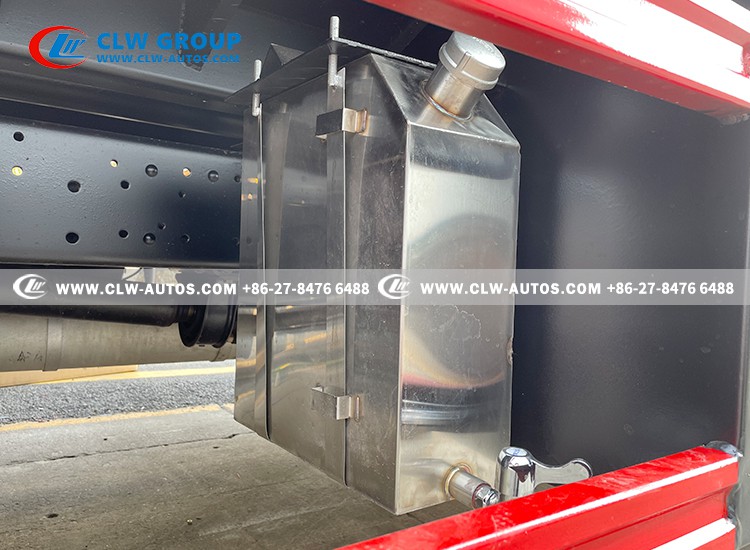

Hand washing device

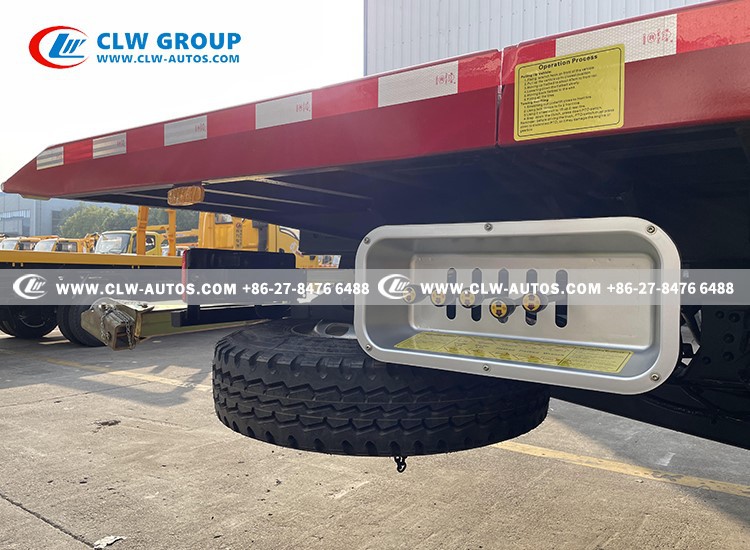

- A spare tire
