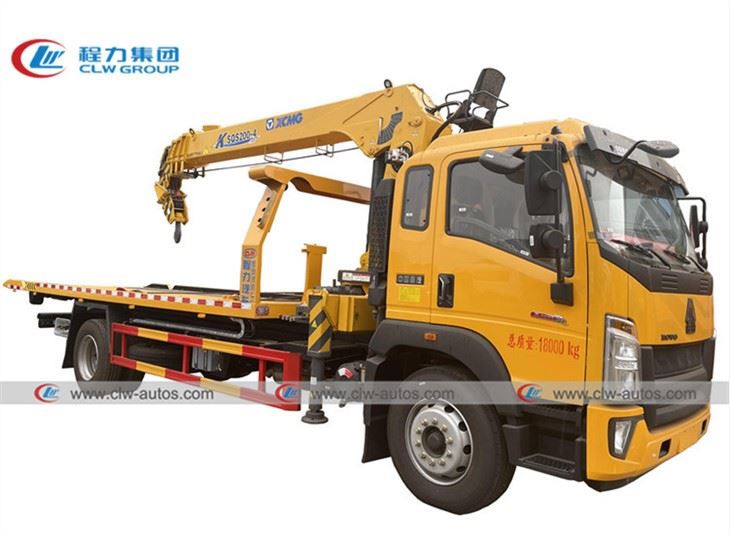

HOWO 3Tons Flatbed Tow Truck With XCMG Crane
HOWO 4x2 flatbed towing truck. Truck capacity: 3tons-5tons Crane: XCMG brand, 3Tons, Straight arm.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 3tons flatbed tow truck with xcmg crane in China. If you're going to buy high quality howo 3tons flatbed tow truck with xcmg crane, welcome to get more information from our factory. For price consultation, contact us.
The Specification for HOWO 3Tons Flatbed Tow Truck with XCMG crane
Model | Sinotruk HOWO 4*2 Truck with 3 tons crane | ||
Drive type | 4*2, New condition, Left hand drive | ||
Vehicle Main Dimensions | (L x W x H)mm | 6200×2150×3150 | |
Wheel base (mm) | 3360 | ||
Track front/rear mm | 1160/1475 | ||
F/R Axle-Load | 2000/3500 kg, | ||
Approach/departure angle | 20/18 | ||
Weight in KGS | Curb Weight | 2430 kg | |
GVW | 6430 kg | ||
Max. driving speed(km/h) | 95 | ||
Engine | Brand | YUNNEI ENGINE | |
Model | YN38PE-1 | ||
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
Horse Power(HP) | 110 | ||
Emission standard | Euro II | ||
Gearbox | WLY6T100; 6 forwards& 1 reverse | ||
Clutch | Reinforced diaphragm clutch | ||
Tire | 7.00R16, 7 pc including 1 spare tire | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | power steering, hydraulic steering with power assistance | ||
Equipment for Crane Mounted Parts | |||
Brand | XCMG brand, NO.1 brand for Crane in China. | ||
Working Platform | 360°turning(left or right), H-shape legs 360° | ||
Cargo Box | 4200*2050*400mm | ||
Material | Q235 Carbon steel | ||
Extendable boom section | 2/3 | ||
Boom Type | Straight | ||
Lifting Max. Weight | 3200kg | ||
Lifting Max. Height | 6.8m | ||
Equipment | Using the H type support leg,，Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability. The crane using the 5ton fold-able boom. | ||
Delivery time | 40 days after receiving the payment | ||
Item of the crane | Unit | Detail |
Max. Lifting capacity | kg | 3200 |
Max lifting moment | T.M | 6.72 |
Recommend power | kw | 14 |
Max. Oil flow of hydraulic system | L/min | 25 |
Max. Pressure of Hydraulic system | MPa | 20 |
Oil tank capacity | L | 30 |
Crane weight | kg | 1105 |
Installation space | mm | 850 |
Rotation angle | ° | 360°All rotation |

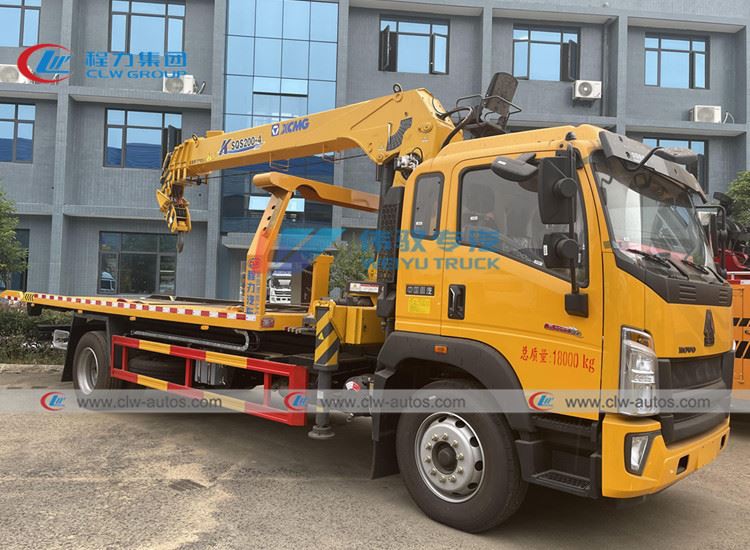

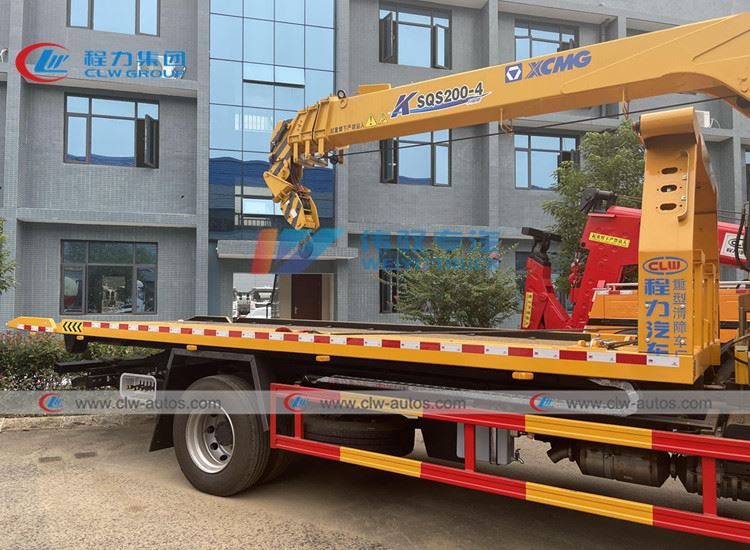

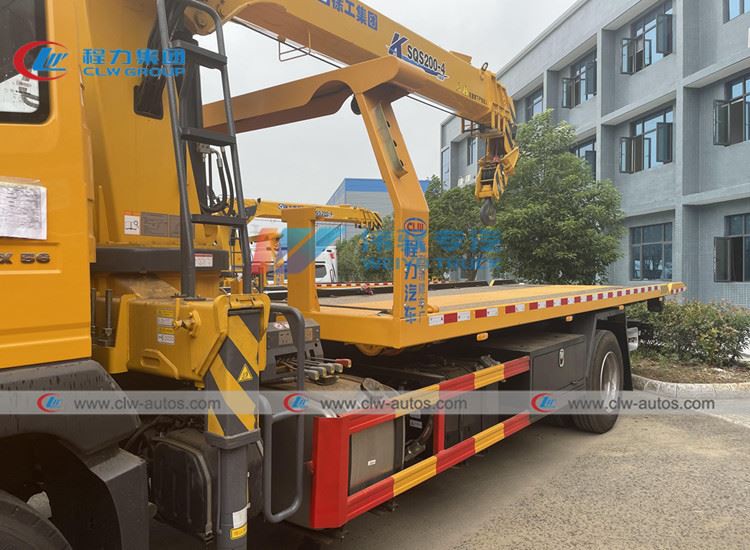

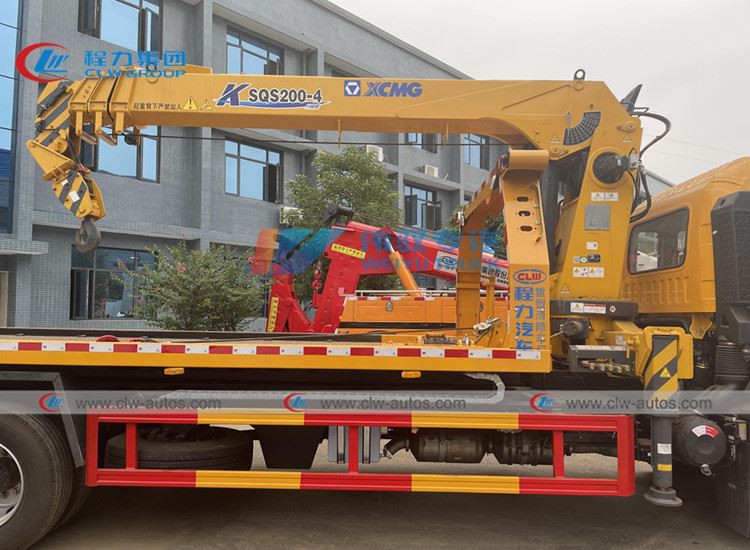

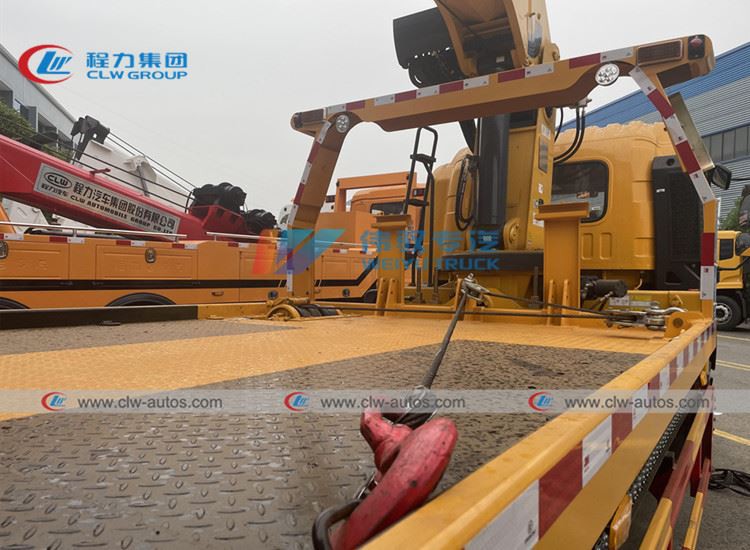

The more pictures of HOWO flatbed towing truck with XCMG brand crane:
