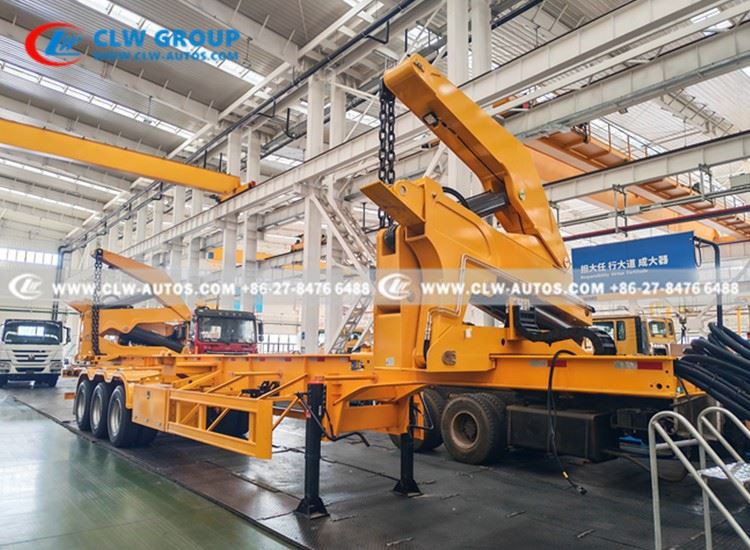

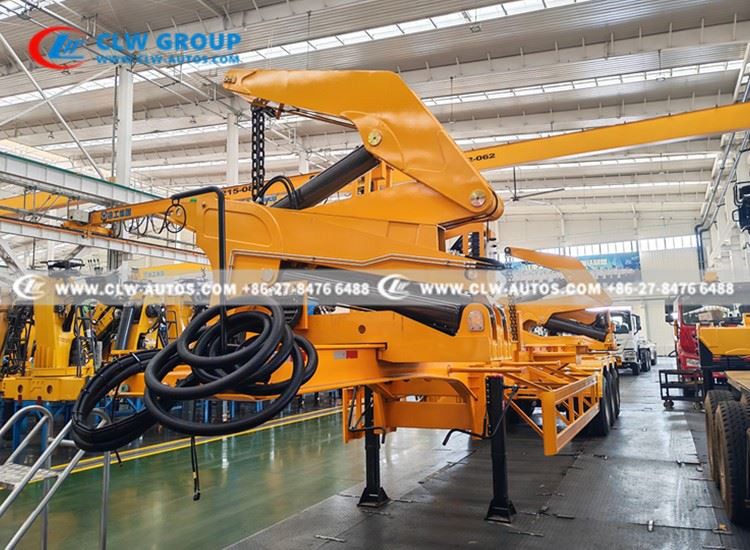

40ft Container Self-Loading Side Loader Trailer

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40ft container self-loading side loader trailer in China. If you're going to buy high quality 40ft container self-loading side loader trailer, welcome to get more information from our factory. For price consultation, contact us.

3 Axles Side Loader Trailer for 20FT/40FT Container Self-Loading, Self-Discharging;   The Autonomous Revolution in Container Logistics!

The 3-Axle Side Loader Trailer is a revolutionary self-sufficient intermodal transport solution engineered for autonomous handling and transportation of standard ISO shipping containers without requiring external cranes, reach stackers, or terminal infrastructure. Featuring an integrated hydraulic side-loading system and a robust 3-axle running gear, this trailer enables one-person operation to pick up, position, transport, and deliver 20ft and 40ft containers in virtually any location-dramatically increasing efficiency in ports, depots, logistics yards, and last-mile delivery operations.

















Trailer Details

Choose the plan that suits you best.

3 Axle BPW/fUWA axles

BPW / FUWA Heavy-Duty Truck & Trailer Axles

XCMG Knuckle Crane

Highly versatile hydraulic cranes featuring multiple folding, articulating boom sections

12R22.5/12.00R20 Tire

Tri-Angle, or Double Coin Tire, Famous brand, Durable.

Emergency Shut off Valve

Manually-activated valve designed to immediately stop working when accidents happened

Equipped Wireless Remote Control



An electronic handheld or body-worn device that allows an operator to safely and remotely command crane, container loading and discharging, industrial systems without a physical connection. Commonly used in cranes, hoists, hydraulic systems, emergency vehicles, and material handling equipment, it enhances operator mobility, safety, and operational flexibility.

3 units Side Loader trailers exported to Nigeria!

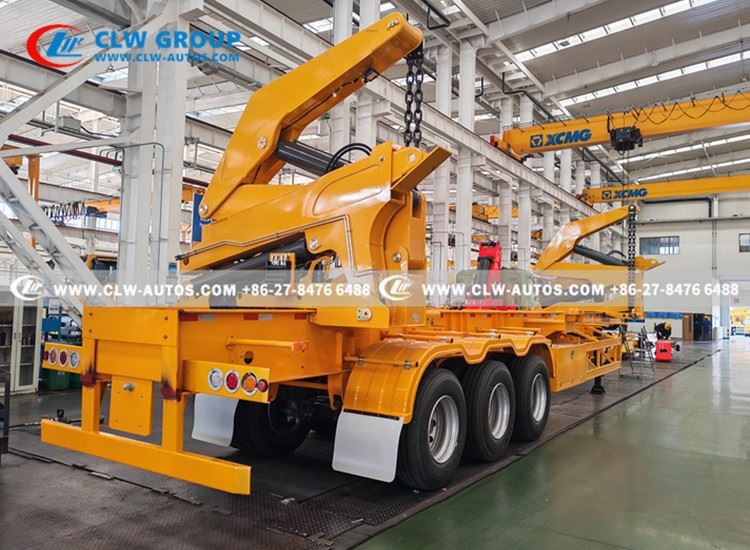

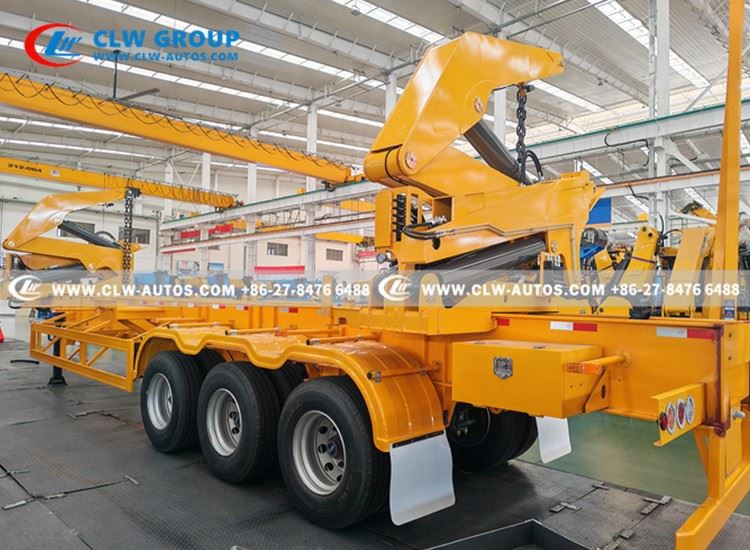

1. Trailer Chassis & Running Gear

• Configuration: Tridem axle (3 axles) with heavy-duty mechanical suspension (optional air suspension).
• Axle Capacity: Up to 13,000 kg per axle, BPW or FUWA brand (total axle load capacity: ~39,000 kg).
• Braking System: Full air brakes with ABS (Anti-lock Braking System) and optional EBS (Electronic Braking System).
• Suspension: Air ride suspension for cargo protection and road stability; optional liftable pusher axle for weight distribution.
• Frame: High-tensile steel main beams with reinforced crossmembers; designed for ISO container twistlock compatibility.
• Coupling: Standard kingpin for compatibility with semi-tractors.

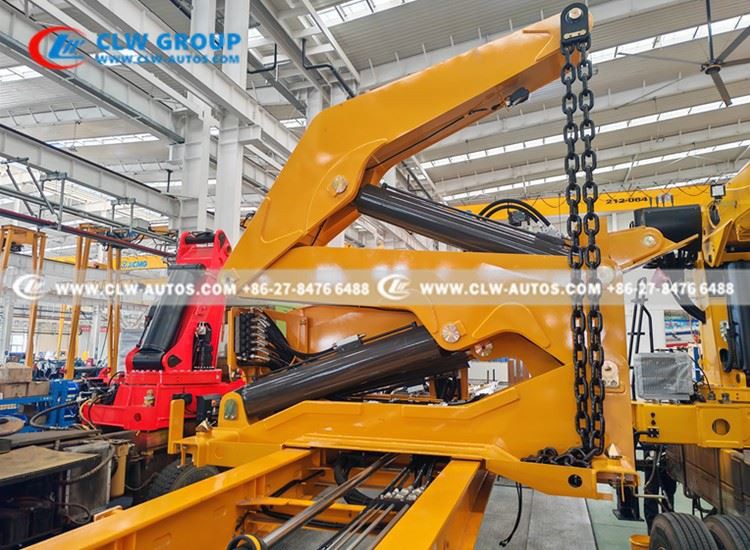

2. Integrated Self-Loading Side-Loader System

• Loading Mechanism: Hydraulic telescopic lifting arms or scissor lift system mounted along the trailer side(s).
• Lifting Capacity: Up to 35,000 kg (capable of handling fully loaded 20ft and 40ft containers).
• Lifting Height: From ground level to trailer bed (approx. 1.2m - 1.5m).
• Lateral Movement: Hydraulic sliding mechanism for precise container positioning across the trailer width.
• Control System: Wired remote control pendant or wireless remote with safety interlocks.
• Operation Time: Full load/unload cycle in 3-5 minutes.

3. Container Handling & Locking System

• Container Compatibility: 20ft (6.058m), 40ft (12.192m), and 45ft ISO containers.
• Twistlock System: Automatic hydraulic twistlocks at all corner positions; manual twistlocks as backup.
• Spreader Option: Integrated hydraulic spreader for handling containers without corner castings (e.g., tank containers).
• Adjustability: Automatic width adjustment for different container sizes.

4. Hydraulic Power Unit

• Power Source: Independent diesel engine (e.g., Deutz, Cummins, Kubota) rated 50-80 HP.
• Hydraulic System: High-pressure gear pumps (pressure: 250-300 bar), proportional control valves, and large-capacity hydraulic cylinders.
• Fuel Tank: 100-150 liter capacity for extended operation.

5.  XCMG Knuckle Boom Crane

• Multiple Articulation Points: Typically 4–5 fully rotational knuckle joints for folding and unfolding in tight spaces.
• Compact Transport Profile: When folded, the crane occupies minimal space on a truck chassis.
• Versatile Reach: Ability to reach over, under, and around obstacles (e.g., buildings, machinery, warehouses).
• Continuous 360° Rotation: Full slewing capability for maximum operational flexibility.

Primary Applications:

• Port Operations: Rapid container movement between ships and storage areas
• Inland Container Depots: Efficient container sorting and storage management
• Last-Mile Logistics: Direct delivery to end-users without crane infrastructure
• Military Logistics: Rapid deployment in field conditions
• Disaster Relief: Quick container handling in emergency situations

Secondary Applications:

• Rail Terminals: Intermodal transfer operations
• Construction Sites: Mobile storage and equipment containers
• Temporary Facilities: Event management and mobile offices
• Agriculture: Portable storage for equipment and supplies

Self-Loading Container Trailer, Side Loader Trailer, 3-Axle Container Carrier, Autonomous Container Handler, ISO Container Transport, Hydraulic Side Loader, Intermodal Logistics Trailer.

The 3-Axle Side Loader Trailer represents a paradigm shift in container handling technology, delivering unprecedented efficiency, flexibility, and cost savings by empowering a single operator and trailer to perform work that traditionally required multiple pieces of equipment and personnel. It is engineered to keep your logistics operations moving-anywhere, anytime.
