Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 2 axle 6 or 8 cars carrier semi trailer in China. If you're going to buy high quality 2 axle 6 or 8 cars carrier semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Description：
This system mainly adopts the transportation vehicles semi-trailer rectangular pipe welded together frame structure, the overall high intensity, light weight, good appearance, have fully enclosed type, half hanging, semi-enclosed and frame type to wait for a few kinds structure, the use of safe and reliable.
The model fully absorbed the features of similar domestic and foreign products, adopt unique lifting system, the key part adopts renowned domestic and foreign products, load ability and high reliability
The whole upper platform can be used on a certain height, thus the car can carry a different specifications of cars, MPV and SUVs and pickup truck, miniature passenger vehicles such as 5-10 vehicles. User's special customized vehicles can possess such special vehicle smoked pull function, can transport various kinds of automobiles, return distribution, and other functions. The car is realized commodity car sales ideal tool for zero miles per hour.
Parameters for 2 Axle 6 or 8 Cars Carrier Semi trailer:
| Trailer Model | 2 Axles car/vehicle carrier semi trailer |
| Overall Dimension(Lx W x H)(mm) | 14600*2900*3000 |
| Function | For car/vehicle transportation |
| Pay Load | For 5 cars (2 cars down deck, 3 cars upper deck) |
| Main Frame | 3 50mm height I beam, Top Flange 1 0 mm, Middle Flange 6 mm; Bottom Flange 1 2 mm |
| Floor | 3mm thickness |
| Axle | FUWA 2 axles X 13T |
| Traction Pin | JOST 3.5 " (90mm) |
| Suspension | Mechanical suspension |
| Landing gear | JOST 25 T |
| Tyre | 11.00R2 2.5 (8 pcs) |
| Spare Wheel Carrier | One set of spare wheel & tyre carrier including a riser. |
| Braking systerm | Dual line-air brake, piggyback spring on all axles; four units of T30/30 spring brake chamber. four lifting hydro-cylinder. Three aircraft jump frames. |
| Electril System | One unit of JAEGER POWAY, 24V 7-pin ISO1185 standard socket; Standard Tail lamp with turn signal, brake light & refletor, Side lamp etc. One set of 6-core standard Cable |
| Painting | Sand blasting processing on rustproof protection. One coat of anticorrosive primer, two coats of finish urethane paint, Color as customer choice. |

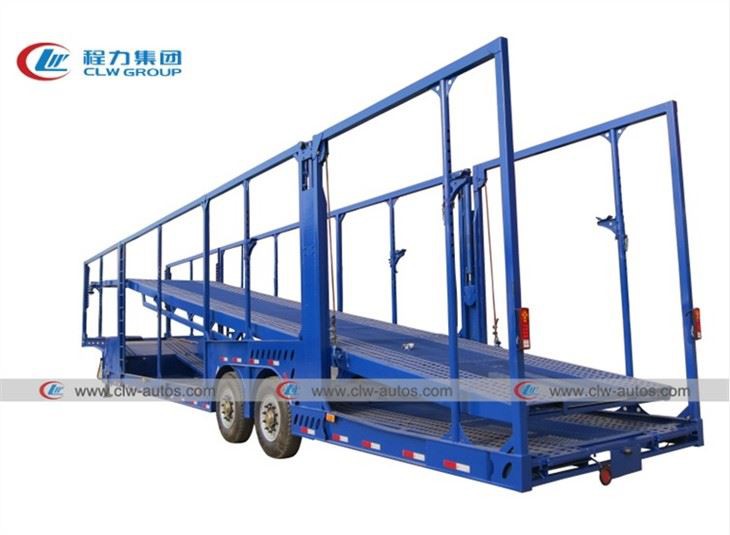

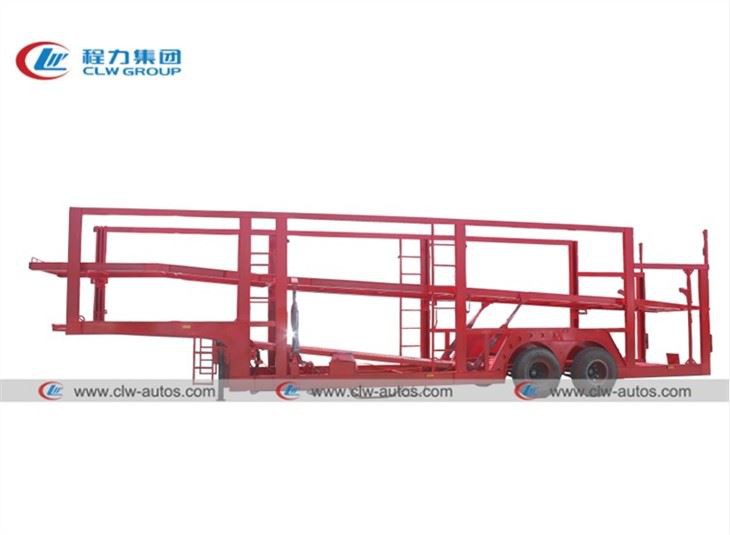

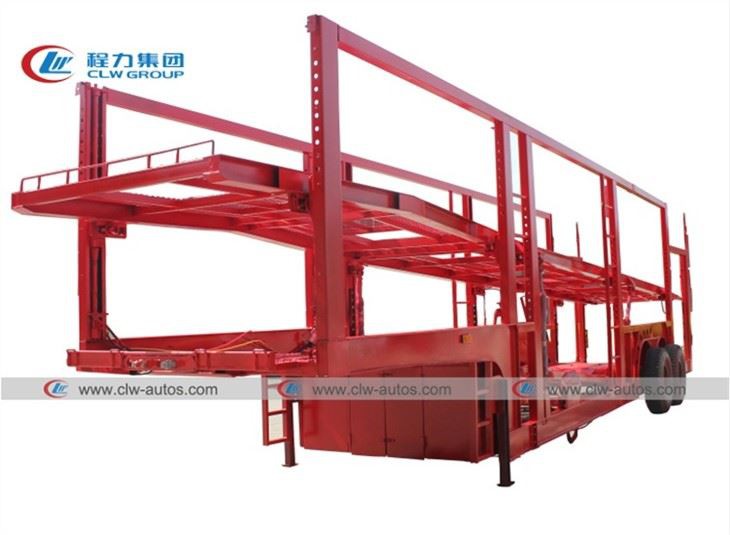

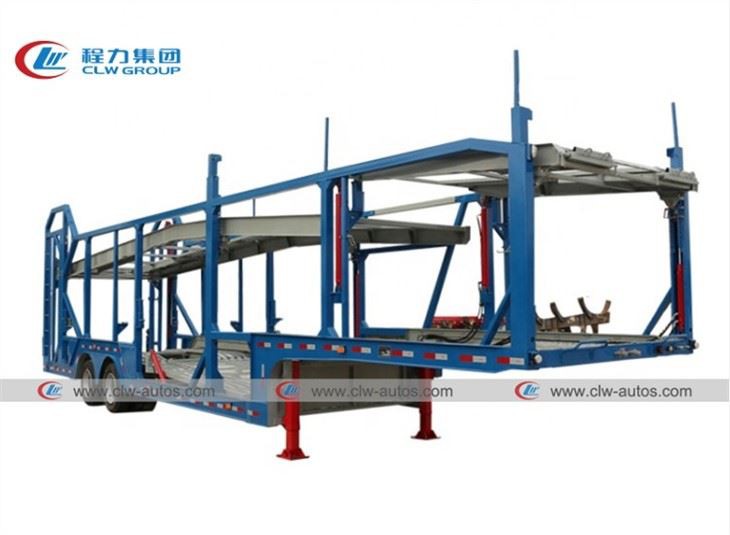

More Pictures for 2 Axle 6 or 8 Cars Carrier Semi trailer:
Main Components of the warranty period:
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | ||
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | ||||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | ||||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | ||||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | ||
| BRKE CHAMBER | 3 MONTHS | SPARE WHEE L CARRIER | 6 MONTHS | ||||
| AIR RESERVOIR | 6 MONTHS | ||||||
| ITEM NAME | WARRANTY | ||||||
| OTHERS | LEAF SPRING | 3 MONTHS | |||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | ||||||
| EMERGENCY RELAY VALVE | 3 MONTHS | ||||||
| BRAKE SHOE | 3 MONTHS | ||||||
| RELAY VALVE | 3 MONTHS | ||||||
Sea Transport Method to abroad:
You can choose the shipping way, by container vessel / Ro-Ro vessel or bulk vessel. We will spray wax before shipment.
Container Loading Pictures for reference:
