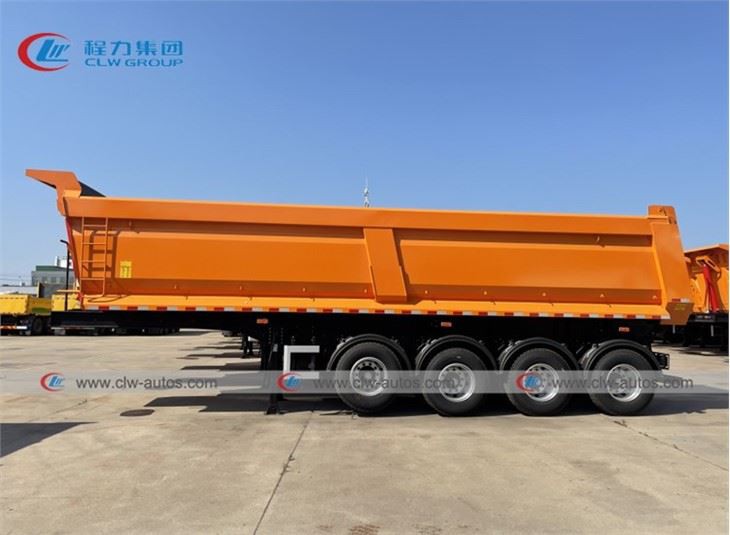

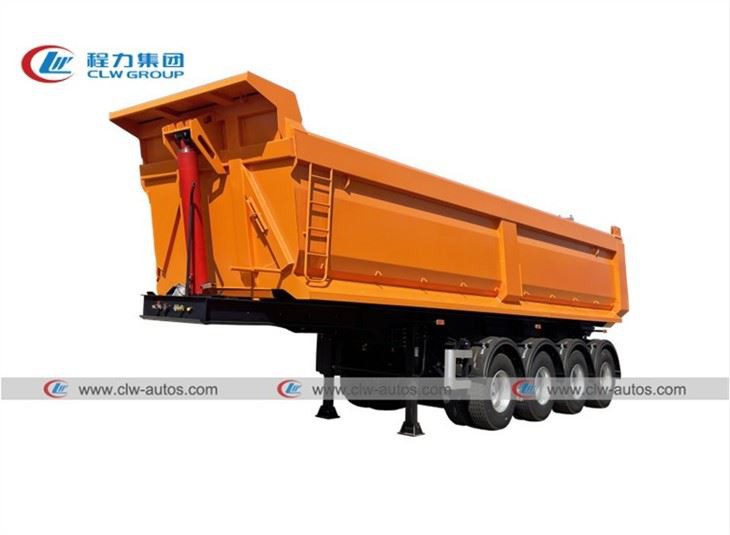

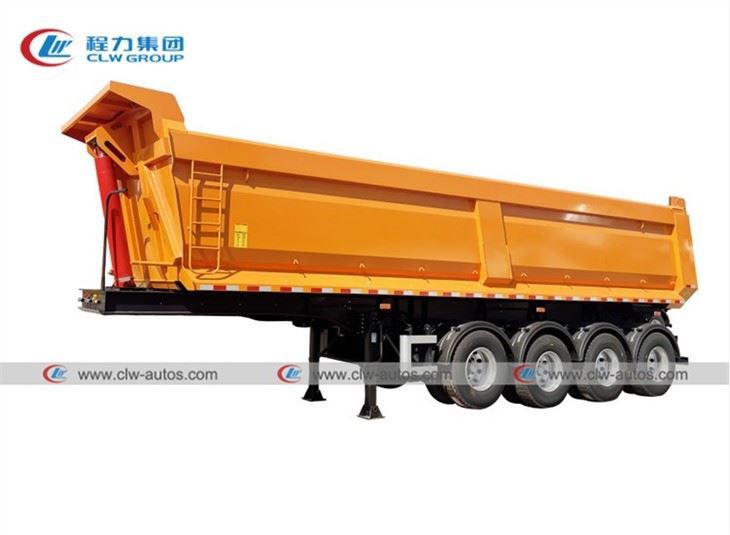

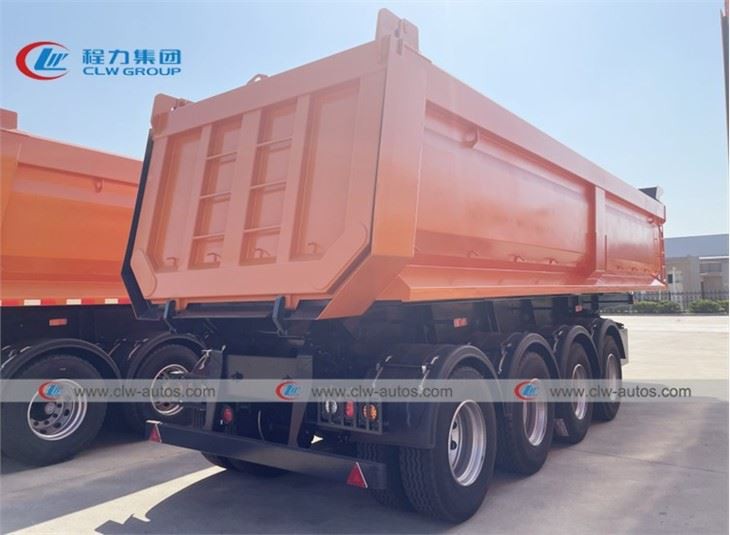

4 Axle 60Tons Dump Tipper Truck Trailer With Front Axle Liftable

The dump/tipper semi-trailer is applicable to the transportation of bulk goods such as coal, ore and building materials.Coal mine stone in minning area etc.

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axle 60tons dump tipper truck trailer with front axle liftable in China. If you're going to buy high quality 4 axle 60tons dump tipper truck trailer with front axle liftable, welcome to get more information from our factory. For price consultation, contact us.

Goods Descrition:

Features:

1. The Tipper carriage/Box adopts side tipping and back tipping self unloading methods, which can effectively transport bulk goods by loader.

2. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate, and the cargo box has two types: dustpan and rectangle. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no permanent deformation.

3. Sophisticated technology: the main components are processed with advanced equipment, the longitudinal beam is fully automatic submerged arc welded, and the assembly machine is used to accurately assemble the axle and leaf spring.

Main Specification:

Axle: L1/FUWA/BPW 13Tons, 4 Pieces, Front one liftable;
Suspension: Germany type heavy duty mechanical suspension for rear three axles,
Air bag suspension for front first axle;
King Pin: 3.5'', 90#, JOST brand;
Landing Gear: JOST brand;
9.00-22.5 wheel rim; 315/80R22.5 tire, 17 pieces including one spare tire, with two spare tire carriers;
Tipper body size: 9500mmx2300mmx1600mm, U-shape, 33CBM effective volume;
Side thickness: 5mm; Bottom thickness: 6mm;
Tipper body material: NM450 Wear resistant steel;
Hydraulic system: HYVA brand FE 191,
With ABS, Electric Control Tarpaulin;
Color and LOGO painting as requirement.
