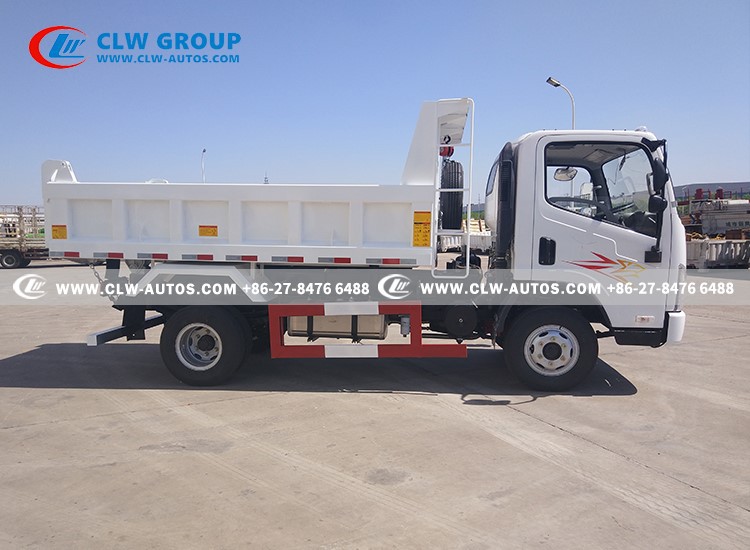

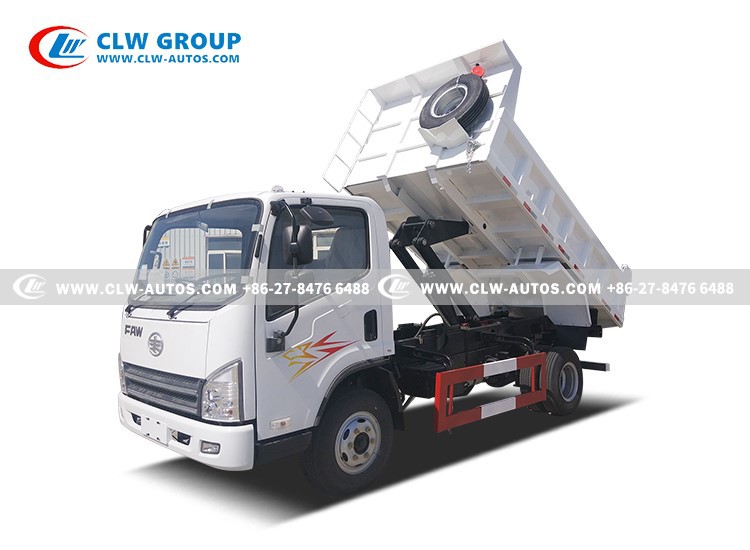

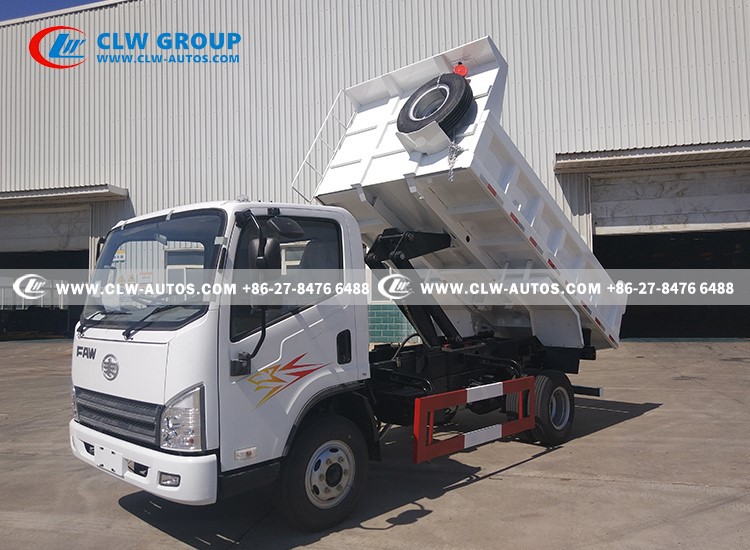

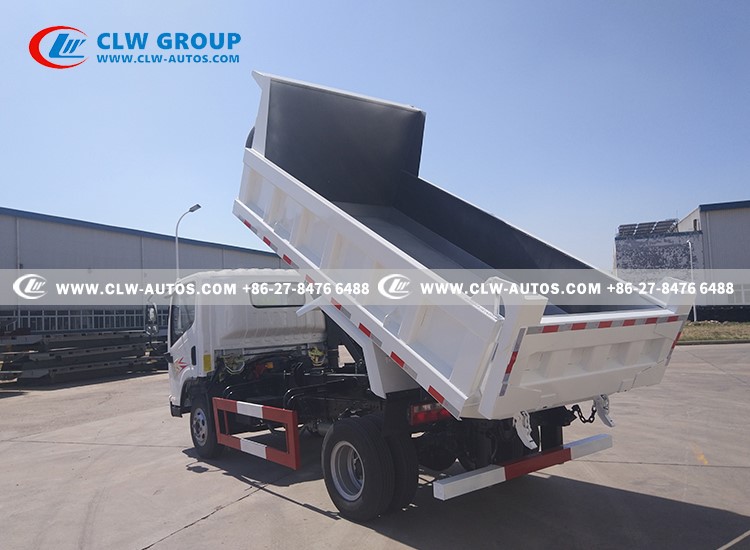

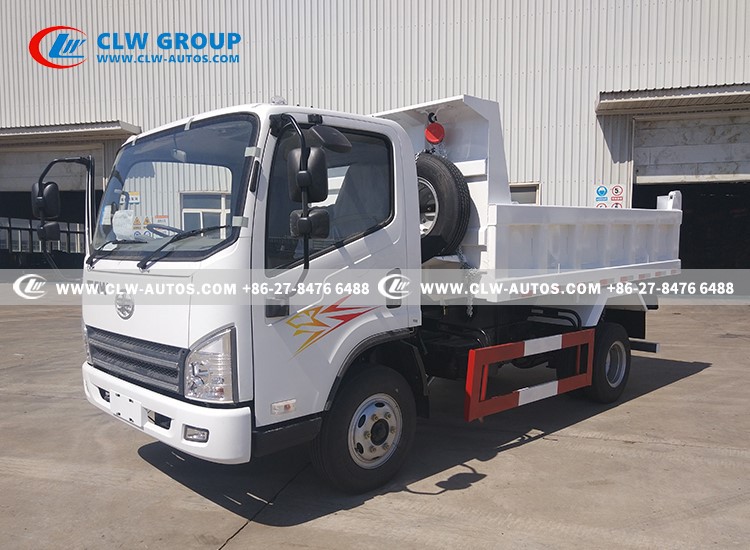

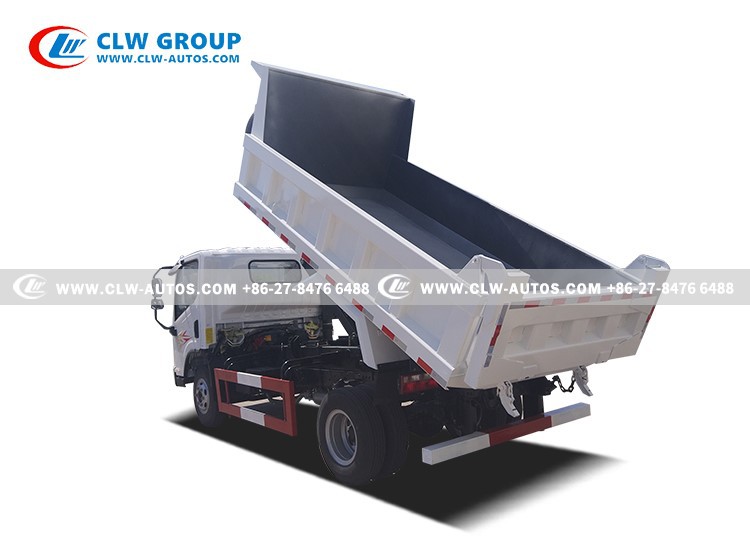

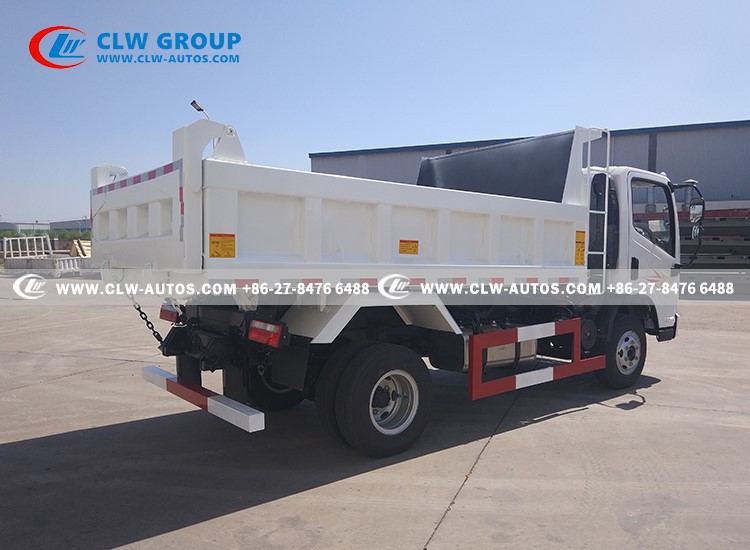

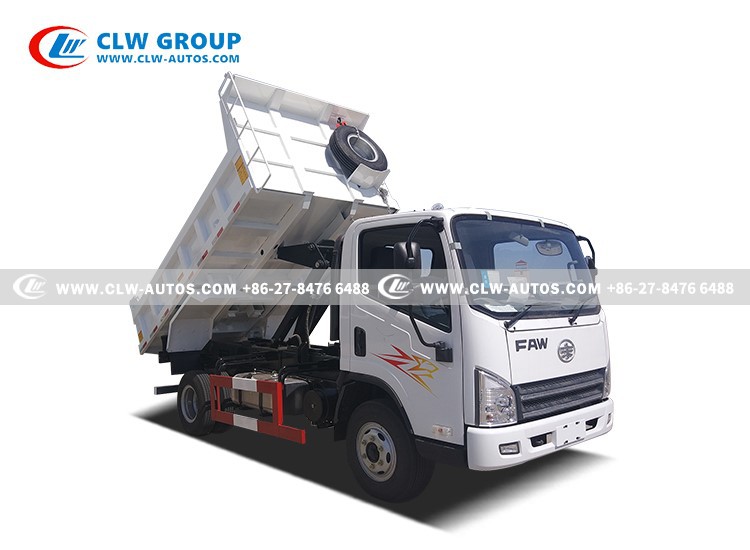

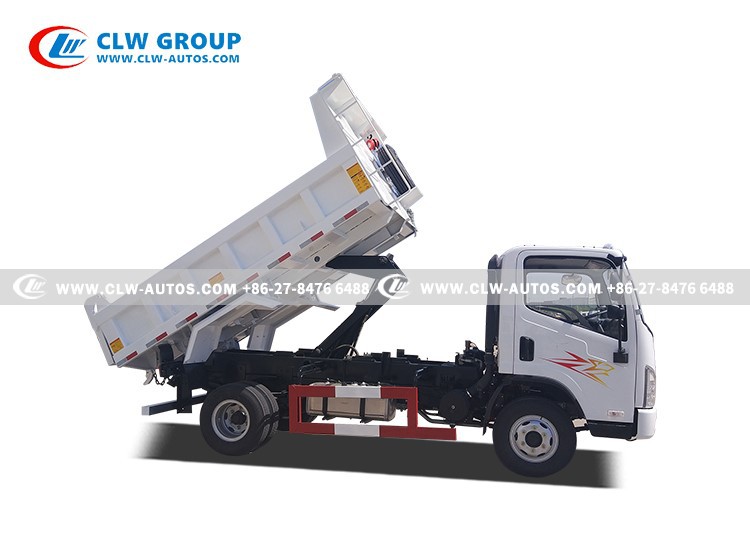

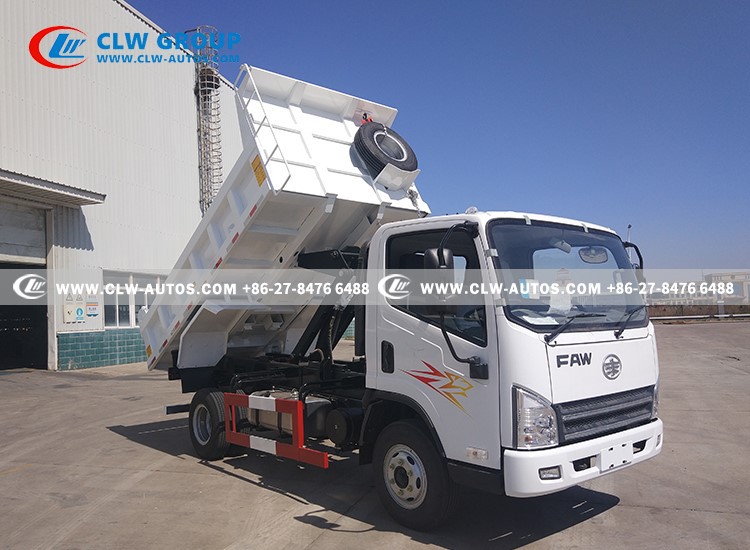

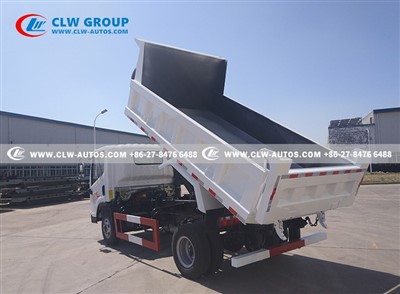

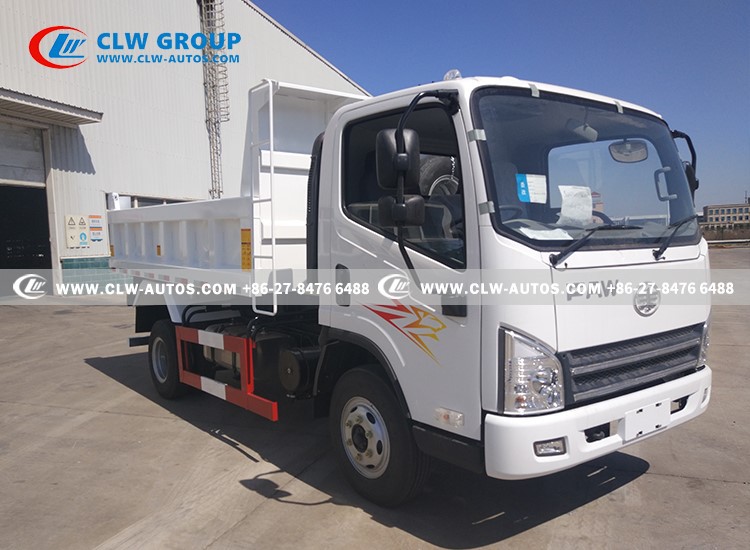

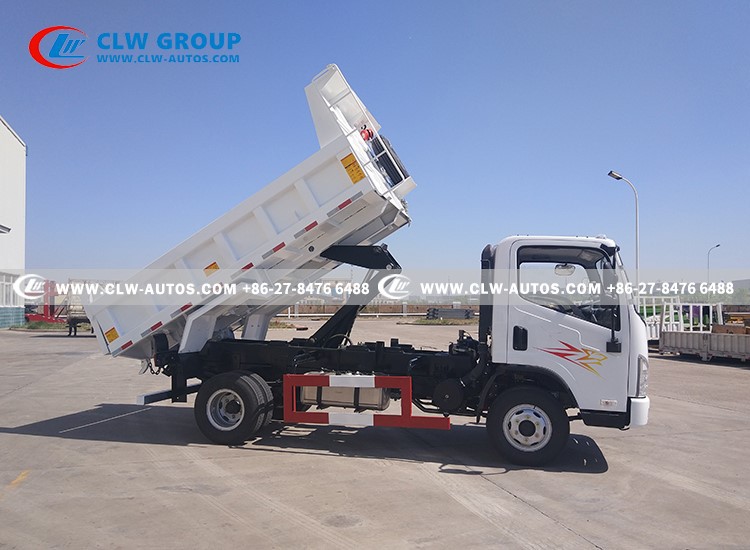

FAW Tiger 5Tons Mini Dump Truck

Chassis brand:FAW Tiger V
Loading Capacity:5,000kgs
Engine:Yuchai diesel engine,130HP
Oil cylinder:Middle tipping oil cylinder

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw tiger 5tons mini dump truck in China. If you're going to buy high quality faw tiger 5tons mini dump truck, welcome to get more information from our factory. For price consultation, contact us.

FAW Tiger VH 4x2 130HP 5Tons Mini Rear Dump Truck

Brand New Truck, Factory Price For Sale.

Products Descriptions

Rear dump trucks, also known as rear tipping trucks or rear tipper trucks, are vehicles designed for transporting heavy loads.They feature a back part that can be raised at one end to facilitate the unloading of contents. These trucks, equipped with hydraulic cylinders driven by the engine, are commonly used in urban waste management, construction, mineral transportation, and other industries.

Being a domestic brand in China, FAW boasts a global user base of 7 million. The sales volume of their heavy and medium-duty trucks under a single brand ranked first in the world in 2018, 2019, and 2020.

The Tiger V, a flagship product of FAW's new generation of wide-body light trucks, offers the following product features:

- FAW chassis: Leading commercial vehicle brand in China, regarded as First Class globally
- Made of Q235 carbon steel with a thickness of 3mm on the sides and 4mm at the bottom
- Equipped with China's renowned middle tipping hydraulic oil cylinder

For quick inquiry, please contact:

Whatsapp/Wechat: +86 139 2570 3918

Email: juniper@clw-autos.com

Products Parameters

Chassis brand	FAW
Driving type	4x2
Loading Capacity	5,000kgs
Cabin	Tiger VH, LHD, single row, with AC
Engine	Yuchai Diesel Engine YC4D130-33, 130HP
Emission	Euro II
Displacement	4.2L
Transmission	Manual, WLY 6TS55, 6 Forward & 1 Reverse
Clutch	Ф330
Front axle load	2,900kgs
Front suspension	Leaf spring
Rear axle load	8,000kgs
Rear suspension	Leaf spring
Fuel Tank	100L with locking fuel cap
Wheel base	3300mm
Tyres	8.25R16, 6 pcs with 1 spare tire
Dump Box Material	Q235 carbon steel
Dump Box Size	42002300410mm / 3.9m3
Dump Box Thickness	Side 3mm, Bottom 4mm
Oil Cylinder	Middle Tipping
