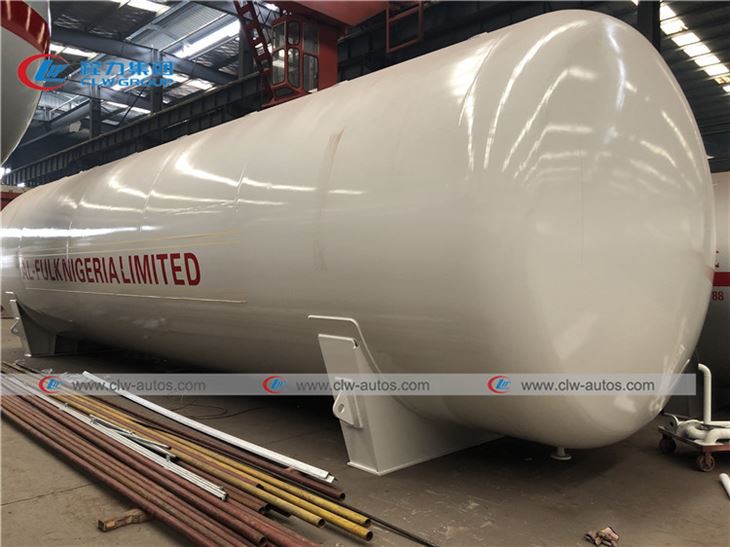

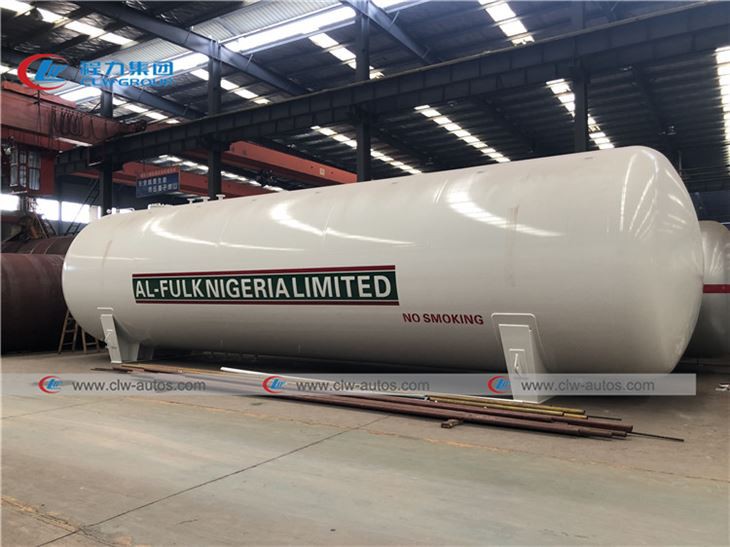

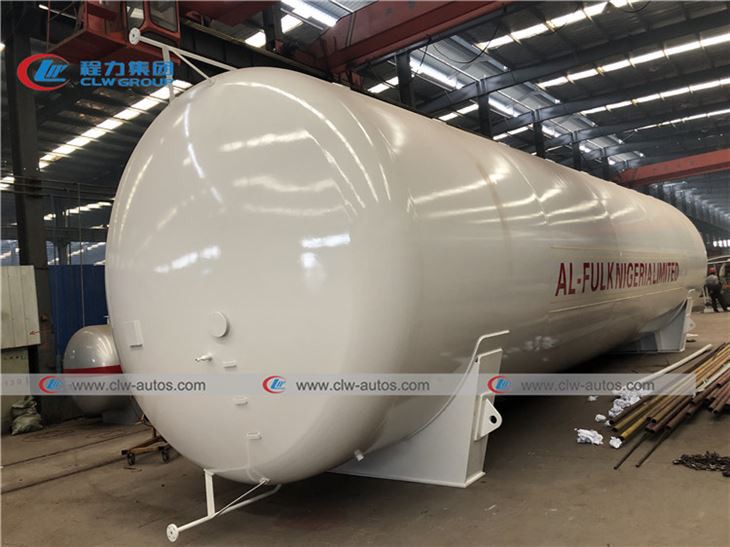

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 100cbm cooking gas tank in China. If you're going to buy high quality 100cbm cooking gas tank, welcome to get more information from our factory. For price consultation, contact us.
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg gas plant tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
1. Steel Plate Cutting &Rolling
2. Tanker Body Welding
3. X-ray Welding Seam Detection: each vertical and circular welding seam will be X-ray tested, to prevent welding defective like bubble & cracks
4. Whole Tanker Heat Treatment
5.Water Pressure Test: hydraulic water pressure test: 2.22 Mpa, to make sure tanker meet designed pressure

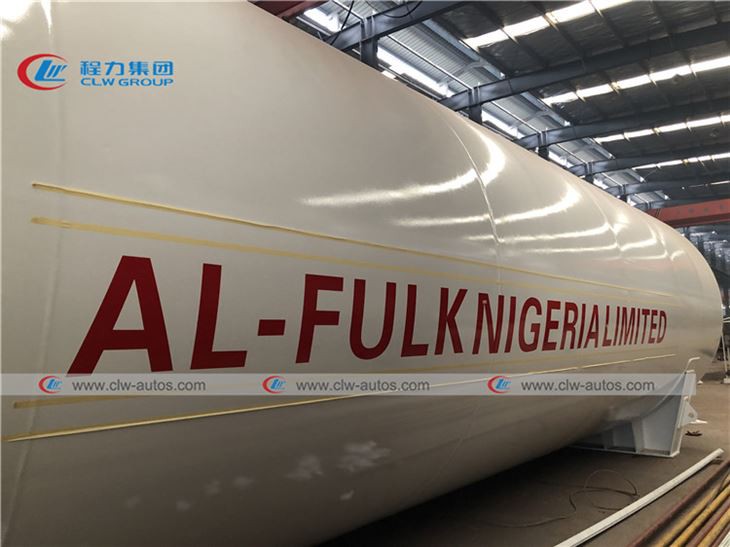

6. Painting with customize logo
| ||||||
ITEM | PARAMETER | ITEM | PARAMETER | |||
Volume | 100cbm | Thickness of Shell | 16mm | |||
Tank Material | Q345R | Thickness of End plate | 18mm | |||
Overall Size | 13866*3132*3722mm | Tank Net Weight | 20410kg | |||
Tank Diameter | 3100mm | Loading Capacity | 39900kg | |||
Design Pressure | 1.77Mpa | Gas Density | 510~590kg/M3 | |||
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
Design Temperature | -20ºC~50ºC | Heat Treatment | Bulk | |||
Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
Life time | 15 years | |||||
Accessories | ||||||
Model | Item | Qty | Junction surface | |||
J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
J41N-2.5-80 | Stop Valve DN80 | 2 | RF | |||
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
A42F-25-80 | Safety Valve DN80 | 2 | RF | |||
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||
