Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 45,000liters propane gas tank in China. If you're going to buy high quality 45,000liters propane gas tank, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg gas plant tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
Production Procedure
1. Steel Plate Cutting &Rolling
2. Tanker Body Welding
3. X-ray Welding Seam Detection: each vertical and circular welding seam will be X-ray tested, to prevent welding defective like bubble & cracks
4. Whole Tanker Heat Treatment
5.Water Pressure Test: hydraulic water pressure test: 2.22 Mpa, to make sure tanker meet designed pressure
6. Painting with customize logo
Re

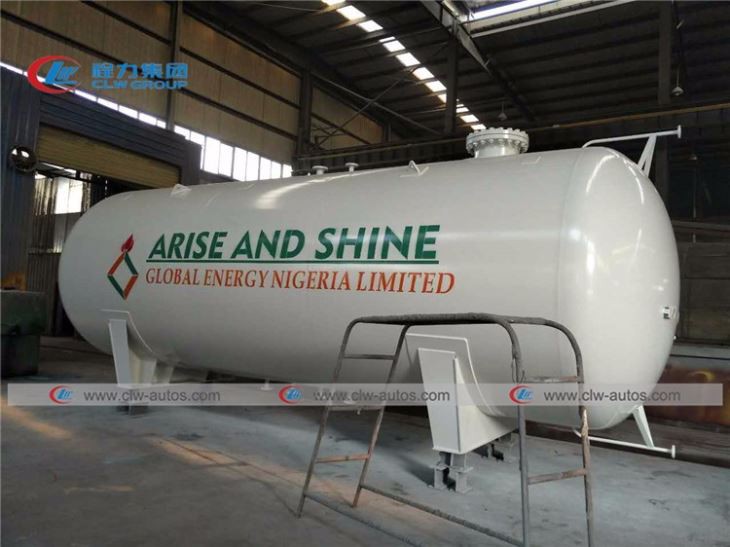

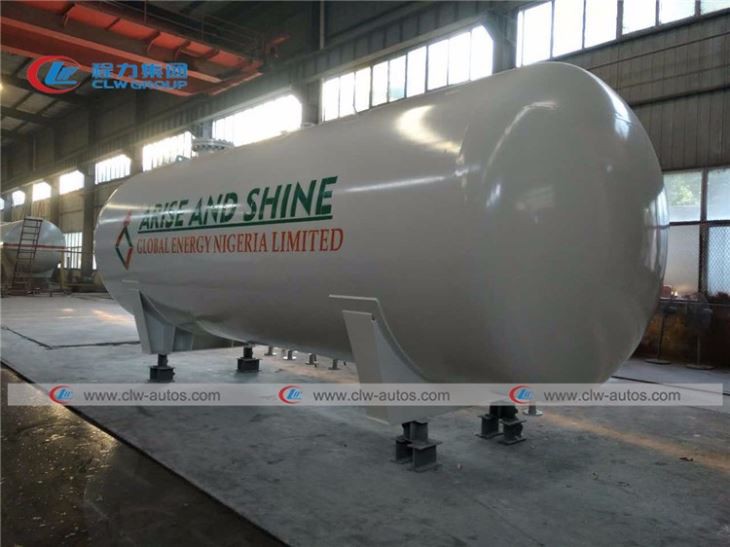

ference picture
Specification
Volume of Tank | 45000liters | ||
Filling Weight | 17955kg | ||
Tank Weight | 10220kg | ||
Thickness of Shell (mm) | 14 mm | ||
Thickness of End plate (mm) | 16 mm | ||
Tank Diameter (mm) | 2700 mm | ||
External Dimensions (mm) (length x width x height) | 8342 X2728X3318 mm | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa / 17.7Bar | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420kg~590kg kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification | Quantity | |
Discharge Pipe | DN80 | 1 | |
Inflow Pipe | DN80 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Drain Hole | DN50 | 1 | |
Manhole | DN450 | 1 | |
Air-out Pipe | DN50 | 1 | |
Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): | |||
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. | |||
