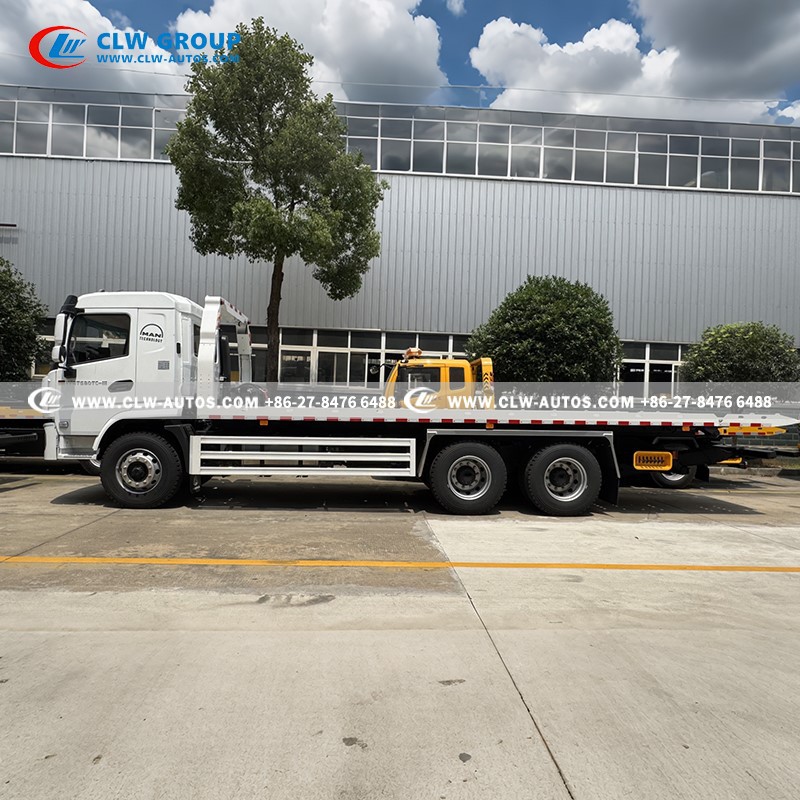

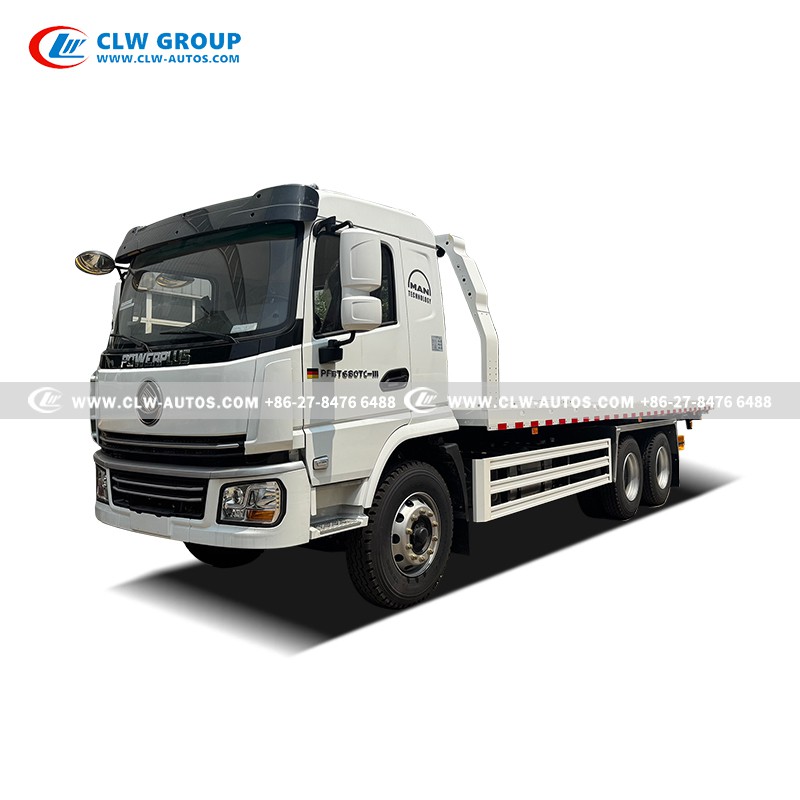

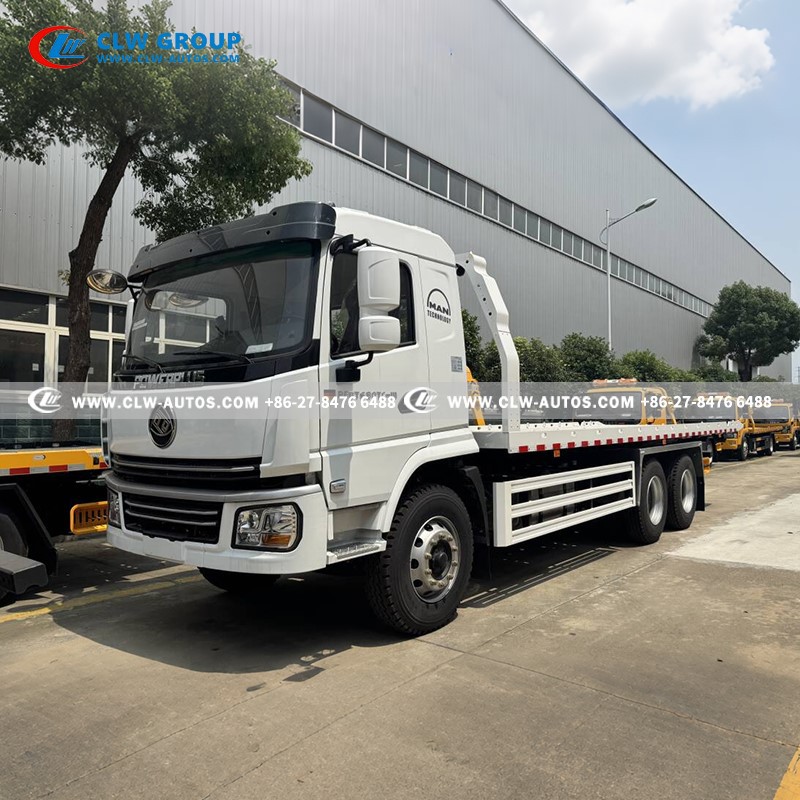

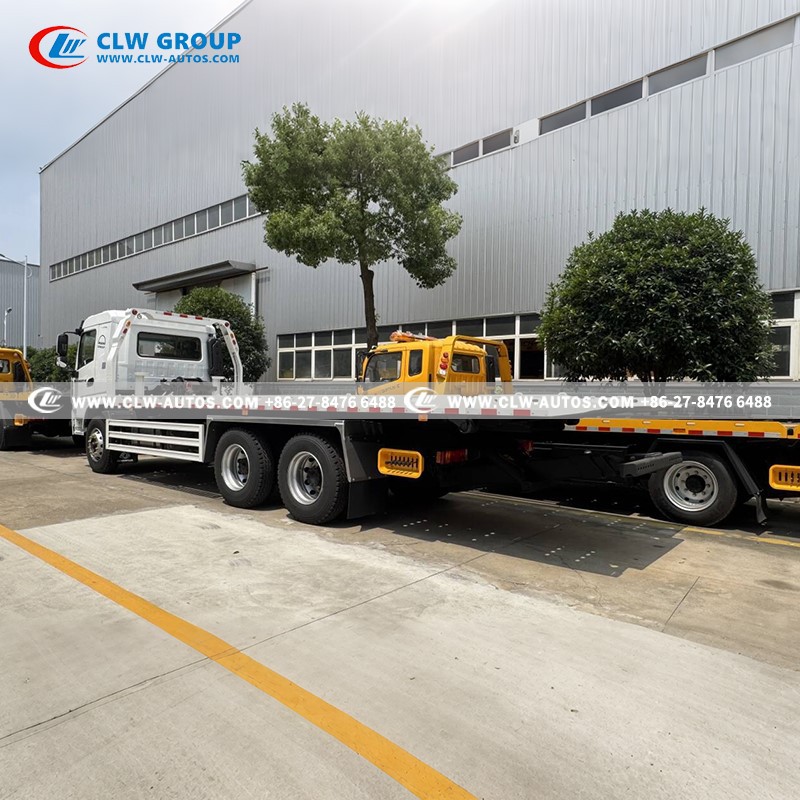

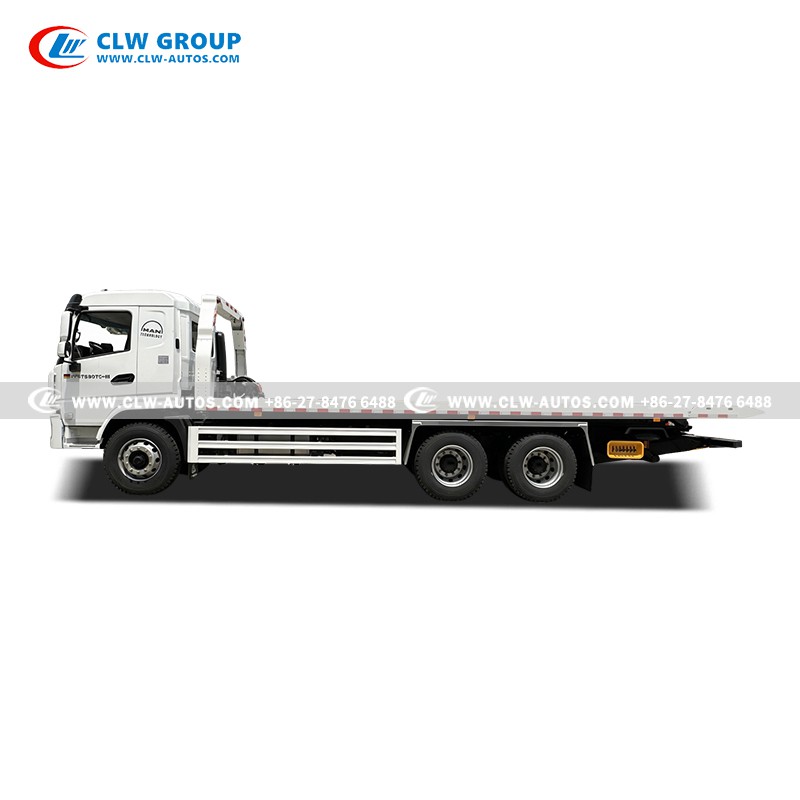

10Tons Flatbed Wrecker Truck

Platform Material: Built with 8mm heavy-duty checkered steel plate for high impact and wear resistance during machinery loading.

Dimensional Specs: Length 8.3 meters, Width 2.55 meters; compatible with wide-track industrial equipment.

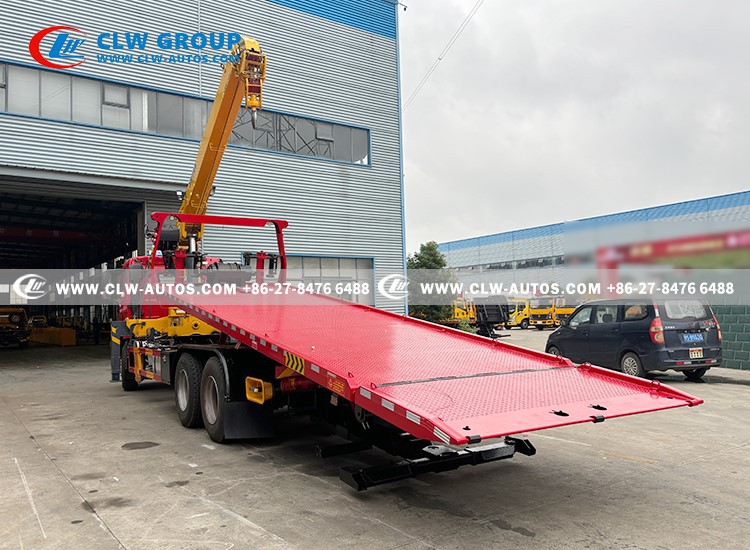

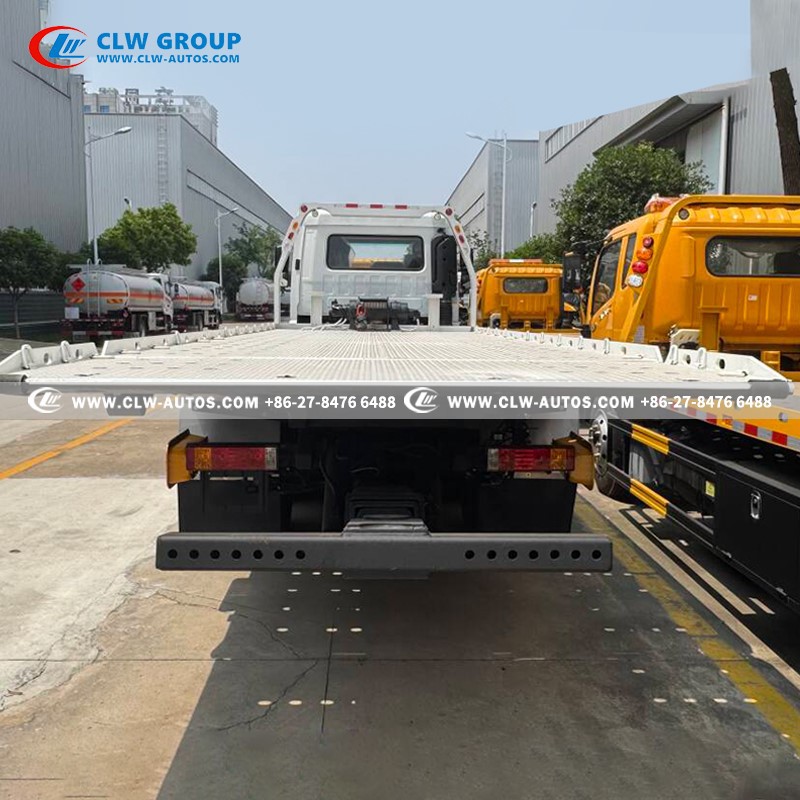

Structural Design: Features a sunken-bed structure to lower the vehicle's center of gravity and loading angle. Equipped with a hydraulic folding tail board utilizing a through-shaft hinge for seamless machine loading.

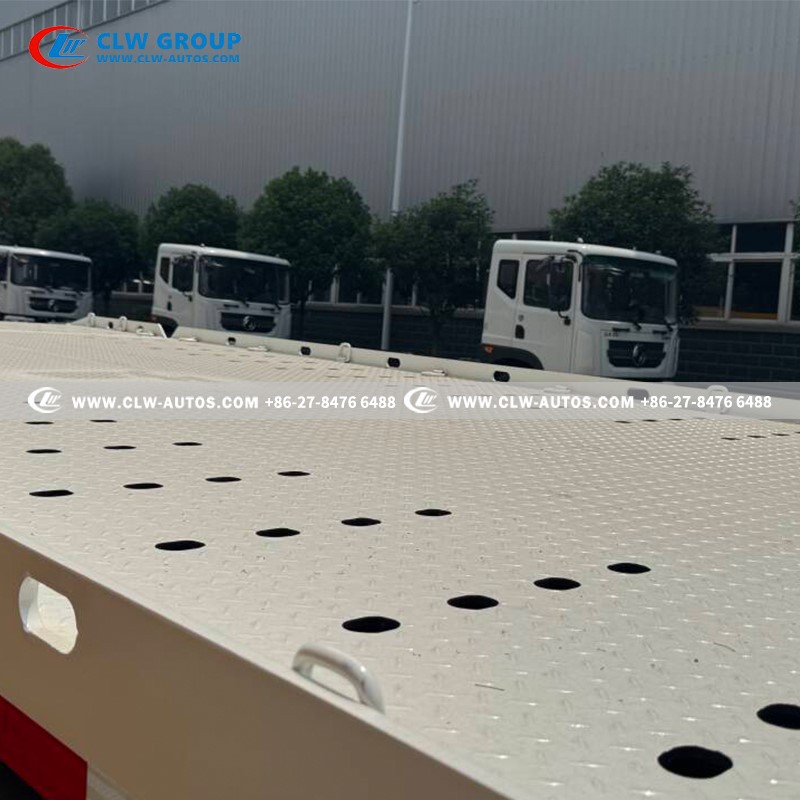

Securing Points: Pre-punched perforated bed plate and integrated 16mm thin-border tie-down slots allow flexible, multi-point strap positioning.

Dual-Vehicle Recovery (1-to-2 Setup): Simultaneously carries one vehicle on the deck while towing a second vehicle via the rear underlift.

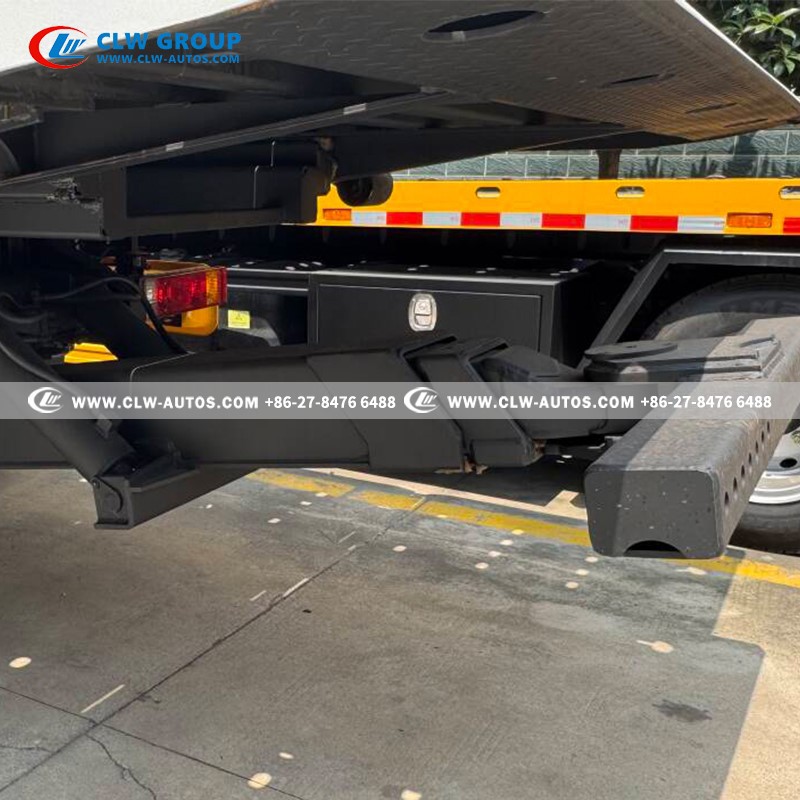

3-Stage Underlift: 8-ton rated independent lift arm driven by heavy-duty dual tilt cylinders, accommodating buses, medium trucks, and rigid chassis.

Hydraulic Cylinder Specifications:

Bed Extension Cylinder: Φ 110 mm

Bed Lifting Cylinder: Φ 90 mm

Underlift Lift Cylinder: Φ 100 mm

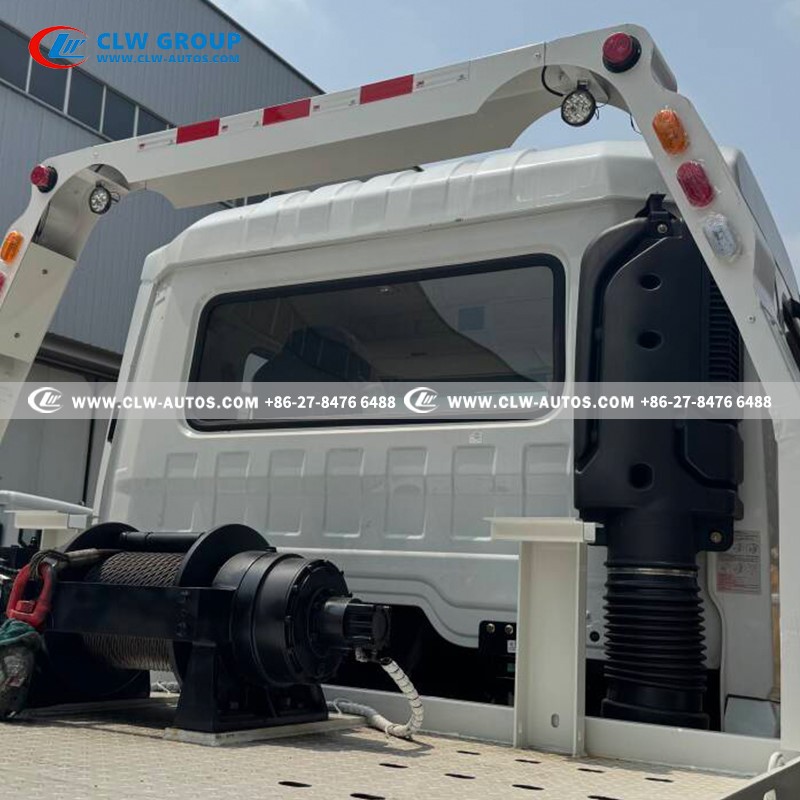

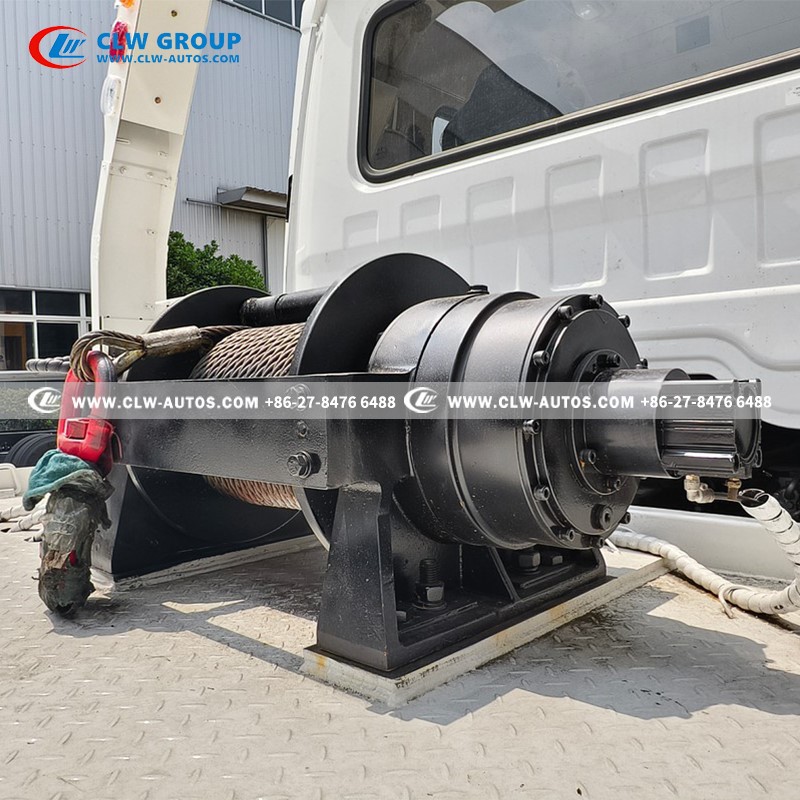

Heavy-Duty Winch: 10-ton rated hydraulic planetary winch with 25-meter high-tensile steel wire rope and integrated cable presser to prevent birdnesting.

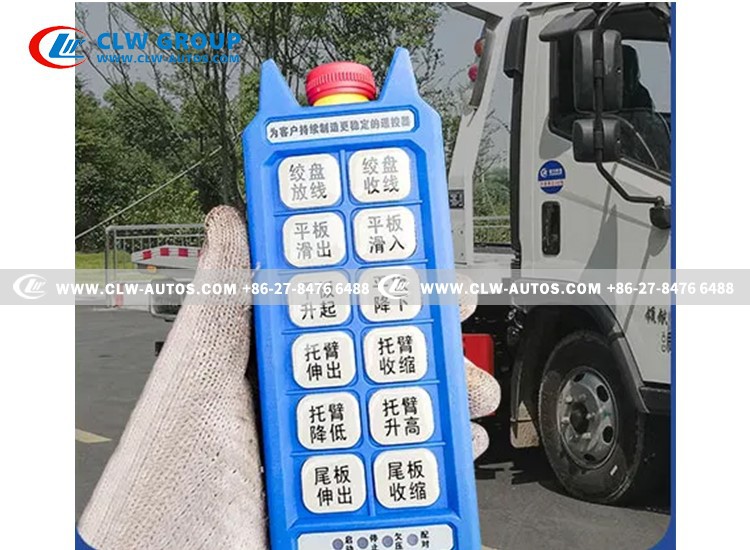

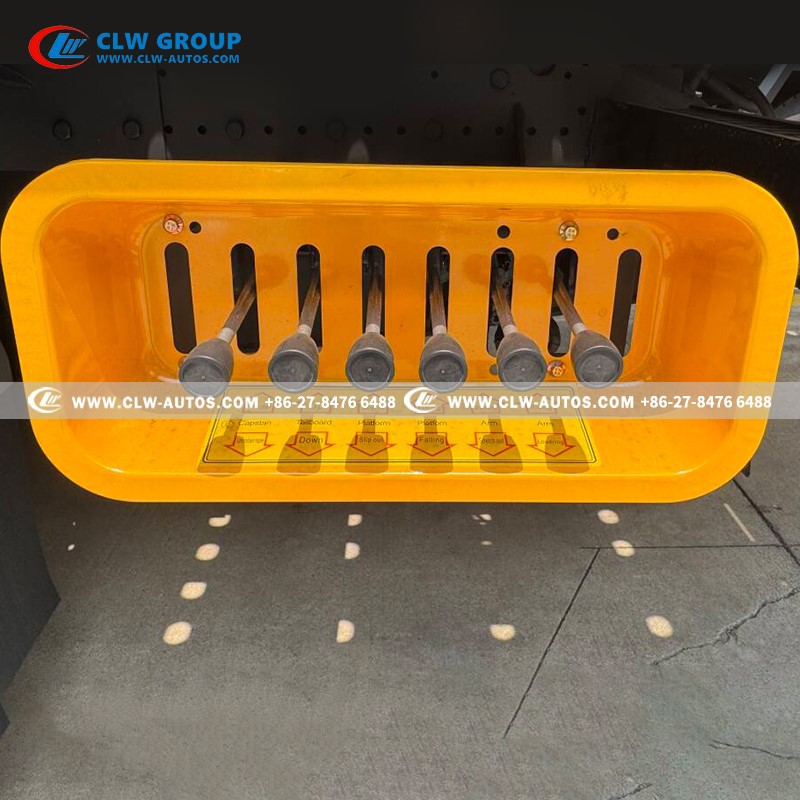

Control Unit: Dual-side mechanical linkage control system allowing safe operation from either side of the vehicle.

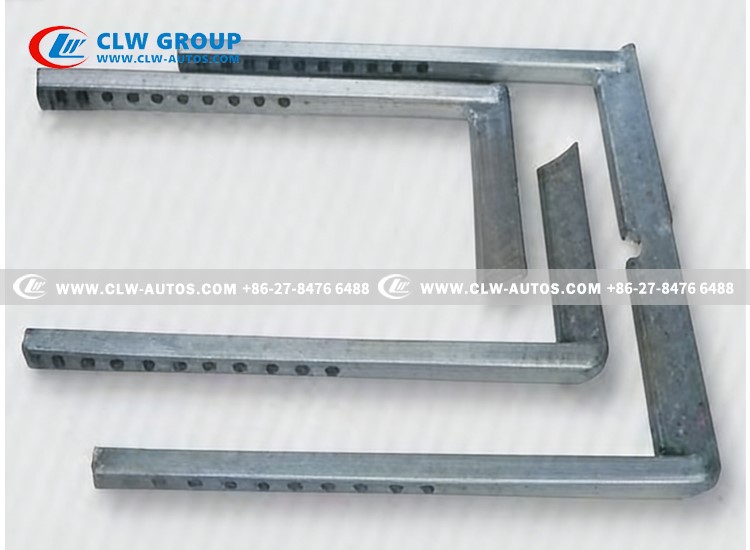

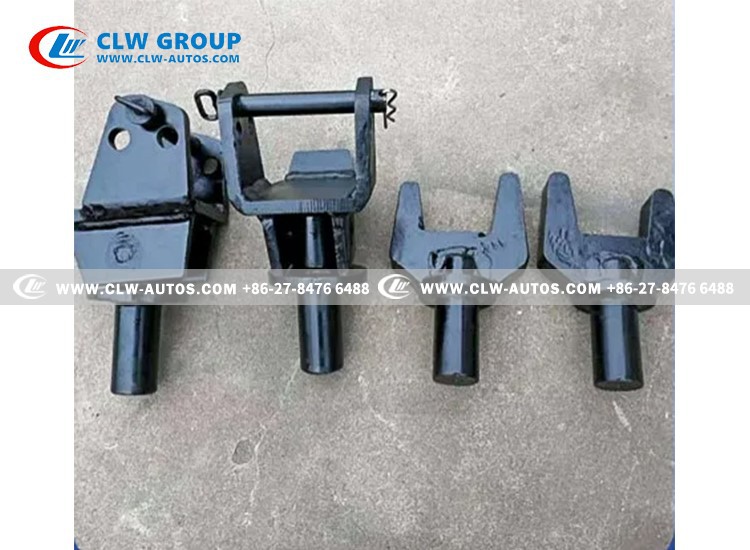

Towing Accessories: Included 1 pair of towing fork receivers, 2 pairs of variable-size cast-steel towing forks, and 1 pair of L-shaped wheel receptors for axle-lift and frame-lift configurations.

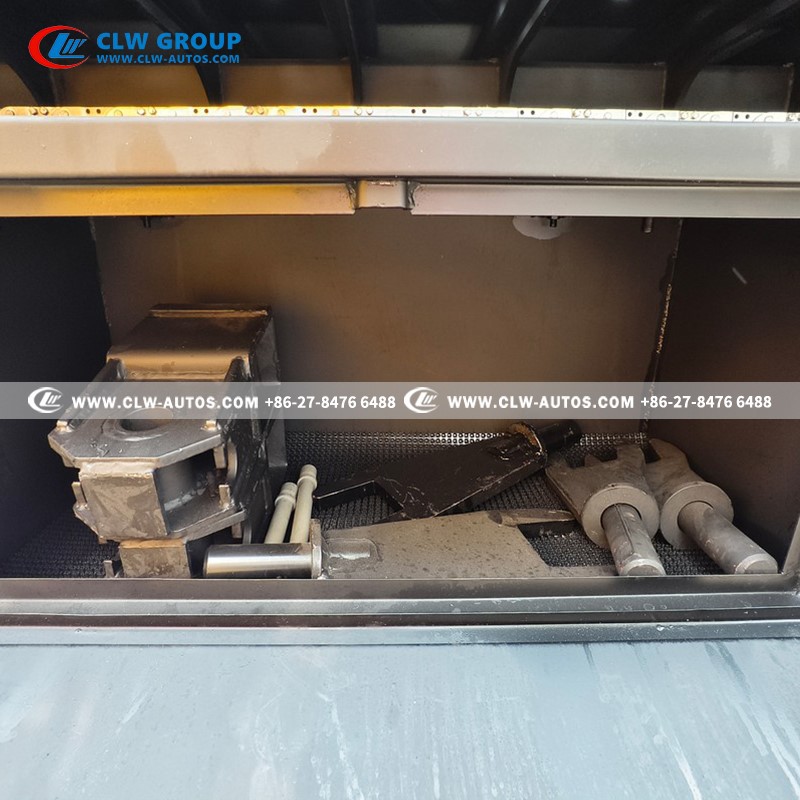

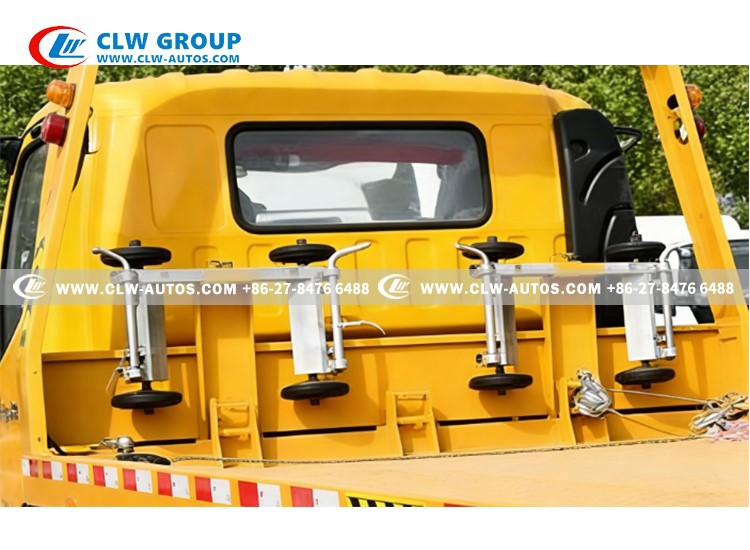

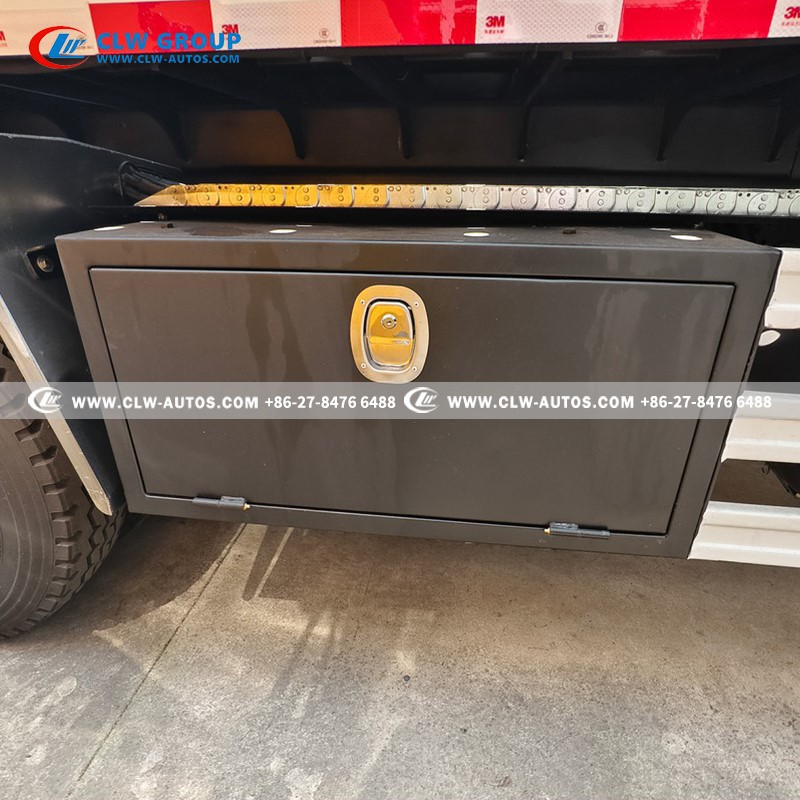

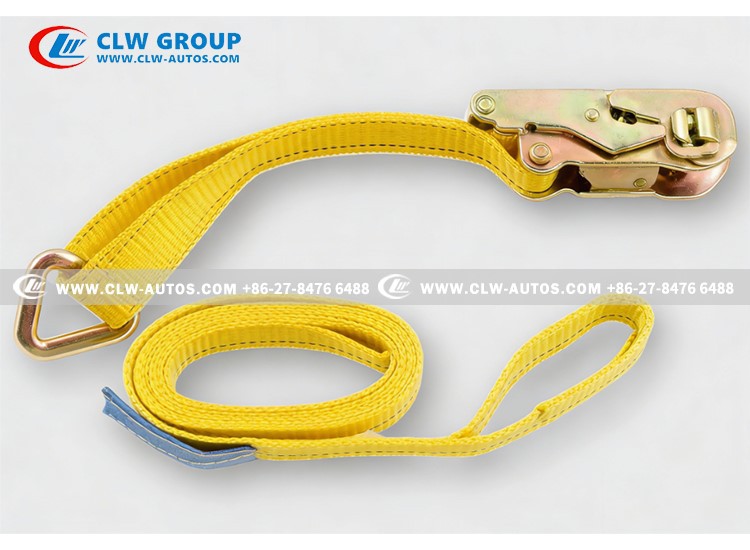

Logistics & Safety: Custom-built under-chassis toolbox, 6 heavy-duty tie-down straps, 2 auxiliary dollies, 2 wheel chocks, hook chain, and an integrated hand-washing tank.

Visibility: Factory-applied high-visibility reflective striping conforming to international transport safety standards.

Dual-Side Linkage : Mechanical links ensure that operating a lever on the left side simultaneously moves the corresponding lever on the right side.

Proportional Control : The hydraulic spool valves allow proportional metering, meaning the speed of the cylinders/winch is directly proportional to how far the operator pushes the lever.

Ergonomic Protection : Encased in a heavy-duty stamped steel control box (painted signal yellow) to prevent accidental engagement and environmental wear.
