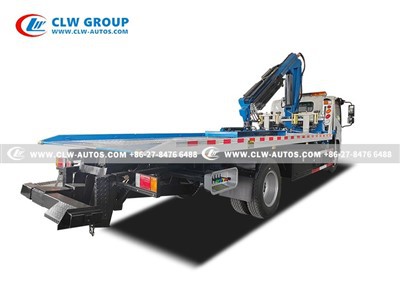

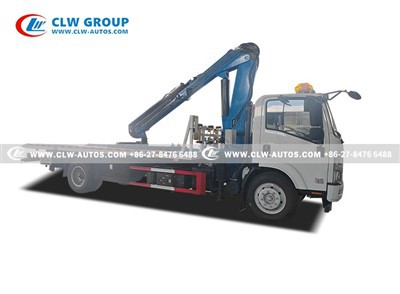

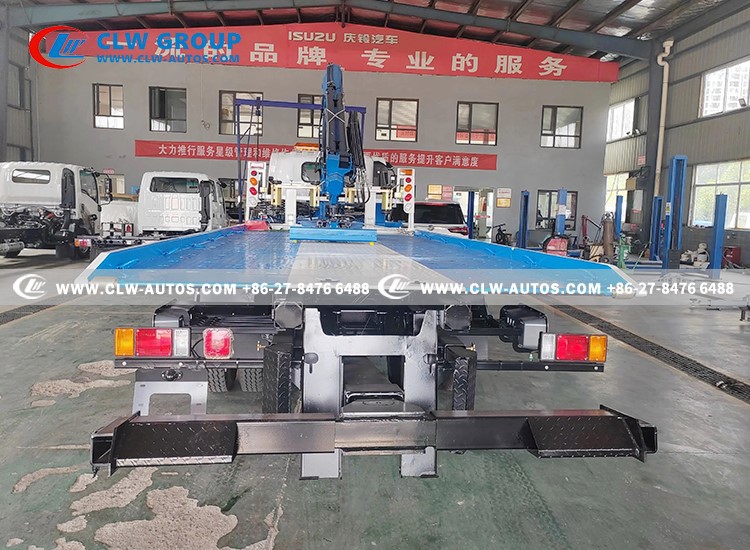

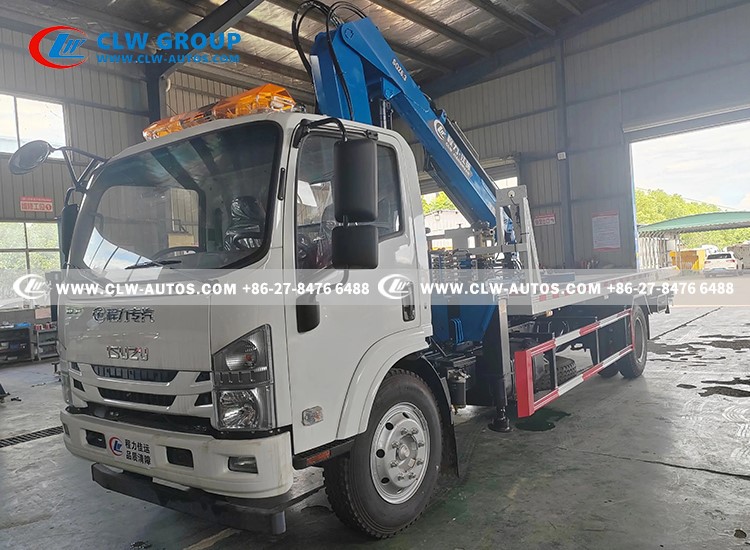

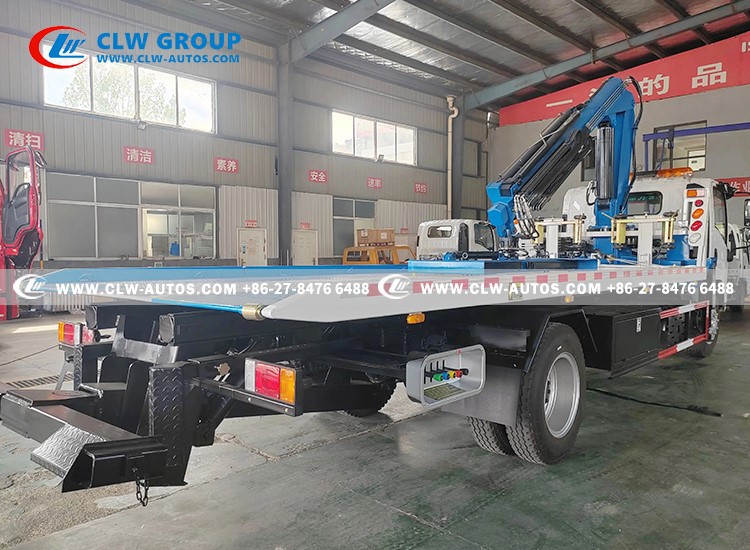

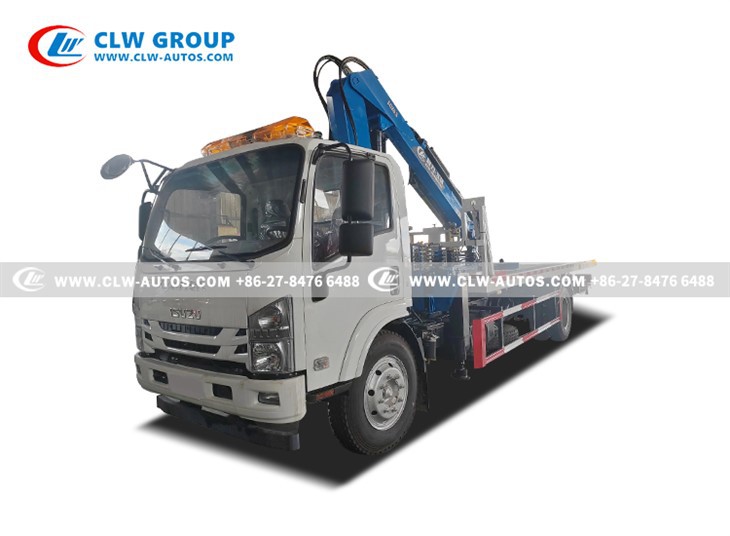

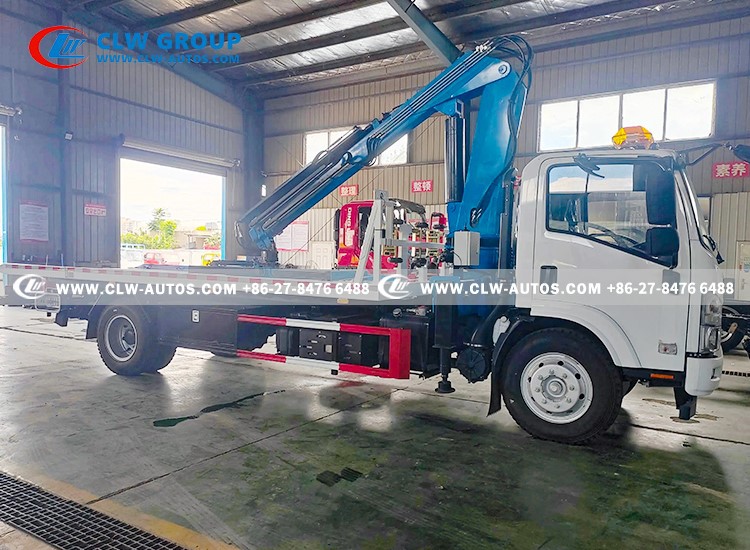

ISUZU 6.3Ton Recovery Truck With Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 6.3ton recovery truck with crane in China. If you're going to buy high quality isuzu 6.3ton recovery truck with crane, welcome to get more information from our factory. For price consultation, contact us.





ISUZU 700P 4X2 8Tons Flatbed Tow Truck With XCMG 6.3Ton Folding Boom Crane





1. Road Rescue and Vehicle Recovery



• Suitable for highways, urban roads, and other scenarios to swiftly tow malfunctioning or accident-damaged vehicles (e.g., sedans, SUVs, light trucks, etc.).
• The folding arm crane assists in hoisting accident vehicles, cargo, or obstacles, enhancing rescue efficiency.



2. Versatile Operations



• The combination of a flatbed transport and a folding arm crane enables simultaneous towing, lifting, and material handling, making it ideal for logistics, municipal services, power maintenance, and related fields.



3. Agile Maneuverability



• Powered by a 190 HP engine and featuring a compact body design, it excels in navigating narrow urban roads and short-distance operations, offering greater flexibility compared to larger tow trucks.





1. High Efficiency and Cost-Effectiveness



• Isuzu 4HK1 190 HP Engine: Delivers robust power with excellent fuel efficiency, ideal for prolonged operation.
• Reliable Chassis: The Isuzu 700P chassis offers outstanding durability and low maintenance costs, making it suitable for high-frequency use.



2. XCMG 6.3-Ton Folding Boom Crane Performance



• Precision Lifting: Features a stable hydraulic system for smooth and flexible operation, ideal for rescue operations and equipment installation.
• Compact Folding Arm Design: Occupies minimal space while offering an extensive working range, enabling side or overhead lifting over obstacles.
• Optional 360° Rotation: Enhances operational flexibility for complex environments.



3. Integrated Towing and Lifting Capability



• Eliminates the need for additional cranes, allowing a single unit to perform both towing and lifting tasks-boosting rescue efficiency and reducing costs.



4. Superior Adaptability



• Suitable for diverse scenarios, including urban roads, highways, and construction sites, particularly optimized for medium/small vehicle recovery and light equipment handling.



5. High Cost Performance



• Compared to higher-tonnage tow trucks, it offers lower procurement and operational expenses, making it ideal for small-to-medium rescue firms or municipal agencies.







Chassis Specification
Condition	Brand New
Chassis model	QL1110
Driving model	4x2
Dimension	10000×2500×3500 mm
Cab	Original ISUZU 700P cabin One Row and one sleeper Left Hand Driving With air conditioner Central lock Steer Assistance Electric Window
Overall Weight	10000 kg
Net Weight	4950 kg
Wheelbase	5200 mm
Axle No.	2
Front Axle Loading Capacity	4,000 kg
Rear Axle Loading Capacity	7,000 kg
Engine	ISUZU, diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4HK1
	Horse power: 190 HP
	Displacement: 5193 ml
	Emission standard: Euro Ⅵ
Transmission	Manual type, 6 Forward & 1 Reverse
Tire	235/75R17.5 18PR
	6 wheels with 1 spare tire
Fuel Tank Capacity	100L

Upper Parameters
Under Lift Boom	Max. Under Lift Capacity: 8000 kg
	Max. Under Lift Capacity at Full Extension: 5000 kg
	Under Lift Boom Effective Length: 1700 mm
	Under Lift Telescopic Stroke: 1360 mm
	Ground Clearance when Under Lift Fully Retracted: 800 mm
Flatbed	Ground Clearance: 1100 mm
	Flatbed Plate Size(length*width): 6500x2550 mm
	Min. Tilt Angle: 8°
	Moving Range: 3760 mm
	Max. Loading Capacity: 8000 kg
Winch	Number: 1
	Rated Towing Capacity: 80~150KN for option
	Diameter of Steel Rope: Φ16~Φ22 for option
	Length of Steel Rope: 50m
	Min. Line Speed: 4.52m/min
Crane Parameters
Brand	XCMG SQZ6.3
Max. Lifting Capacity	6,300 kg
Max. Lifting Height	15 meters
Max. Working Radius	12.2 meters
Max. Lifting Moment	132 KN.m
Max. Pressure of Hydraulic System	25 Mpa
Oil Tank Capacity	100L
Rotation Angle	360° All rotation
