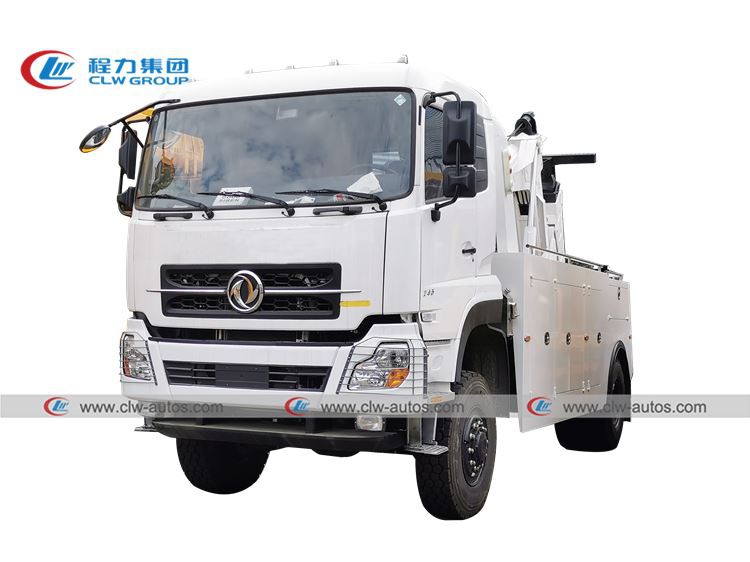

4x4 Dongfeng Military Use 16Ton Wrecker Tow Truck
4x4 Military Tow Truck
Cummins Engine 245HP
16Ton Crane System
20Ton Towing Weight
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4x4 dongfeng military use 16ton wrecker tow truck in China. If you're going to buy high quality 4x4 dongfeng military use 16ton wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.
4x4 Dongfeng Military Use 16Ton Wrecker Tow Truck
Description
1. Originated from Military Production Line
2. Original Transfer Case from Dongfeng Military Chassis
3. Dongfng Cummins Engine in 245HP.
4. Military use Rear Alxes in 10Tons
5. 16Ton Crane Capacity
6. 20Ton Towing Weight.
Crane Specification:
1. Arm Type: 2 Section, Hexagon shape
2. Arm Length: 6.5meters, extended length 3meters
3. Lifting height: 6.5meter.
4. Wrench: 2 Units 10Ton
5. Wire: 45 meters Long,
6. Hook: 2 Unit x 20Ton Each.
Under Lift Specification
1. Underl ift Type: 3 Section, extendable.
2. Max Lifting Weight: 16ton
3. Max Lifting Length 3meter, lifting weight 7Ton.
4. Max Towing Weight: 20Ton – 25Ton
Accessories:
1. Warning Lights
2. Loudspeaker
3. Rear working Lights
4. Hand Washing Box
5. 4 Different Fork
6. Spare Tires:
Inquiry Line:
Contact: Mr Eric Cen
Whatsapp: +86 186 0715 8551
Truck Photos----------------------------------------------------------------------
Dongfeng Kingrun 4X4 Full Wheel Driving Truck Chassis with Cummins Engine 245HP

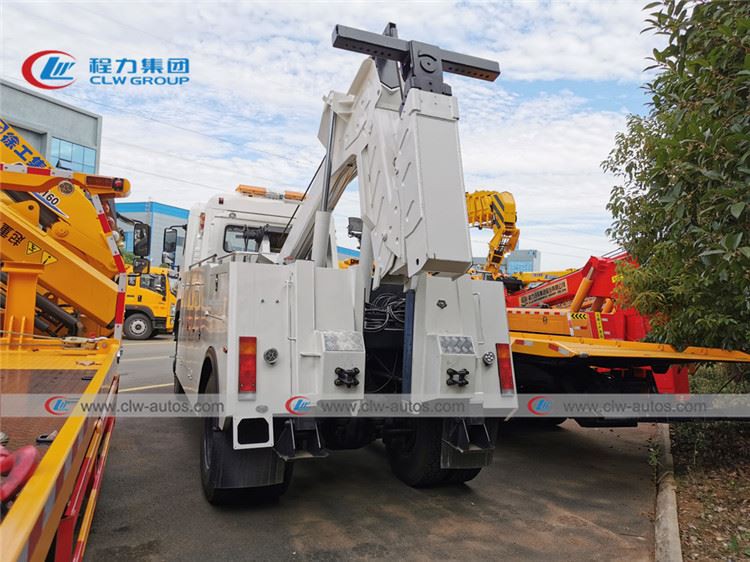

Heavy Duty Towing Under lift in 20Ton Towing Capacity

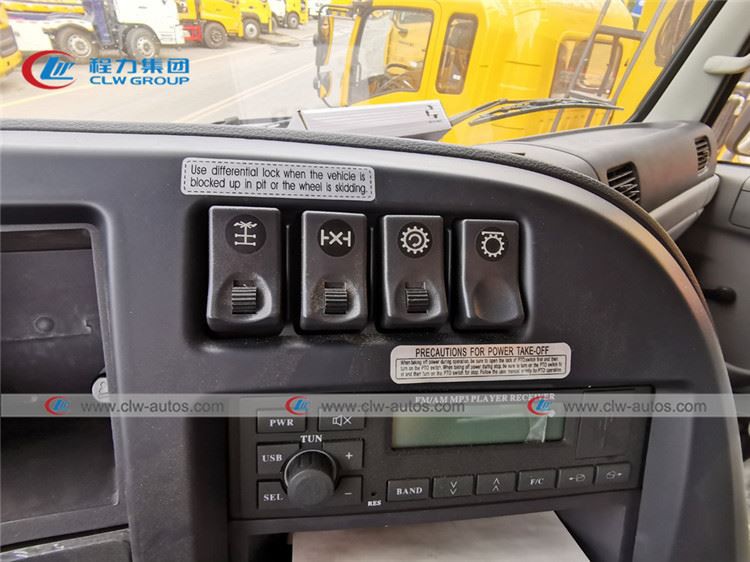

Transfer Case for 4X4 and 4x2 Exchange
Remote Control System for Crane & Underlift
Stainless Steel Hand Washing Tank
Loudspeaker & Siren System.
Truck Specification----------------------------------------------------------------------------------------
Dongfeng 4x4 245HP 16T Tow Truck | ||||
Cabin | Driving type 4x2, LHD/RHD | |||
Dongfeng Kingrun Cabin, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref. | ||||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8300×2500×3320 | ||
Wheel base (mm) | 4500 | |||
Wheel track (front/rear) (mm) | 2022/1830 | |||
Weight in KGS | Tare Weight | 16600 | ||
Front axles loading capacity | 1x5000 | |||
Rear axles loading capacity | 1x10000 | |||
Max. driving speed（km/h） | 90 | |||
Engine | Brand | Cummins | ||
Model | ISD245 50 | |||
Type | 4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled | |||
Horse Power（HP) | 245 HP | |||
Emission standard | EurO 5 | |||
Clutch | Reinforced diaphragm clutch, diameter 430 mm | |||
Gearbox | FAST, 8 peed forward and 2 reverse gear | |||
Fuel tank | 400 liters | |||
Tire | 12R22.5 tubeless tire with one spare , totally 7 pics | |||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
Towing System | ||||
Under lift Towing System | Rated lifting weight | Kg | 5000 | |
Max. Lifting weight of original place | Kg | 8000 | ||
Max. Lifting weight of full extension boom | Kg | 3500 | ||
Rated towing weight | Kg | 20000 – 25000 | ||
Effective length of boom | mm | 2450 | ||
Extension traveling of boom | mm | 1250 | ||
Folding angle of boom | ° | 90 | ||
Crane Lifting System | Max. Rated hanging weight | Kg | 16000 （8000×2） | |
Max lifting high(mm) | mm | 5000 | ||
Max. Extension traveling of lifting boom | mm | 2900 | ||
Length of steel cable | M | 40 | ||
Min. Speed of steel cable | m/min | 5 | ||
