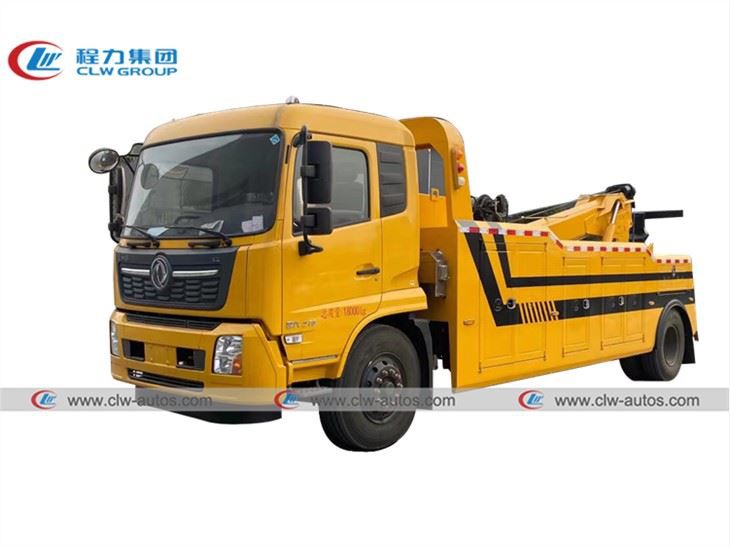

16Ton Crane 3Meter Underlift Wrecker Tow Truck
10Ton Underlift
3meter Underlift
16Ton Crane
2Unit 8ton Winch
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 16ton crane 3meter underlift wrecker tow truck in China. If you're going to buy high quality 16ton crane 3meter underlift wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.
Wrecker Tow Truck
The full name of a wrecker truck:
a road wrecker truck, sometimes called a tow truck, some called a scooter truck, and some called a road rescue truck, etc. It has the functions of lifting, pulling, carrying, lifting and towing.
Wrecker trucks are mainly used for road failure rescue, accident handling, city illegally parked vehicles clearing and transportation, as well as non-landing transportation of commercial vehicles and recycling and transfer of scrapped vehicles.
Even now small construction machinery consignments are using wrecker trucks. The customer groups of wrecker trucks mainly include rescue companies, 4S shops, auto repair shops, scrap recycling companies, urban management departments, and highways, transportation, traffic police and other departments.
Dongfeng 10Ton Intergrated Tow Truck:
Chassis configuration:
Ø Dongfeng Kingrun Chassis with Cummins Engine 180HP
Ø 6-speed gearbox,
Ø 5600mm wheel base,
Ø Half-row cab, original air-conditioner,
Ø 9.00R20 original steel wire tires,
Ø Air brake, original ABS.
Upload configuration:
Ø 10 ton reinforced top, two-section six-sided boom, three-section support arm, split carriage,
Ø Imported hydraulic system, double-sided linkage operation, with remote control
Ø Counterweight is equipped on front bumper, increasing the truck stability.
Ø Equipped with 2Unit 8 ton hydraulic winches, 35 meters of steel wire rope, 16mm in diameter,
Ø 4 sets of steel forks, 1 set steel plate lifting lugs, 1 set U-shaped tire holding device, 1 set vehicle-mounted tools,
Ø 1 set of auxiliary lamp assembly, 1 set of auxiliary air pipe assembly, Yellow long row LED warning lights.
Truck Specification:
Main technical parameters | |||
Product name | Wrecker Tow Truck | ||
Total Mass(Kg) | 16000 | Curb Weight(Kg) | 10600 |
Dimension(mm) | 8670x2500x3060 | Passenger | 3 |
Wheel Base (mm) | 5100,5600,5200 | Driving Speed(Km/h) | 90 |
Specification | 1. Lifting weight: 5270kg (2 people), 5205kg (3 people). Correspondence of dimensions/wheelbase/front suspension/rear suspension is (mm): 8470/5600/1250/1620, 2 The side protection is integrated with the frame; the rear protection is replaced by a special device. 3. The cab is optional with the chassis, and the car should be equipped with a driving recorder with satellite positioning function | ||
Chassis Techinal Parameters | |||
Chassis Model | EQ1168GLJ4 | Fuel Type | Diesel |
Tire | 10.00-20 16PR,10.00R20 16PR,9.00R20 16PR,10R22.5 16PR,275/80R22.5 16PR | Tire Quantity | 6 |
Emission Standard | Euro 2 ~ Euro 5 | ||
Engine Model | Engine manufacturer | Dispalcement (ml) | Power(Kw) |
YC6J180-50 | Guangxi Yuchai Machinery Co., Ltd. | 6500 | 132 |
Common Wrecker Truck Options:
1. Wrecker trucks can be divided into:
1. Small Flatbed Wrecker Truck
2. Small Intergrated Tow Truck
3. Small Basement Intergrated Tow Truck
4. Middle Flatbed Wrecker Truck
5. Middle Flatbed Wrecker Truck with Crane
6. Middle Intergrated Tow Truck
7. Middle Two layer Flatbed Wrecker Truck
8. 8Ton – 10Ton Middle Intergrated Tow Truck
9. Heavy Duty Intergrated Tow Truck
10. Heavy Duty 360 degree rotaion towing Truck (30Ton ~50Ton)
2. Chassis selection:
1>. Dongfeng
2>. FAW
3>. Foton/Forland
4>. Sinotruk HOWO
5>. Shacman
6>. ISUZU
7>. JMC
8>. JAC
9>. Dayun
3. Optional Euiquipments configurations:
Ø Engineering warning lights,
Ø Loudspeaker
Ø Tight rope straps,
Ø Auxiliary trolleys, s
Ø pare tires,
Ø on-board maintenance tools, etc.
Ø Hydraulic components (multi-way valve, steering valve, hydraulic lock)
4. Complete vehicle procedures: secondary certification, tax return, national unified motor vehicle invoice, vehicle-mounted tools, vehicle warranty manual, national service station directory, etc.
Wrecker Specification:
1. High-quality steel material, using stamping dies for one-time stamping bottom plate. The combined parts are cold stamped and formed with strength, rigidity and flatness. Specialized flat structure, modular production, precision manufacturing of each assembly, strong interchangeability.
2. All hydraulic components are well-known brands in china. The truck load is evenly distributed, which greatly improves the service life of the entire vehicle.
3. A complete after-sales service system, in place within 24 hours of the province. After the service period, all working hours are free, and the damaged parts need to be repaired according to the purchase price.
Feature 1: Multi-way valve and balance valve are Italian Brand.
Feature 2: Hydraulic cylinders are produced by well-known domestic companies.
Feature 3: New non-slip flat plate, stamped with die, thicken the checkered plate.
Feature 4: Hydraulic bench inspection, automatic welding of metal parts, painting, cleaning, and phosphate treatment. The whole vehicle is fully inspected and delivered according to (wrecker standard).
Feature 5: One vehicle has multiple uses, which can save time and increase work efficiency.
After-sales Service Commitment:
In the case of users strictly abiding by the instruction manual and normal operation, within one year from the date of purchase, the mileage should not exceed 25,000 kilometers, and the product machine caused by design, manufacturing, and assembly reasons. If the parts are damaged, after being appraised by the relevant automobile service station or the supervision department, the written materials shall be submitted to the after-sales department of our company within three working days, and the three-guarantee service shall be implemented after the after-sales department confirms.

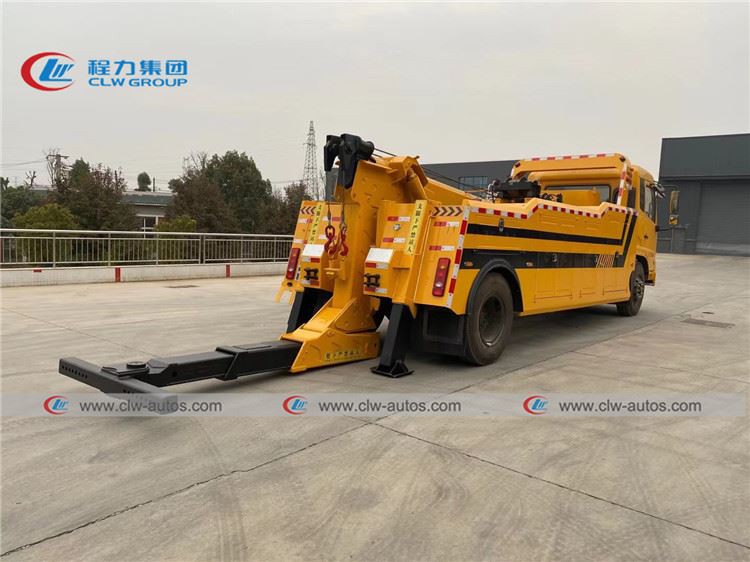

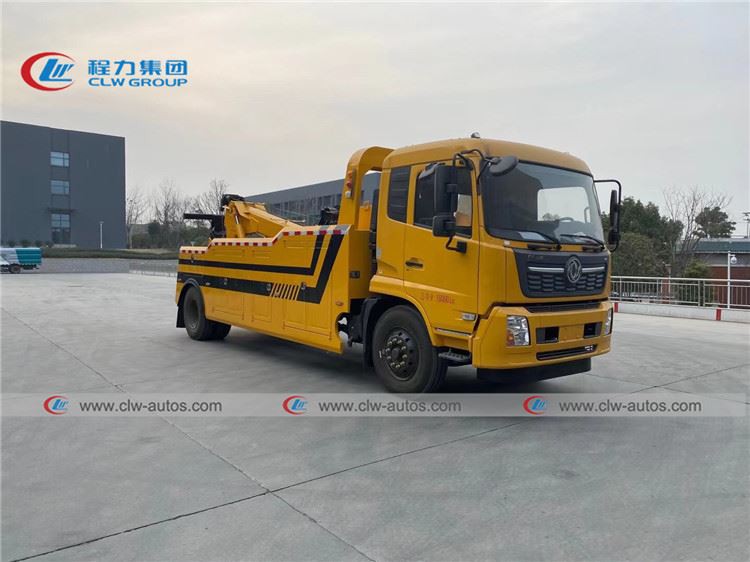

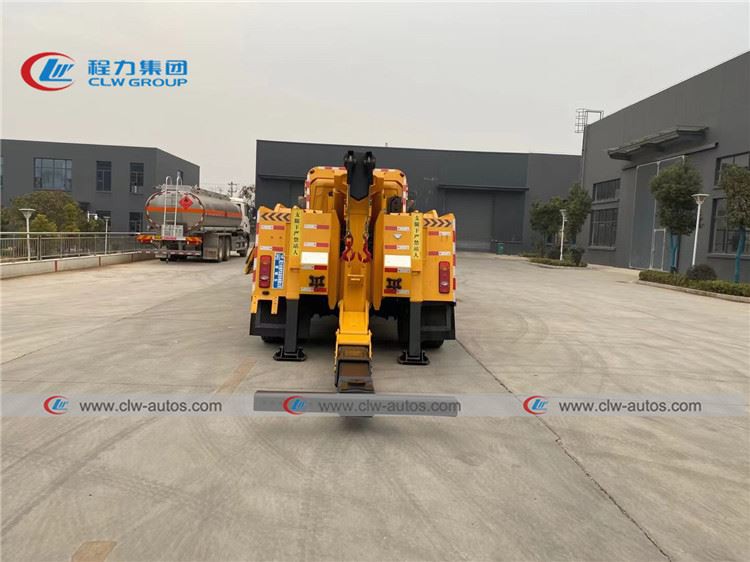

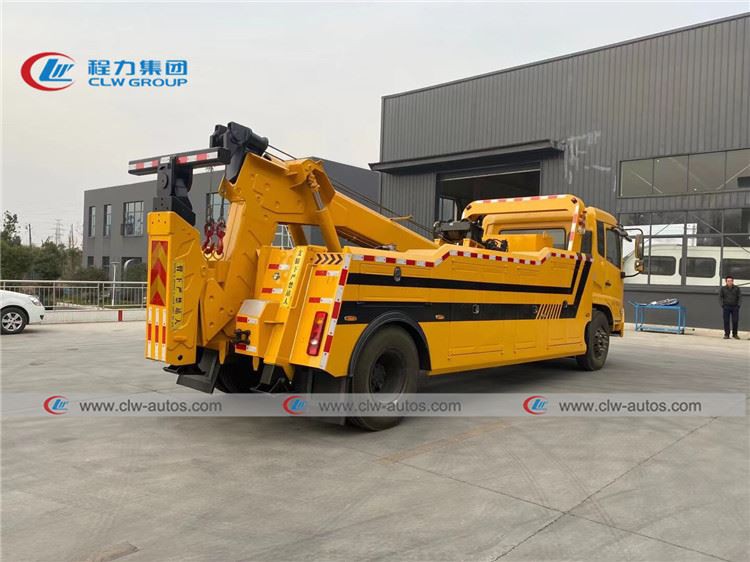

Reference Truck Photos:
