Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5cbm lpg refilling truck in China. If you're going to buy high quality isuzu 5cbm lpg refilling truck, welcome to get more information from our factory. For price consultation, contact us.

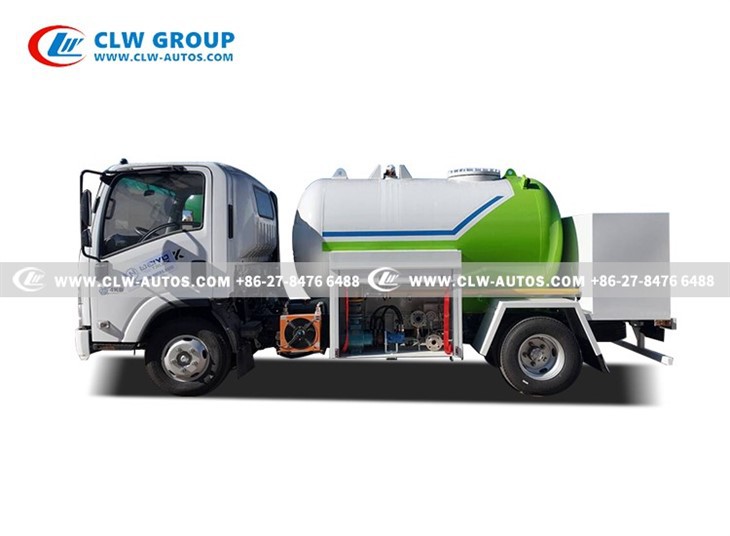

The Isuzu KV100 LPG Refueling Truck is a versatile and compact solution designed to bring liquefied petroleum gas (LPG) directly to your customers, fleet, or remote operations. Built on the reliable Isuzu KV100 series chassis with a 3360 mm wheelbase and a 3X single-row 700mm left-hand drive cab, this truck combines superior mobility with robust performance. It meets Euro 5 emission standards and is powered by an Isuzu 4KH1CN6LB engine delivering 120 HP, coupled with a 5-speed Isuzu transmission for smooth and efficient operation.

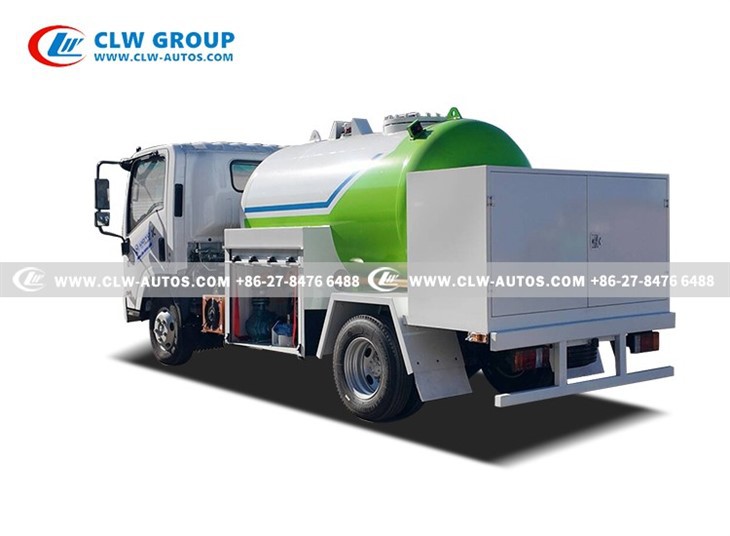

The vehicle features a 5 m³ LPG tank (approx. 2.5 tons) mounted on the rear, complete with a domestically produced pump and flow meter for rapid refueling and tank unloading. Its mobile refueling capability allows it to serve as a standalone LPG station, providing flexibility for diverse industrial and commercial needs.
--All-in-One Mobile Refueling System

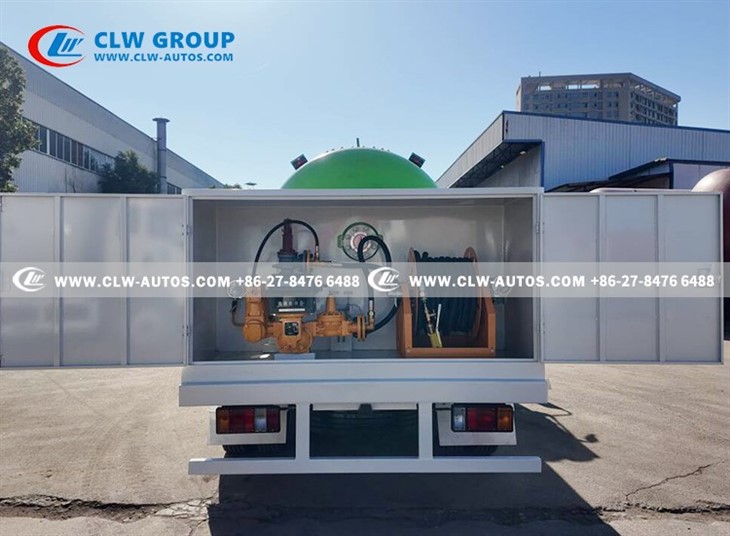

Equipped with a 5-cubic-meter LPG tank, a high-performance domestic pump, and an accurate flow meter, this truck enables efficient tank refilling and direct vehicle refueling. The system is installed at the rear for easy access, allowing quick connections and operations in various field conditions.
--Optimized Chassis & Driving Comfort
The Isuzu KV100 chassis provides a stable platform with a 2.5-ton front axle and 4.8-ton rear axle, ensuring durability under load. The cab is designed for operator comfort and convenience, featuring air conditioning, power steering, central locking, electric windows, and a tiltable cab. Safety is enhanced with ABS and air-assisted brakes, while the 7.00R16 tires ensure reliable traction.
--Compact & Highly Maneuverable Design
With its compact dimensions and 3360 mm wheelbase, this LPG refueling truck can easily navigate urban areas, industrial sites, and confined job sites where traditional refueling stations are unavailable. It's your "gas station on wheels."
--Compliance with Safety & Quality Standards
As an LPG transport and refueling unit, the vehicle adheres to stringent safety regulations for pressure vessels-2. Key safety components include reliable valves and pressure management systems, ensuring secure storage, transport, and dispensing of LPG
|
Chassis Technical Parameters |
|||
|
Driving mode |
4X2 |
||
|
Overall dimension |
6800*2500*3250mm |
||
|
Gross weight |
11,000kg |
||
|
Wheelbase |
3360mm |
||
|
Cabin |
ISUZU KV100 cabin; With A/C, power steering |
||
|
Engine |
Brand |
4KH1CN6LB | |
|
Horsepower |
120hp | ||
|
Emission standard |
Euro 6 | ||
|
Gear box |
ISUZU , 5 forward gears and 1 reverse |
||
|
Tyre |
7.00R16 (6pcs with 1 spare) |
||
|
Front axle loading |
2,500kg |
||
|
Rear axle loading |
4,800kg |
||
|
Tank body parameters |
|||
|
LPG tank volume |
5,000 liters, 5CBM |
||
|
Tank material |
Q345R |
||
|
Tank thickness |
10mm |
||
|
End plate |
10mm |
||
|
Tank length |
As designed |
||
|
Gas phase |
DN25 or DN50 or customized |
||
|
Liquid phase |
DN 50 or DN80 or customized |
||
|
Filling gas |
Propane (LPG) |
||
|
Design pressure |
1.61Mpa |
||
|
Hydraulic temperature |
2.21Mpa |
||
|
Working temperature |
-20~50℃ |
||
|
Design code |
GB150.1~2011 |
||
|
Accessories |
|||
|
Level gauge |
Float ball type at the rear of tank |
||
|
Safety valve |
DN80*1 |
||
|
Tool and valve box |
Equipped |
||
|
Radiator of hydraulic oil |
Equipped |
||
|
LPG pump |
CORKEN Z2000, driven by truck engine through PTO |
||
|
Dispenser machine |
Single nozzle with English remarks |
||
|
Filling hose |
15 meters |
||
|
Pressure gauge |
0ne set |
||
|
thermometer |
One set |
||
|
Emergency valve |
Controlled valve box and installed at the rear of truck |
||
|
Fender |
Steel material |
||
|
Fire extinguisher holder |
Installed at left and right sides of rear truck *2 |
||
|
Exhaust shaft |
At the front of truck cabin for safety |
||
Proven Isuzu Reliability
The Isuzu KV100 chassis is globally recognized for its durability, low maintenance, and long service life.
Cost-Effective Mobility
Eliminates the need for expensive stationary refueling stations; offers flexible deployment and rapid ROI.
User-Oriented Design
Comfortable cab and easy-to-operate refueling system improve driver satisfaction and productivity.
Compliance Ready
Designed and built in line with applicable automotive LPG system component standards-10 and safety practices for LPG handling.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Drive Your LPG Business with Mobility and Efficiency!
Sales Manager
Cathy Gao
Phone Number (whatsapp)
+86 173 4334 1170
cathy@clw-autos.com
Contact Us Today for a Detailed Quotation and Customization Options!
Let's discuss how the Isuzu KV100 LPG Refueling Truck can meet your specific refueling and distribution needs. We are committed to delivering a reliable, high-quality vehicle backed by comprehensive service support.
