Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40ft tri-axle flatbed trailer for container loading in China. If you're going to buy high quality 40ft tri-axle flatbed trailer for container loading, welcome to get more information from our factory. For price consultation, contact us.

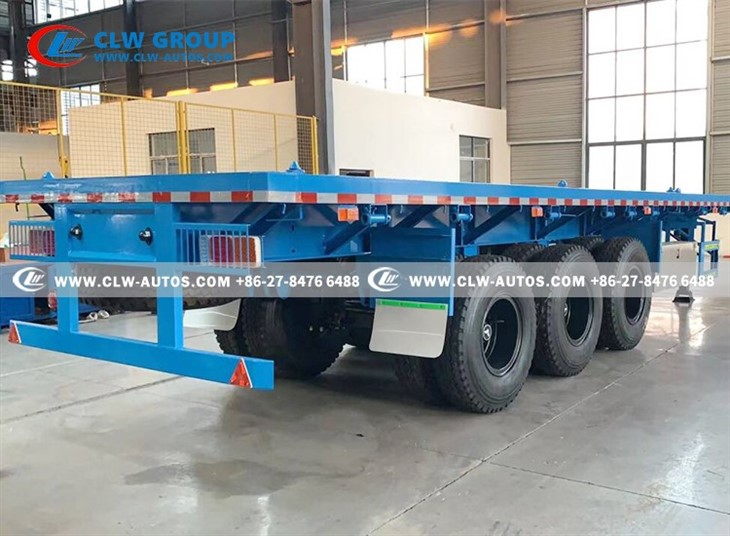

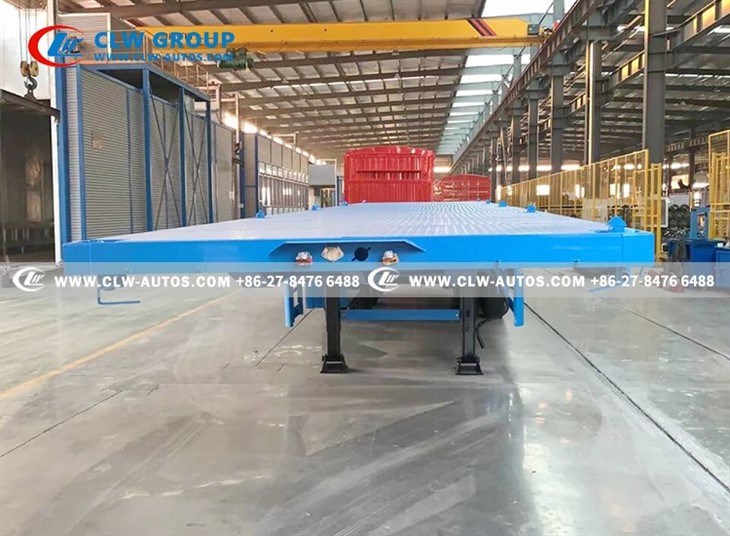

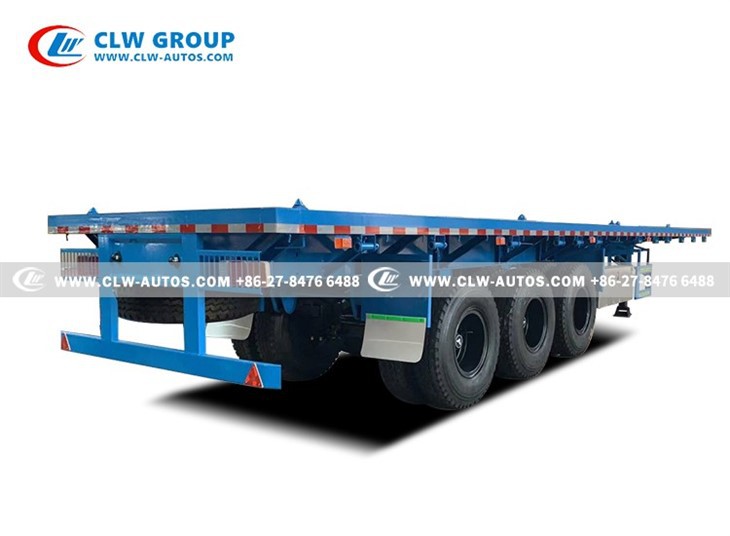

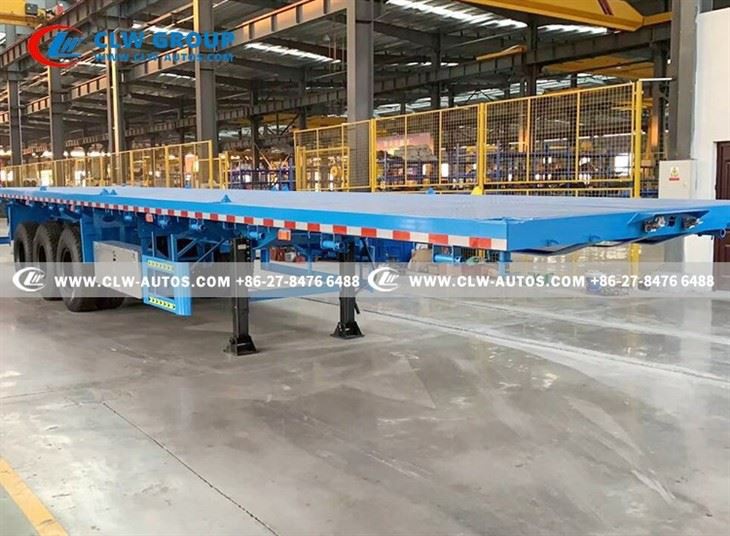

40FT 3 Axle Tri-Axle Flatbed Semi Trailer
Hubei Weiyu Special Vehicle Co. Ltd.
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
1. Flatbed semi trailer is mainly used for transporting 20&40ft containers or some other cargo.
2. The color could be painted as your request, the size and load can be customized according to your requirements.3.
3. The flatbed semi trailer has no sidewalls on the working platform and is widely used for medium to long-distance freight transportation, such as containers, building materials, etc.
4. The frame is of a beam through structure, and the longitudinal beams are of a flat or gooseneck type.
5. The height of the web plate ranges from 400mm to 550mm, and the longitudinal beam is automatically submerged arc welded.
6. The frame is shot peened, and the crossbeam is penetrated into the longitudinal beam and welded as a whole.
|
Specification |
|
|
Tare Weight |
7225kg |
|
Overall Length |
12400mm |
|
Overall Width |
2480mm |
|
Payload |
60000kg |
|
SPECIFICATIONS |
|
|
I Beam & Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. |
|
Axle |
3 axles |
|
|
FUWA brand 16 ton |
|
Suspension |
Heavy duty mechanical suspension |
|
Floor |
3mm checker plate |
|
Leaf Spring |
10 piece Leaf spring |
|
King Pin |
JOST brand 2" Bolt-in King Pin |
|
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
Wheel Rim |
9.25-22.5 steel wheel rim, 13 pieces including one spare |
|
Tire |
12.00R20 all steel radial tire, 13 pieces including one spare tire. |
|
Twist Lock |
12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. |
|
Spare Tire |
One set of spare tire including a carrier |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |
By choosing one of our units, your truck will quickly become your best work partner.
