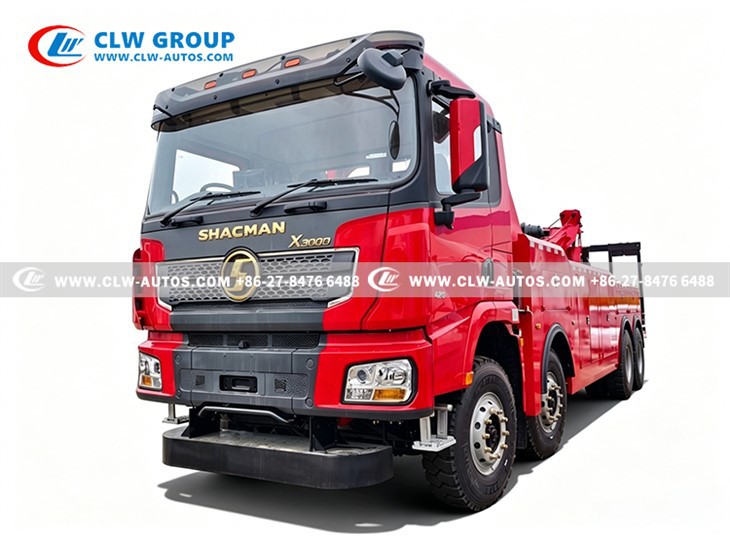

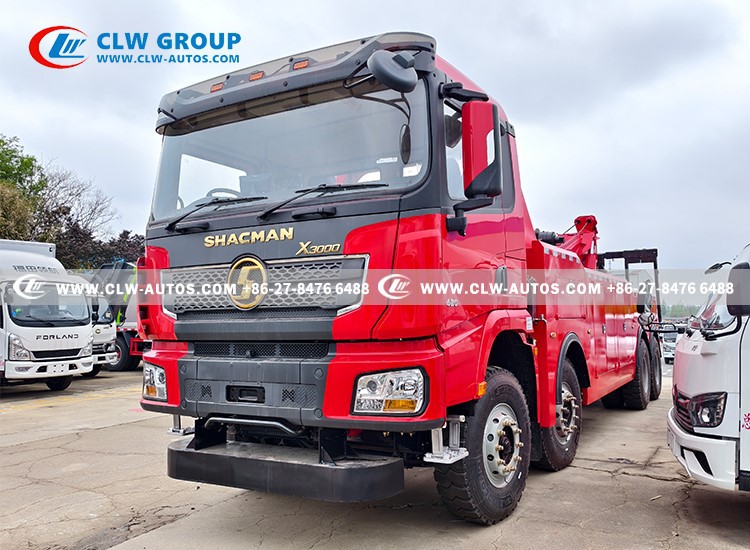

25Tons Rescue Wrecker Tow Truck

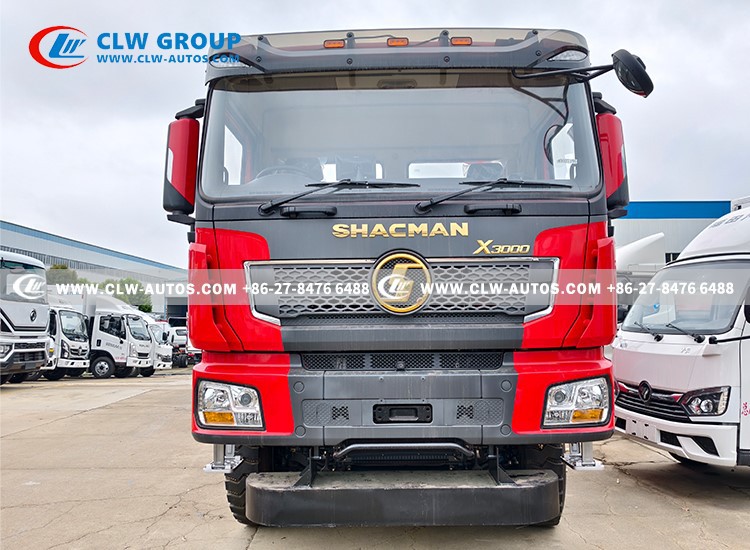

Shacman X3000 8x4 Chassis
Tow and Lift Wrecker Truck
25T Base Rating, 20T Boom Capacity
Weichai engine 420hp
3-Section Underlift Arm

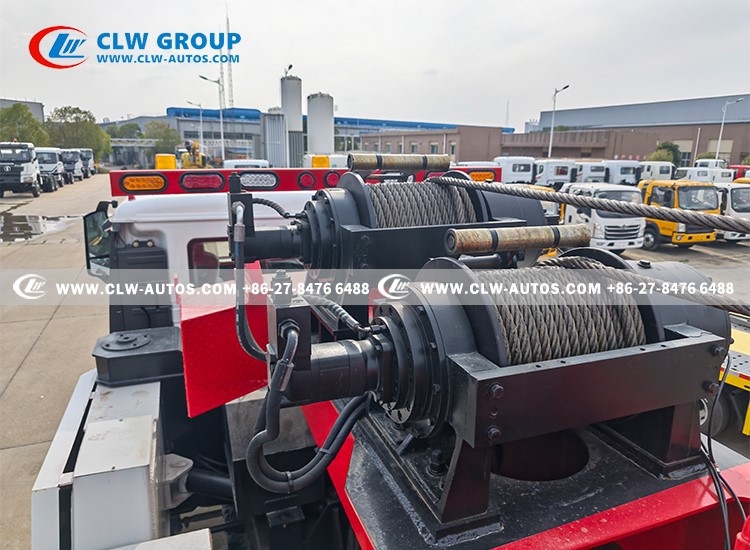

10-Ton Hydraulic Winches
45m x φ18mm Steel Wire Ropes

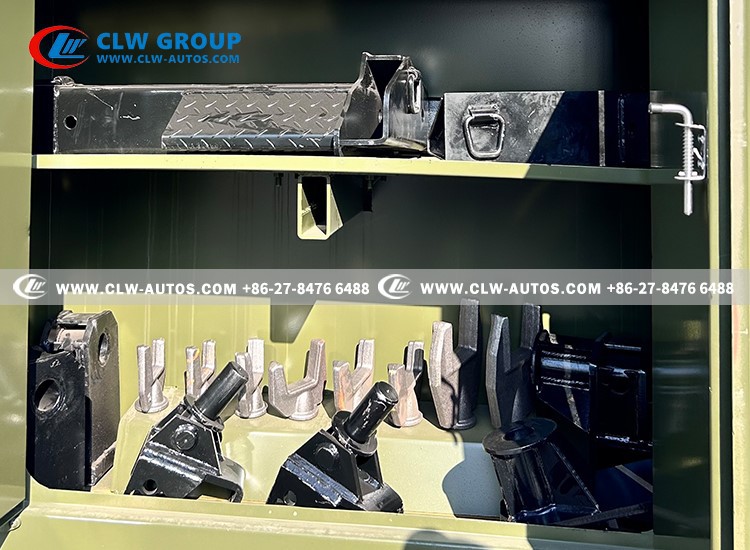

1 Set of Wheel Lift
4 Sets of Towing Forks
1 Set of Towing Fork Sleeves
1 Set of Leaf Spring Lug Towing Forks
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25tons rescue wrecker tow truck in China. If you're going to buy high quality 25tons rescue wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.

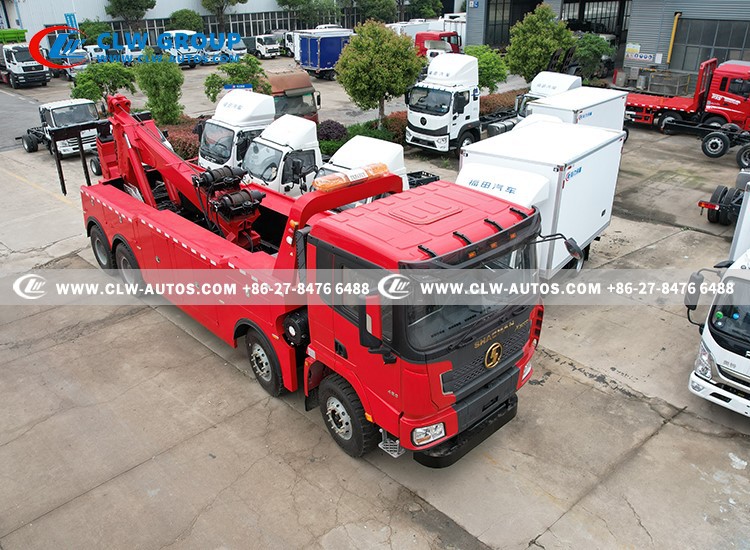

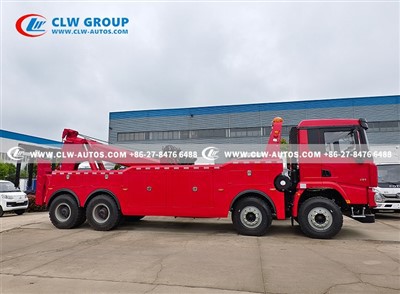

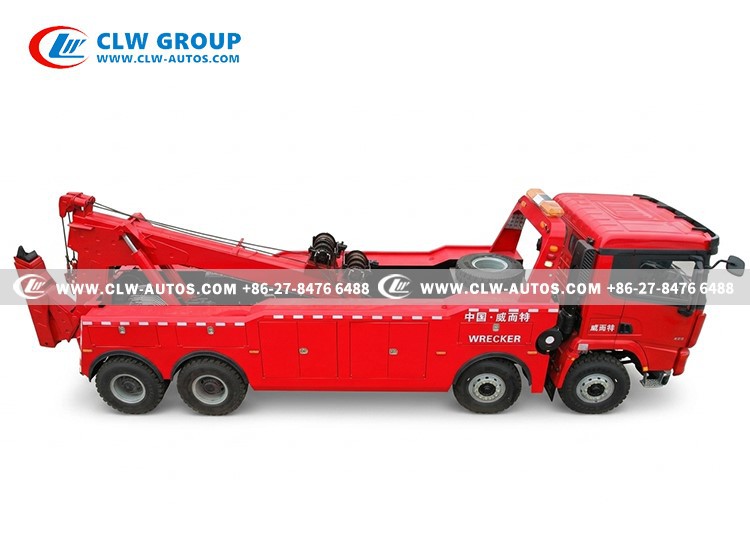

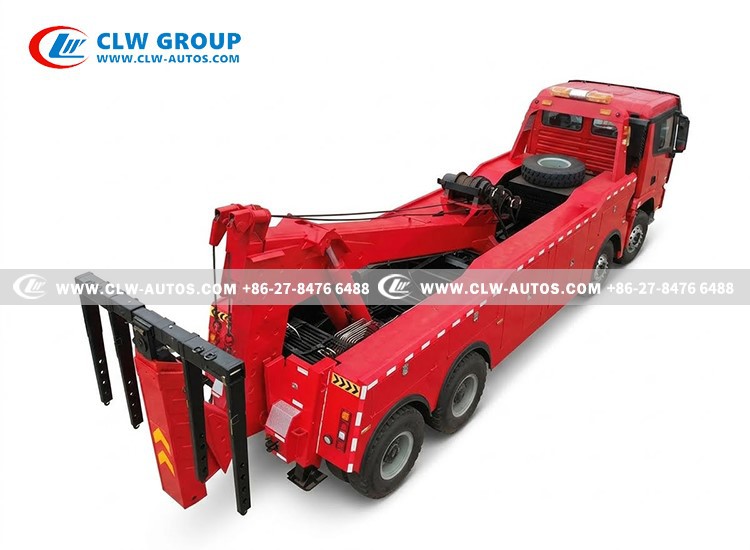

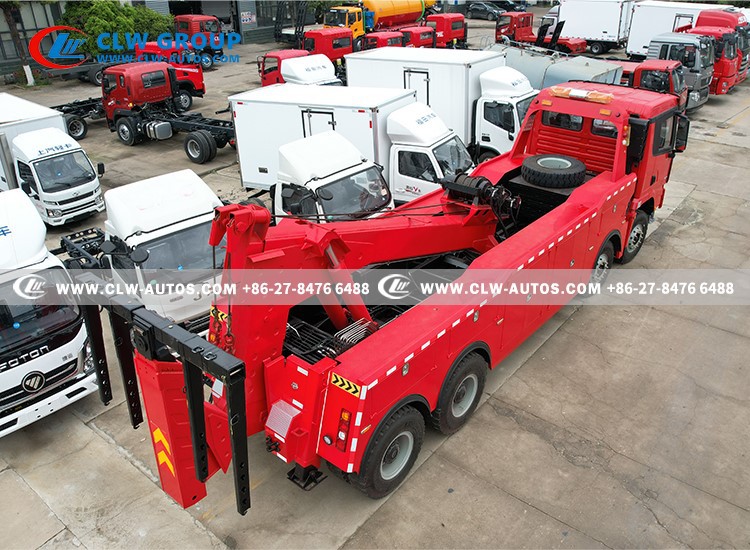

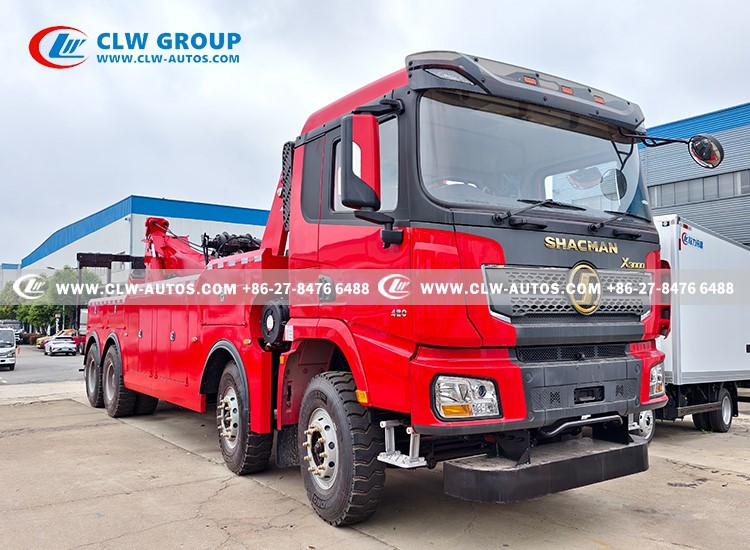

Shacman 8x4 420HP Heavy-Duty 25-Ton Integrated Wrecker

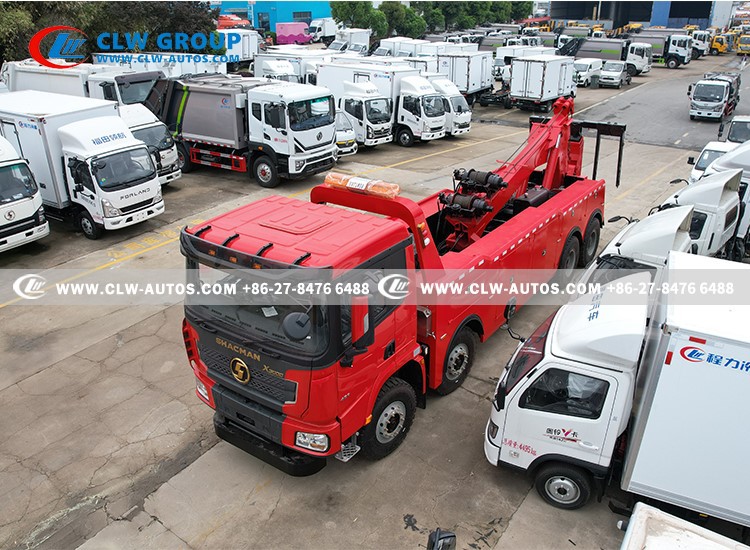

Integrated Wrecker (Tow and Lift Linked), 1-to-1 Towing Capacity
Wrecker Device
Equipped with large-tonnage rotating lifting arm, hydraulic winch, and auxiliary wheels. It can operate in 360° rotation and supports lifting, towing, and hoisting operations for heavy-duty vehicles.
Operation Mode

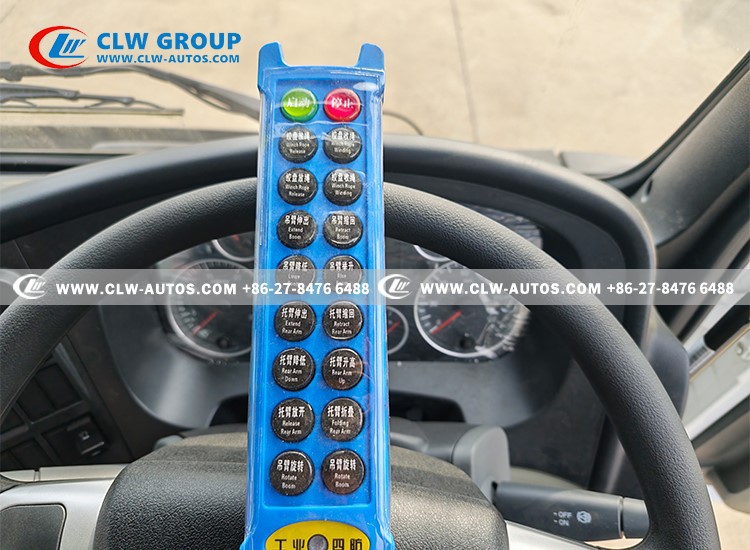

Centralized control in the cab + manual control at the rear. Supports switching between multiple working modes for simple and convenient operation; remote control is optional.
Safety Configuration
Equipped with warning lights, reflective signs, and protective railings for high visibility during night operations to ensure road safety. It also features anti-misoperation interlocks and an emergency stop button to guarantee operational safety

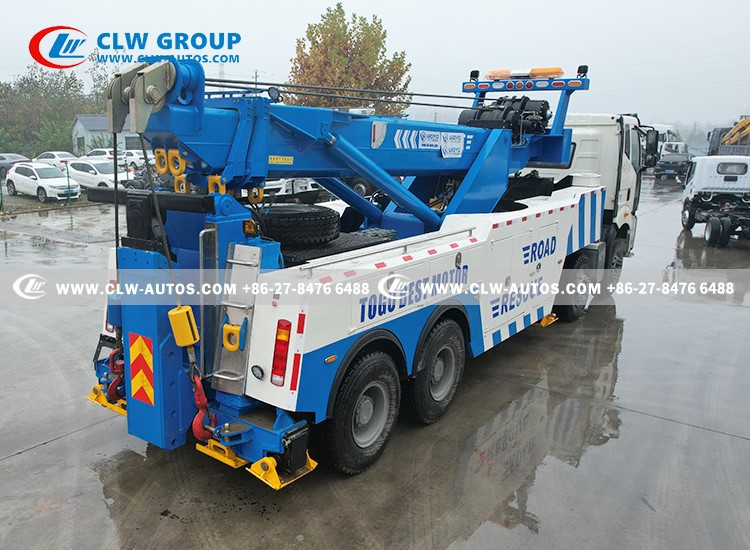

Heavy-Duty Wrecker Comparison: Integrated vs. Rotator
| Products Name | Integrated Wrecker | Products Name | Rotator Wrecker |
| Products Picture |
|
Products Picture |
|
| Boom Rotation | The boom can moves vertically (luffing) and extends/retracts along the chassis centerline. | Boom Rotation | 360° Continuous Rotation. The boom can operate in any direction (front, rear, left, and right). |
| Superstructure | Integrated design. The lifting boom and underlift share a rigid main structure and work in linkage. | Superstructure | Detachable/Independent design. The lifting boom and underlift are completely separate systems. |
| Hydraulic & Control | Simple and reliable. Equipped with a 2-section hexagonal boom and dual-side mechanical linkage valves. | Hydraulic & Control | Highly complex. Requires central hydraulic swivels, rotation gearboxes, and proportional valves or remote controls. |
| Curb Weight & Payload | Lighter curb weight with optimized axle load distribution. Leaves plenty of legal payload margin. | Curb Weight & Payload | Extremely heavy upper structure due to the rotating turntable, heavy counterweights, and outriggers. |
Key Vehicle Specifications:
Product Name: Shacman 8x4 Wrecker Tow Truck
Application: For rescue the damaged large cars
Advantages: Low maintenance cost

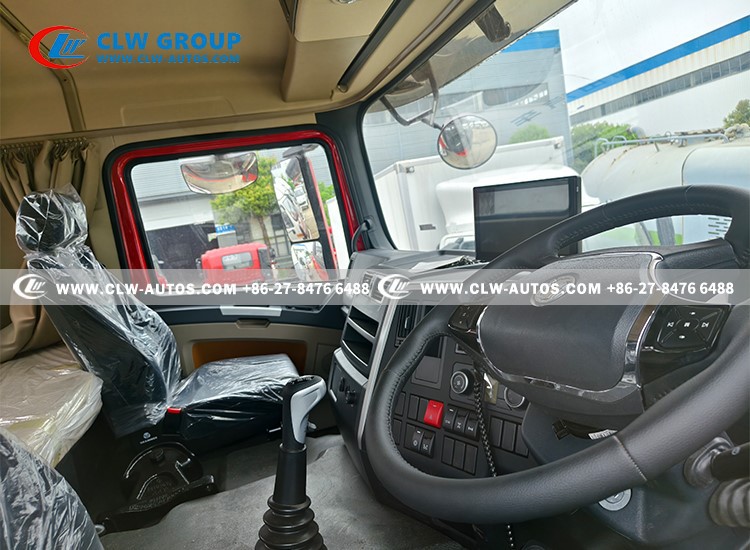

Cab: one row and half cabin, 2 seats+1 sleeper RHD, A/C
Wheelbase: 1800+4575+1400 mm
Engine: WP12.420E32
Horsepower: 420HP
Emission standard: Euro III
Gearbox: 12 Forwards and 2 reverse
Gross Vehicle Weight: 31000 kg
Front/Rear Axle loading: 9500*2kg /1600kg*2
Tires: 12.00R20, 12 pcs with one spare
Related Operational Video
The Main Applications
Products Parameters
| Item | Technical Specification |
|---|---|
| Rear Hydraulic Underlift | 3-section under lift structure |
| Fully Retracted Underlift Lifting Weight | 25000 kg |
| Fully Extended Underlift Lifting Weight | 8500 kg |
| Max Rated Towing Weight | 60000 kg |
| Boom Max Effective Length | 1460 - 3750 mm |
| Underlift Boom Extension Stroke | 2290 mm (3-section arm) |

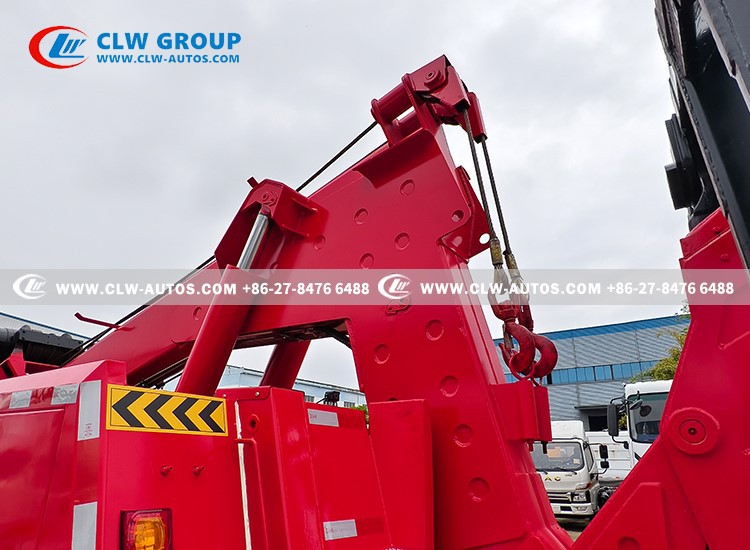

| Hoisting Boom Structure | 2-section hexagonal design |
| 20D Grade Boom Retracted Lifting Weight | 20000 kg |
| 20D Grade Boom Extended Lifting Weight | 8000 kg |
| Hoisting Boom Extension Stroke | 3300 mm (2-section luffing & telescoping) |
| Maximum Lifting Height | 6500 mm |
| Hydraulic Winch Type | Heavy-duty planetary type |
| Winch Quantity | 2 sets |
| Single Winch Max Pulling Force | 100 kN (10 ton) |
| Steel Cable Length | 45 m |
| Winch Working Speed | 5 m/min |
| Steel Cable Diameter | 18 mm |

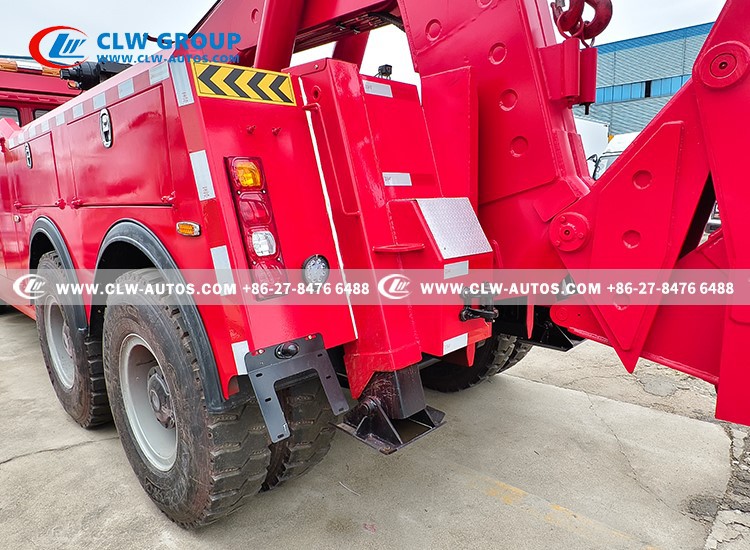

| Hydraulic Outrigger Quantity | 2 pcs rear stabilizer legs |
| Outrigger Structure | Built-in power lifting & stretching heavy-duty rear legs |
| Power Take-off (PTO) | Transmission-mounted heavy-duty FAST QH50 dual-pump PTO |

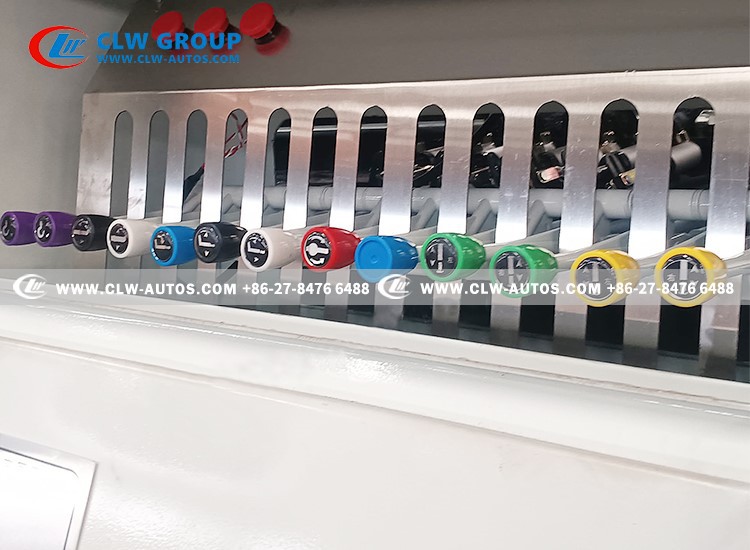

| Operation Control System | Dual-side mechanical linkage control, symmetric joystick & hydraulic gauge panel outside rear toolbox |
| Hydraulic System Configuration | High-flow gear/piston pump, imported hydraulic control valve, large-capacity oil tank, integrated oil cooler, heavy-duty high-pressure hydraulic hose |
| Winch Safety Device | Automatic multi-disc emergency brake |
| Hydraulic Safety Protection | Equipped with pressure relief valve, balance valve, hydraulic pilot check valve to avoid cargo accidental drop |
Product Operation Video
Why choose our Rescue Wrecker Tow Truck?
Cost-effective highway clearance and long-distance towing of massive commercial truck

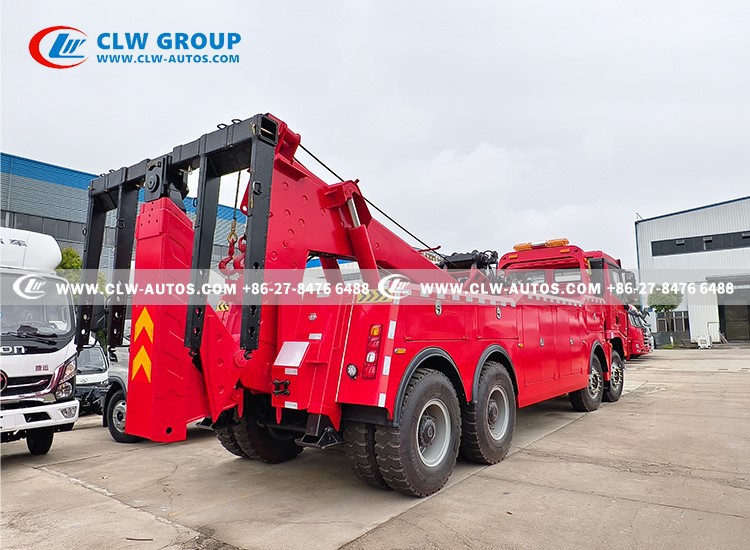

Underlift & Boom Lifting
25-Ton Underlift & 20-Ton Boom Lifting
Multiple towing methods

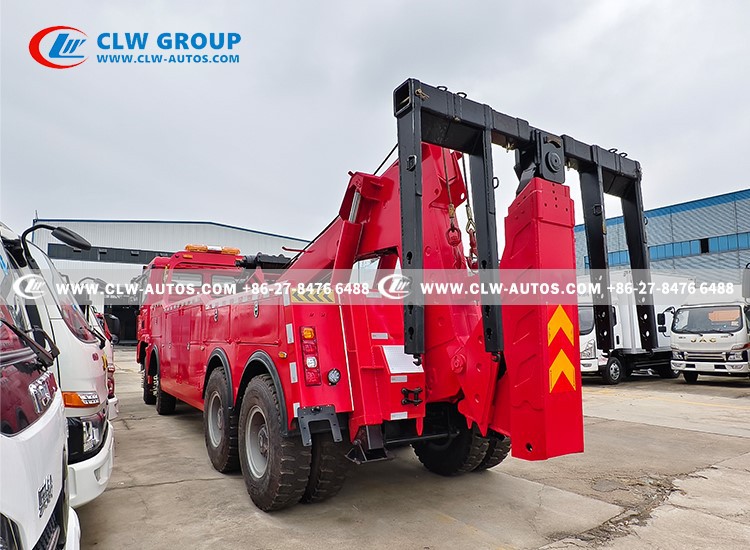

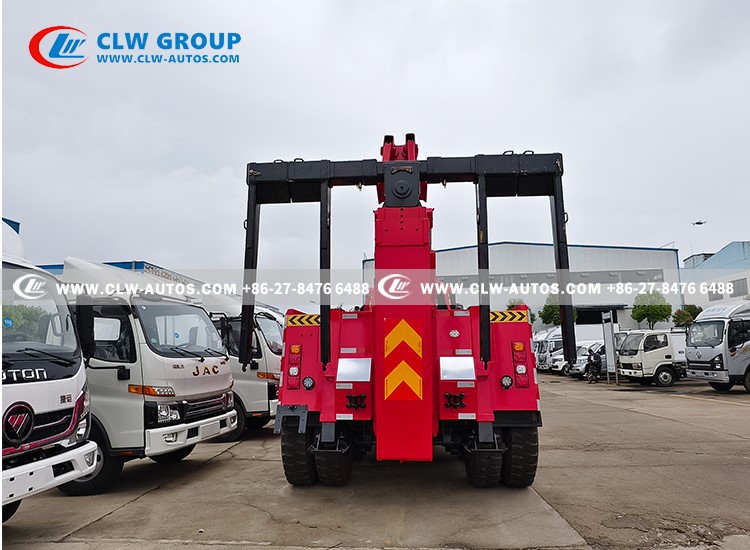

L-Arm or Fork Lifting
Our heavy-duty wrecker features lifting,
extending/retracting, and folding functions. It can lift a vehicle either by its wheels using the L-arms, or by its chassis frame, leaf springs, and axles using the towing forks.The switch between the wheel-lift system and the towing-fork system is convenient, fast, and simple. However, the operator must decide which towing method to use before lifting the vehicle.

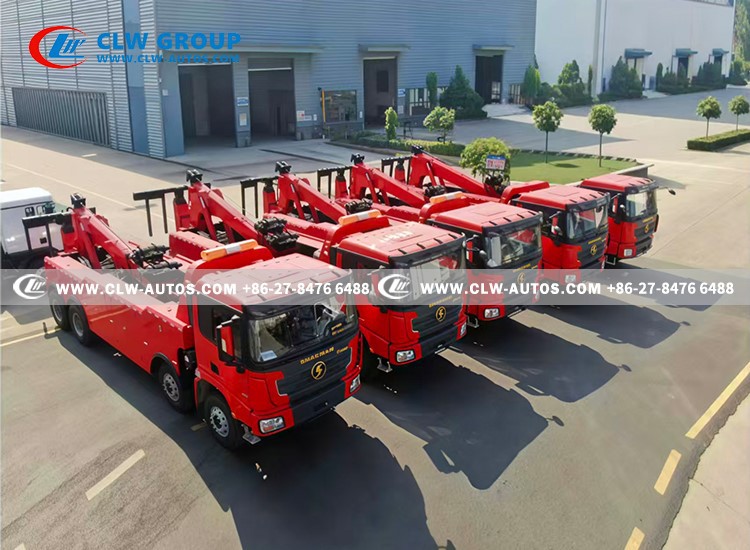

More Reference Pictures
