SHACMAN F3000 8x4 25 Tons 30 Tons Wrecker Tow Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman f3000 8x4 25 tons 30 tons wrecker tow truck in China. If you're going to buy high quality shacman f3000 8x4 25 tons 30 tons wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.



Product Description:

1. Truck Chassis Main Specification:

• SHACMAN F3000 Standard Flat Cabin, With one or Without Sleeper Bed. Air conditioner,
• Drive seat: Air Seat.
• WEICHAI Diesel Engine, WP12.420E201, 420HP, EURO-2, or Euro-3.
• Cummins Diesel Engine is available.
•  Steering Wheel: RHD, Right Hand Drive, Or Left Hand Drive is available.
•  FASTE12JSD200T-B Transmission/Gearbox, Manual control, 12 forward & 2 reverse
• Front Axle, Man 9.5Tons Capacity, 2 pieces; Rear Axle: MAN 16Tons, 2 pieces.
•  Fuel Tanker: 400L, or 600L is available.
• Tire: 12.00R20, 12R22.5, 315/80R22.5 are for option.

2. Upper Equipment Specification:

1. Hoisting/Underlift System:
2. Max Under-Hoisting Capacity: 18000Kgs.
3. Max Hoisting Weight under all extension: 16000kgs.
4. Lifting Organ: Max lifting capacity: 30000Kgs.
5. Basic Arm Length: 4858mm; Total Arm Length: 8154mm.
6. Winch: 2 pieces; Max Pulling Power: 15000Kgs*2, Total: 30000Kgs, 30Tons.
7. Steel Rope: 45 - 50 meters length, Diameters: 22mm.
8. Landing Leg/ Outrigger: 2 peices.
9. Other accessories: Four sets of steel fork, a set of tow-fork sleeve,
10. a set of steel plate hanging lug fork, a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly.

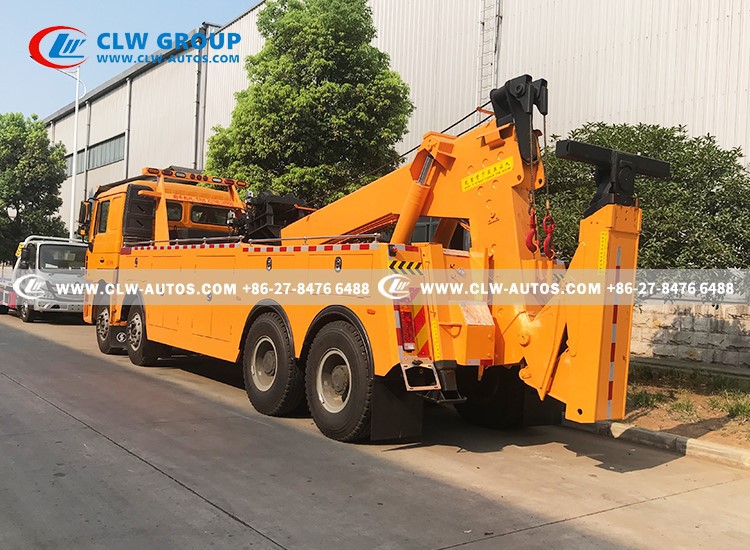

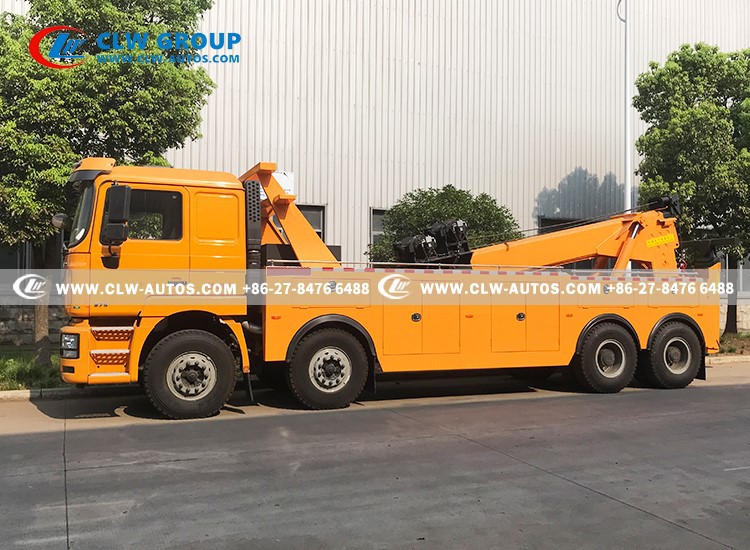

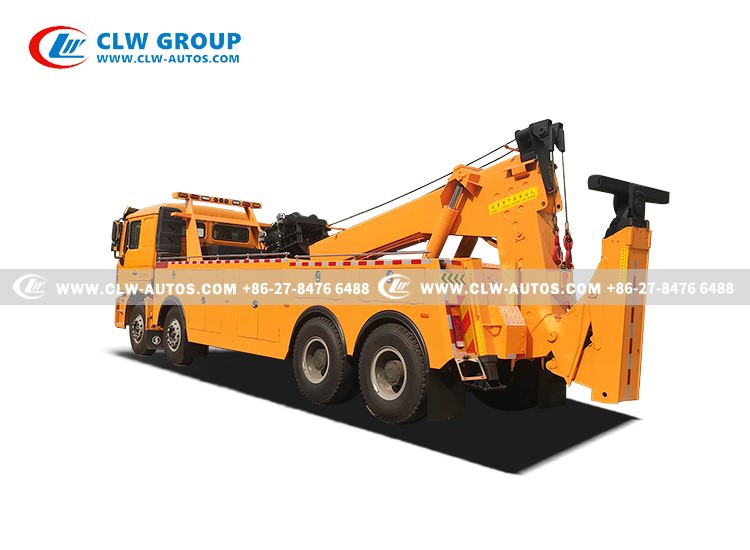

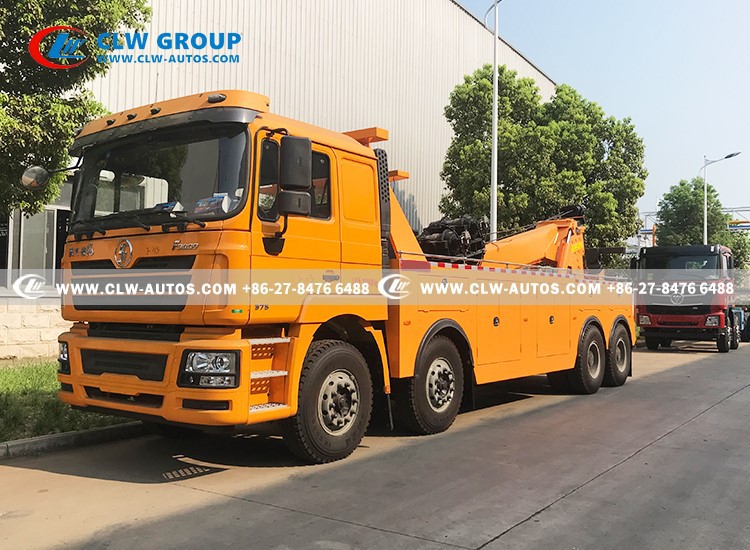

More pictures for SHACMAN F3000 8X4 25TONS 30TONS Wrecker Tow Truck:
