HOWO 8x4 430HP 50Tons Hyperlift Rotator Wrecker Towing Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 8x4 430hp 50tons hyperlift rotator wrecker towing truck in China. If you're going to buy high quality howo 8x4 430hp 50tons hyperlift rotator wrecker towing truck, welcome to get more information from our factory. For price consultation, contact us.

Goods Description:

50 TON ROTATING WRECKER

RECOVERY BOOM (Boom/Hoisting System)

• Retractable boom lift cylinders 8” Bore
• Boom retracted 50Tons(110,000 lbs) @ 45 degrees off rear
• Boom extended 15tons (33,000 lbs) @ 45 degrees off rear
• Boom Extension 168” (3 stage boom)
• Reach Past Tailboard 184” (3 stage boom)
• Boom extension 216” (with optional 3 stage boom)
• Reach past tail board 236” (with optional 3 stage boom)

WINCH SPECIFICATIONS

• Winch 25tons （55,000 lbs), 2 peices, two speed Ramsey Winches
• Winch 30tons (66,000 lbs) single speed (optional)
• Air cable tensioner and air free spool
• 35,000 lb or 50,000 lb drag winch (optional)

UNDERLIFT

• Underlift fully retracted 25tons capacity (55,000 lbs) rating
• Underlift fully extended 12tons capacity (26,400 lbs) rating
• Tow capacity 100tons( 220,000 lbs)
• Center of rear axle to tail of frame 30”

CHASSIS RECOMMENDATIONS

• Sinotruk HOWO 8x4 430HP truck chassis
• Front axle, 2*9500KGS (GAWR 41,800 lbs)
• Rear axle, 2*16000KGS (GAWR 70,400 lbs)
• WP12.430E201, WEICHAI diesel engine, 430HP.
• RHD, LHD both available
• HW19170 manual transmission, 10 forwards & 2 reverse.

ALSO INCLUDES:

• Proportional Belly pack remote
• Cordless remote for underlift
• 6 Function Switch Panels
• A complete set of LED Lighting
• 4 sets of Towing Forks
• Built in Fork Storage Racks
• Aluminum Body Sides for optional.

More information, please contact: Ms. Helen Jiang. WhatsApp: +86 135 5419 5719. Email : helen@clw-autos.com

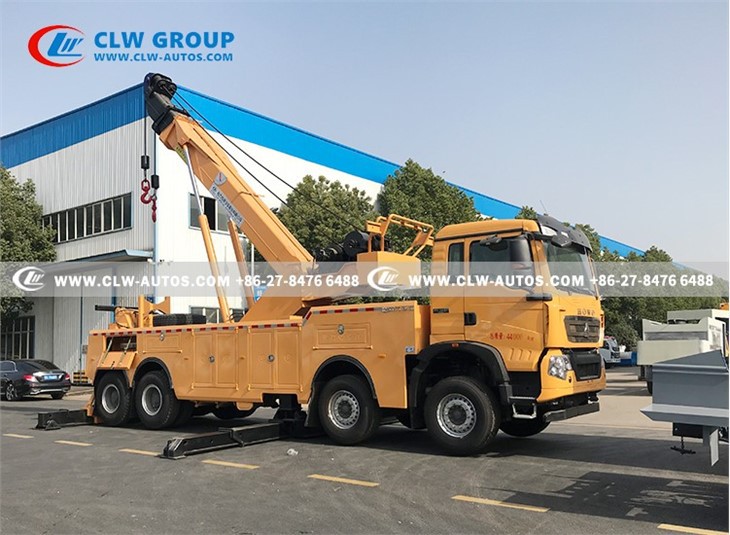

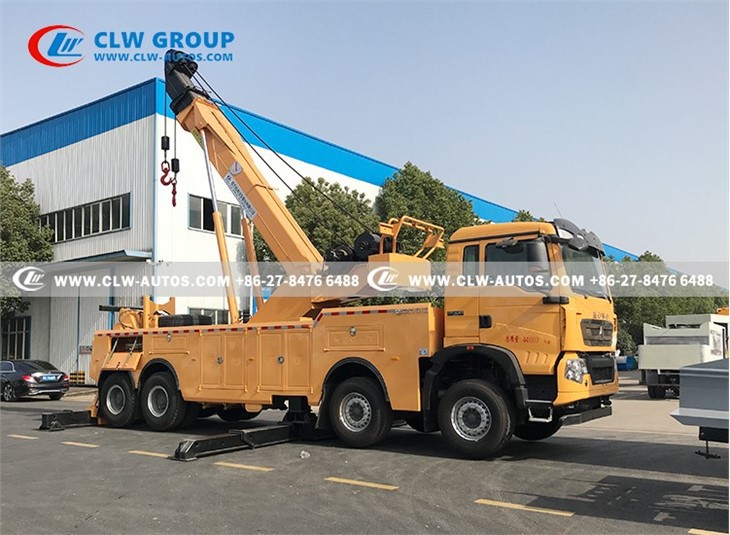

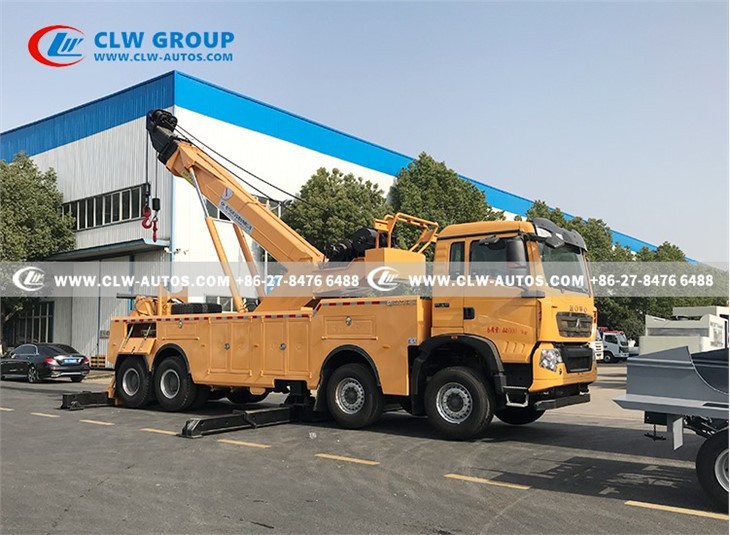

More detailed pictures for HOWO 8x4 430HP 50Tons Hyperlift Rotator Wrecker Towing Truck:
