Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 360 degree rotation 50tons wrecker truck in China. If you're going to buy high quality howo 360 degree rotation 50tons wrecker truck, welcome to get more information from our factory. For price consultation, contact us.
Product Information:
Truck chassis information: It used Sinotruk HOWO 12 wheeler truck chassis, Engine Horse Power could be 371hp, 420hp big power
for option.
EURO-2, EURO-3, EURO-4, EURO-5 emission standard are OK for your choice.
Right Hand Drive, or Left Hand Drive are both available.
The detailed specifcation for truck chassis is as below:
Cabin | Driving type 8x4, Left hand drive | |
HOWO 76 cab, with air condition and one sleeper bed, 70°hydraul`ically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11460×2500×3270 |
Wheel base (mm) | 1800+4600+1350 | |
Wheel track (front/rear) (mm) | 2022/1830/1830 | |
Approach/Departure angle(°) | 16/18 | |
Weight in KGS | Tare Weight | 24870 |
payload | 30000 | |
Front axles loading capacity | HF9 2x9000 | |
Rear axles loading capacity | HC16 2x16000 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371 | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
Tire | 12R22.5 tubeless tire with one spare | |
Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
Steering | ZF8098 | |
Oil tank | 400L | |
The Truck is equipped with two 25tons winches (hydraulic winch, with hydraulic pump, oil cylinder), 45m steel wire rope,
The Winches could be customized as your requirment, for example, two winches, four winches etc.

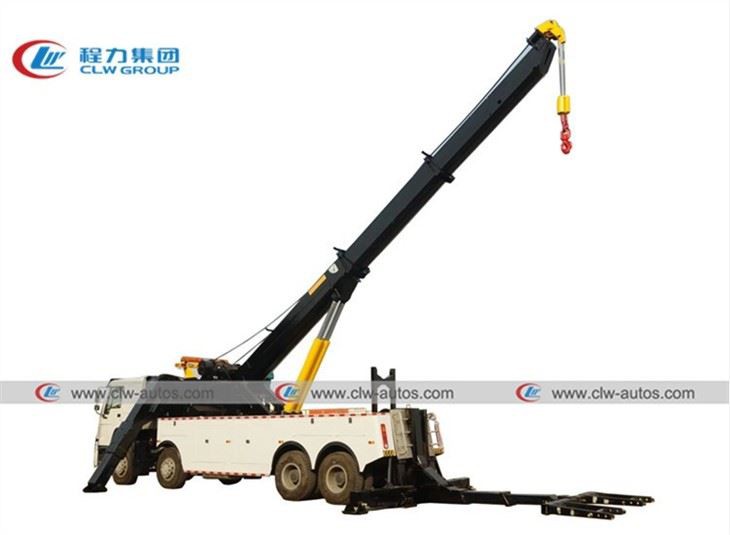

The truck is used for towing and hoisting, the boom can rotate 360 degrees in all directions, and the advanced double hinge mechanism adopted USA technology, which can fold the bracket arm when the bracket arm is loaded; The section of the boom is hexagonal, and its strength and stability are much greater than that of the quadrilateral structure.

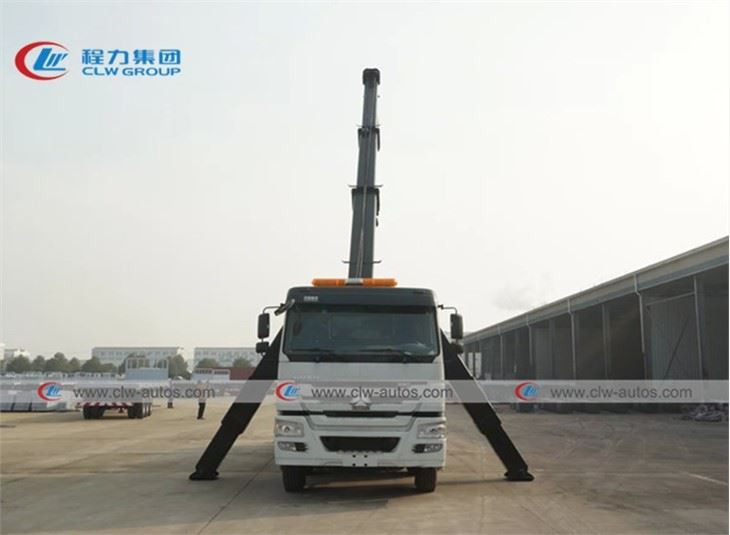

The truck has four Landing legs, Front: two landing legs, Rear: two landing legs, the the crane is working, the landing leg should be using at the same time:
A set of ABS system are available:
Manual operation are on the both sides. Remote Control is available.
Other spare parts list as below:
Four sets of steel fork, a set of tow-fork sleeve, a set of steel plate hanging lug fork, a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly
We have different capacity from 30Tons to 70tons lifting capacity 360 degree full rotation wrecker truck, for more information, please feel free to contact us.
