Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 60ton lowbed semi trailer in China. If you're going to buy high quality 60ton lowbed semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. More than 20 years professional design and production experience.
2. Choose Regular manufacturers purchase materials, like T700 baoshan
3. Use Domestic first-class production equipment. Main beam is using submerged arc welding process.
4. Famouse brand trailer parts used, like BPW/FUWA Axle, Triangle/Double Star/Double Coin and so on tires
5. Strict quality control system to ensure that each semi trailer is qualified.
Specification
Tare weight | 10000kg |
Size | 13000mm*3000mm*2900mm |
Payload | 60T |
Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 16mm height 500mm;bottom flange 20mm,width 140mm |
Side beam | 25# channel steel(Q235) |
Cross member | 16# channel steel(Q235) |
Floor | 5mm checkered plate |
Side wall | No |
Front board | No |
Axle | 3 axle FUWA brand 15T |
Suspension | Mechanical suspension American type local brand |
Leaf spring | Leaf spring 10pcs*90*13mm |
Tire | 12.00R20 double star brand 12pcs |
Wheel rim | 8.5-20 jingu brand 12pcs |
Kingpin | 2" weld king pin |
Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
Ladder | Mechanical ladder |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | Optional |
Lights | LED 8 side lights and 2 rear lights 2 width lamp |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light |
Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |

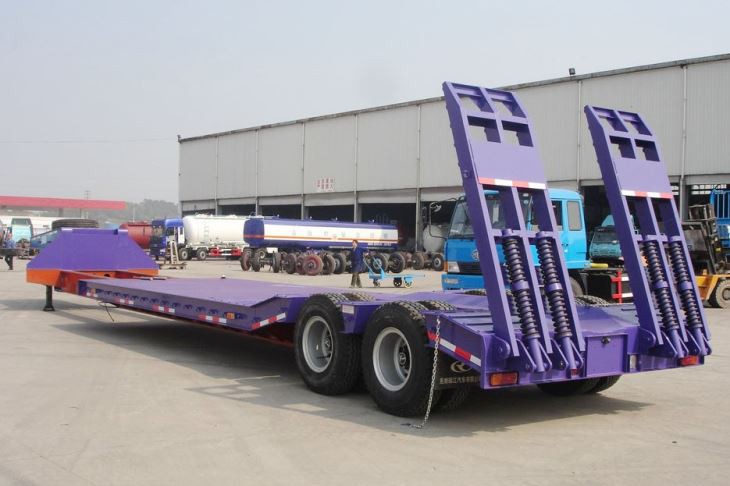

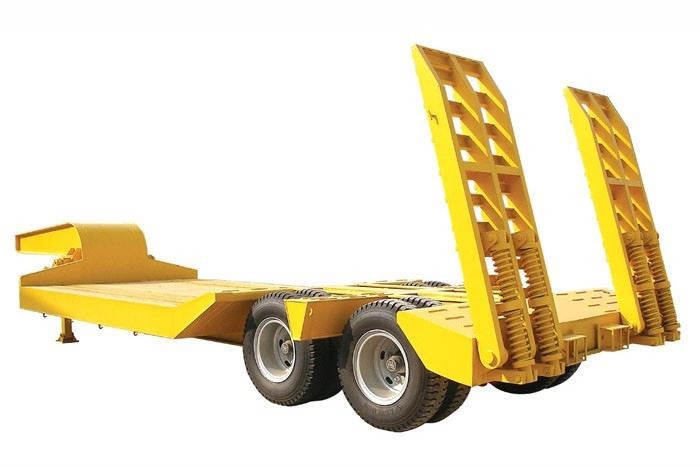

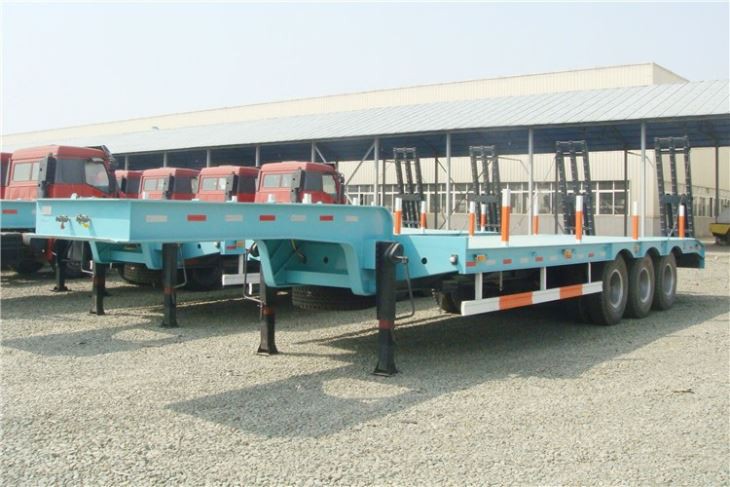

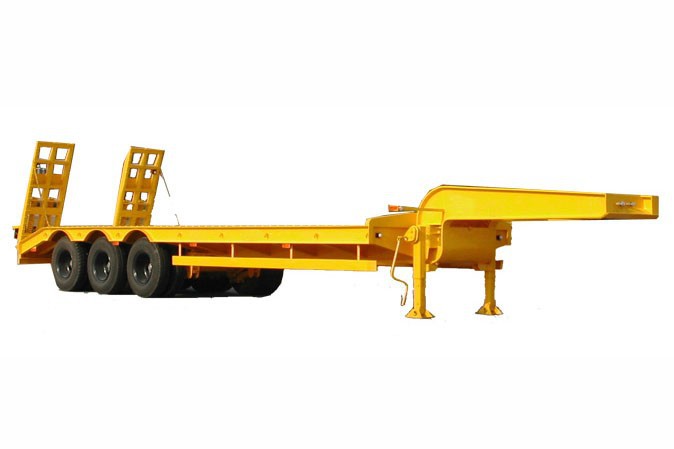

Reference Picture
Introduction of production process
A. Steel auto cutting
B. Main beam auto submerged arc welding
C. Chassis reversal
D. Shot blasting for rust cleaning
E. Welding by experienced worker
F. Final cleaning welding slag
G. Dust-free painting
Our Advantage
Our Flatbed trailers advantages:
1. Modern design: Double-Groove vertical van, light-weight I beam, arched form longitudinal beams, that make the trailers structure super strong and superlight;
2. Sound Adaptability: Passed the special processing, the overall frames of the traielrs can stand the actual test of various road conditions.
3. Superior Material selection: The raw materials are bought from top 5 Steel Mills, and all of other parts are all from topsuppliers also, like Triangle tyres, Jost landing gear, WEBCO relay valve, we have strict selection requirement for vendors.
4. Top configurations: Ensure every trailers with high configurations to decrease the maintenance for clients, and improve the trailers with longer service time
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
How To Buy From Us ?
- You Can Select The Desired Products From Our Online Shop,
A. Clicking Our Sales Manager To Confirm The Model;
B. Telling Our Sales Manager Special Request If You Have;
C. Confirmed The Quantity And Price On The Desired Model;
D. Confirming The Terms Of Delivery (Fob/Cfr/Cif/Daf.. Etc By Mutual Agreement);
E. Our Sales Manager Can Issue You The Commercial Invoice On Agreement;
F. 1st Down Payment 30% On Total Invoice Value Should To Paid Us By Tt/Online Upon The Invoice Issuing.
G. Our Factory Will Finish The Production According To The Agreed Production Time.
H. Final Payment Will Be Paid After We Showing All Production As Per Clients' Need.
I. Shipment Arrange And Final Document Arrange To Customer.
What's The Guarantee Period On Our Products ?
- All Products We Export Has 1 Year Guarantee Period, And For The Beam Is Lifetime Promise. As Exporting Experience
For Years, All Products From Our Factory Can Meet The Exporting Country's Standards On Vehicles, All Vehicles Will Be Built Upon The Related Countries' Road Condition, And Our Sales Manager Will Provide Customer The Best Suggestions Before Placing The Order. If Some Easy Weary Small Parts, We Can Offer Free In 6 Months.
