Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axle 60tons lowbed low loader semi trailer in China. If you're going to buy high quality 4 axle 60tons lowbed low loader semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Descrition:
Low bed semi trailers are widely used for heavy duty goods transportation as its low working platform. There's enough upper
loading space. Its low gravity makes the vehicle running safety. We CLW GROUP can design low bed trailer model according to
your special goods transportation demands.
Main Features
---& Torsion - resistan of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel ,
ensure low bed trailer driving stability and handle bed roads.
---& Heavy duty type ramp: manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine safely.
---& Stability when loading heavy duty marchine. The QUEST low bed trailer can equipped with extra legs on the rear of trailer.
This ensures loading machines more safety.

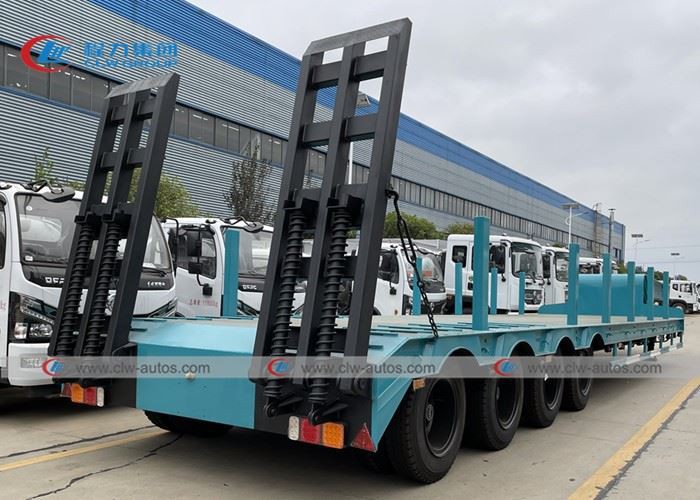

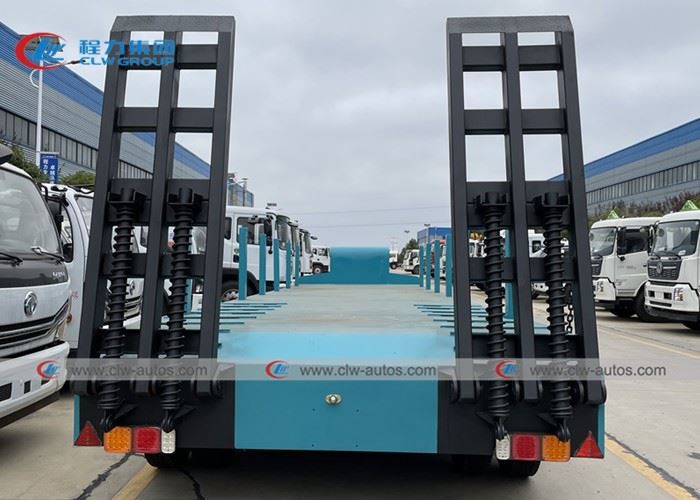

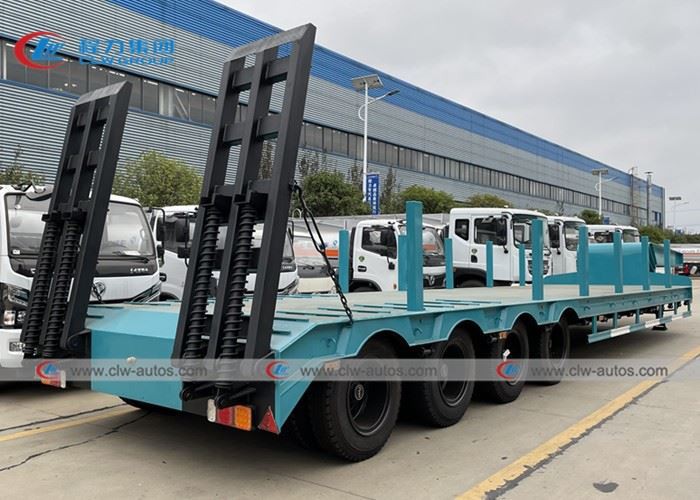

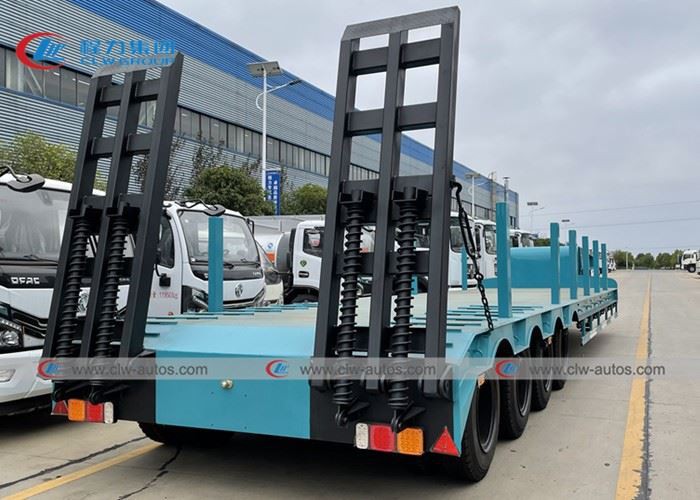

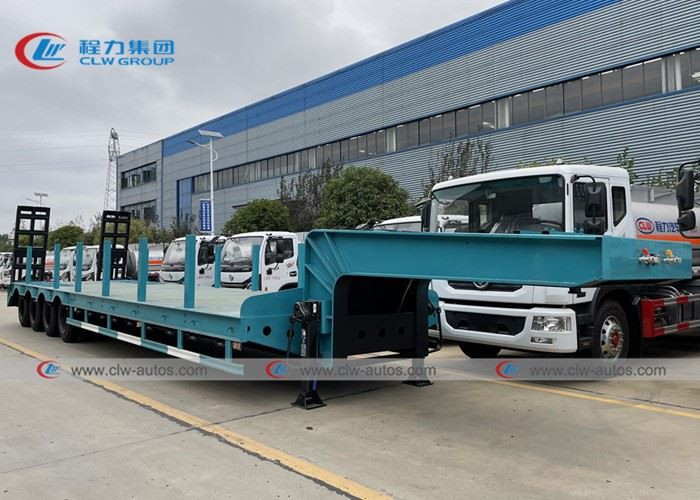

More detailed pictures for 4 Axle 60Tons Lowbed Low Loader Semi Trailer:
| Model | CLW | ||||
| Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |
| Dimension Made by Customer Machine Size, Standard Length is 13500mm (contact supplier for more) | 1 | 20 | 4 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) | |
| 2 | 40 | 8 | |||
| 3 | 60 | 12 | |||
| 4 | 80 | 16 | |||
| 5 | 100 | 20 | |||
| Wheel Base (mm) | 1310 | ||||
| leaf-spring Pcs | 10 | ||||
| Axle | 13/16/18 T/20T FUWA brand | ||||
| Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded | ||||
| Brake System | Dual line braking system with automatic braking system/chambers | ||||
| Brake Air Chamber | Double Model | ||||
| Kingpin | 2' or 3.5' Interchangeable | ||||
| Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||
| Platform | 4-6 mm diamond steel plate | ||||
| Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
| Brake Air Chamber | Four double and two single chamber | ||||
| Electrical System | 24V, 7core socket, lights according to European standards. | ||||
| Mainbeam Size | Upper plate | 14mm | |||
| Lower plate | 16mm | ||||
| Mid Web | 8 mm | ||||
| Height | 500-520mm | ||||
| Tool Box | 1 box of standard tools | ||||
| Spare tire carrier | 2 sets | ||||
| Color and Logo | Depends on the buyer's requirement. | ||||
| Pin Height | According to the height of the tractor saddle. | ||||
| Painting | Three coats painting; Any color will be available | ||||
Above Information are CLW Trailer Standard Specifications.If you want to change the specification, freely to contact with us. | |||||
Features for 4 Axle 60Tons Lowbed Low Loader Semi Trailer:
