Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 6m3 binder spreader in China. If you're going to buy high quality sinotruk howo 6m3 binder spreader, welcome to get more information from our factory. For price consultation, contact us.

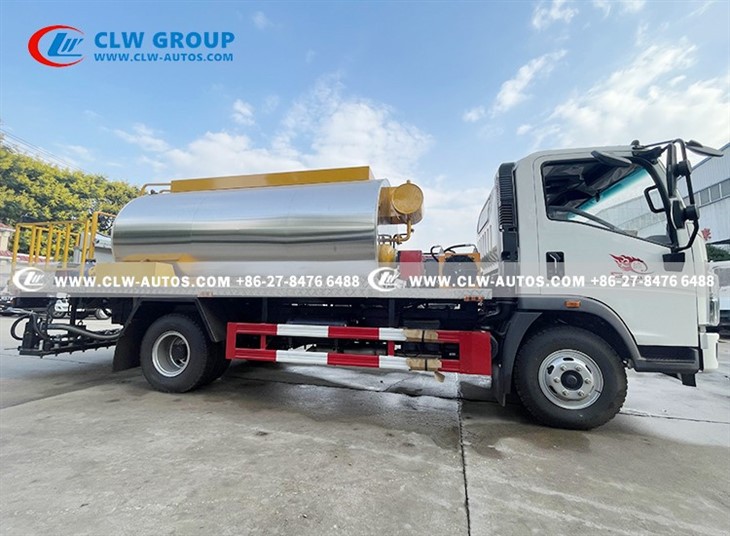

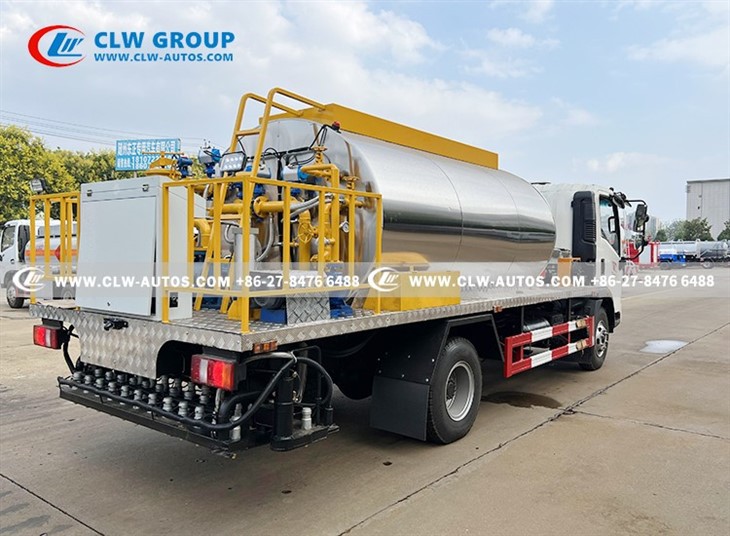

Sinotruk HOWO 6m3 Binder Spreader
The Intelligent Bitumen Sprayer (also known as a Bitumen Distributor Truck, Asphalt Sprayer Truck, or Bitumen Sprayer Machine) is a professional road construction vehicle designed for high-precision and efficient asphalt spraying.
Equipped with a German Infineon intelligent control system and full-pipeline heating technology, it ensures uniform spray volume at variable speeds. Suitable for all types of bitumen, including emulsified asphalt, hot bitumen, and modified bitumen, this machine is ideal for highway construction, municipal roadworks, and large-scale infrastructure projects in South Asia, the Middle East, and Africa.
Built on a Sinotruk HOWO chassis with strong mobility, our Intelligent Bitumen Sprayer offers high durability, flexible operation, and high spraying efficiency performance. It is the perfect solution for contractors seeking reliable road construction bitumen sprayers with advanced smart functions.
| Chassis Model | Sinotruk HOWO 4x2 154HP | ||||
| Overall Dimensions | mm | 7380*2350*2750 mm | |||
| Wheelbase | 3800 mm | ||||
| Tank Capacity | m3 | 6m3 | |||
| Curb Weight | kg | 6,370 kg | |||
| Gross Vehicle Weight (GVW) | 10,000 kg | ||||
| Engine | Power | 115 kW / 154 HP | |||
| Displacement | 3,760 mL | ||||
| Max Torque | 500 N.m | ||||
| Max speed | km/h | 90 km/h | |||
| Tire specification | 8.25R16 6 tires with 1 spare | ||||
| Steering Position | LHD / RHD | ||||
| Transmission | 6 Speed Manual | ||||
| Color | Customized | ||||
| Equipment | |||||
| Tanker Interior |
Carbon steel |
||||
| Insulation Material | 50 mm rock wool insulation | ||||
| Tank Exterior | 1 mm stainless steel | ||||
| Bitumen Pump | QGB680, Flow Rate: 680 L/min | ||||
| Proportional Valve |
CL-BLTS120.00 |
||||
| Control System | PLC Control | ||||
| Asphalt Nozzles | 34 pcs | ||||
| Burner | Riello G20 (Italy), 200,000 kcal/h each | ||||
|
Thermal Oil Pump |
RY40-25-160, from a well-known Chinese brand |
||||
| Spray Width | 4.5 m | ||||
|
Asphalt Spraying Rate |
0.25 to 3 L/m2 | ||||
| Spraying Medium | Hot & emulsified asphalt (including SBS and rubber-modified types) | ||||
| Optimum Construction Speed | 3-6 km/h | ||||
| Speed Sensor |
GTS211B-N016 |
||||
| Temperature Controller | WZP-230 | ||||
Generator
PLC Control

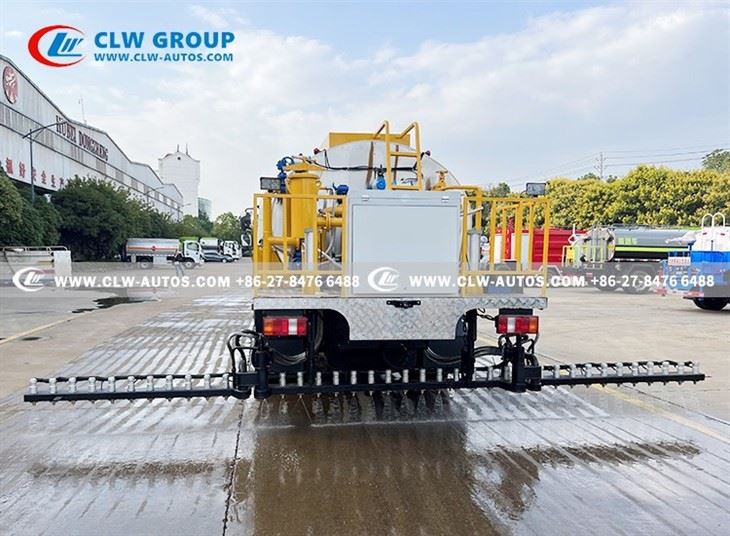

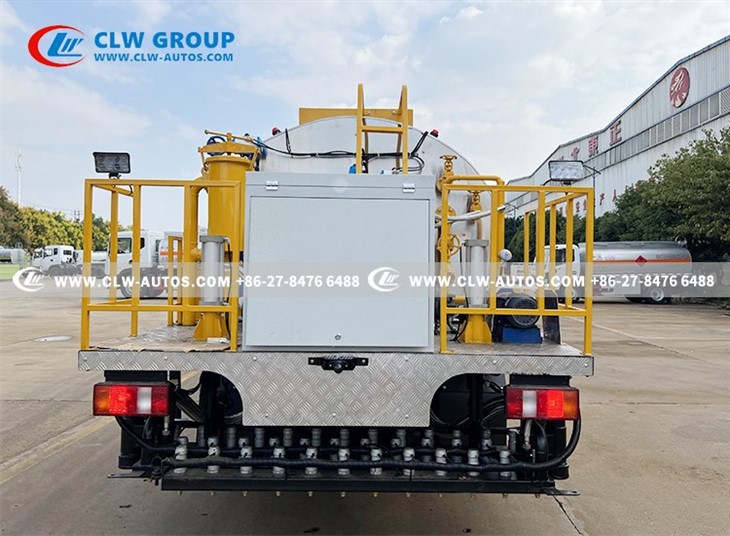

Nozzles
Nozzles
20 Years of Expertise in One-Stop Solutions
Located in Suizhou City, Hubei Province, Central China, Hubei Chengli Special Automobile Co., Ltd. is one of the key manufacturers authorized by the Ministry of Industry and Information Technology of China, with the capability to produce over 800 types of special purpose vehicles. The company has also been designated by the Hubei provincial government as an official export base for trucks and spare parts.
In partnership with major brands such as FAW, HOWO, FOTON, DONGFENG, JAC, JMC, SHACMAN, and ISUZU, we ensure that all our products come with a one-year warranty and lifetime maintenance. Moreover, after-sales service requests are addressed within 48 hours. CLW Group is committed to delivering professional service and warmly welcomes you to visit our factory.
