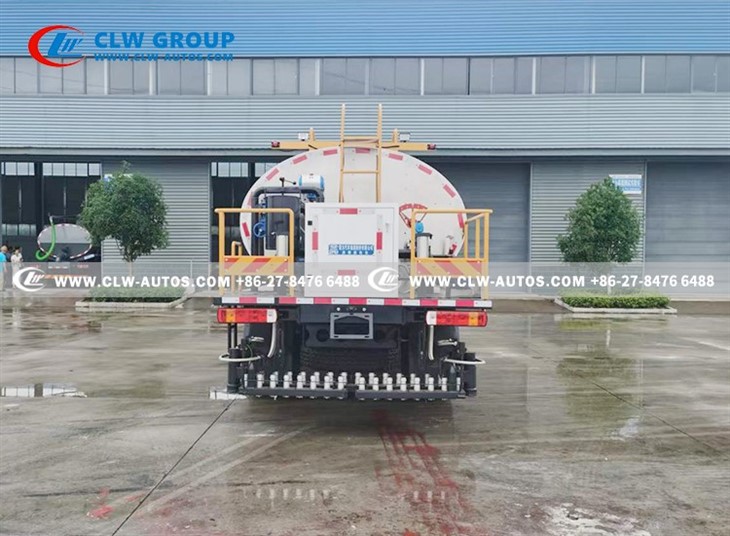

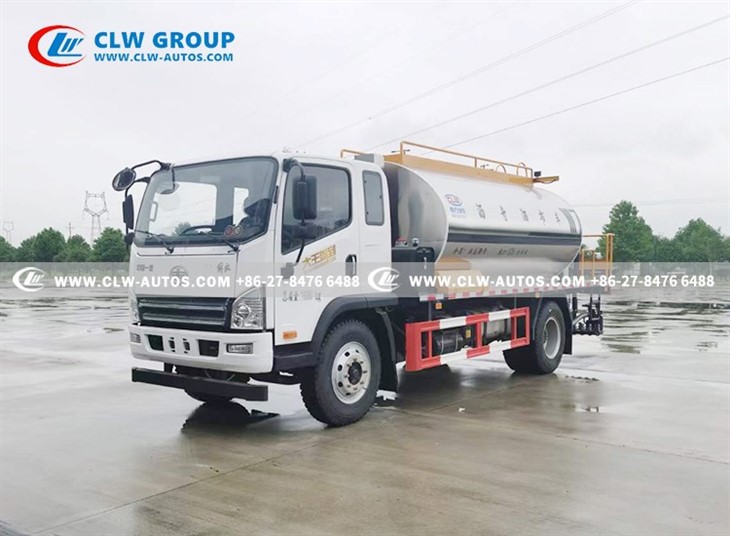

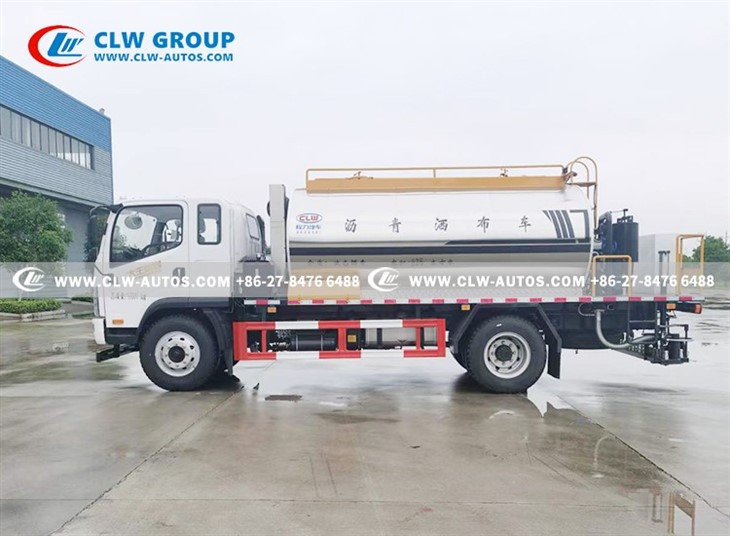

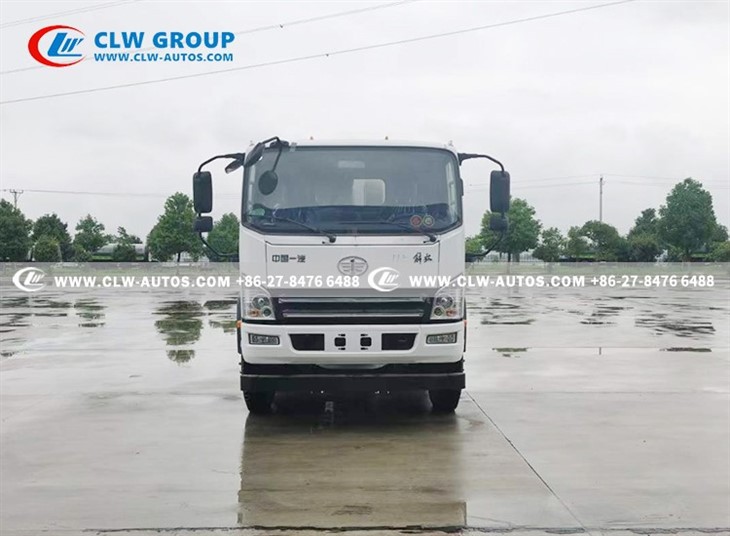

Faw 8m3 Binder Spreader
Our Intelligent Bitumen Sprayer, also referred to as a Bitumen Distributor Truck, Asphalt Sprayer Truck, or Bitumen Sprayer Machine, is a specialized road construction vehicle designed for accurate and efficient bitumen application.
Powered by a German Infineon smart control system and integrated full-pipeline heating technology, this machine delivers consistent spray output even under varying speeds. It is compatible with a wide range of bitumen types, including emulsified asphalt, hot bitumen, and modified bitumen, making it highly suitable for highway paving, municipal maintenance, and major infrastructure projects across South Asia, the Middle East, and Africa.
Built on a robust FAW chassis, our Bitumen Sprayer combines excellent mobility, strong durability, and high spraying efficiency. It stands as an ideal choice for contractors who demand reliable, intelligent solutions for modern road construction.
| Chassis Model | FAW 4x2 160HP | ||||
| Overall Dimensions | mm | 7500*2380*2950 mm | |||
| Wheelbase | 3900 mm | ||||
| Tank Capacity | m3 | 8m3 | |||
| Curb Weight | kg | 7,250 kg | |||
| Gross Vehicle Weight (GVW) | 14,000 kg | ||||
| Engine | Model |
Yuchai YC4E160-33 |
|||
| Power | 118 kW / 160 HP | ||||
| Displacement | 4,257 mL | ||||
| Max Torque | 600 N.m | ||||
| Max speed | km/h | 90 km/h | |||
| Tire specification | 10.00R20 6 tires with 1 spare | ||||
| Steering Position | LHD / RHD | ||||
| Transmission | FAST8JS75TE, 8 Speed Manual | ||||
| Color | Customized | ||||
| Equipment | |||||
| Tanker Interior |
Carbon steel |
||||
| Insulation Material | 50 mm rock wool insulation | ||||
| Tank Exterior | 1 mm stainless steel | ||||
| Bitumen Pump | QGB680, Flow Rate: 680 L/min | ||||
| Proportional Valve |
CL-BLTS120.00 |
||||
| Control System | PLC Control | ||||
| Asphalt Nozzles | 34 pcs | ||||
| Burner | Riello G20 (Italy), 200,000 kcal/h each | ||||
|
Thermal Oil Pump |
RY40-25-160, from a well-known Chinese brand |
||||
| Spray Width | 4.5 m | ||||
|
Asphalt Spraying Rate |
0.25 to 3 L/m2 | ||||
| Spraying Medium | Hot & emulsified asphalt (including SBS and rubber-modified types) | ||||
| Optimum Construction Speed | 3-6 km/h | ||||
| Speed Sensor |
GTS211B-N016 |
||||
| Temperature Controller | WZP-230 | ||||
Generator
PLC Control

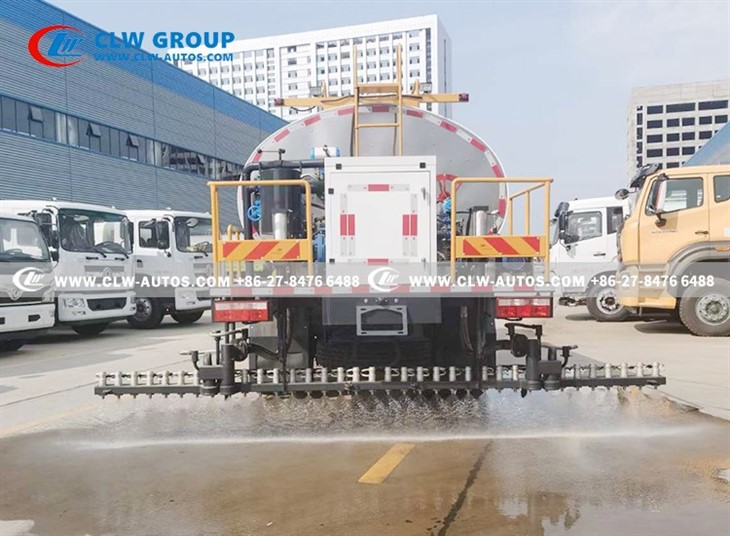

Nozzles
Nozzles
