Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of oz adr aussie friendly 32000liters water tanker semi trailer in China. If you're going to buy high quality oz adr aussie friendly 32000liters water tanker semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Products Description
FEATURES & BENEFITS
Tanker constructed from 6mm thickness High Tensile steel on the outer walls, all robotic welded.
4 compartments, 3 buffles with the front compartment able to be completely isolated (can feed through to second compartment via butterfly valve)
Two fill-points above (one above first compartment, the other located at the centre of tanker)
Air-Operated safety rails included, enabling this unit to operate in highly OHS restricted environments.
Oscillating skid plate
Tanker is bolted to chassis with rubber strip in between to allow flexibility thus avoiding cracking.
General use or optional coating for potable water use.
Remote Control is available.
GENERAL INFORMATION:
Length: Overall Length 34 FT (10,500mm)
Width: Exterior: 2500mm
Height : Deck Height: 3,300mm
CAPACITY: 32000 Litres
(ATM): 45 Tonnes
(GTM): 25 Tonnes
Tare Weight: 10.2 Tonnes
Axle: K-Hitch brand 11.5Tons ADR Type.
Suspension: K-Hitch brand mechanical suspension, ADR Type. Air Suspension is available.

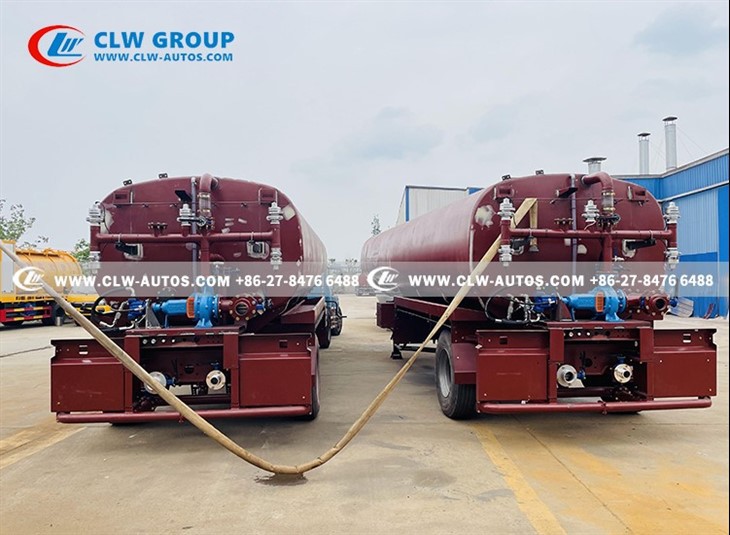

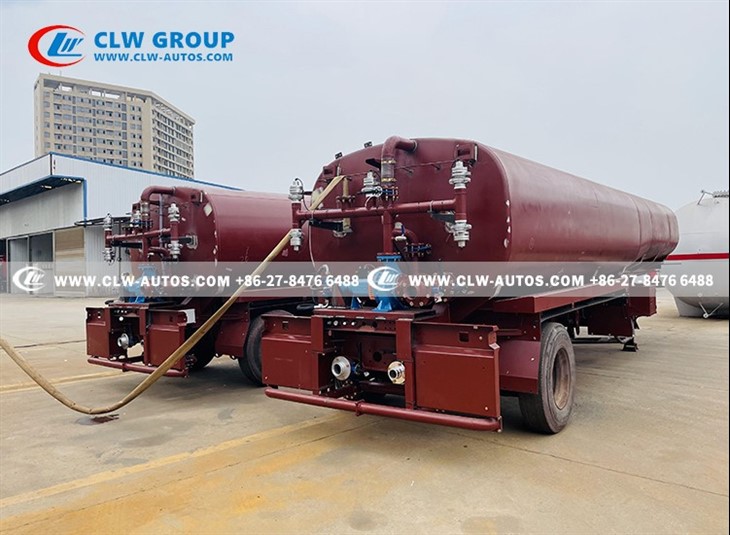

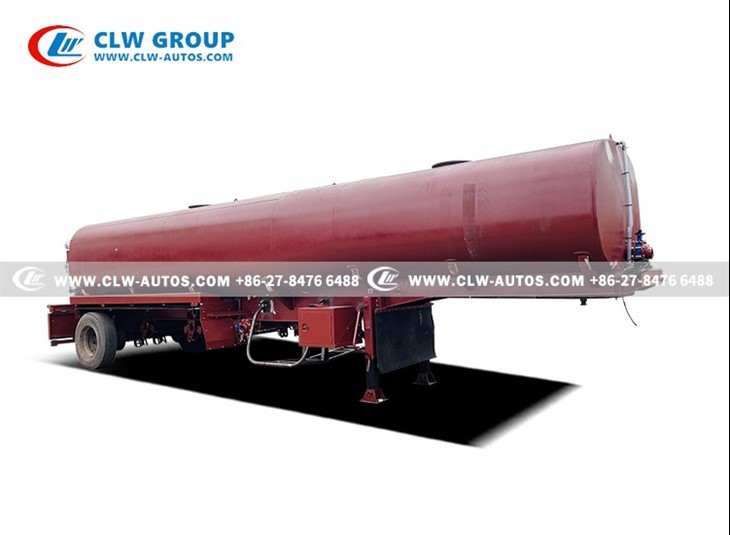

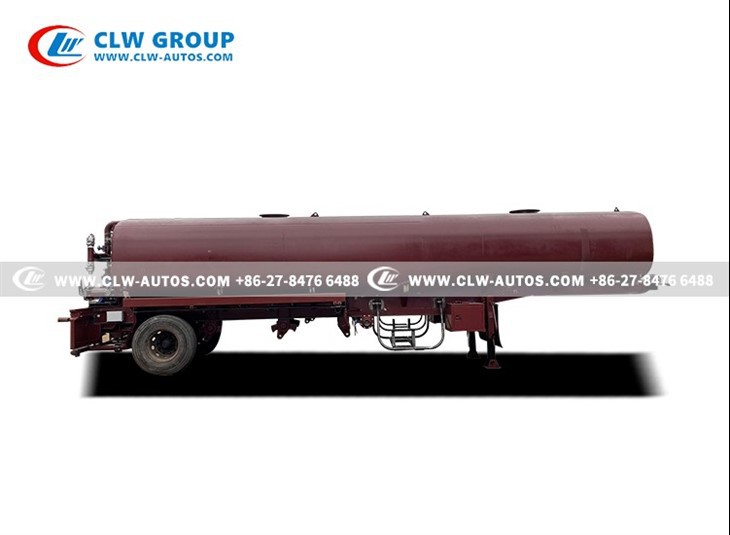

More detailed Pictures for OZ ADR Aussie Friendly 32000Liters Water Tanker Semi Trailer:
Baffles: 4mm thick sheet steel, corrugated to strengthen its supporting capabilities. Each baffle wall features a 600mm flow-through cavity to enable fluid by-pass through compartments two to six.
Skid-Plate: 12mm Thick Skid-Plate, with two position bolt-on king pin boss-plates fitted as standard.
Road-Train Bracket : 20mm thick folded C-Channel. With extra support gussets. Constructed from 350mPa mild steel.Dribble bar 6 inch installed at rear, which doubles-up as a bumper-bar.
UNDERFRAME
Chassis Beams: Heavy duty tried and tested construction for sealed and unsealed road use.
Landing Gear: JOST A400 Landing Gear (JOST E100 Also used).
King-Pin: JOST 50mm or 90mm available.
