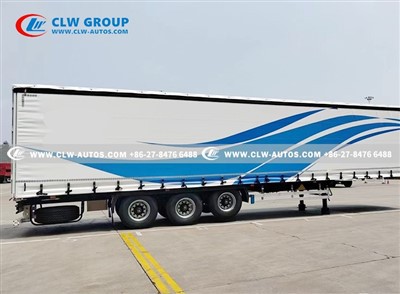

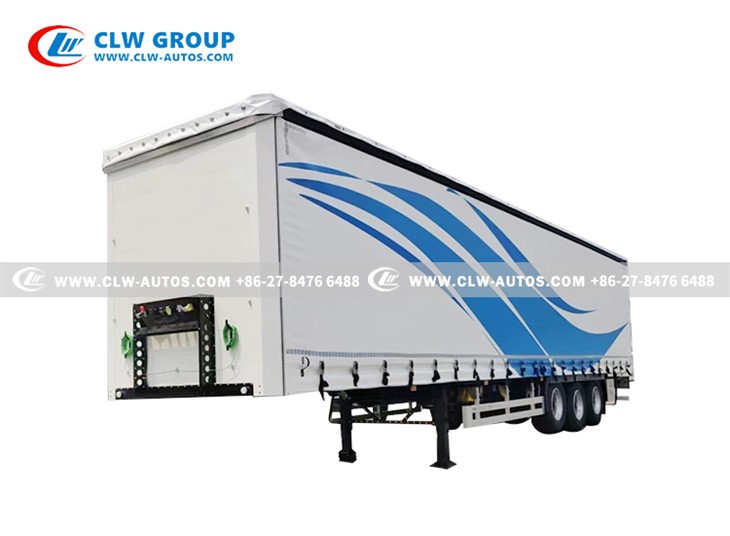

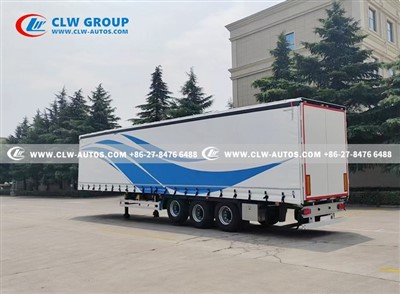

13.75m 40-Ton Curtain Side Semi Trailer
Payload: 35~40 tons
Dimensions: 13,885×2,550×4,000 mm
Axles: 3 × 9-tons
Braking System: WABCO EBS + RSS
Front & Rear Wall Material: Aluminum panels with wooden inner lining
Curtain System: 900 GSM PVC side curtains
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 13.75m 40-ton curtain side semi trailer in China. If you're going to buy high quality 13.75m 40-ton curtain side semi trailer, welcome to get more information from our factory. For price consultation, contact us.
13.75m 40-Ton Curtain Side Semi Trailer
Products Description
If you're searching for a dependable and high-capacity solution for international palletized freight, our 13.75-meter Curtain Side Semi Trailer offers the perfect combination of strength, accessibility, and efficiency. Designed for modern logistics, this trailer is ideal for pallet transport, general cargo delivery, warehouse-to-store distribution, and cross-border export operations. Its quick-access curtain system enables rapid side loading via forklifts or cranes, significantly improving turnaround time. Built to withstand varying road conditions and equipped with E-mark certified components, it meets both European standards and global transport requirements, making it a top choice for logistics providers, freight forwarders, and industrial shippers worldwide.
- Palletized Cargo Transport: Efficient loading/unloading of Euro pallets with forklifts or cranes from the side, saving time in high-frequency delivery environments.
- General Freight Logistics: Suitable for transporting boxed goods, packaged consumer products, light industrial materials, and bulk retail shipments.
- Warehouse-to-Store Distribution: Commonly used in retail and FMCG supply chains where flexibility and quick access are essential.
- Export & Cross-Border Shipping: Designed to meet European road regulations and equipped with E-marked components, making it ideal for international transport routes.
- Weather-Sensitive Cargo: The heavy-duty curtain material and sealed structure provide protection against rain, dust, and UV, making it suitable for cargo that needs shelter but doesn't require full refrigeration.
- Construction & Manufacturing Supplies: Capable of handling palletized steel parts, timber, packaged machinery, or building materials.
Key Features
- Optimized Dimensions: Overall size of 13,885×2,550×4,000mm, offering a generous internal volume of 13,640×2,480×2,700mm-ideal for Euro pallets.
- Efficient Loading/Unloading: Designed for forklift and crane operations; equipped with side curtains and removable slats for rapid access.
- Superior Chassis Design: Built with factory-customized main beams, carbon steel side rails, and waterproof phenolic plywood flooring that supports 7.2-ton forklifts.
- Reliable Suspension System: European-style air suspension with front axle lift and full-height adjustment, ensuring smooth and stable rides on international roads.
- Heavy-Duty Axles & Brakes: Fitted with 9t disc-brake axles, imported calipers, ABS, and WABCO EBS with RSS for enhanced safety.
- Export-Ready Configuration: Comes with E-mark certified tires, LED lights, and an aluminum roof and side protection system.
- Durable Curtain Material: Side curtain made from 900 GSM PVC, cold-resistant to -25°C, and available in dual-color (white/blue) for added visibility and brand distinction.
Products Parameter
| Overall Dimensions | 13885×2550×4000 mm |
| Internal Dimensions | 13640×2480×2700 mm |
| Load Capacity | 35-40 tons |
| Cargo Type | Pallet Transport |
| Loading/Unloading Method | Forklift, Crane |
| Saddle Height | 1150 mm |
| Chassis System | |
| Kingpin | JOST 50# Assembly Type |
| Floor | 30mm thick waterproof plywood with phenolic resin (double-sided), suitable for 7.2t forklift load |
| Suspension System | 9 tons / European air suspension / Front axle lift / Whole vehicle lifting (imported airbag) |
| Running Gear | |
| Axle | 3 x 9 tons / Disc Brake / Track 2050 mm / (Imported Caliper), 2 Axles with ABS |
| Tire | 385/65R22.5 / 20PR / (E) Code Certified / 7 pcs / Factory Brand |
| Rim | Carbon Steel 11.75×22.5 / Zero Offset / 7 pcs |
| Supporting System | |
| Landing Gear | Fuwa 28t / Interlinked |
| Reinforcement | Cross Brace & Diagonal Brace |
| Accessories | |
| Toolbox | Rear Axle Mounted / 1 pc |
| Spare Tire Rack | Rear Axle Mounted / 2 pcs |
| Side Guard | Aluminum Alloy |
| Rear Guard | Carbon Steel / Bolted Connection |
| Mudguard | 1/4 Plastic Fender / 4 pcs |
| Mud Flaps | Factory Standard |
| Rain Curtain | Included |
| Side Curtain | Included |
| Wheel Chock | Included |
| Floor Hooks | Included |
| Lighting System | |
| Wiring Harness | Factory Standard / Waterproof Connectors |
| Lights | Standard LED / E-Mark Certified |
| Brake System | |
| EBS | WABCO 2S/2M with RSS Road Stability System |
| Relay Valve | Integrated in WABCO EBS |
| Air Chambers | 4 Double + 2 Single |
| Air Tanks | Factory Standard / Aluminum Alloy |
| Parking Brake | Included |
| Body System | |
| Front Compartment | Aluminum Alloy / Wooden Interior Wall |
| Rear Compartment | Concealed Lock Bar Swing Doors |
| Side Wall | 4 Layers of Removable Cross Bars / 32 pcs |
| Front & Rear Stanchions | Factory Standard |
| Central Pillars | Adjustable Sliding Pillars / 6 pcs |
| Curtain System | |
| Roof Curtain Rail | Factory Standard |
| Roof Curtain | 750 GRM / Cold Resistant to -25°C |
| Side Curtain | 900 GRM / Cold Resistant to -25°C |
| Side Curtain Color | White & Blue |

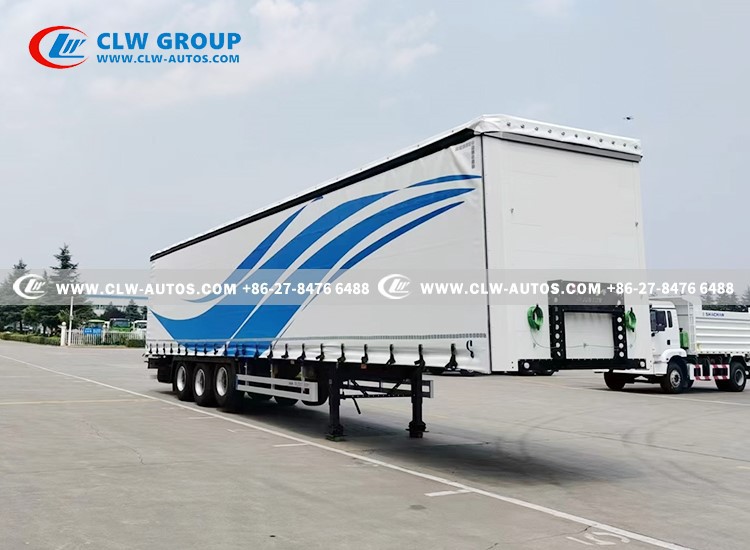

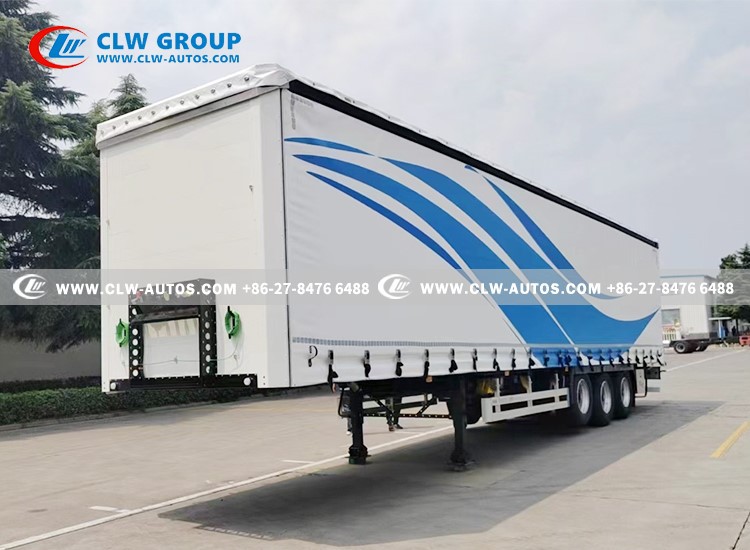

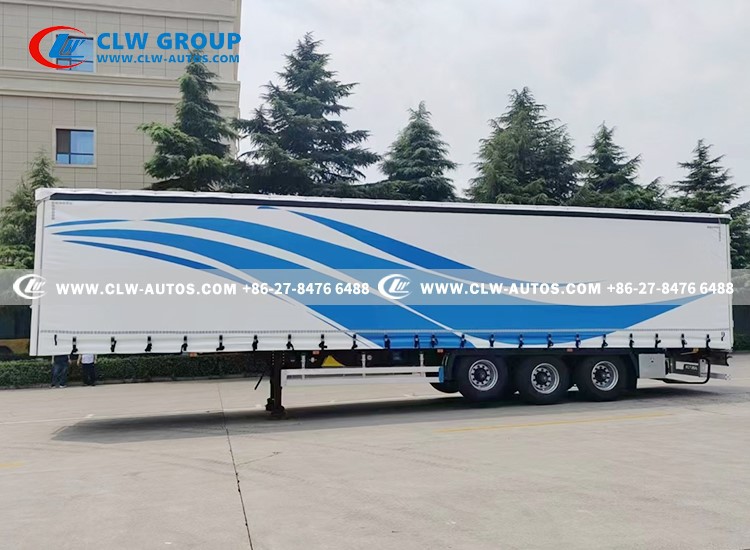

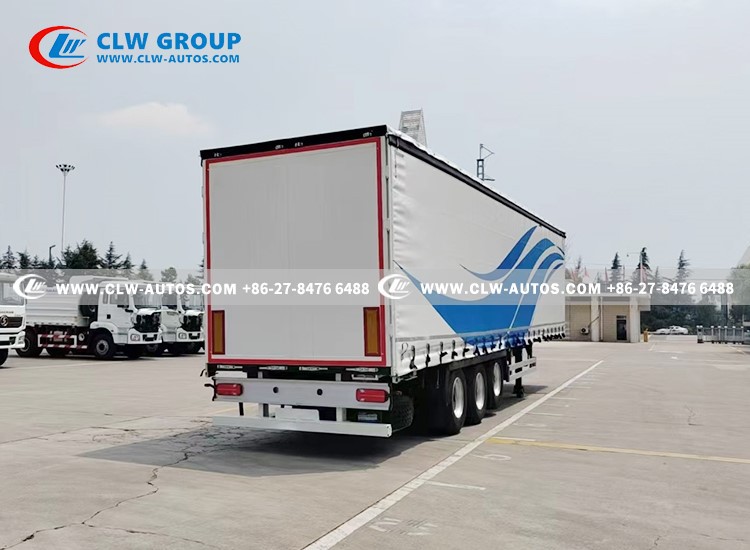

Products Show
Other Trailers

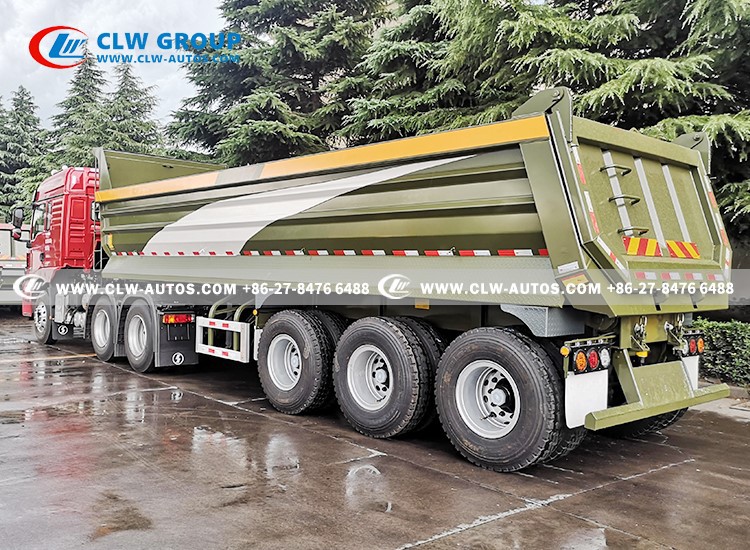

Front Tipping Dump Trailer

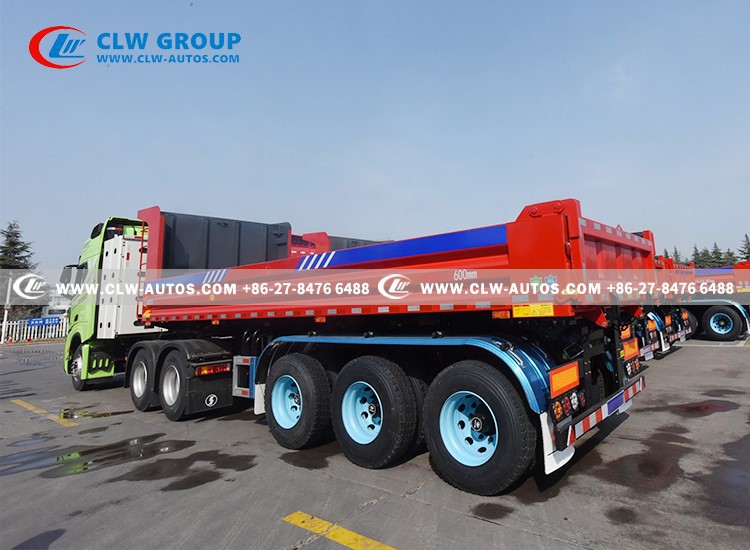

Side Pusher Dump Semi-Trailer

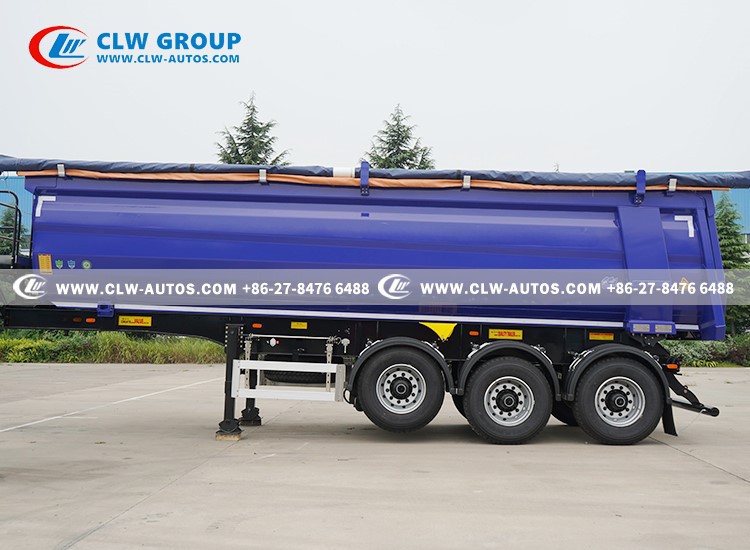

Front Tipping Dump Trailer
