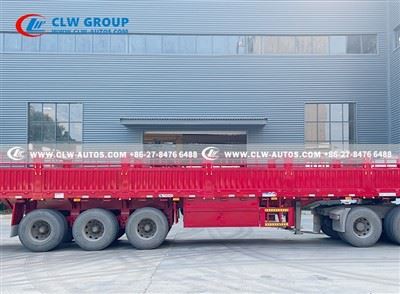

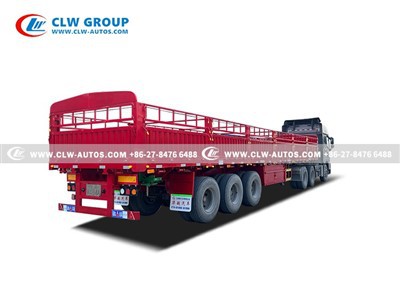

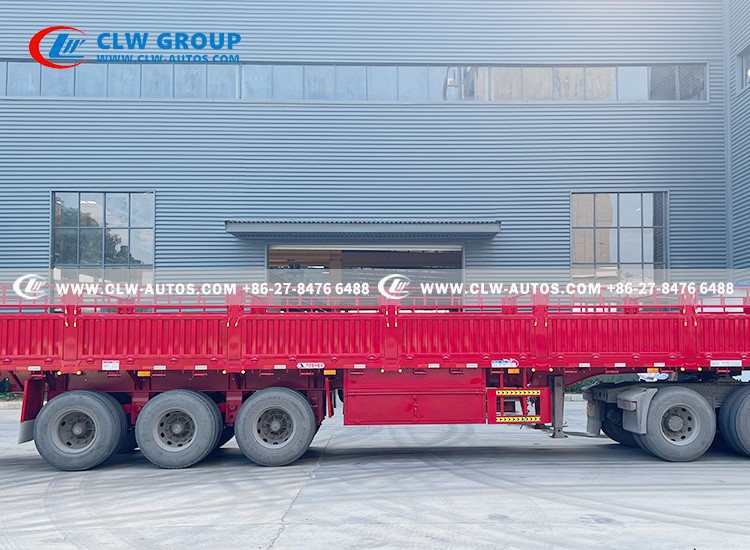

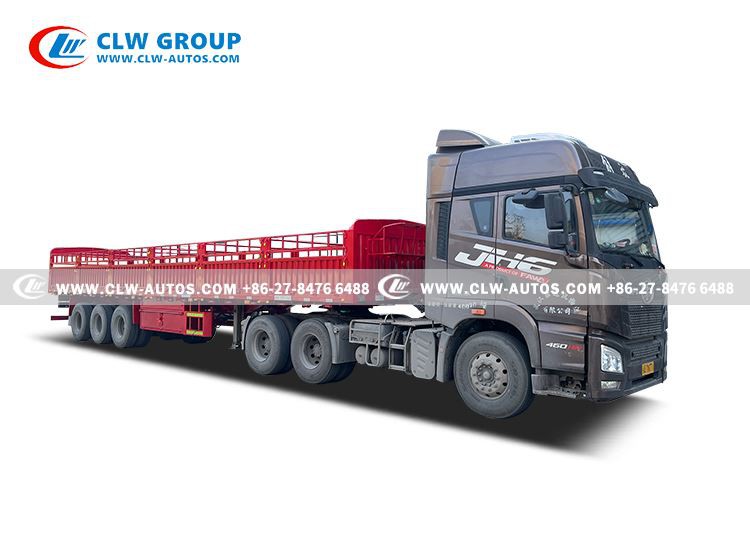

3 Axle 50 Tons Dropside Semi Trailer

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 axle 50 tons dropside semi trailer in China. If you're going to buy high quality 3 axle 50 tons dropside semi trailer, welcome to get more information from our factory. For price consultation, contact us.





1. offer sidewall semi trailers, And cargo semi trailer, adopt advanced design concept. The payload can reach 35ton, 40ton, 60ton.
After fully understanding and analyzing the transportation environment in different countries.

2. The Side wall semi trailer trailers widely used in transportation industry. Like can load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.



3. Cargo side wall semi trailer is usually just called sidewall trailer or side wall semi trailer for short. The only difference between the side wall semi trailer and flatbed semi trailer is the side wall or side boards. Flatbed semi trailers don't have the side boards, while side wall semi trailers have them. The side wall can be low or high depending on customer's needs.

4. The side boards are usually disassembled prior shipping and stacked on top of each other to save space during transportation. Once they arrive their destination, the side boards can be assembled very easily.

5. On the cargo side wall semi trailer, the frame is the main component used to support the load and install traction pins, suspension, landing gear and other devices.

6. The side beams are generally channel steel or bending parts. At present, most trailers use channel steel . There will be more side beams for for light-body trailers because the requirements for strength are not too high. The support beam is the through beam, which are mostly W beams now.



7. It can carry various goods, mainly used in agriculture and logistics, such as agricultural products, light goods, animals, vegetables, fruits, etc. We can customize it and provide you with the most suitable one. The structure is simple and easy to disassemble, designed reasonably for different goods, meeting the full weight situation and reducing costs.

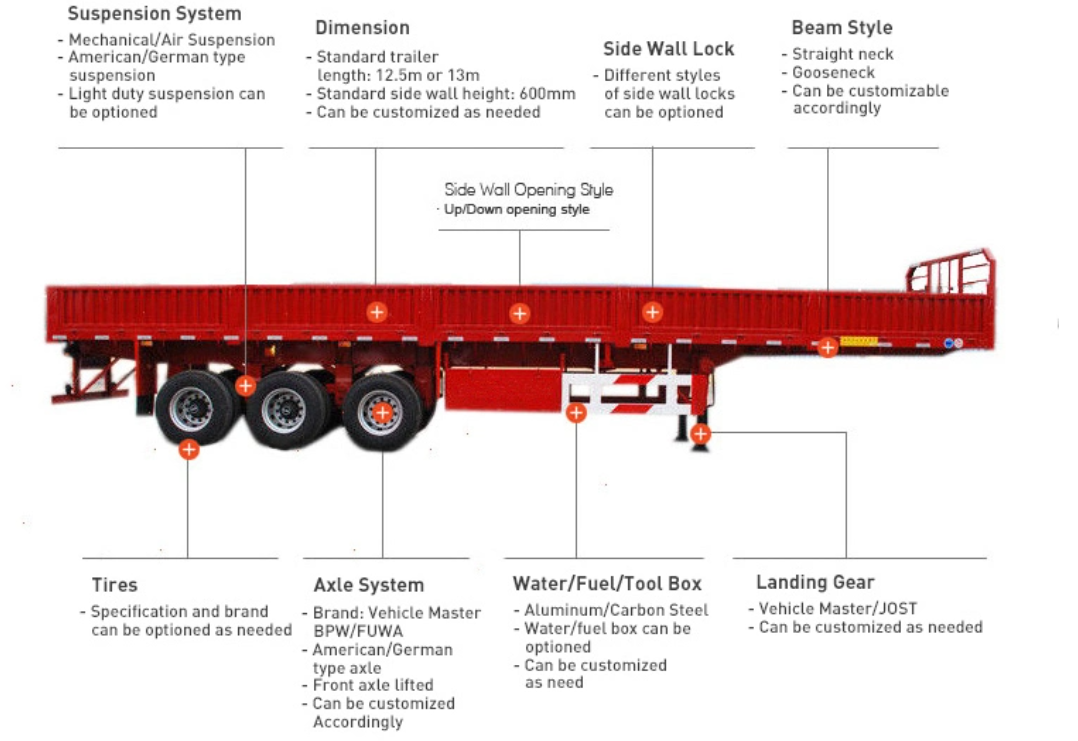

Items	Side wall/Dropside/Drop Side semi trailer	Side wall/Dropside/Drop Side semi trailer
Loading Capacity	30-40 tons	45-50 tons
Axle	2 pieces, 13T axle	3 pieces, 13T axle
Tyre	8 pieces, 295/60R22.5	12 pieces, 295/60R22.5
Dimensions(LxWxH)	9500mm x 2500 x 1250mm		12500mm x 2500 x 1250mm
Tare weight	8 tons to 10 tons
Axle spacing	1310mm
Rims	9.0-22.5
Suspension System	Leaf spring suspension / air suspension
Brake System	Emergency braking system,air damping,Dual line pneumatic brake system ;WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(FUWA brand); Two pieces of 45L air tanks
Main Beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 14mm ; Material is Q345B Steel .
Side Wall	800mm height; 600mm,1000mm optional
Container Twist Locks	12 nos, THT
Kingpin	2' or 3.5' interchangeable
Landing Gear	28 Tons , Two speed manual operation
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box	One tool box with a set of standard trailer tools
Spare Tyre Carrier	One piece or two pieces



Why Choose us? & Our Advantanges:



1. Good Painting
Surfaces cleaned by shot blasting. One epoxy coating and acrylic finish coating.
Durable against rust, support longer good looking and service life.

2. Automatic welding
Submerged arc Automatic welding construction, Keypoint reinforces and purposeful welding avoid some parts easier lose welding according to experience support vehicle longer time working without repairing.

3. Quality Axles suspensions and Brake system
BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safe and save tire cost Fix quality springs and suspensions, support longer service life, save maintenance cost.
