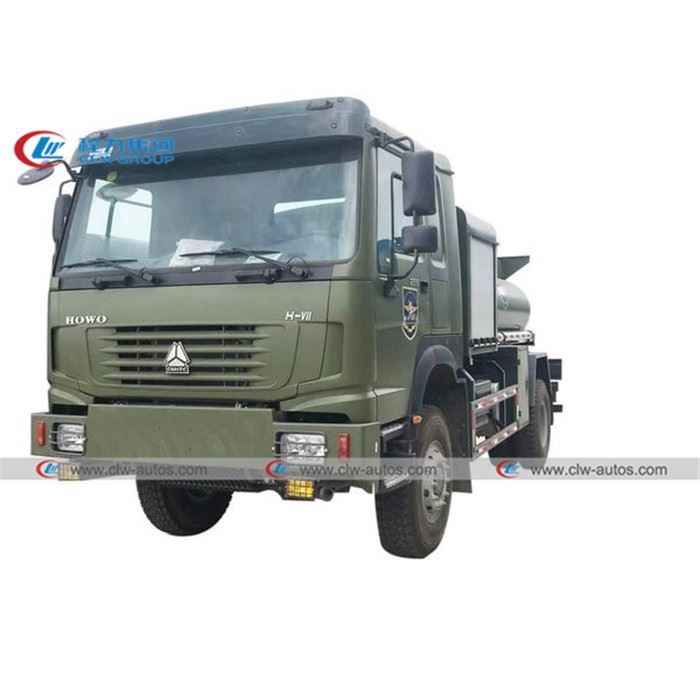

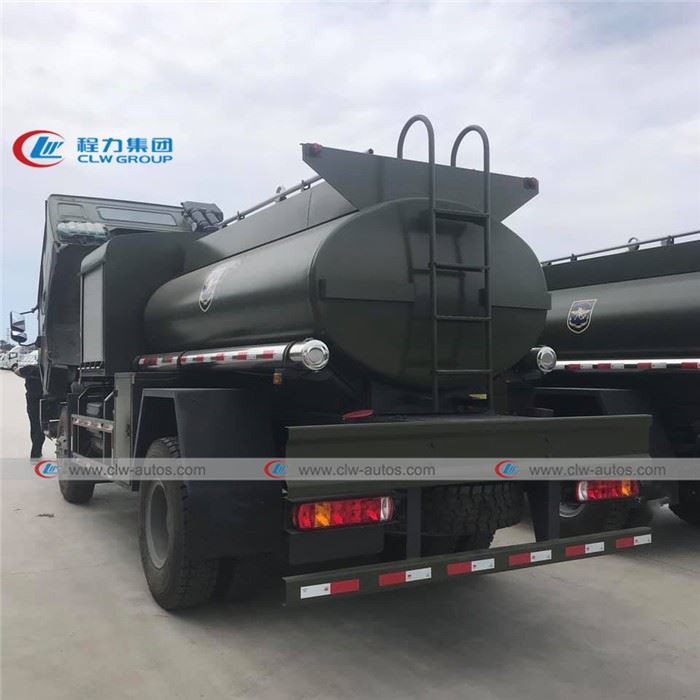

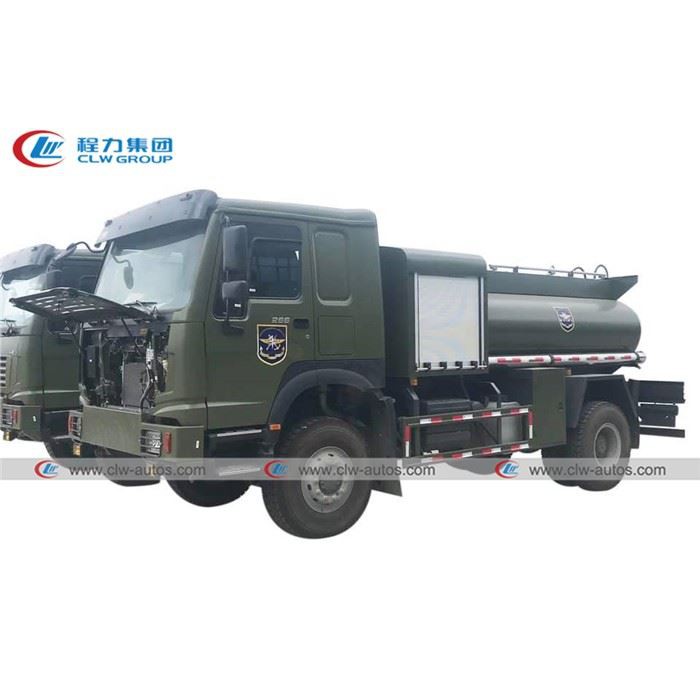

10000 Liter HOWO 4x4 Off Road AWD Aviation Refueler Truck

Description

Aviation refueler truck(also called aircraft refueler truck,helicopter refueler truck,fuel dispenser truck,oil bowser truck,off road refueling truck,4X4 aviation refueling truck) is used to transport Jet A,avialtion fuel,fuel,oil,diesel,gasoline,kerosene and so on.

1. Aviation refueler truck body: The tanker material is made of aluminum-magnesium alloy 5083 with advantage of light weight, large volume, corrosion resistance and no pollution and guarantees the quality of oil.

2. Aviation refueler truck: aluminum alloy centrifugal pump, reel filling flow 80 or 300L / min, pipeline pumping flow 700L / min, working pressure is 0.25MPa.

3. Aviation refueler truck flowmeter: 0.2 accuracy, diameter 50 waist wheel flowmeter.

4. filter separator: rated flow 400L / min, rated working pressure 1.0MPa, the maximum allowable pressure difference of 0.15MPa, in line with the requirements of API 1581 3rd edition.

5. automatic reset reel, refueling hose diameter 25 or 38MM, length 15 meters.

6. level gauge: The stainless steel float in the tank and the 10-inch aluminum alloy dial on the left side of the tank can clearly observe the current liquid volume in the tank.

7. operating system: centralized control of independent control room, instrument indication includes pump inlet vacuum gauge, pumping pressure gauge, oil pump tachometer, filter differential pressure gauge, etc. Switch valve operation includes power main switch, lighting switch, emergency stop switch, oil pump adjustment knob, fueling valve, circulating filter valve, sampling valve, subsea valve control combination switch, etc.

Feature--Stable and reliable howo off road 4X4 truck chassis suitable for tough road or desert;--High quality carbon steel material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

Specification

SPECIFICATION
Dimension(Lx W xH)(unloaded)(mm)			8268×2496×3200
Tanker		Capacity	5CBM or 10 CBM
		No. Of Compartment	TWO or more
		Botton Valve	WITH
Approaching angle/Departure angle(°)			15/18
Overhang(front/rear) (mm)			1500/2090
Wheel base (mm)			4600
Max speed(km/h)			102
Curb weight(kg)			8250
Engine	Model		WD615.62,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
	Fuel type		Diesel
	Power, max(kw/rpm)		266HP
	Emission		EUROII
Fuel tanker capacity(L)			400L aluminum oil tank
Transmission			Model	HW13710, 10 speeds forward and 2 reverse
Brake system			Service brake	Dual circuit compressed air brake
			Parking brake	spring energy, compressed air operating on rear wheels
Steering system			Model	ZF8198
Front axle			HF7
Rear axle			ST16
Tire			1200R20
Electrical system			Battery		2X12V/165Ah
			Alternator		28V-1500kw
			Starter		7.5Kw/24V
Cab			HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically til-table to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with cased-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
