Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 20m3 vacuum suction truck in China. If you're going to buy high quality sinotruk howo 20m3 vacuum suction truck, welcome to get more information from our factory. For price consultation, contact us.

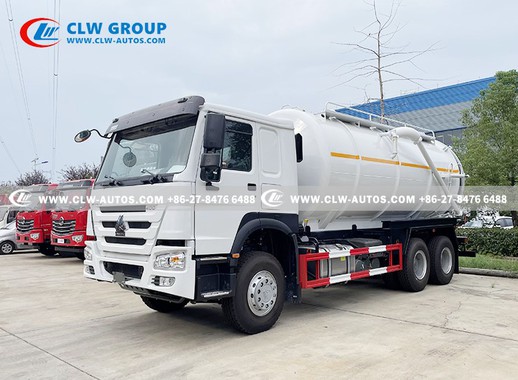

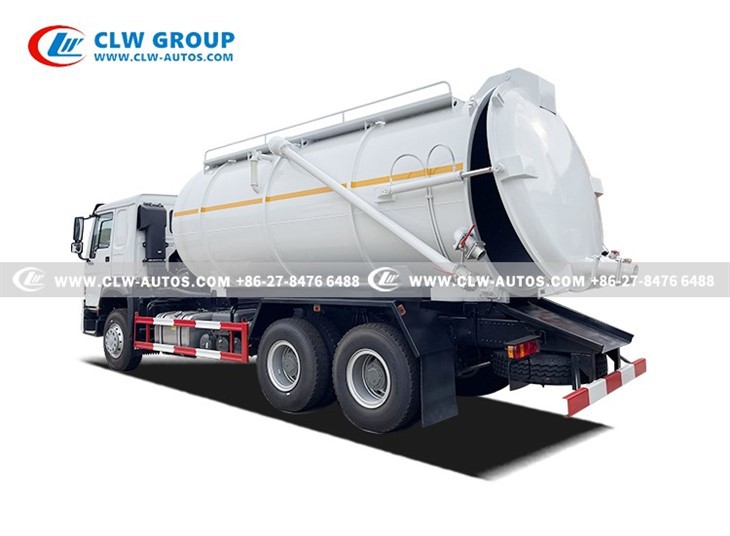

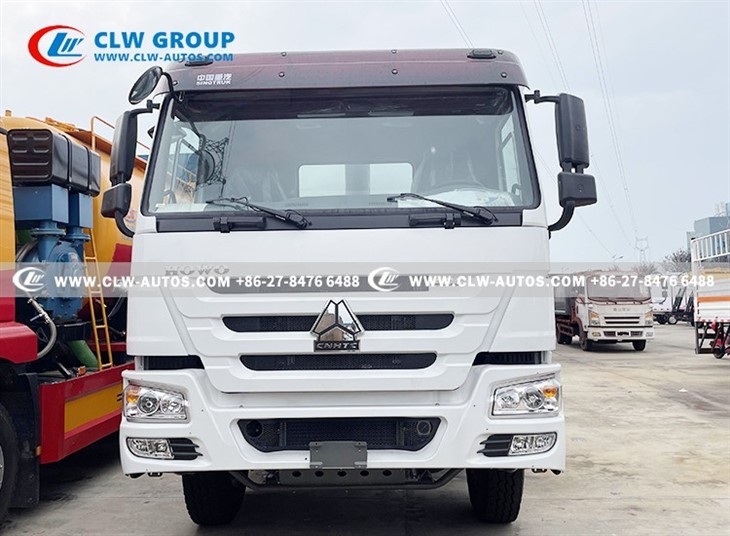

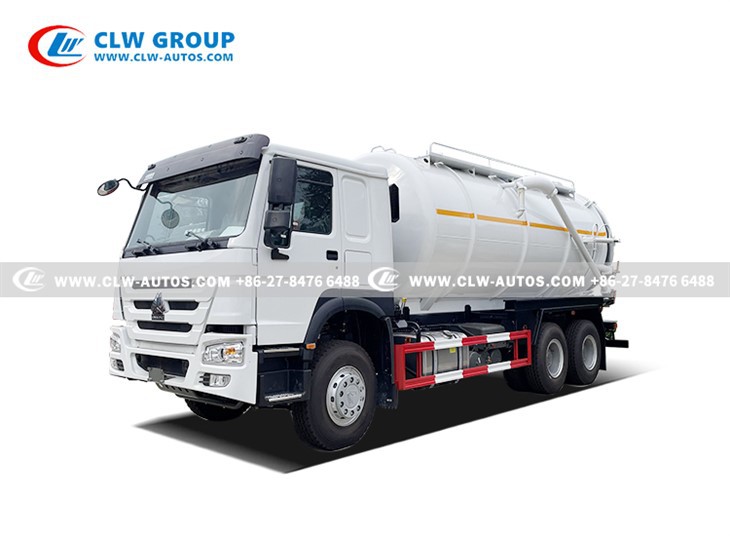

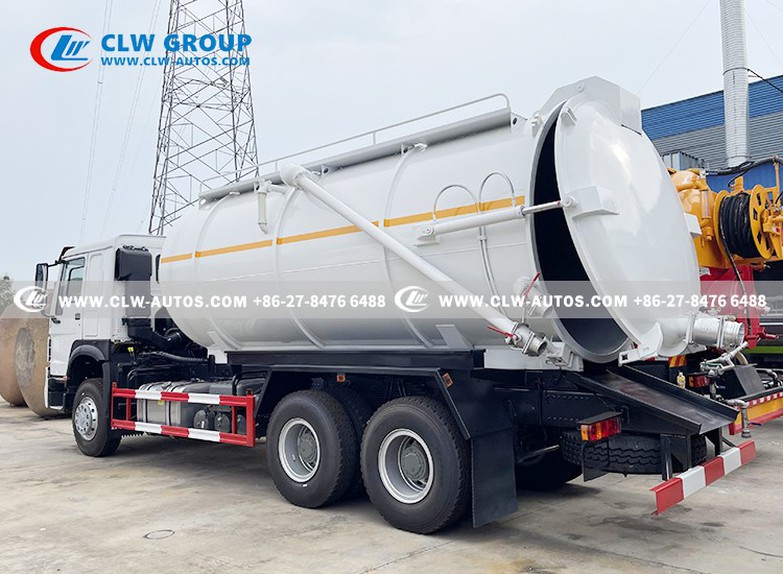

SINOTRUK HOWO 20m3 Vacuum Suction Truck
Description
Vacuum suction truck is a tank truck which has a pump and a tank. The pump is use to suck liquid,sludge,slurries, sewage,liquid waste into the tank of the truck. which also called sewage vacuum truck, Septic tank truck, vacuum tanker truck, sewer suction truck, exhauster truck, Cesspit vaccum truck.
Feature
--Vacuum suction truck Tanker material optional for carbon steel Q235B, you can also choose Q345 or stainless steel ;
--Tanker thickness 6mm,endplate thickness 8mm and baffle 5mm;
-- Chinese brand pump or Italy brand Battioni Pagani ,Jurop, US brand Moro Kaiser imported brand;
--Suction speed less than 10min and and discharge speed less than 8 min;
--High quality Sinotruk Howo 400HP truck chassis;
-- Top brand chinese vacuum pump 2BE-204 suitable for African countires
Specification
| Type | |
| Overall dimension | 10400*2550*3750 mm |
| Volume | 20 cbm/20m3/20,000Liters |
| Drive model | 4X2 |
| Emission | ERUO II/III/IV |
| Horsepower | 400HP |
| Power take-off | HW70 |
| Vacuum pump | 2BE-204, Chinese brand |
| Flow rate | 21m3/h |
| Drive | Left hand driving or Right hand driving |
| Front axle | VGD95, 9500 |
| Rear axle | HC16, 2*16000KG |
| Tyre | 315/80R22.5 |
| Oil tank | 400L |
| Cab | HW76 New driver cab, one sleeper with A/C |
| Tank volume(m3) | 20 |
| Tank material | 6 mm high intense carbon steel |
| Main function |
1.Water-gas separator; 2.Oil-gas separator; 3.Hydraulic cylinder; 4.Pressure meter; 5.Liquid level gauge; 6. Four way valve; 7. Safety valve; 8. Anti overflow valve, 9. Hydraulic control rear cover; 10. Tipping sewage tank body; 11. Operating handle system; 12. Suction hose: Rubber material, 2 units 7 meters length |
| Option | Liquid full alarm device, water wash device, monitor at cabin with four camera |
| Color | Customized logo and color |
Optional vacuum pump : Jurop, Moro Kaiser, BATTIONI PAGANI
