Dongfeng 20m3 Compactor Garbage Truck 10 Wheels With Triangle Bucket Rear Tipping Mechanism

Products Description

Garbage Compartment

Large Compression Garbage Truck: Lightweight yet high-capacity. Fully sealed floor prevents sewage leakage.
Standard Model: Mounted on sub-frame. Wastewater drains to collector tank to avoid corrosion and pollution.

Loading Hopper

Composed of frame, rails, hopper, scraper, and slide plate. Hydraulic cylinders enable cyclic compression. Wear-resistant sliders protect rails.
Acts as rear seal (lifted by cylinders). Built-in wastewater tank for drainage during unloading.

Bin Lifter

Optional plastic/steel bin lifters, triangular hoppers, or swing arms. Hydraulic dual-cylinder operation with auto-lock. Must be retracted when driving.

Hydraulic System

Electro-pneumatic controls activate cylinders and valves. Manual override available.
Includes tank, gear pump, multi-valve, and balance valve. Powered by chassis PTO.

Products Video

Products Parameters

Dongfeng 20m3 Compactor Garbage Truck
Chassis Model	DFL125
Driving Model	6 x 4
Cab	Left Hand Driving with air conditioner Central lock Steer Assistance Electric Window
Wheel Base	4350+1350 mm
Axle Loading (front/rear)	5500 / 11500x2 kg
External Dimensions (L x W x H)	10260×2550×3280 mm
Net weight (Kg)	9820
Approach / Departure angle	20/12°
Max. driving speed	105 km/h
Engine	Model	YC6A260
	Type	Yuchai diesel engine, 6 cylinders in a line, Water cooled,turbocharged,after cooled , cold start.
	Horse Power	260Hp
	Emission standard	Euro 2
	Displacement	7255 ml
	Max. Torque	1000 N.m
Gearbox	Manual type 10 forwards & 2 reverses
Clutch	Reinforced diaphragm clutch
Tire	10.00R20
	10 Pcs with 1 spare tire
Fuel box	400L /steel material
Garbage Truck Body(20m3)
Tanker body material	Quality high tensile Q235B carbon steel
Shape	rectangular box, arc-shaped rear
Thickness	Side 5mm, Bottom 6mm
Garbage Container Size	20 CBM
Filling hopper volume	1.5 CBM
Sewage box of filling hopper	500L
Working rotation speed	1400 r/min
Idle Speed	900 rpm
Compaction ratio	0.6-0.85T/m³
Compacting cycle time	≤40 s
Loading cycle time	≤20 s
Unloading cycle time	≤60 s
Oil pump displacement	63 ml/r
Hydraulic oil box size	120 L
System pressure	20 Mpa
PTO operation method	Pneumatic
Operation and Control	Both Automatic(Electrical) and Manual (hydraulic)
Others	With Pneumatic cover to avoid waste flying away during driving
Optional parts	Garbage Compactor whole body will be Electrophoresis treated for long time painting With remote control function

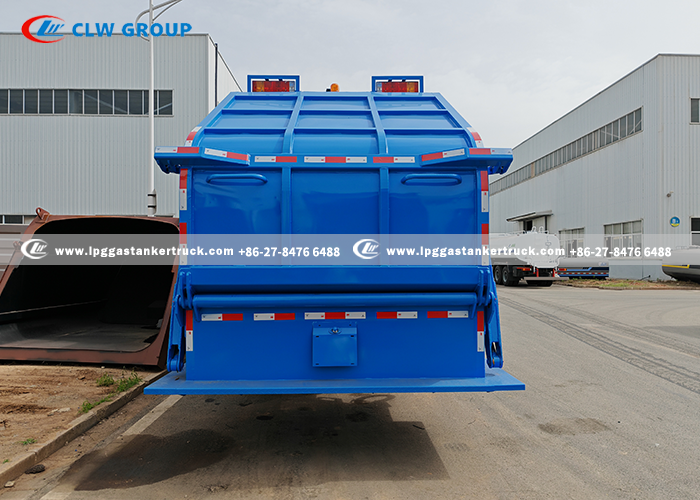

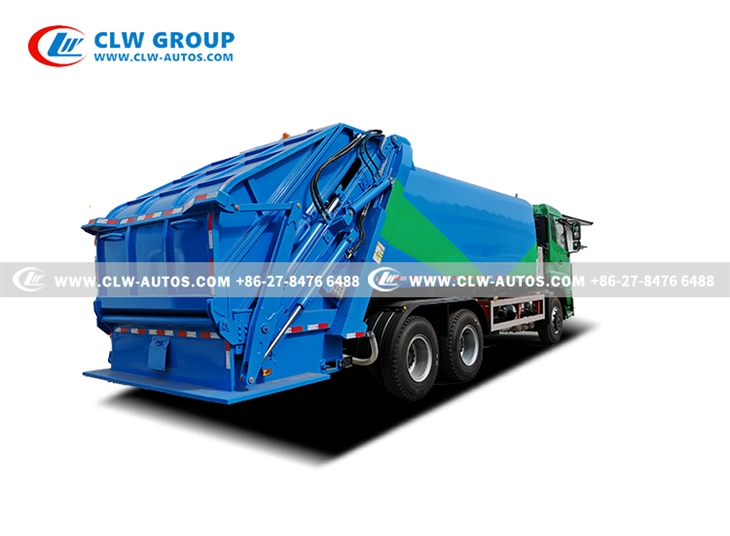

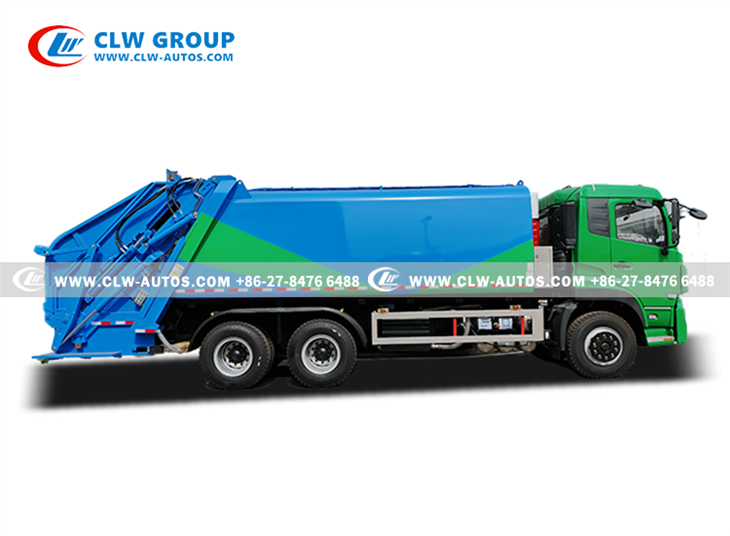

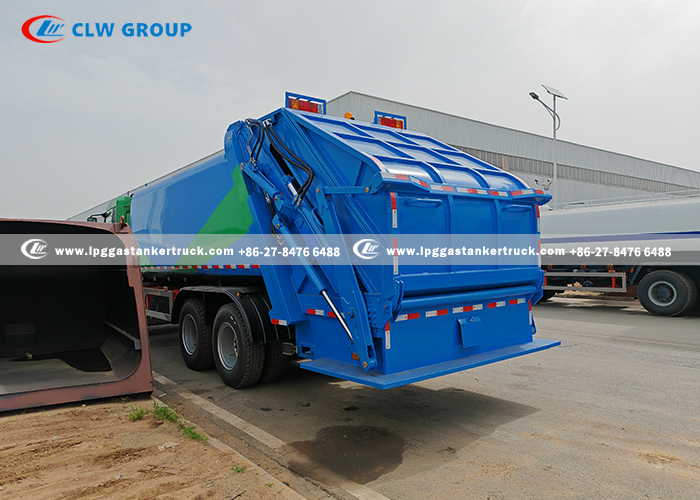

Products Photos

1. Superior Performance

High Efficiency: Advanced dual-cycle compression technology ensures fast loading/unloading (industry-leading).
Adaptive Loading: Compatible with 120L-660L bins (plastic/steel) via adjustable 4-link mechanism (±240mm height range).
Leak-Proof Design: Dual-seal system + independent lock hooks prevent sewage leakage (special rubber seals).
Eco-Friendly: Covered hopper reduces dust/odor during transport.

2. Premium Quality

Durable Materials: Weather-resistant steel (garbage box) + hardened wear-resistant steel (hopper).
Reliable Components: Branded hydraulic seals, proximity sensors, and low-noise proportional multi-valve.
Robust Guardrail: One-piece stamped carbon steel side guards.
Large Wastewater Tank: Optimized layout maximizes sewage capacity.

3. Safety Assurance

Emergency Stop: Rear panel with emergency button + alarm for hopper movement warnings.
Safety Labels: Clear operational guidance.
Smart Control: Dual operation panels (cab/rear) enable one-person dumping without exiting.
PLC Control: Automated engine power management reduces fuel consumption.

7dongfeng 10 wheels compactor garbage truck

8dongfeng 10 wheels compressed garbage truck

Reference Products

Sinotruk 4x2 Compressed Garbage Truck

ISUZU 4X2 Compressed Garbage Truck

Optional Configurations

Hanging Bucket Tipping Mechanism

Manual/Pneumatic Sealing Lid Mechanism

Triangle Bucket Rear Tipping Mechanism

Sealed Floor Bucket Rear Tipping

Swing Arm Bucket Rear Tipping

Swing Arm Mechanism
