Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 12cbm 10tons garbage compactor truck in China. If you're going to buy high quality dongfeng 12cbm 10tons garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
phone Shirley +86 135 4506 4324
--garbage truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
--Easy Full Automatic Operation: computer control system for loading and unloading operations.
--One Person Operation: Reducing sanitation working, greatly improves the working environment.
--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
--Capacity: option for 3-20cbm compactor garbage truck
--Steering wheel of compactor garbage truck : both left and right hand drive,suitable for different countries.
--Emission standard: option Euro I,Euro II,Euro III,Euro IV,Euro V
--Truck chassis: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Pictures

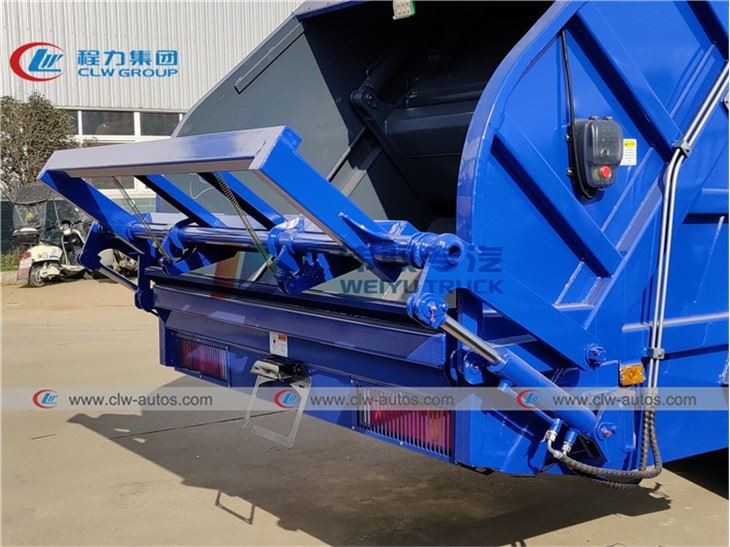

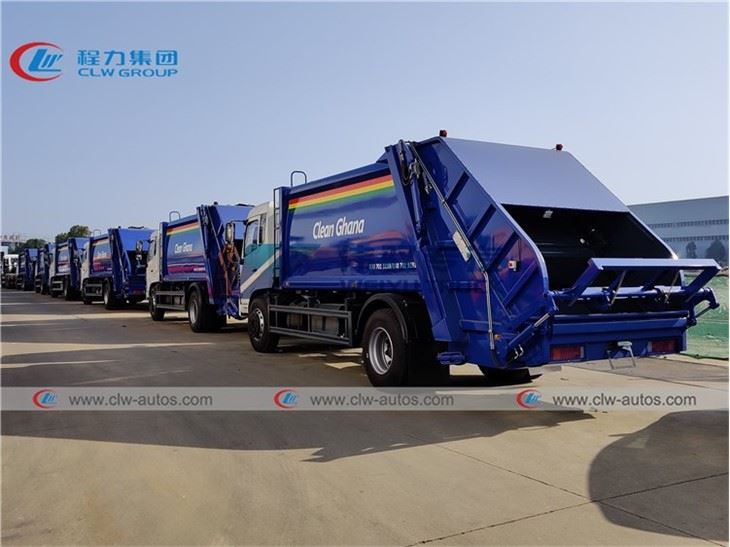

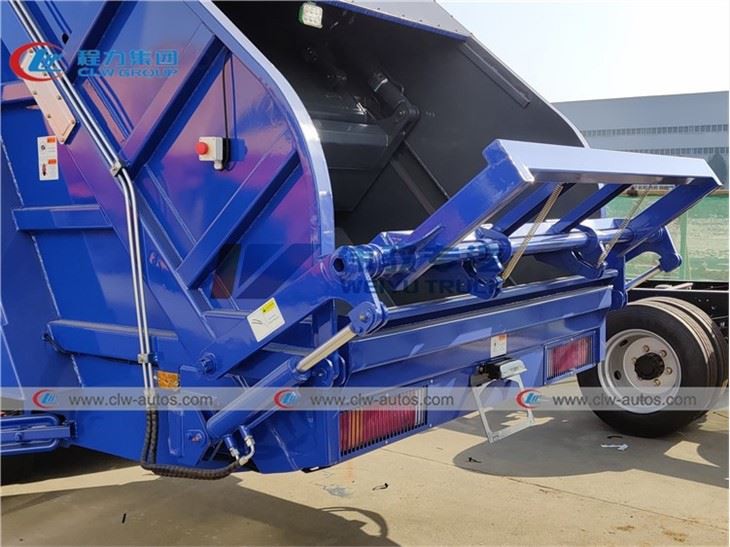

(rear view of dongfeng 12cbm garbage compactor truck)

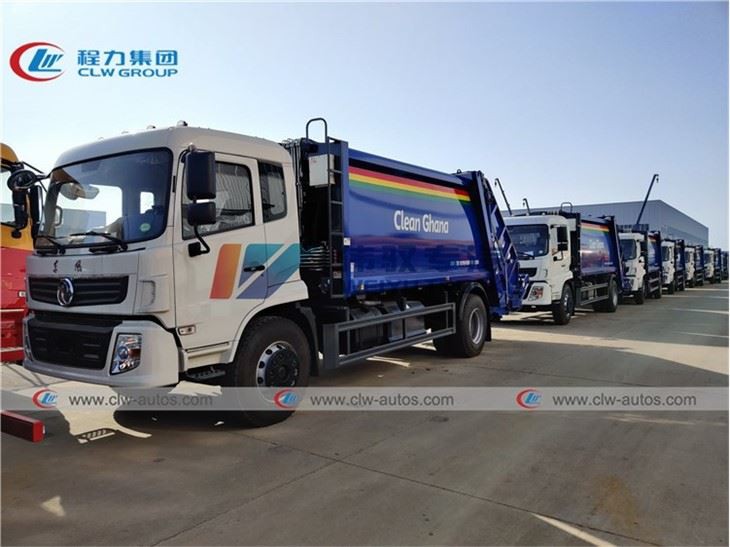

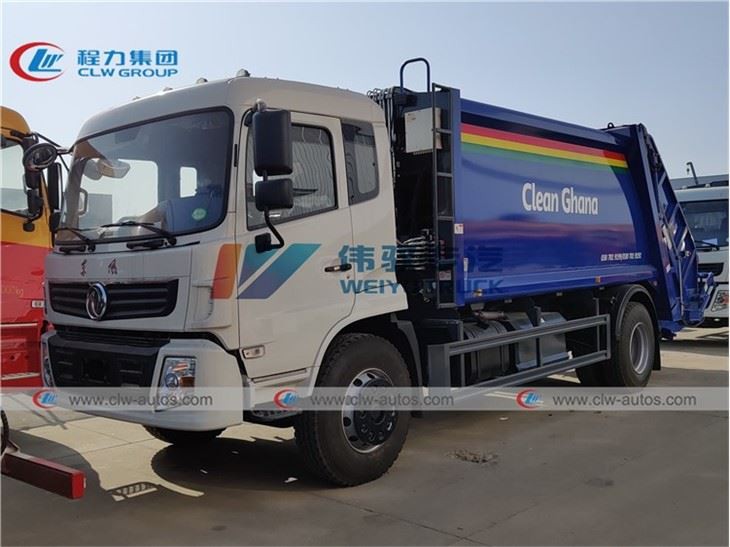

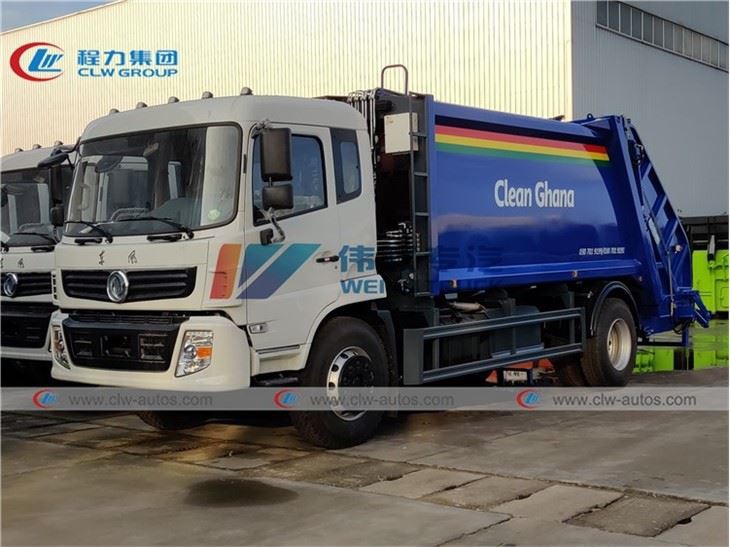

(front side view of dongfeng 12cbm garbage compactor truck)

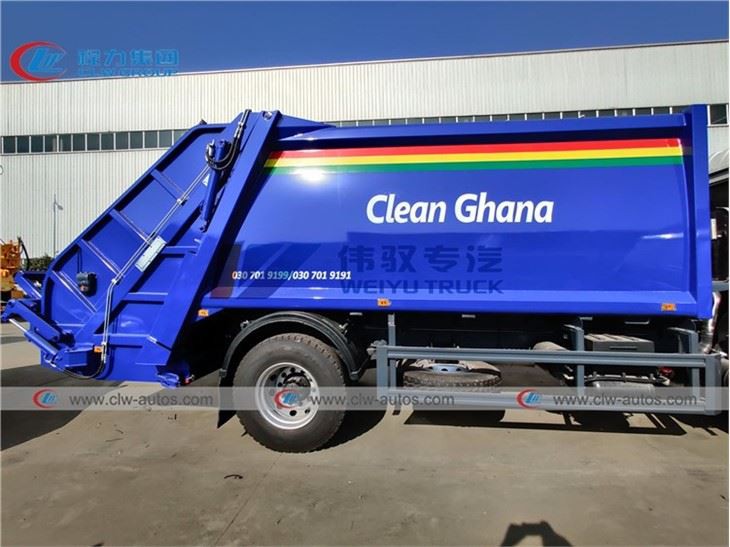

(side view of dongfeng 12cbm garbage compactor truck)
(English control panel of dongfeng 12cbm garbage compactor truck)
(English control panel at cabin of dongfeng 12cbm garbage compactor truck)
(Cabin of dongfeng 12cbm garbage compactor truck)
Specification
Cabin | Driving type 4×2 | ||
With A/C. Left Hand Drive | |||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8350*2490*3250mm | |
Wheel base (mm) | 4500/4700 | ||
Wheel track (front/rear) (mm) | 1504/1425 | ||
Approach/Departure angle(°) | 24/16 | ||
Weight in KGS | Tare Weight | 9850 | |
Front axles loading capacity | 4500kg | ||
Rear axles loading capacity | 9000kg | ||
Max. driving speed(km/h) | 110 | ||
Engine | Brand | Cummins | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 180 HP/190HP | ||
Emission standard | Euro III/IV/V | ||
Gearbox | 8 forwards &1 reverse | ||
Clutch | Diaphragm spring clutch | ||
Steering Gear | Power steering | ||
Tire | 9.00R20 All radial tires with one spare, 7 pieces | ||
Compression garbage box body system | |||
Body Volume | 12m3 | ||
Material Thickness | 5mm | ||
Cycle Time of Filling(S) | ≤40 | ||
Lifting Time of Filler(S) | 8-10 | ||
Time of Discharging | ≤60 | ||
Working Pressure(MPA) | 16 | ||
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage, and the sewage generated in the process of the compression all go into the sewage tank. | |||
