Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 axle 60t side wall fence cargo warehouse semitrailer in China. If you're going to buy high quality 3 axle 60t side wall fence cargo warehouse semitrailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
1. Warehouse/fence semi trailers are commonly used type of equipment in the transportation industry . Warehouse/Fence semi trailers are used to deliver products like pipe , steel , lumber , bulker cargo and other items that would be difficult to load into the back of a trailer. 3 axle fence semi trailer is widely used in a various industries.
2. Our Warehouse/Fence Cargo Trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes. We adopt world famous brand of parts, like BPW/FUWA brand, JOST, WABCO braking valve etc. This makes the trailer not only increase long serivce life but aslo improve operating efficiency and save maintenance costs.
3. Warehouse/Fence cargo semi trailer has a fence structure design. We have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.
4. Shipping Method could be by bulk ship or 40HQ container ship.
Please contact: Ms. Helen Jiang. Factory Line: WhatsApp: +86 13554195719

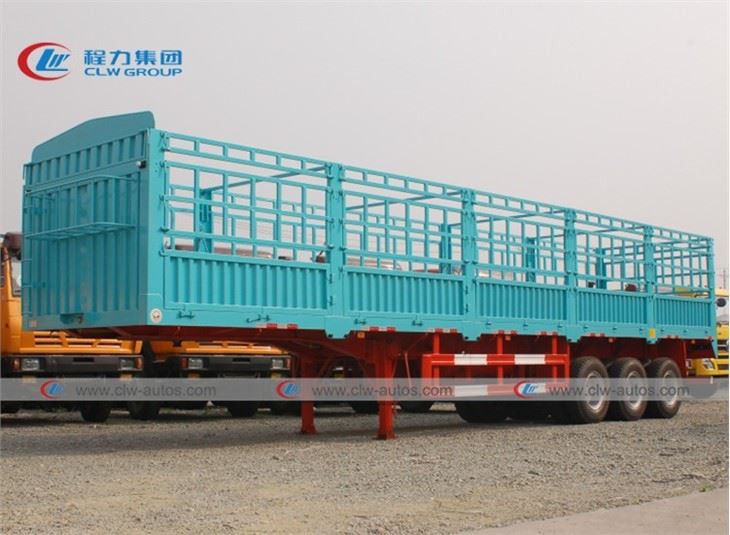

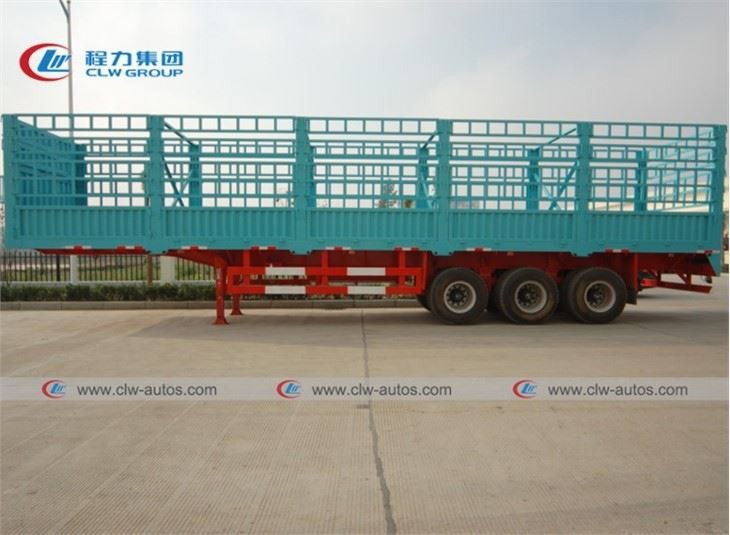

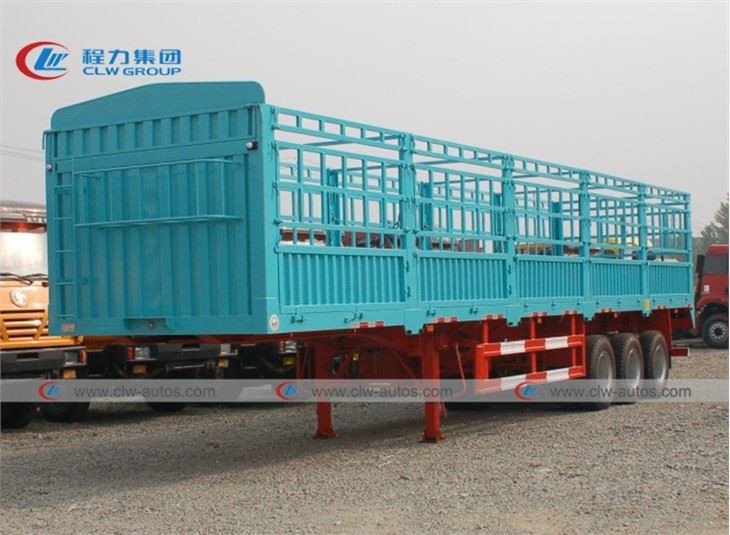

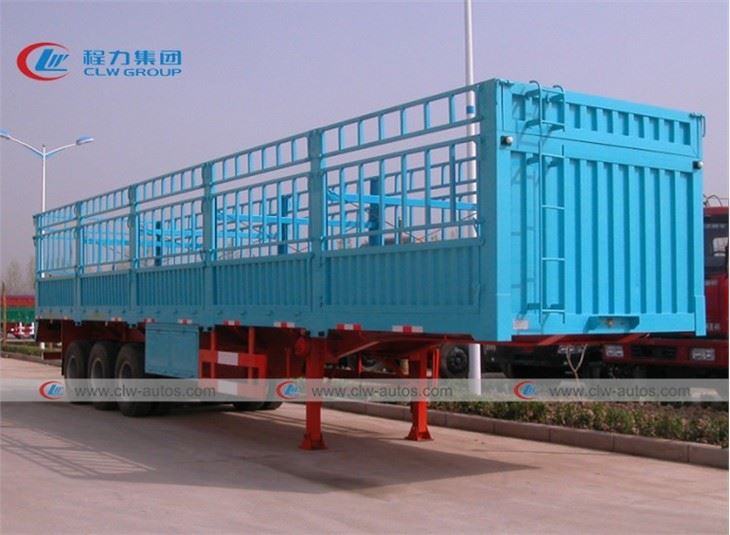

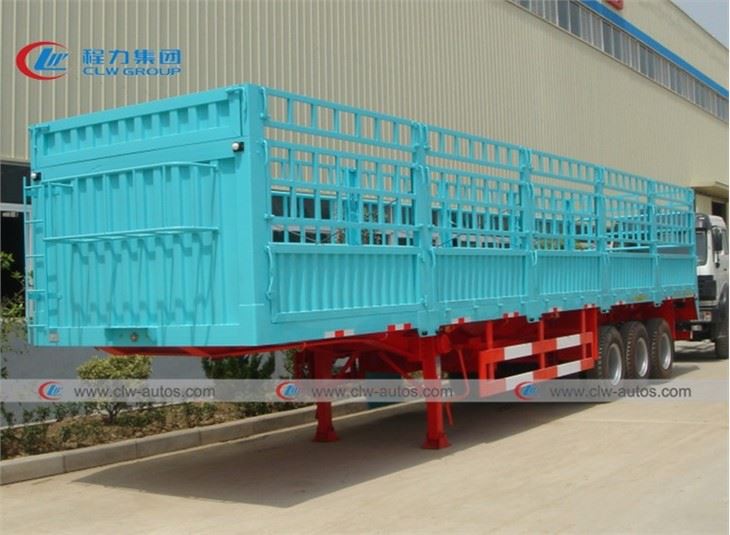

More pictures for 3 Axle 60T Side Wall Fence Cargo Warehouse Semi-trailer:
Parameters for 3 Axle 60T Side Wall Fence Cargo Warehouse Semi-trailer:
| Specification For Warehouse/Fence Cargo Semi Trailer | |
| Manufacturer | Hubei Chengli Special Automobile CO., LTD. |
| Type | Warehouse/Fence cargo semi trailer |
| Tare Weight | Approx. 8.2 T |
| Dimension | 12400*2500*3200mm |
| Loading Capacity | 30-100T |
| Axle | 13T/16T, FUWA/BPW/L1/ZHENGYANG, etc |
| Rim | 9.00*22.5/8.00-20/8.5-20 |
| Suspension | Mechanical suspension(Germany type or America type) or Air suspension |
| Leaf Spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
| King pin | Jost brand 2.0 or 3.5 inch |
| Spport leg | Jost brand two speed |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345B steel |
| Side beam | 16mm channel steel (Material is Q235B steel) |
| Bottom Platform | 3mm checquered steel plate |
| Side wall | 600 mm height (can be customized) |
| Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |
| ABS | Optional |
| Twist locks | Optional |
| Valve | Wabco valve (especial for exporting market) |
| Light | LED Light (especial for exporting market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
| Painting | Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer |
| Shipping terms | By bulk vessel, RORO, or 40HQ container |
| Any parts fitted could according to clients request, contact us to get more. | |
