Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 10cbm truck mounted road sweeper in China. If you're going to buy high quality faw 10cbm truck mounted road sweeper, welcome to get more information from our factory. For price consultation, contact us.

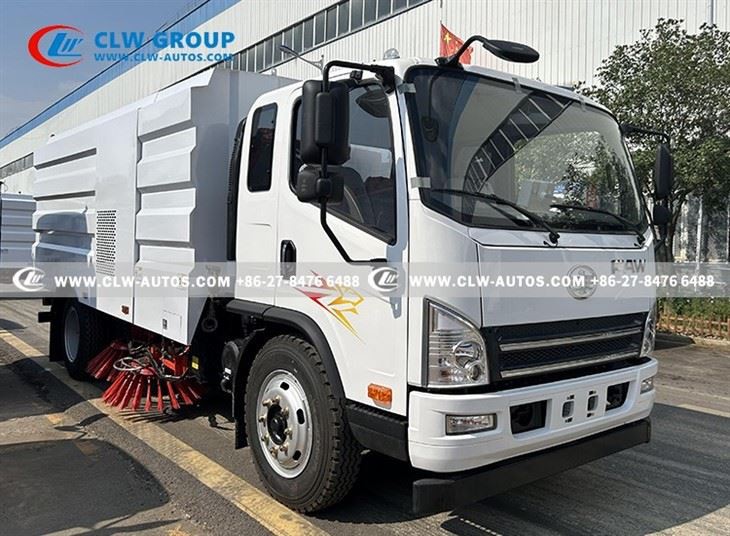

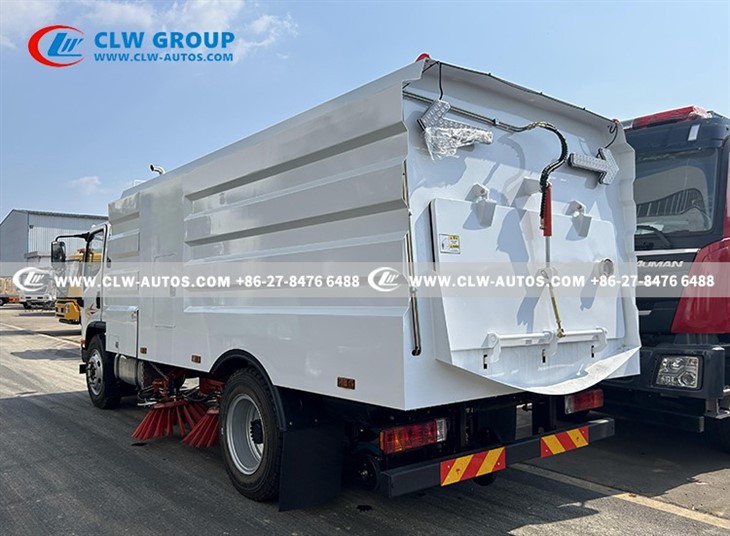

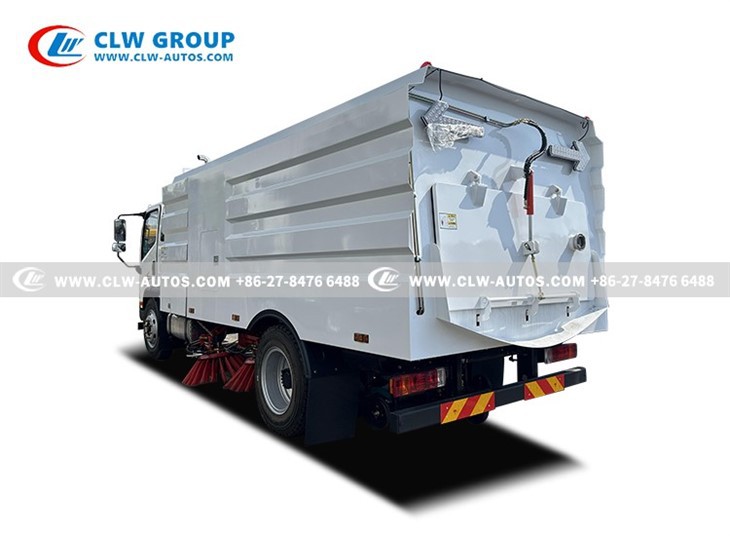

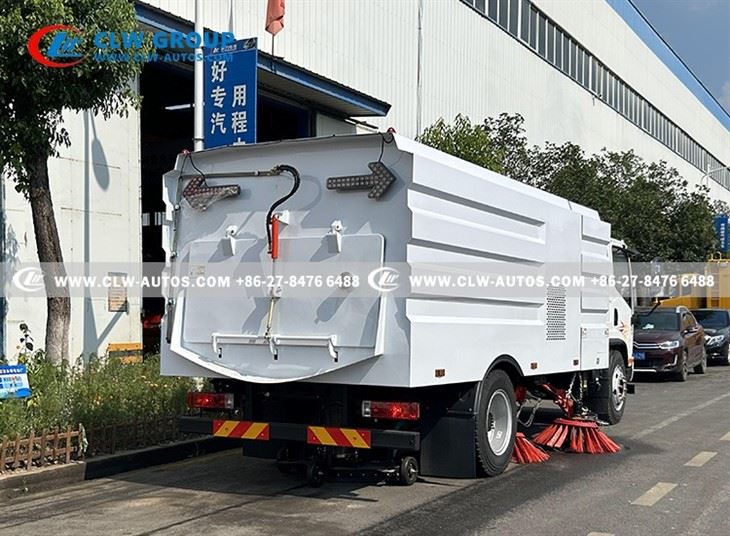

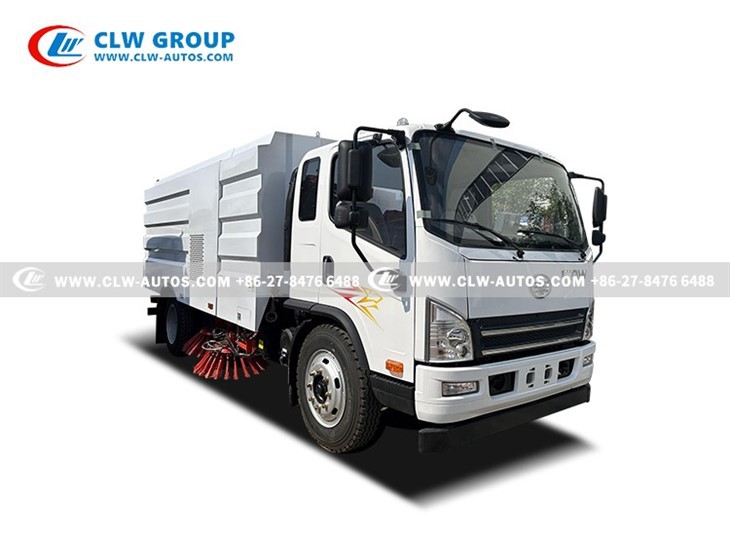

FAW Tiger VH 10CBM Truck Mounted Road Sweeper For the Philippines
We are professional special vehicle manufacturer in China since 2004
Brand New Truck Factory Price For Sale
Truck mounted road sweeper Also called as road sweeper truck, road sweeper truck, vacuum sweeper truck, road cleaning truck, street cleaning truck, street sweeper vehicle, street sweeper, etc.
Truck mounted road sweeper integrates road sweeping, garbage collection and transportation. functions include road sweeping, dust removal and purification, air medium dust removal and purification, road maintenance, and reducing and preventing traffic accidents.
The main components of a road sweeper include truck chassis,cab, sweeping equipment, water tank, garbage bin, Auxillary engine, fan, Hydraulic motor, Multifold Solenoid Valve, etc.
We are professional special vehicle manufacturer since 2004.
We can Customize road sweeper truck as per your Needs from 2CBM TO 12CBM.
Truck chassis options: FAW, HOWO, FOTON, ISUZU, SHACMAN,DONGFENG, JAC,JMC,HINO,KAMA,Etc.
Truck Mounted Road sweeper can be widely used for sweeping trunk roads, municipal pavements, urban residential areas, parks, etc., which relieves the work intensity of sanitation workers, improves work efficiency, and reduces secondary pollution such as dust.
Main Parameters of FAW 10CBM Truck Mounted Road Sweeper
Overall Dimensions
7385x2410x2900mm
Gross Weight
7,330kgs
Engine
Weichai 160HP, Euro V
Water Tank Capacity
3,000 Liters
Garbage Tank Capacity
7,000 Liters
Auxillary Engine
JMC 87 HP
Detailed introduction of FAW 10CBM Truck Mounted Road Sweeper:
- Control panel conveniently located next to the driver's seat, facilitating user operation.
- It includes a 7 cubic meter garbage tank paired with a 3 cubic meter water tank.
- An integrated high-pressure water nozzle within the garbage tank provides a self-cleaning mechanism.
- The water tank is outfitted with a low water level alarm system to ensure the safe operation of the water pump.
- An auxiliary engine drives the sweeping functions and vacuum system, enhancing performance.
- The unit is equipped with four brushes, two of which have high-pressure water nozzles to minimize dust during operation.
- A suction panel situated at the rear of the truck facilitates efficient garbage collection.
- There is a rear LED arrow working light designed to alert pedestrians and vehicles while the sweeper is in use.
- The rear door operates hydraulically and can be controlled directly from the cabin via a dedicated button.
|
Parameters for FAW 10CBM HOWO Road sweeper truck |
||||
|
Truck Chassis |
||||
|
Drive Model |
4X2, Left hand driving |
|||
|
Cabin |
3 Passengers allowed, with one sleeper, with air conditioner |
|||
|
Vehicle Main Dimensions |
Dimensions(L x W x H) |
7385x2410x2900mm | ||
|
Wheel base |
4200mm |
|||
|
Weight in KGS |
Curb Weight |
7330kg |
||
|
Front/Rear axle loading |
2900/9000kg |
|||
|
Engine |
Model |
WP4.1Q160E50 |
||
|
Horse Power |
160HP |
|||
|
Emission standard |
Euro V |
|||
|
Gearbox |
Manual type, FAST 8JS75C,8 forwards & 2 reverse |
|||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|||
|
Brakes |
Hydraulic oil brake |
|||
|
Tire |
8.25R20 tire, 6 + 1(spare tire) |
|||
|
Upper & Equipment |
||||
|
Tank |
Garbage tank |
Tank material |
Stainless steel 304 |
|
|
Tank volume |
7.0 cbm |
|||
|
Water tank |
Tank material |
Stainless steel 304 |
||
|
Tank volume |
3.0 cbm |
|||
|
Auxiliary engine |
Model |
JMC Brand |
||
|
Quantity |
1 unit |
|||
|
Power |
64kw /87hp |
|||
|
Brush Quantity |
4 Pieces |
|||
|
Brush Diameter |
900mm |
|||
|
Work Width |
3200mm |
|||
|
Working Speed |
3-15 km/h |
|||
|
Dust Bin Tipping System |
Hydraulic Tipping |
|||
|
Dust Bin Tipping Angle |
More than 40 degree |
|||
|
Dust Cleaning Percentage |
90-95% |
|||
|
Maximum Capacity |
16,000 - 64,000 m2/h |
|||
|
Rear Sucking Object Diameter |
Less than 50mm (coal) |
|||
Key Components of a Road Sweeper Truck
Centrifugal Fan: Maintenance-free design with robust suction capability.
Auxiliary Engine: Powers the fan and suction apparatus.
Solenoid Valve Assembly: Regulates the hydraulic system for operations such as sweeping brush raising, suction panel elevation, garbage bin lifting, and rear door control, utilizing a renowned Chinese brand for reliable and seamless hydraulic performance.
Double Oil Cylinders

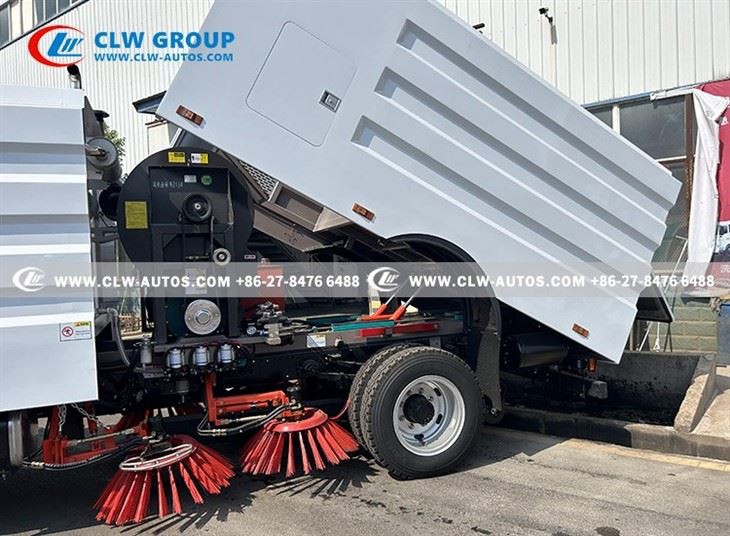

FAW 10CBM road sweeper truck features a tipping garbage bin with double hydraulic cylinders for robust lifting support.
Self-unloading Garbage Box

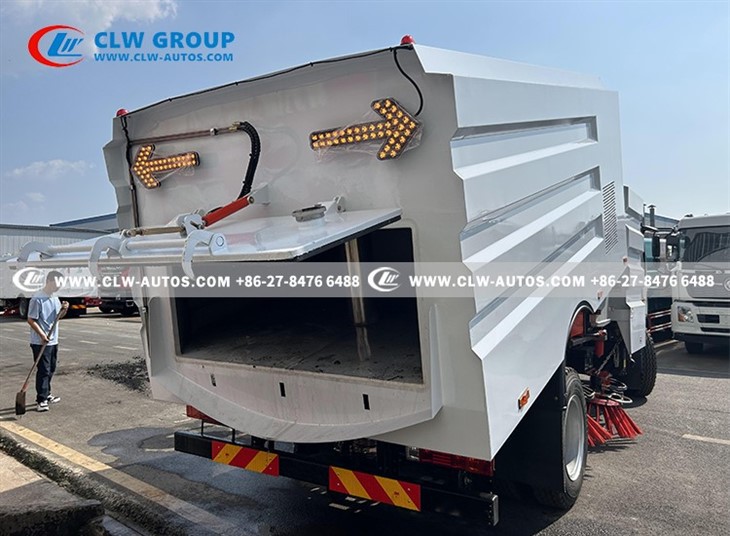

The FAW 10CBM road sweeper truck features a hydraulically-operated tailgate controlled from the cabin, enabling an opening angle exceeding 85 degrees. Its interior boasts a flat sloped design for efficient waste disposal.

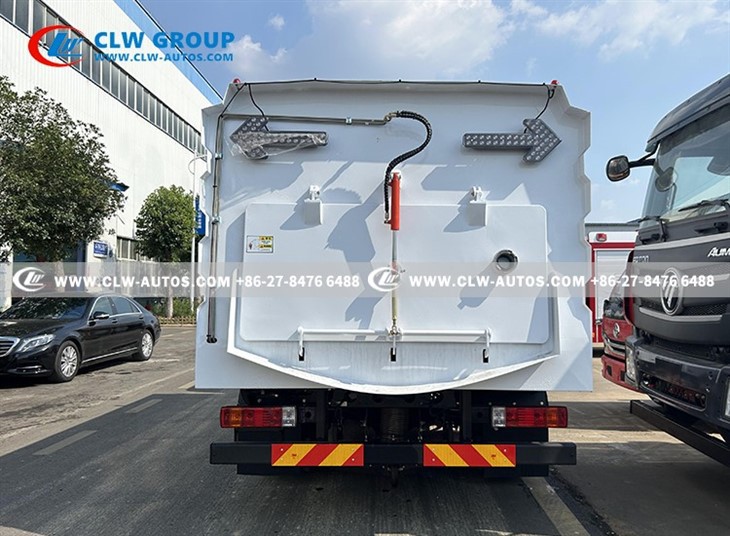

Additionally, a pair of cabin-controlled LED arrow lights at the rear enhances safety for pedestrians and vehicles, thereby improving operational efficiency.
Control Panel in Driver's Cabin
Control panel is installed next to the driver's seat for easy operation.
Sweeping Equipment
The front sweeper utilizes automatic obstacle avoidance, retracting upon detection and resuming after clearance, while the lateral sweep operates independently for versatile functionality.
The hydraulic motor is essential for street sweeper trucks, impacting cleaning efficiency and performance. The FAW 10CBM features a reputable Chinese brand motor, ensuring advanced technology and consistent operating speed for optimal results.
Furthermore, the front brushes incorporate high-pressure nozzles to suppress operational dust, effectively reducing secondary pollution. Constructed from high-quality stainless steel, the nozzles are corrosion-resistant and durable.
