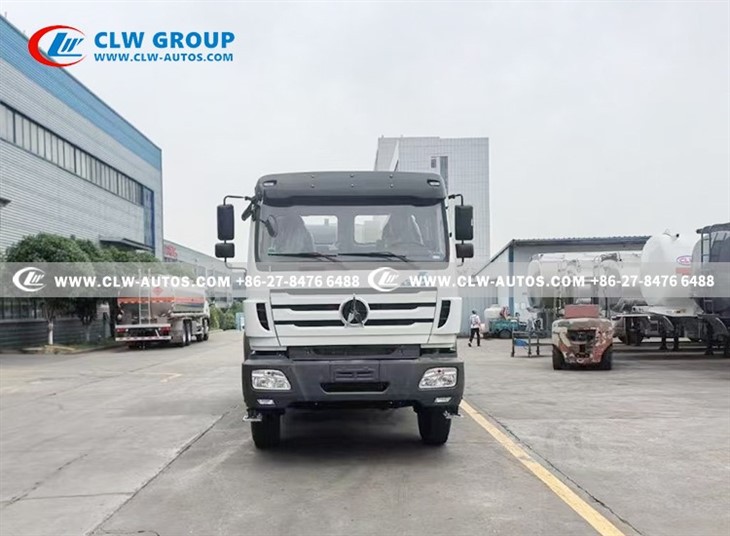

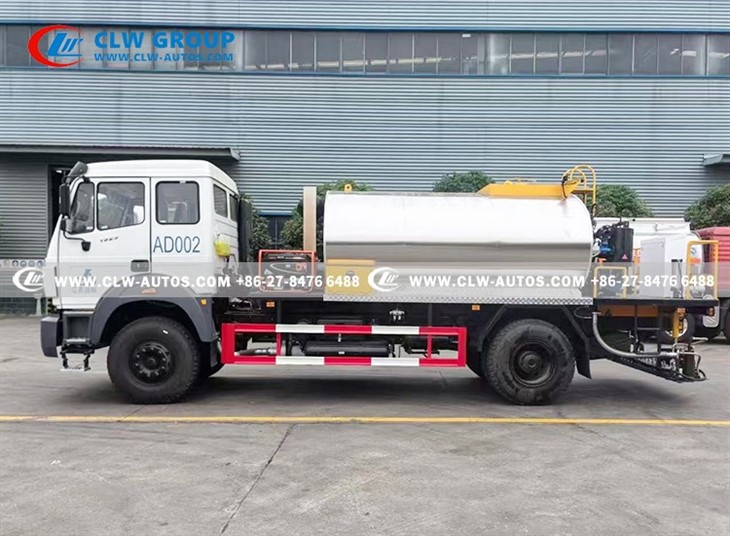

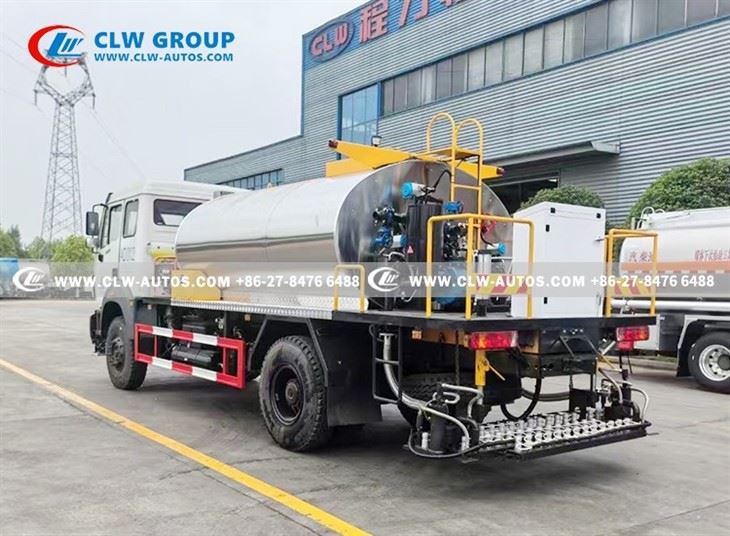

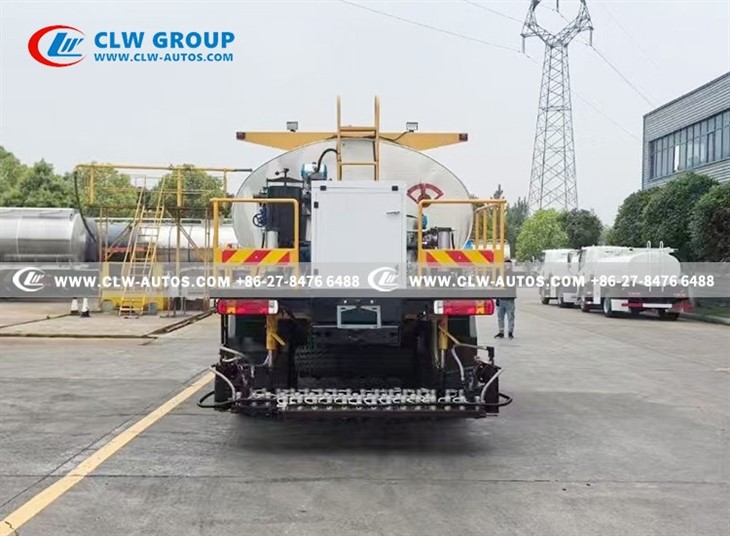

Beiben 8m3 Bitumen Sprayer Truck
Our Bitumen Sprayer, also referred to as a Bitumen Distributor Truck, Asphalt Sprayer Truck, or Binder Sprayer, offers a highly efficient solution for delivering consistent and accurate bitumen application during roadworks and pavement upkeep.
Equipped with a German-engineered Infineon smart control platform and an integrated pipeline heating system, this equipment ensures uniform bitumen distribution-even when vehicle speeds fluctuate. It is compatible with various types of bitumen, including hot-applied bitumen, emulsified asphalt, and modified bitumen, making it highly versatile for use in highway construction, municipal resurfacing, and large-scale civil engineering projects across Africa, South Asia, and the Middle East.
Mounted on a dependable FAW vehicle platform, the unit delivers:
The North Benz Bitumen Sprayer is an excellent solution for contractors and construction firms pursuing smart, productive, and budget-friendly machinery for asphalt laying and surface sealing operations.
1. Advanced smart control system ensures ultra-precise bitumen spraying, perfectly synchronized with vehicle speed.
2. High-performance asphalt pump supports self-loading and unloading, maximizing jobsite speed and flexibility.
3. Fully integrated pipeline heating delivers smooth, clog-free flow for hot, modified, and emulsified bitumen.
4. Foldable triple-section spray bar with 34 smart nozzles adapts instantly for wide or obstacle-filled areas.
5. Adjustable nozzle gaps and zoned spray control guarantee flawless coverage on roads of any width.
6. Compact, eco-conscious design with short wheelbase offers superior maneuverability and clean, safe operation.
| Chassis Model | BEIBEN 4x2 240HP | ||||
| Overall Dimensions | mm | 7250*2450*2950 | |||
| Wheelbase | 3800 | ||||
| Tank Capacity | m3 | 8m3 | |||
| Curb Weight | kg | 8,450 kg | |||
| Gross Vehicle Weight (GVW) | 18,000 kg | ||||
| Engine | Model | WP6.240 | |||
| Power | 176 kW / 240 HP | ||||
| Displacement | 6,230mL | ||||
| Max Torque | 800 N.m | ||||
| Max speed | km/h | 90 km/h | |||
| Tire specification | 295/80R22.5 6 tires with 1 spare | ||||
| Steering Position | LHD / RHD | ||||
| Transmission | FAST Brand, 8 Speed Manual | ||||
| Color | Customized | ||||
| Equipment | |||||
| Tanker Interior |
Carbon steel |
||||
| Insulation Material | 50 mm rock wool insulation | ||||
| Tank Exterior | 1 mm stainless steel | ||||
| Hydraulic Motor | 05-11-BD31 | ||||
| Hydraulic pump | CBQ550-L | ||||
| Bitumen Pump | QGB950, Flow Rate: 950 L/min | ||||
| Proportional Valve |
CL-BLTS120.00 |
||||
| Control System | PLC Control | ||||
| Asphalt Nozzles | 34 pcs | ||||
| Burner | Riello G20 (Italy), 200,000 kcal/h | ||||
|
Thermal Oil Pump |
RY40-25-160 |
||||
| Spray Width | 4.5 m | ||||
|
Asphalt Spraying Rate |
0.25 to 3.0 L/m2 | ||||
| Spraying Medium | Hot & emulsified asphalt (including SBS and rubber-modified types) | ||||
| Optimum Construction Speed | 3-6 km/h | ||||
| Speed Sensor |
GTS211B-N016 |
||||
| Temperature Controller | WZP-230 | ||||
Generator
Rear Control Panel
Nozzles
Nozzles
