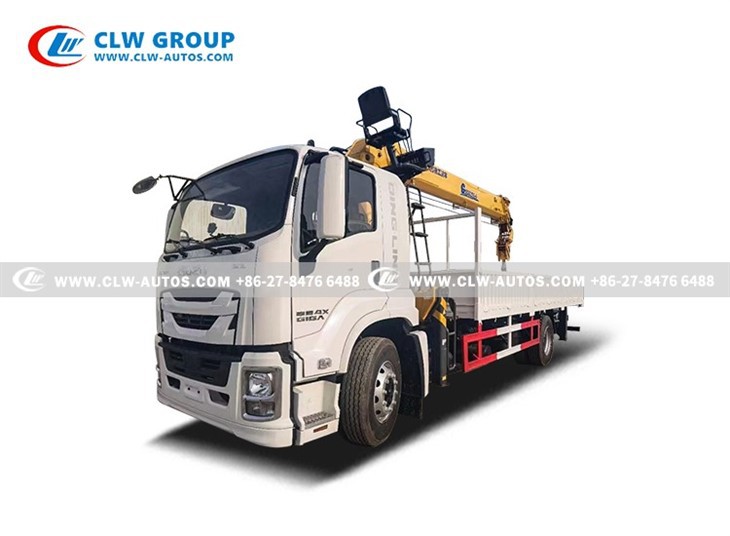

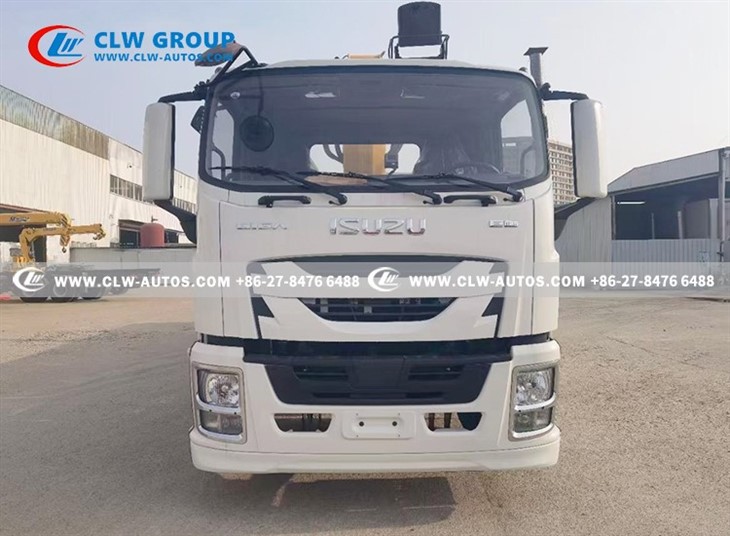

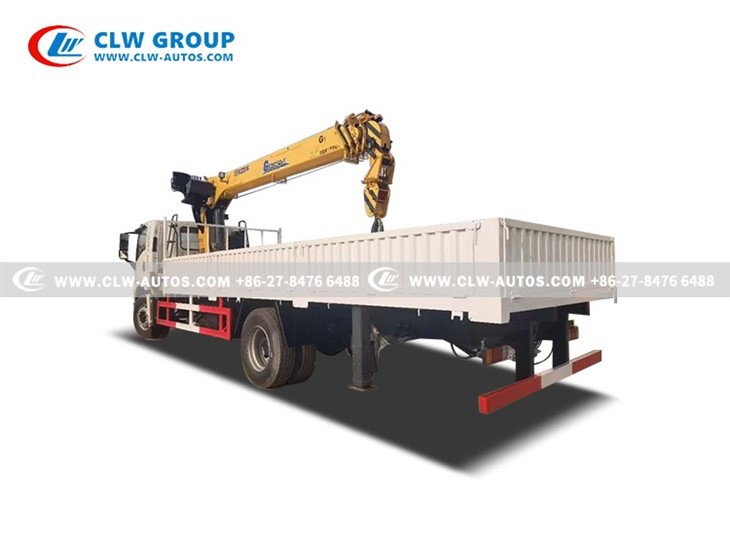

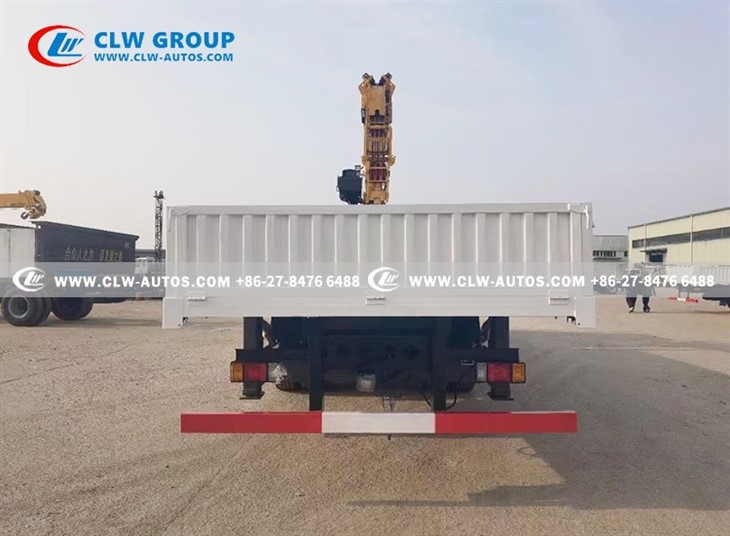

ISUZU 4X 10 Tons Straight Boom Crane Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4x 10 tons straight boom crane truck in China. If you're going to buy high quality isuzu 4x 10 tons straight boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU 4X 10 TONS STRAIGHT BOOM CRANE Truck

We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance

ISUZU GIGA Crane Truck, ISUZU 10-ton truck crane,ISUZU truck with crane is an engineering vehicle, mainly used for lifting and transportation operations in docks, workshops, construction sites and other environments.

We supply customized design for ISUZU crane truck, could you please let us know your request?

--Crane configuration: Optional 5 tons,6 tons, 8-ton, 10-ton, and 12-ton cranes, brands include CLW,Sany, XCMG, Shimei, Zoomlion, etc.

--XCMG crane supports 360-degree full rotation, and the operation mode is optional, including upper, middle, or lower operation.

--Crane is with Standard front hydraulic outriggers,optional for single-chamber or double-chamber hydraulic rear outriggers for stability.

--Crane type: divided into straight arm type and folding arm type.

--Straight arm cranes have different lifting weights at different boom lengths. For example, they can lift 10 tons when the arm is not extended, and 1.5 tons when it is fully extended to 12 meters.

--The lifting weight of the folding arm crane is 1.7 tons when it is fully extended to 9.755 meters. The lifting weight is not only related to the boom length, but also to the elevation angle. When the boom length remains unchanged, the greater the elevation angle, the greater the lifting weight. ‌

--Single pump or double pump can be selected.

The double pump has a large flow rate and can operate multiple actions at the same time, making the lifting smoother. ‌

--The cargo box bottom plate is made of side 3mm and bottom 5mm thick carbon steel material, the sideboard can be made detachable, and the tail can be manually retracted or hydraulically retracted.

--For a Crane truck or truck-mounted crane, you need to consider the three major elements of the chassis, crane, and cargo box. At the same time, you should consider the working condition. For an open working environment, you can choose a ISUZU straight-arm truck-mounted crane, and for a narrow working environment, you can choose a folding-arm or kunckle boom ISUZU truck-mounted crane.

--Application scenarios: Truck cranes can be seen in industrial parks, green planting, power construction, docks and ports, etc. Its hydraulic system has powerful lifting and flexible retraction, which is suitable for a variety of lifting and handling work needs.

• For Quick inquiry: +86 135 4506 4324(whatsApp)
• Email: shirley@clw-autos.com

The whole truck is combined with

--ISUZU GIGA 4X 205HP truck chassis

--XCMG KSQS250-4  10tons with aerial operation seat

--Crane section can be 4 or 5 section

--Lifting height 16meters

--Working radius/Outreach 14 meters

Customized design is available,please let us know your working condition.

​



ISUZU TRUCK MOUNTED CRANE 10 TONS





Other model of Crane Trucks you may like









 aNY CRANE CRANE YOU LIKE?

ISUZU 5 TONS CRANE TRUCK

700P 190HP truck with  5Tons XCMG crane



SINOTRUK 6X6 CRANE TRUCK

WITH DRILLING PIPE

. The front end of the truck crane can be equipped with a hanging basket, grab, drilling machine, wood grab, brick grab and other auxiliary tools, which has a wider working range and more comprehensive uses





HOWO TRUCK WITH 3.2 TONS CRANE

WITH WOOD GRAB

The wood grabber is designed to grab and carry wood, timber, reeds, straw and various strip materials.

FAW J5P CRANE TRUCK

RIGHT HAND DRIVE WITH UNIC CRANE JAPANESE BRAND

UNIC crane is the world's first straight-arm trolley crane developed by Furukawa Group. After more than 40 years of market verification and continuous technological progress, it has occupied a leading position in the world's straight-arm trolley crane market. Taian Furukawa Machinery Co., Ltd. and Taian Furukawa Trolley Crane Co., Ltd. were jointly established by Furukawa Machinery & Metal Co., Ltd., a well-known Japanese company, and Taian Crane Machinery Factory in 2003 and 2009..



SINOTRUK 8X4 TRUCK WITH FOLDING BOOM CRANE

BEIBEN 6X4 TRUCK WITH FOLDING BOOM CRANE





The "CLW" brand is honored as the "Hubei Well-kown Trademark", Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015,ISO14001-2005,OHSAS18001, CCC, Automobile Energy Saving and Environment Protection, Pressure Vessels certificated by A2 C2 C3, ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier,such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd. tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.
