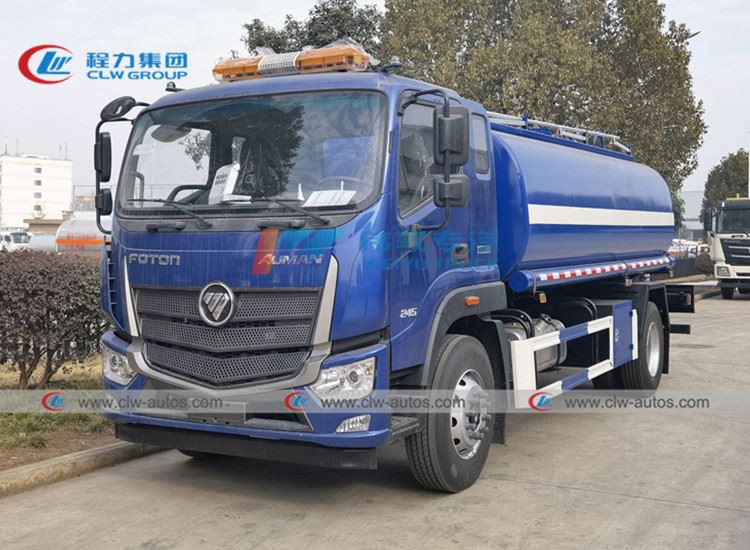

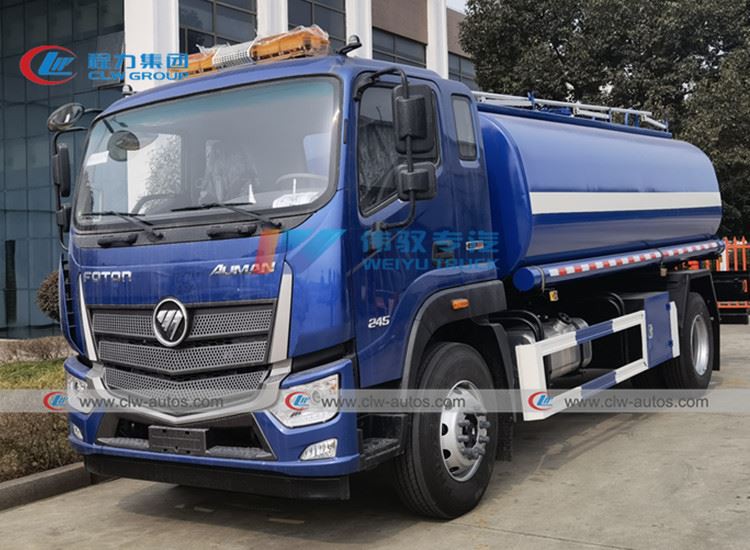

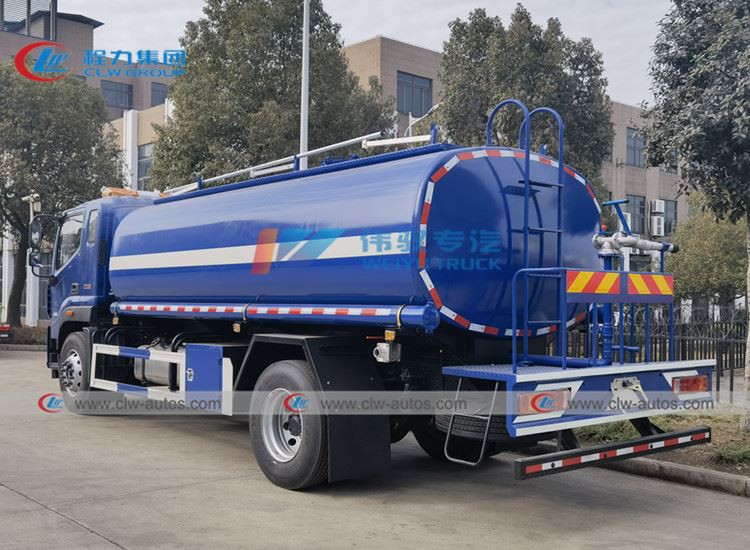

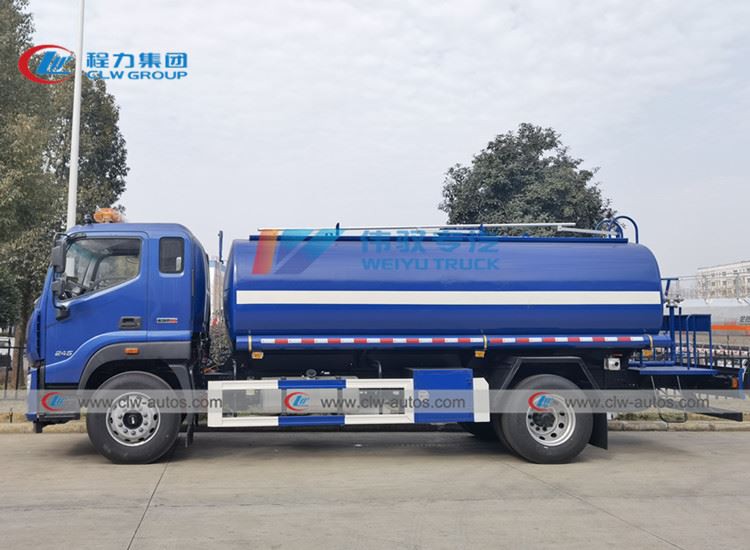

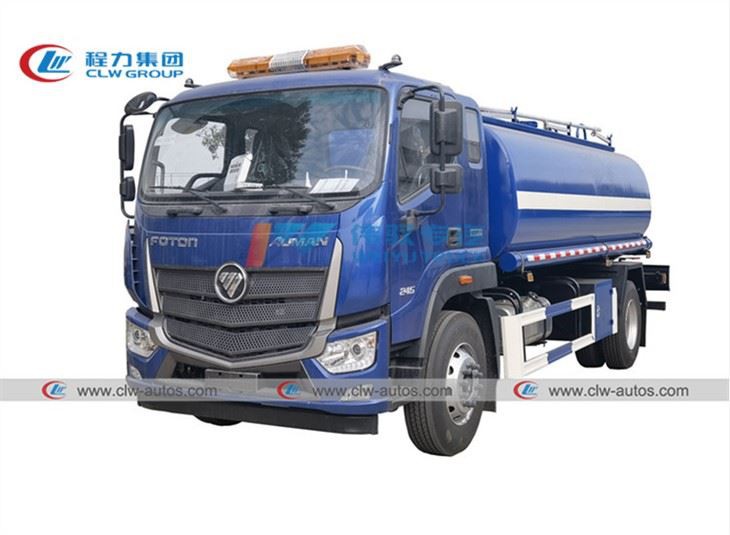

FOTON AUMAN 15000L Water Sprinkler Tanker Truck

FOTON AUMAN Water Sprinkler Tanker Truck Tank Volume: 10000L- 15000L, 10Tons-15Tons. With Water Canoon, Front Sprinkler, Rear Spray. Side Praying. For Road Street Cleaning,Frire Fighting, Rescue.

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton auman 15000l water sprinkler tanker truck in China. If you're going to buy high quality foton auman 15000l water sprinkler tanker truck, welcome to get more information from our factory. For price consultation, contact us.

Trucks Features :

1. The water bowser truck is widely used in municipal sanitation work and construction site for plants irrigation ,road consturction and dust elimination with high efficacy.

2. According to the actual condition, we can customzie for the clients if there are some special function needed, the selection of the tanker volume is flexible according to specific reuirements.

3. The sprinkler can be rotated with 360 degrees, range of sprinkling can reach more than 30 metres

Detailed Specification for FOTON AUMAN TRUCK CHASSIS:

Cabin		Right rudder/half row
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	8255×2460×2820
Whole vehicle main dimensions	Wheel base(mm)	4800
Weight data	Curb weight(kg)	5440
	Gross vehicle weight（kg）	22000
	Persons in cab (persons)	2
Engine	Model	YC6A240-33
	Emissions standards	Euro III
	Displacement（L）	7.255L
	Rated Power	177
	Max torque	900
Gearbox	Model	8JS105TA
Clutch	Type	Single dry diaphragm spring
Front axle	Type	5.5.T
Rear axle	Type/Mainreducetion ratio	10T/4.875
Suspension	Front suspension/Leaf spring number	Non-independent suspension longitudinal plate spring /10
Suspension	Rear suspension/Leaf spring number	Non-independent suspension longitudinal plate spring /10+8
Brake system	Service brake	Drum-type pneumatic brake
Brake system	Parking brake	Barely able to brake
Basic equipment		Hydraulic Turnover/Cruise + 135A.H Battery/Manual Air Conditioners/Tuberless Tire (Inch) 11R22.5/ Manual Doors, Windows and Rearview Mirrors /MP3 / Power Steering/Knit Shock Absorber Seat (Spring)

Upper equipment for water fprinkler tanker with pump:

Tank	Volume	15m³
	Dimensions	Sectional shape: oval
	Tank material and thickness	The material and thickness of the tank body: Q235B carbon steel, 5mm; the material and thickness of the head: Q235B carbon steel, 5mm
	Wave breaker	Quantity: 3 (no warehouse divided); material thickness: Q235B carbon steel, thickness 5mm
	Manhole cover	Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth
	Discharge port	One 2-inch self-draining port at the rear of the tank; one 2-inch pressure drain on the right side of the tank; one fire hydrant interface;
	Climb the ladder	Welded independent climbing ladder at the tail of the tank
	Top guard	Anti-skid walkways and aluminum alloy folding guardrails are installed on both sides of the top of the tank; anti-skid plates are installed on the top of the tank
	Level gauge	The front part of the tank, plexiglass
	Tube box	Pre-painting treatment: mechanical rust removal before painting Using two-component paint, the total thickness of the paint film reaches 80μm, two primers + two top coats
Water pump	model	Hangzhou Weilong self-priming sprinkler pump
	Limited Data	50m³/h
	Lift	110m
	Water absorption depth	6.5m
PTO	High-speed power take-off	The modifier is responsible for the installation
Spraying device	Spray type	Manual, with aluminum alloy high pressure spray gun
Work platform	position	Tank tail, size: length 900mm, width 1500mm
Toolbox	position	On the left side of the tank, there is a built-in roll of 20m fire belt with connecting shaft and spray gun
Subframe	Material	Made of Q235 carbon steel plate
Process requirements	Welding requirements	Adopt ternary gas shielded welding; ensure uniform and smooth welding seam, firm and reliable welding, no cracks, slag inclusion, welding penetration, welding leakage phenomenon, and prevent water leakage and water seepage
	Welding requirements
	Painting requirements	Pre-painting treatment: mechanical rust removal before painting Using two-component paint, the total thickness of the paint film reaches 80μm, two primers + two top coats
