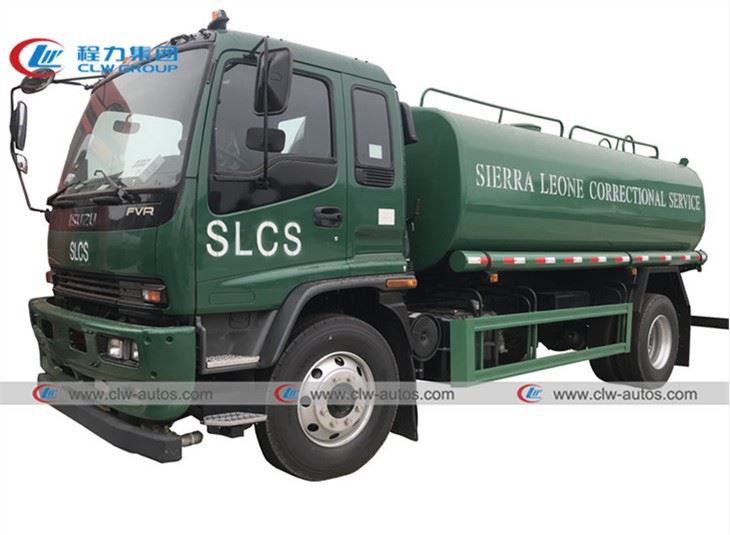

ISUZU 15TONS Water Sprinkler Tank Truck
ISUZU Water Sprinkler Tank Truck With Spraying Cannon Tank Volume: 15CBM, 15m3, 15CBM. With Front Sprinkler, rear spraying. Water pump, PTO.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 15tons water sprinkler tank truck in China. If you're going to buy high quality isuzu 15tons water sprinkler tank truck, welcome to get more information from our factory. For price consultation, contact us.
Water tank truck is suitable for a variety of road washing, trees/green belt/lawn greening, road/factory/ mine construction,aerial building flushing. It has function of sprinkler,dust suppression,high and low spraying, and water transportation, emergency fire fighting.
Description:
1. World-class ISUZU Chassis, High power and Fuel efficiency, Reliability
2. As Manufacturer more than 16 years, Professional, well design and Customed.
3. The water tanker has safety guards and special power pump which can suck and discharge automatically.
4. Water tanker equip with filter gauze and fire control connector, and water can come in along fireplug.
5. Carbon Steel, Stainless Steel, and Aluminum Tanks Available
6. Colors can be customized.
7. Tank capacity can be customized. 3000Liters to 25000Liters
The specifcation:
15000Liters ISUZU Water Bowser Truck, Water sprinkler truck | ||
General | Vehicle Brand | CLW |
Chassis Brand | ISUZU ELF | |
Overall Dimension | 7950 * 2200 * 2450 mm | |
GVW / Curb Weight | 10,000kg / 5,400kg | |
Cab | Cab Capacity | 3 persons allowed, left hand drive |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU | |
Power | 190 HP (140 KW) | |
Displacement | 5199 ml | |
Emission Standard | Euro 5 | |
Chassis | Drive Type | 4X2 (left hand drive) |
Transmission | ISUZU MLD 6 speed levers with 1 reverse | |
Wheelbase/No. of axle | 4475 mm / 2 | |
Tire Specification | 8.25R16 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
SuperStructure | Tank Capacity | 15,000 Liters |
Tank shape | Ellipse | |
Material | Carbon steel, 4mm | |
Body Material | Whether resisting steel | |
Water pump | China famous brand | |
Loading type | Self loading | |
Front spray bar | YES | |
Rear spray bar | YES | |
Water Canon | 28 meters | |
Fire coupling | Standard | |
Control | Manual (Optional air operated) | |
Control panel | English or Your language | |
All standard accessories: Warning lights, music alarm, basic tool kit, English manual... | ||
Optional | 1. Backup alarm can be equipped. | |

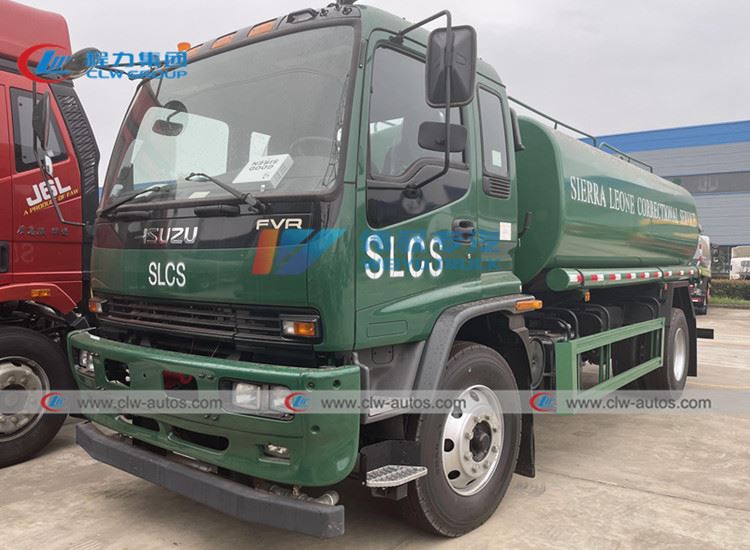

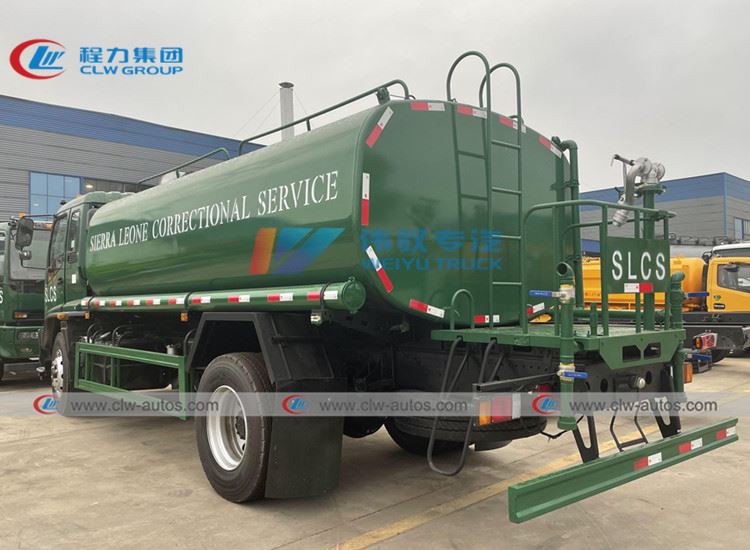

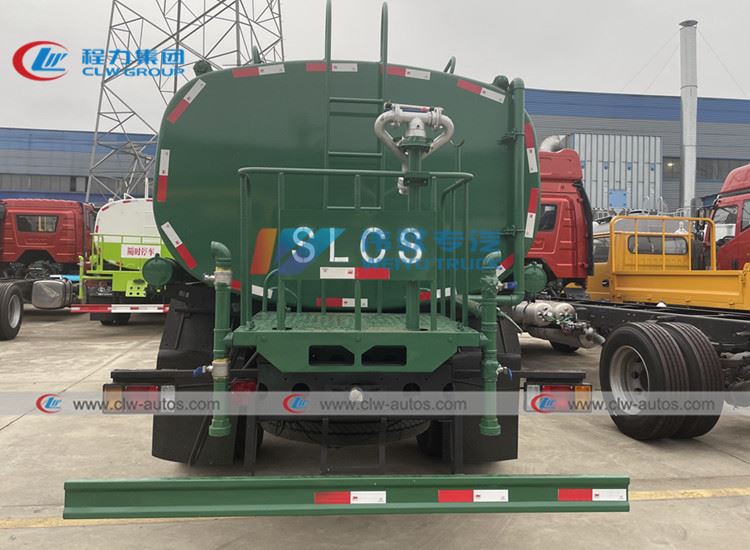

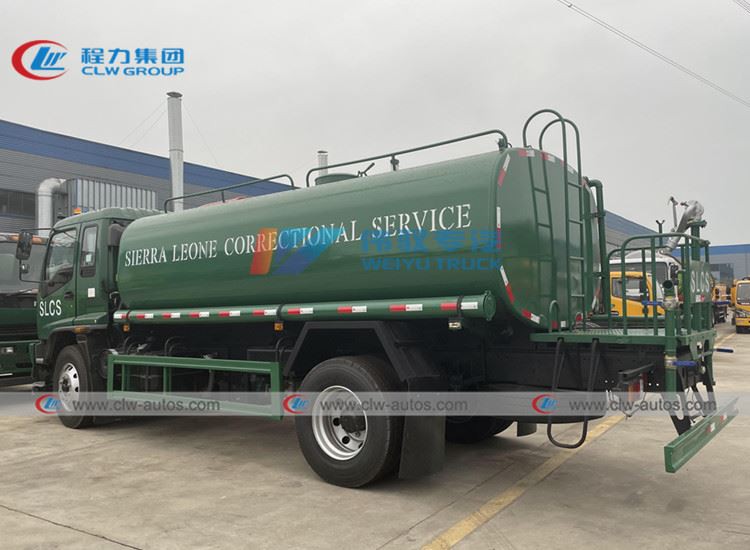

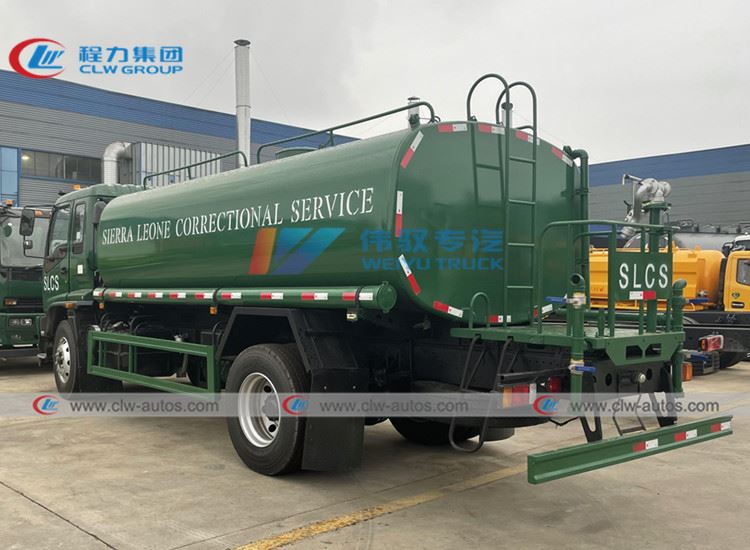

More pictures of ISUZU water prinkler truck, Water praying tank truck:
1. The tank is made of 4MM carbon steel plate. The inner baffle has the function of anti-wave, so as to reduce the impact of tank liquid when the car is driving.
2. The vehicle is equipped with a special sprinkling pump (the maximum vertical suction range is 6 meters), with a sprinkling width of 14 meters and a range of 28 meters.

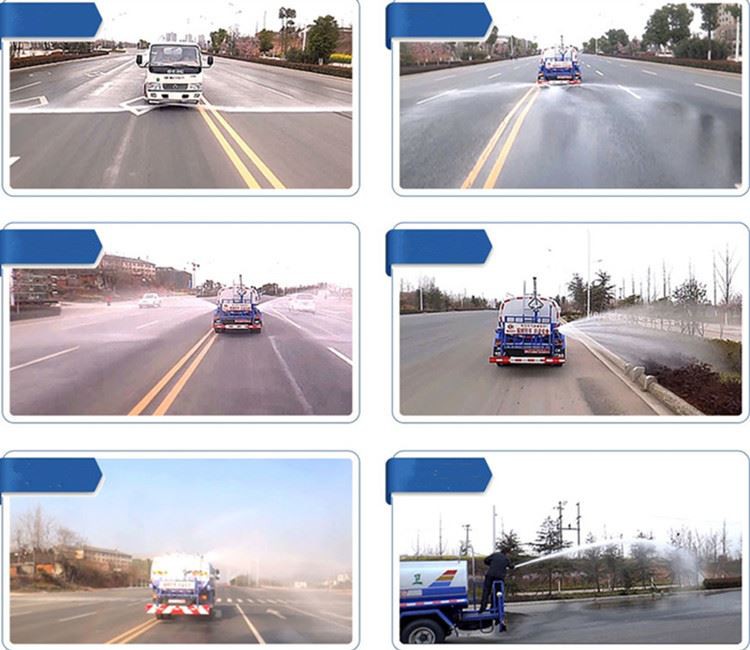

3. Multi-function sprinkler equipped with 2 before rush (spray) (can be road mud, dust, garbage flushing clean);

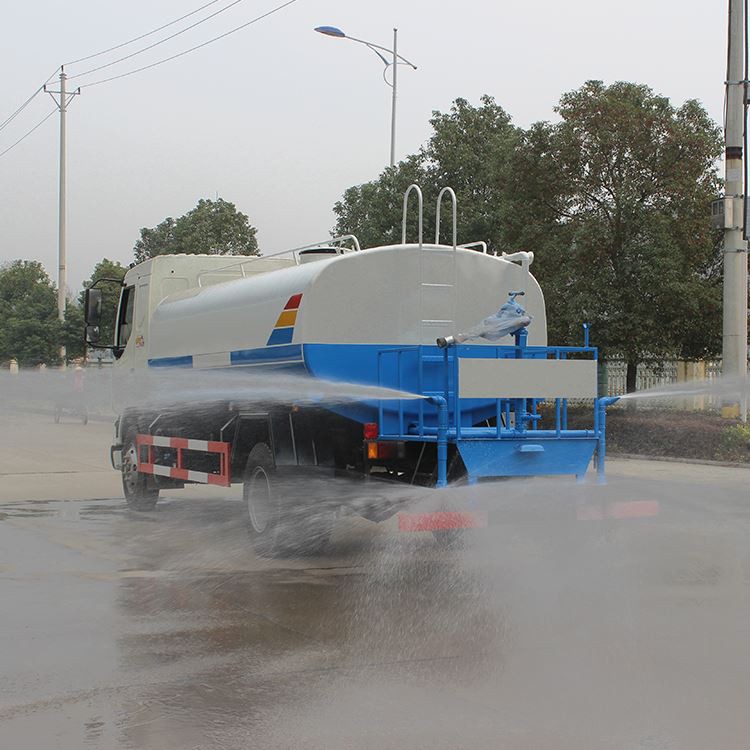

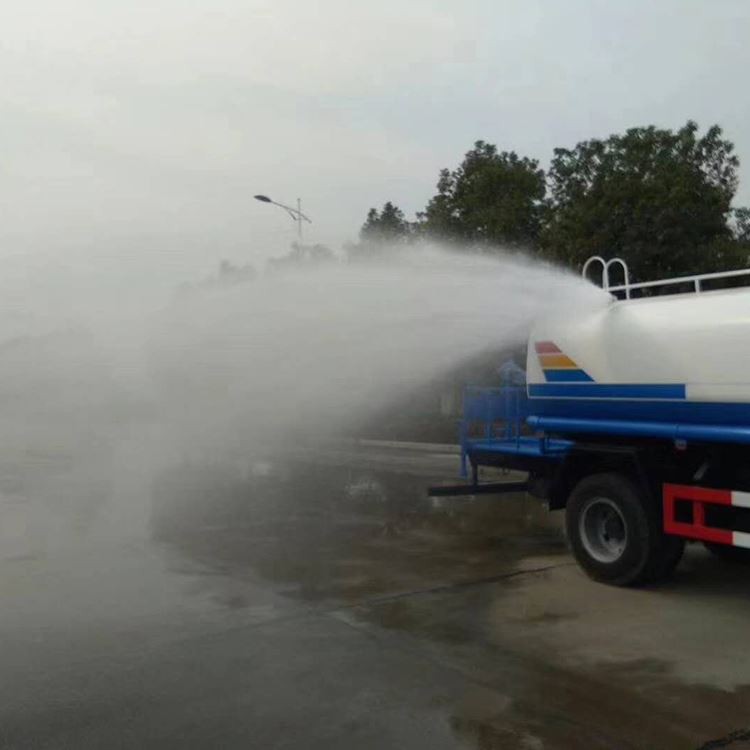

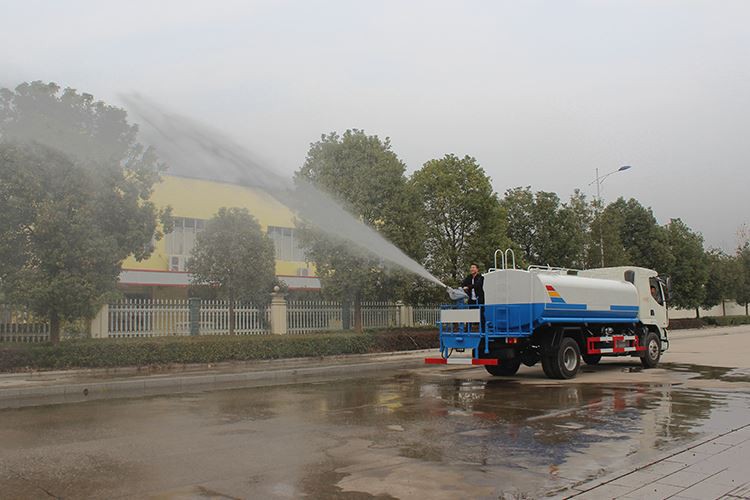

4. sprinkle (can evenly spilled the water on the road, a water spraying width 14 meters), two lateral jet (shower) (can evenly) will send the road green belts, belt after a work platform, the platform is installed on a green sprinkler anti-aircraft gun (sprinkler gun can rotate, can continuous adjustable straight at shape, heavy rain, light rain, drizzle, mist adjustable flushing tall trees),
5. water diversion time < 5 min, the flow rate of 90 m3 / h. With 1 fire joint, with 1 arbor valve, 1 filter device, humanized ladder and side fence, install sprinkler music horn.

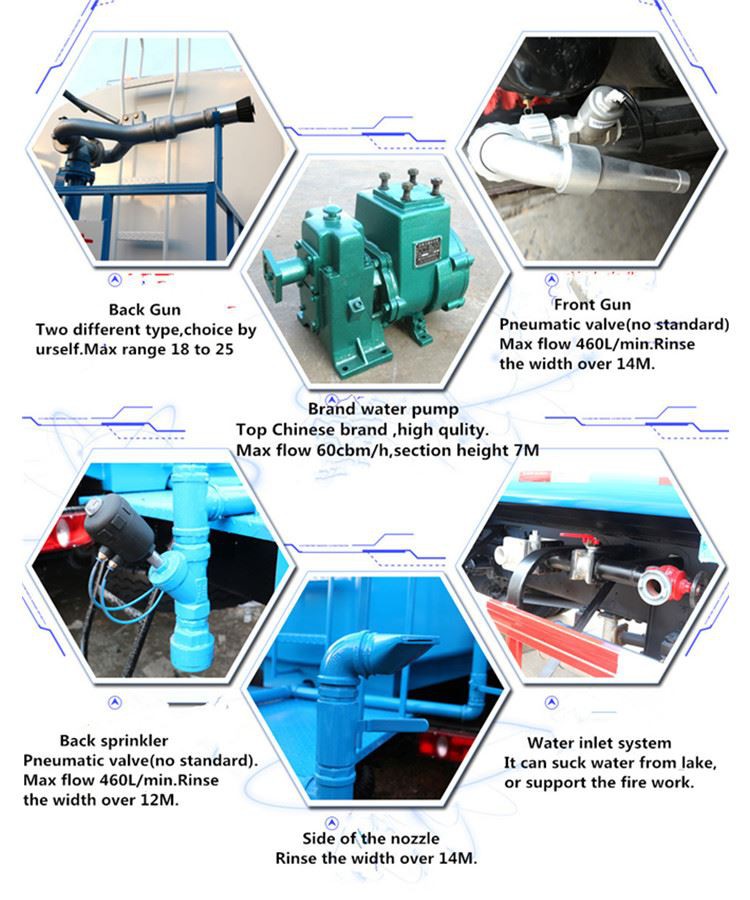

The Main Parts for Watering Tank Truck, Water Sprinkler Truck:
