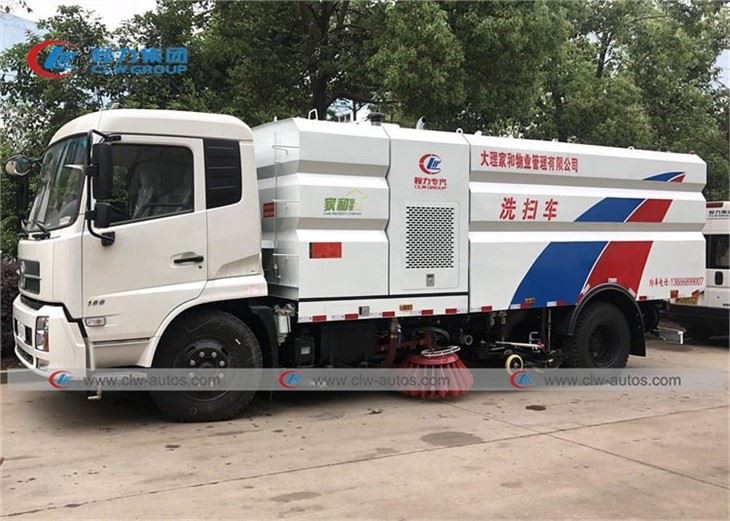

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 16ton dongfeng kingrun vacuum sweeper truck in China. If you're going to buy high quality 16ton dongfeng kingrun vacuum sweeper truck, welcome to get more information from our factory. For price consultation, contact us.
Sweeping & Cleaning at same Time
7000L Water Tank
9000L Garbage Tank
Dongfeng Kingrun Chasssis
16Ton Overall Weight
Function Specification:
Sweeping Mode:
Road Sweeping mode, which only uses the sweeping brush to sweep the road.
Working Flow Chart:
Auxiliary Engine----Hydraulic Oil Pump-----Left & Right Sweeper Disc----Left & Right Sweeping Brushes
Auxiliary Engine--- Fan Working----Dust Tank, Suction Pipe & Sution Nozzle---High Speed Air Flow bring garbage Inside
The auxiliary engine drives the hydraulic oil pump and fan to work. The hydraulic oil pump drives the left and right sweep discs to expand, lift and rotate. The left and right sweeping pan sweeps the rubbish on both sides to the bottom of the sweeper and in front of the suction nozzle. The fan works to make the air duct composed of the dustbin, the suction pipe and the suction nozzle produce a high-speed airflow. Under the action of the airflow, the garbage is sucked into the suction nozzle and into the dustbin. The chassis engine drives the washing and sweeping vehicle to move forward, and the garbage that is swept in front of the suction nozzle continuously enters the suction nozzle and is continuously sucked into the garbage bin to achieve road cleaning.
Washing and Sweeping mode:
Road Sweeping and road cleaning functions are turned on at the same time.
Working Flow Chart:
Auxiliary Engine----Hydraulic Oil Pump-----Left & Right Sweeper Disc----Left & Right Sweeping Brushes
Auxiliary Engine--- Fan Working----Dust Tank, Suction Pipe & Sution Nozzle---High Speed Air Flow bring garbage Inside
Auxiliary Engine---Auto Clutch—High Pressure Water Pump---Delivery Water----Left & Right Cleaning Nozzle
While the cleaning device is working, the auxiliary engine drives a high-pressure water pump equipped with a special clutch to participate in the work. The high-pressure water pump pressurizes the clean water from the clean water tank and then sends it to the spray rod in the nozzle and the left and right spray rods through the high-pressure pipeline control valve. Each spray rod is equipped with a number of special stainless steel fan nozzles. The fan-shaped water curtain sprayed by the nozzle forms a U-shaped water jet with a total width of not less than 3.0m, which directly washes the road surface, and the water after washing the road surface is sucked back into the trash can to realize the road cleaning.
Rear Spraying:
This function is the same as the sprinkler function, mainly used to reduce dust on the road.
There is a spray bar under the trash bin at the rear of the scrubber, and there are multiple spray nozzles on the spray bar. Start the auxiliary engine and high-pressure water pump, turn on the rear spray switch, and start the chassis car to move forward, and then spray dust can be carried out.
Front Flushing:
This function is the same as the sprinkler flushing function, which is mainly used to flush the road surface.
Use the low pressure and large flow of the centrifugal water pump to wash the road surface as a sprinkler.
whatsapp +86 186 0715 8551 (Mr Eric Cen)
youtube: https://youtu.be/YxUcn9deJQQ
Product | Dongfeng Kingrun Cleaning Sweeper Truck | ||
Model No. | CLW5180TXSD6 | ||
Chassis Model No. | DFH1180EX8 DAFC | ||
Standard | GB3847-2005, GB17691-2018 Euro 2-Euro6 | ||
Engine | Truck Engine | Engine Model | B6.2NS6B210 Cummins |
Power(kw) | 154 | ||
Hp(ps) | 210 | ||
Displacement (ml) | 6200 | ||
Deputy Engine | Sweeper Engine Model | B170 33 | |
Power (kw) | 125 | ||
HP(ps) | 170 | ||
Displacement(ml) | 5900 | ||
Diesel Type | Same Type of Diesel as truck | ||
Truck Specification | Overall Size mm | L 8550* W2480* H3130 | |
Wheel Base(mm) | 5000 | ||
Tire | 275/80R22.5 18PR | ||
Tire Quantity | 7(include 1 Spare) | ||
Wheel Track | Front(mm) | 1876 | |
Rear(mm) | 1820 | ||
Passenger Allowed | 3人 | ||
Overhang Front/Rear (mm) | 1430/2220 | ||
Approaching Angle | 17° | ||
Departure Angle | 25° | ||
Ground Clearance(mm) | 320 | ||
Loading Weight(kg) | 6870 | ||
Truck Weight(kg) | 11000 | ||
Gross Vehicle Weight (kg) | 18000 | ||
Sweeping Specification | Garbage Box( m3 ) | 7,000L Stainless Steel | |
Water Tank( m3 ) | 9,000L Stainless Steel | ||
Sweeping Width (mm) | 2800-3200 | ||
Sweeping Speed (km/h) | 3-15 | ||
Truck Speed in cleaning (km/h) | 15-20 | ||
Sweeping Capacity (m2/h) | 48000 | ||
Suction Capacity | Density(g/cm3) | 2.0 | |
Weight (kg) | 1.5 | ||
Max Diameter (mm) | ≥100 | ||
Garbage Box Dumping Angle | ≥45° | ||
Sweeping Efficiency | ≥96% | ||
Working Noise(db) | < 88 Meet GB7258 Standard | ||
Dust Control System | Spraying Type | Low Pressure Fog Type | |
Main Components | Imported high pressure pump water filter pipeline stainless steel spray frame high pressure nozzle | ||
High Pressure Water Pump | CPX036 | ||
Installation Position | Sweeping | Left & Right Sweeper | |
Suction | Suction Pan Inside | ||
Control Type | Electronic control, one key operation | ||
Hydraulic System | Type | Open Type, electric control |
Main Components | Gear pumps, Cycloid Motors, Hydraulic Cylinders, Solenoid Valves, Manifold Blocks, High-pressure Pumps, | |
Cycloid Motors | Sanyo Motor | |
Gearbox | Changyuan Machine | |
Hydraulic Cylinder | Hi-Pressure（Italian Brand） | |
Cylinder Sealing | DingJi | |
Hydraulic Oil Pipe | Guangzhou Tianhe | |
Solenoid Valves | Hi-Pressure（Italian Brand） | |
Pressure Gauge | IMT (Shock Proof) | |
Oil Filter | Sofima Brand | |
Hydraulic Pressure | 10-12 Mpa | |
Hydraulic Tank | ≥60 L | |
Electrical System | System | Chassis & Deputy Engine Electrical System |
Chassis Power Voltage (V) | 24 | |
Working System Power Voltage(V) | 12 | |
Control Panel | Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches | |
Control Switch | Schneider Shanghai | |
PLC | BaichaoFu | |
Braker | Higer | |
Battery | 12V-70A.H (2 units in parallel) | |
Fan System | Type | High-pressure Centrifugal Fan |
Brand | Changsha Lianyue | |
Rated working speed | 2700 r/min | |
Transmission type | Auxiliary engine, clutch, high temperature resistant A-belt drive with teeth (4) | |
Fan Belt | Zhejiang Sanshili | |
Automatic clutch | centrifugal type, imported material | |
Air Volume | 5000 ~ 7800 (m3/h) |
Pictures of details：

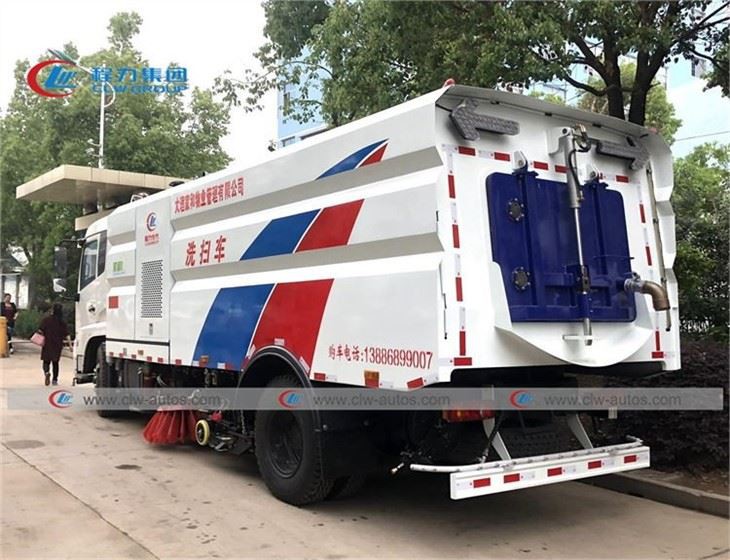

Vacuum Sweeper Truck-Rear View

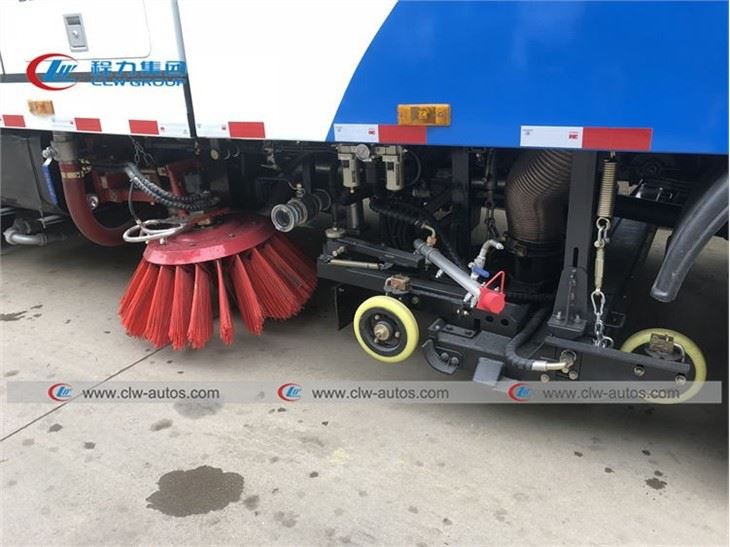

Vacuum Sweeper Truck---Sweeper & Sunction Pan

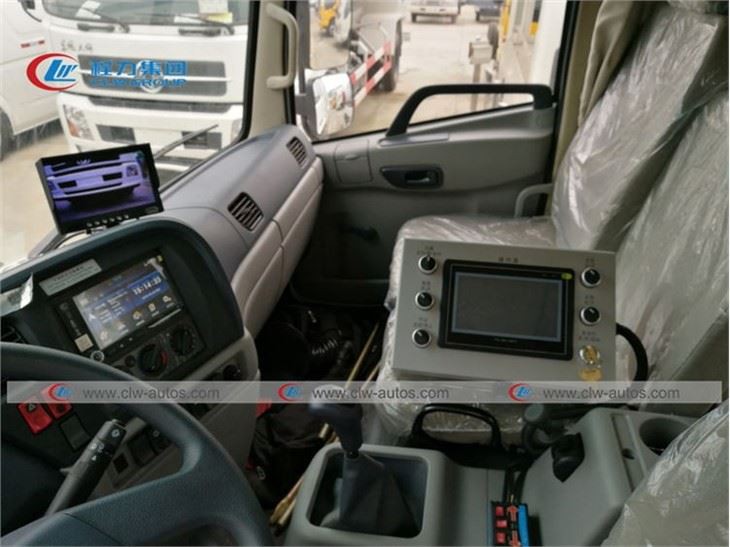

Vacuum Sweeper Truck---Control System inside Cabin

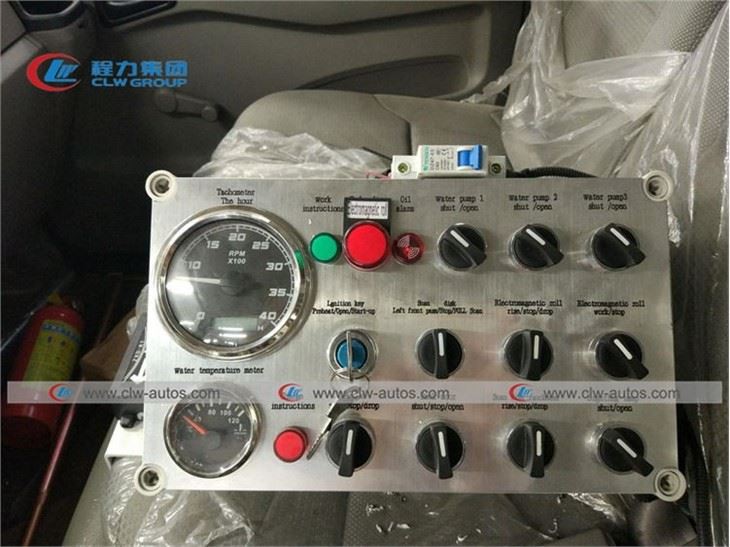

Vacuum Sweeper Truck---English Version Control Panel

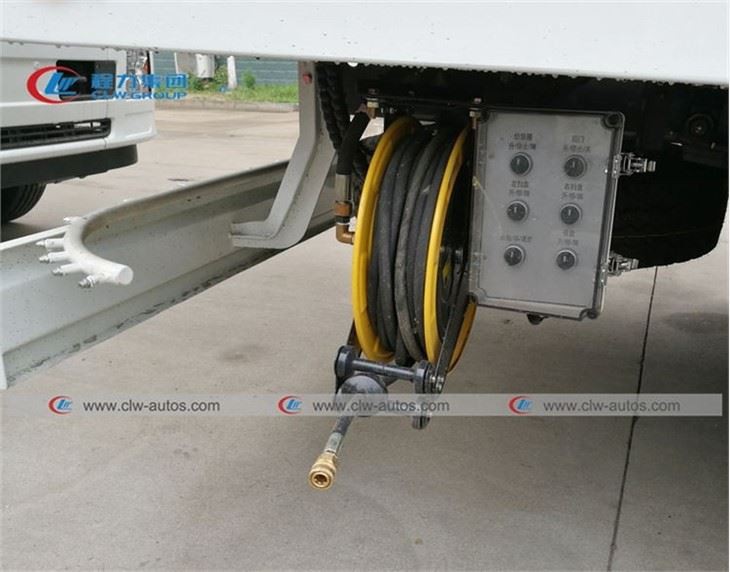

Vacuum Sweeper Truck---Rear Control Panel, Cleaning Hose Reel

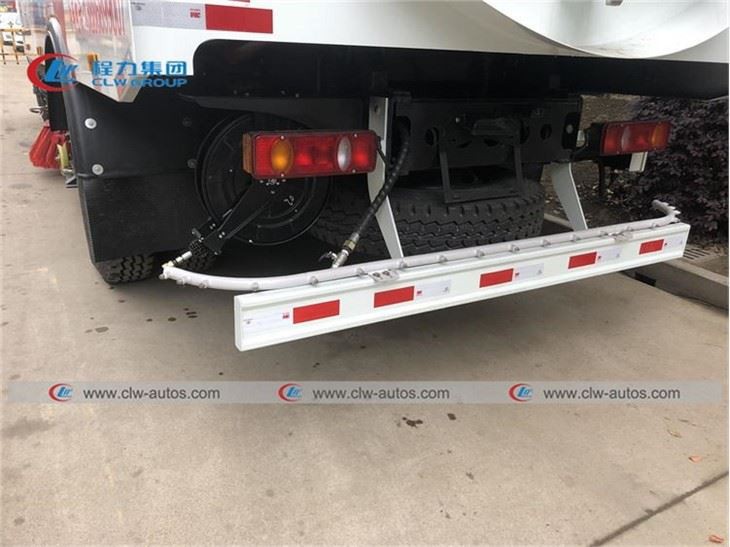

Vacuum Sweeper Truck---Fog Spraying Bar
Vacuum Sweeper Truck- Front Flushing & Rear Spraying
![9]CWY9K]5STSP}P(P`OYUOQ_](jpg/20210804175326c1e21b32630a4d72a0ea16c1b315ec54ibc883.jpg "9]CWY9K]5STSP}P(P`OYUOQ_")
