Howo 4X2 10,000L 10Tons Vacuum Septic Truck
10tons vacuum septic truck to Togo
Left hand drive,4X2 Howo truck chassis
160HP diesel engine
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x2 10,000l 10tons vacuum septic truck in China. If you're going to buy high quality howo 4x2 10,000l 10tons vacuum septic truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Vacuum septic truck (also called howo vacuum truck,10tons septic truck,sewer cleaner truck,vacuum cleaner truck, vacuum truck,sinotruk vacuum truck,cesspit emptier truck,exhauster truck,sewage exhauster truck,honey sucker,vacuum truck,vacuum sewer truck,vacuum sewage truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the newest sanitation vehicles to collect,clean and transport waste water,sewer,spetic,sludge, sewage to avoid secondary pollution and also is cesspool and pit vacuum cleaner tanker which is an integral unit in sanitation systems; it is available with either a FULL BORE HATCH or a conventional 450mm (18in) diameter hatch at the rear of the tank which is slope-angle mounted on the chassis to facilitate discharge operations. Suction and discharge functions are performed by the good quality vacuum pump
Feature
--Vacuum septic truck tanker material optional for high quality carbon steel Q345 or stainless steel 304;
--Septic tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;
--Septic truck pump is optional for chinese brand oil weilong/Yifeng pump,water ring suction pump or Italy brand BP,Jurop,Keiser Moro imported brands as follows
--Suction speed less than 10min and and discharge speed less than 8 min;
--horizontal suction distance: within 80 meters;
--Vertical suction depth:within 9 meters;
--Reliable sinotruk howo light truck chassis for vacuum sewer truck for Togo,DRC,Senegal,Uganda and so on.
Pictures

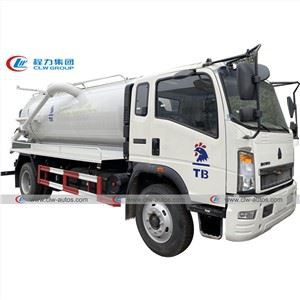

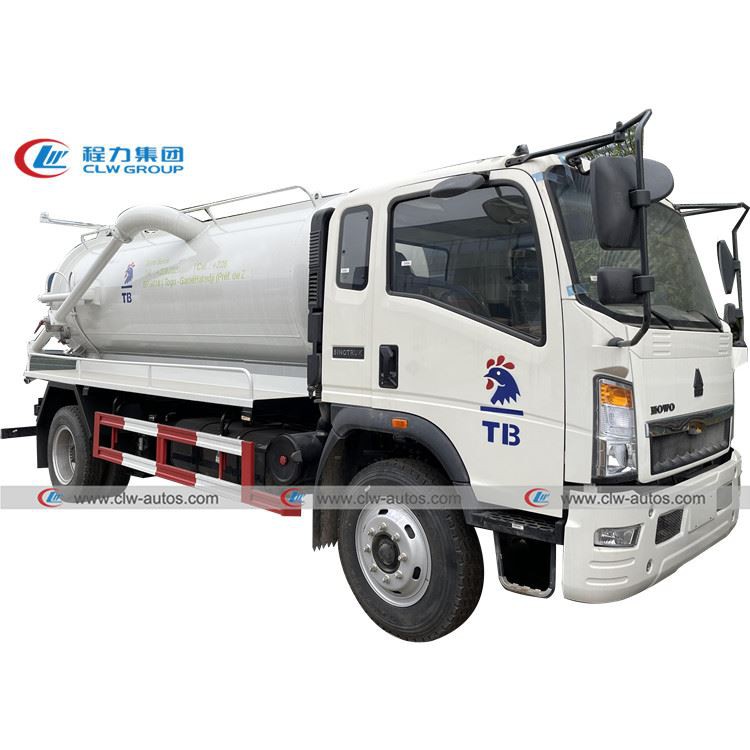

(front side view of Howo 10tons vacuum septic truck)

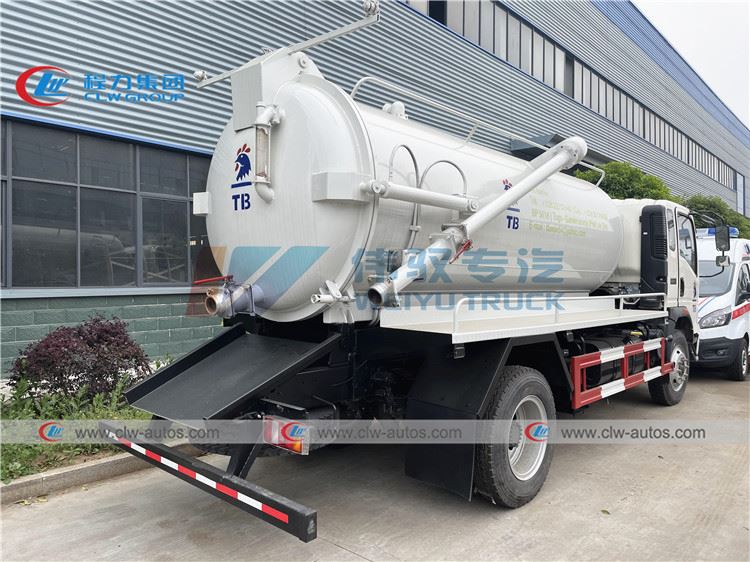

(Rear side view of Howo 10000L vacuum septic truck)

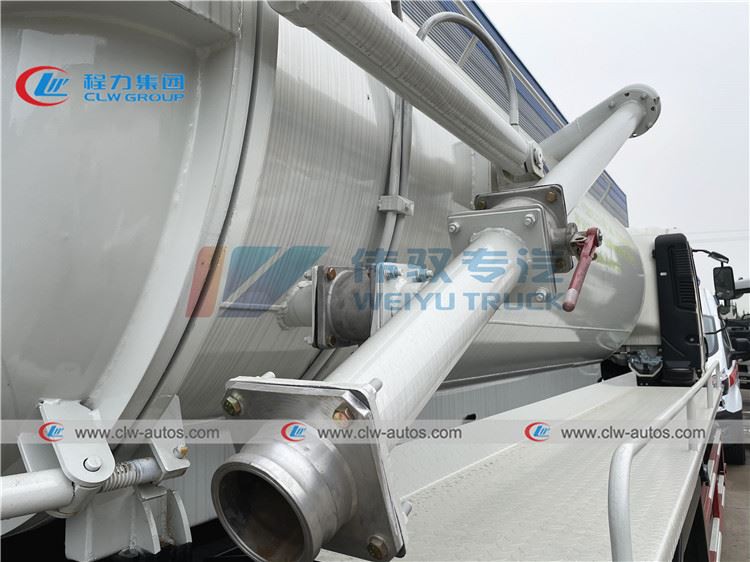

(Sewer inlet of Sinotruk Howo 10tons vacuum septic truck)

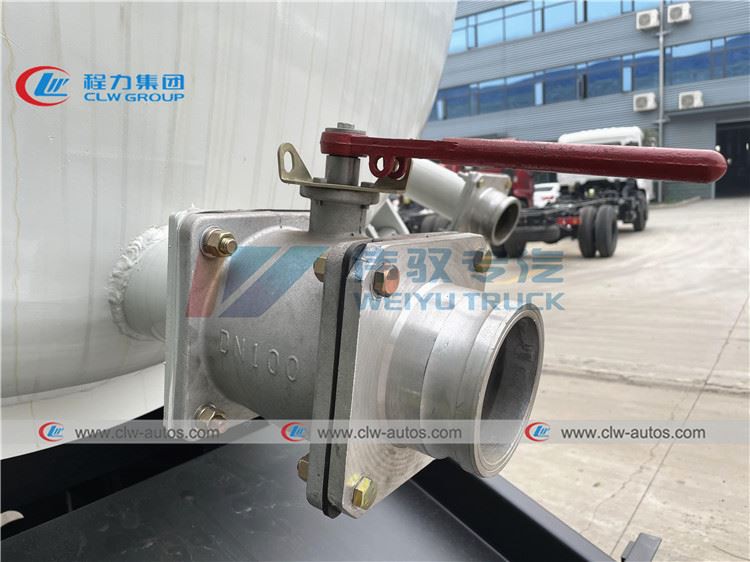

(DN100 sewer outlet of Howo 10tons vacuum septic truck)

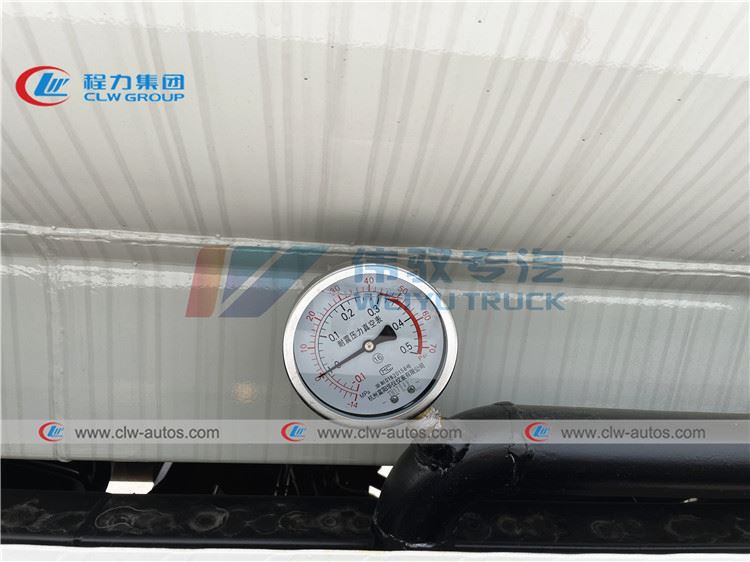

(vacuum pressure gauge of Howo 10tons vacuum septic truck)
(Hydraulic oil cylinder of Howo 10tons vacuum septic truck)

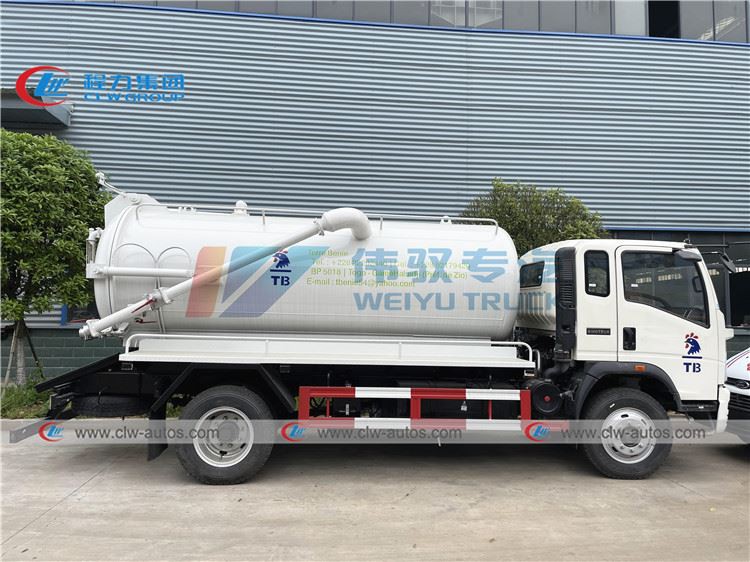

(side view of Howo 10tons septic vacuum truck)
Main parameters | |||
Condition | Brand new | ||
Tank loading capacity | 10,000liters | ||
Drive system | Left hand drive | Drive wheel | 4x2 |
Fuel | Diesel | Transmission type | Manual |
Overall dimensions | 7600x2200x2700mm | Emission standard | Euro III |
Cabin | Howo L3W cabin,single and half cabin with A/C | ||
Number of axles | 2 | Axle-load | 3200/8000kgs |
Wheelbase (mm) | 4200 | Max speed(km/h) | 95 |
Tire specification | 8.25R20 | Tire number | 6+1 |
Engine parameters | |||
Engine model | YC4E160-33,Yuchai Engine | ||
Fuel type | Diesel | ||
Horsepower | 160HP | ||
Sewage suction tank specification | |||
Tank material | High quality carbon steel Q345 | ||
Characteristic | sewage suction truck is composed of PTO, transmission shaft, vacuum suction pump, pressure tank, hydraulic part, vacuum pressure gauge, fecal window, hand washing device and so on. The vacuum sewage suction pump and high quality hydraulic system are installed with the truck. The tank sewage can be dumped directly through the rear cover; | ||
Pump | |||
Model | XD-300 | ||
Brand | Made in China | ||
Pumping rate | 300M3/h, 83L/s | ||
Extreme pressure | -90000Pa | ||
Speed | 950r/min | ||
Consumed power | 8kw | ||
Maximum temperature | 90℃ | ||
