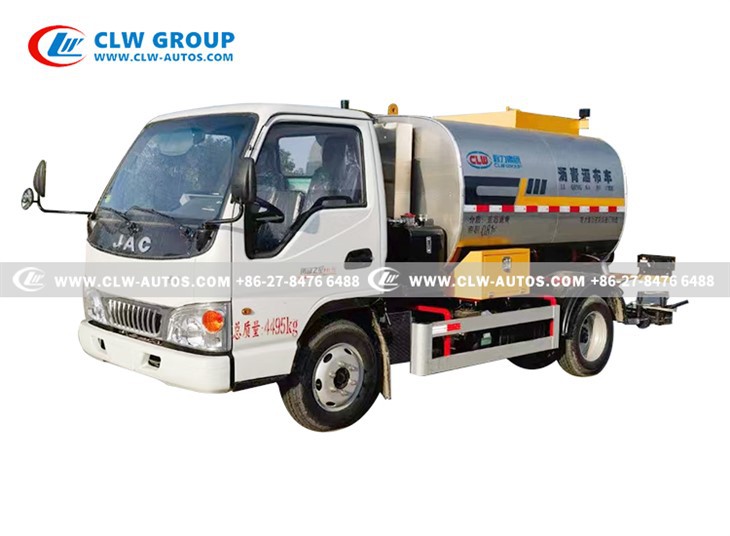

JAC 1 Ton Mini Asphalt Distributor Truck
Asphalt Tank: 1 m³
Dimensions: 5,450×2,170×2,410 mm
Axles: 1.6-ton (front) / 3-ton (rear)
Engine: 95 HP
Transmission: 5-speed manual
Tyre: 6.50R16
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of jac 1 ton mini asphalt distributor truck in China. If you're going to buy high quality jac 1 ton mini asphalt distributor truck, welcome to get more information from our factory. For price consultation, contact us.
JAC 1 Ton Mini Asphalt Distributor Truck
Products Description
The JAC asphalt distributor truck, bitumen sprayer, road maintenance truck, road construction equipment, asphalt spraying truck is a compact and cost-effective bitumen sprayer specially designed for small-scale road maintenance and urban construction projects. Built on a JAC 4x2 light-duty chassis with a 2,850 mm wheelbase and a 95 HP engine, this vehicle is highly maneuverable in narrow city streets and tight job sites.
Ideal for tack coat, prime coat, and surface dressing applications, this truck ensures efficient and uniform bitumen spraying, helping contractors complete high-quality pavement work with lower operating costs.
Despite its small size, the unit supports hot bitumen spraying and features a simple, reliable control system-making it perfect for municipal maintenance teams, village-level roadwork, and budget-conscious contractors.
1. Tack Coat Spraying – "Glue" for New Asphalt Layers
Before laying fresh asphalt, a thin layer of bitumen is sprayed to help the new surface stick tightly to the old one. This prevents sliding or peeling and keeps the road stronger for longer.
2. Prime Coat Spraying – Preparing the Base
Spraying bitumen onto gravel or unbound roadbeds strengthens and seals the base layer, making it ready for asphalt paving. Think of it as laying the foundation for a longer-lasting road.
3. Surface Dressing – Quick Road Refresh
A light layer of bitumen followed by stone chips helps breathe new life into old roads. It improves grip, reduces wear, and extends road life at a low cost-simple and effective!
4. Road Repairs & Maintenance – Crack Sealing & Patching
Perfect for small repairs-filling cracks, patching damaged areas, or adding a bonding layer before resurfacing. It improves both durability and road appearance.
5. Airport Runway Spraying – Precision at High Speeds
Used on wide and long runways, this truck ensures even and accurate bitumen application-essential for meeting the strict standards of airport construction.
6. Dust Control & Waterproofing – Not Just for Roads
In some work zones, the truck can be used for bitumen-based dust suppression or waterproof coatings, helping control the environment and protect surfaces.
Key Features
- Brand: JAC
- Model: JAC Kangling 4x2 Asphalt Distributor Truck
- Asphalt Tank: 1 cubic meters
- Engine: 95 HP
- Transmission: 5-speed manual
- Wheelbase: 2,850 mm
- Dimensions: 5,450 × 2,170 × 2,410 mm
- Tyres: 6.50R16
Products Video
Products Parameter
| Chassis Model | JAC 4x2 95HP | ||||
| Overall Dimensions | mm | 5450*2170*2410 | |||
| Wheelbase | 2850 | ||||
| Tank Capacity | m3 | 1m3 | |||
| Curb Weight | kg | 3,450 kg | |||
| Gross Vehicle Weight (GVW) | 4,500 kg | ||||
| Engine | Model |
Quanchai Q23-95 |
|||
| Power | 70 kW / 95 HP | ||||
| Displacement | 2,300 mL | ||||
| Max Torque | 240 N.m | ||||
| Max speed | km/h | 90 km/h | |||
| Tire specification | 6.50R16, 6 tires with 1 spare | ||||
| Steering Position | LHD / RHD | ||||
| Transmission | 5 Speed Manual | ||||
| Color | Customized | ||||
| Equipment | |||||
| Tanker Interior |
Carbon steel |
||||
| Insulation Material | 50 mm rock wool insulation | ||||
| Tank Exterior | 1 mm stainless steel | ||||
| Hydraulic Motor | 05-130-BD31 | ||||
| Hydraulic pump | CBQ550-L | ||||
| Bitumen Pump | QGB680, Flow Rate: 680 L/min | ||||
| Proportional Valve | EFBG-03-160-HF | ||||
| Control System | PLC Control | ||||
| Asphalt Nozzles | 34 pcs | ||||
| Burner | Riello G10 (Italy), 100,000 kcal/h | ||||
|
Thermal Oil Pump |
RY40-25-160 |
||||
| Spray Width | 4.5 m | ||||
|
Asphalt Spraying Rate |
0.2 to 2.5 L/m2 | ||||
| Spraying Medium | Hot & emulsified asphalt (including SBS and rubber-modified types) | ||||
| Optimum Construction Speed | 3-6 km/h | ||||
| Speed Sensor |
GTS211B-N016 |
||||
| Temperature Controller | WZP-230 | ||||

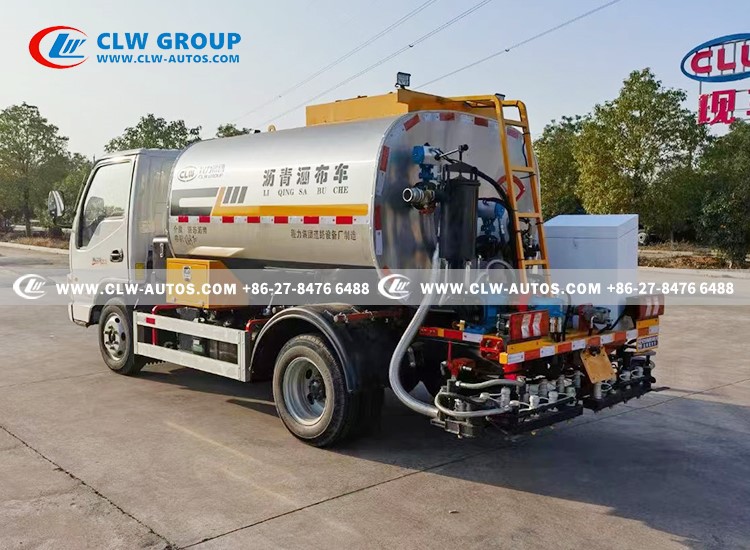

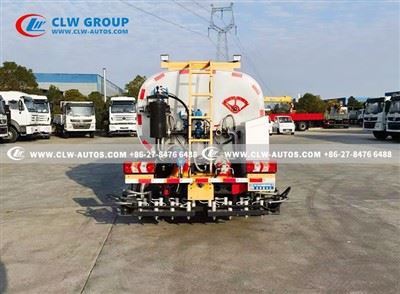

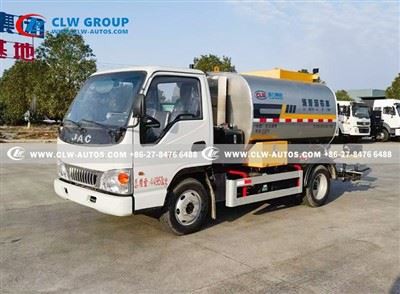

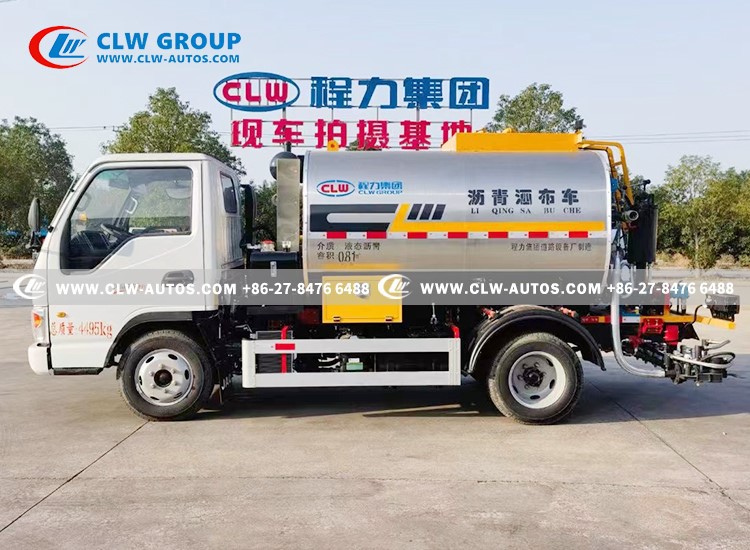

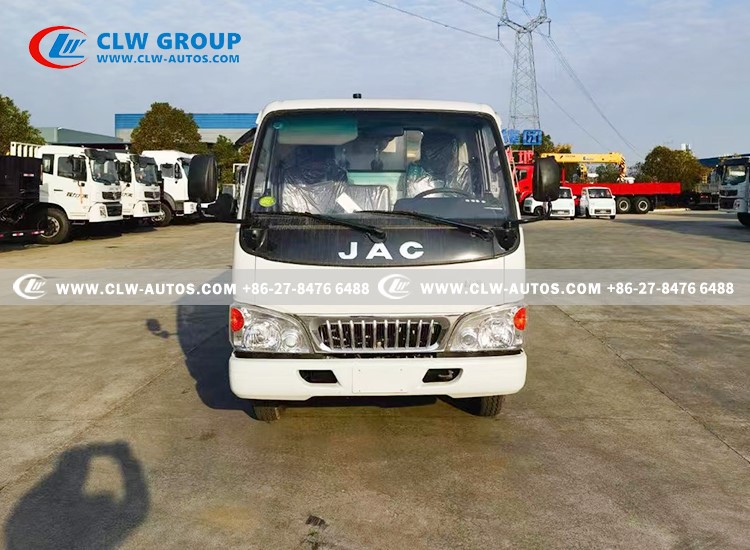

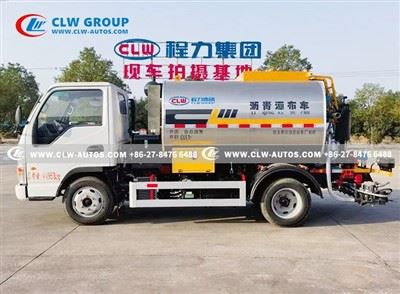

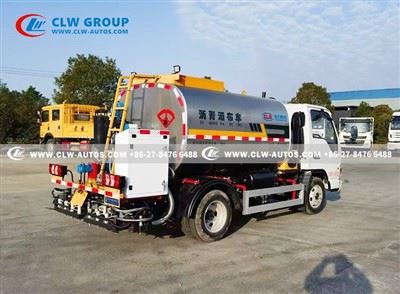

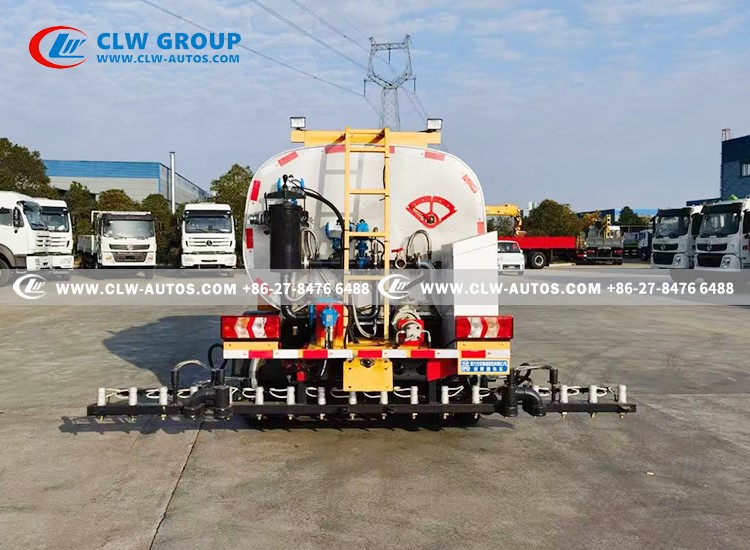

Products Show

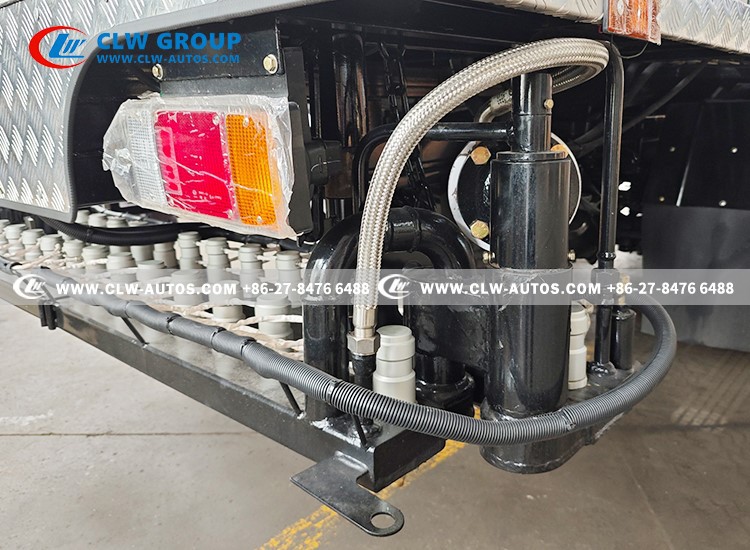

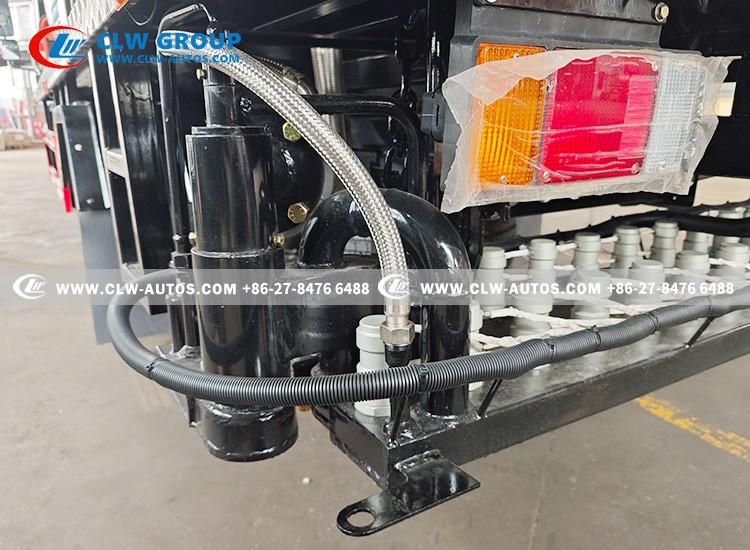

Detail Photos
