Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of Shacman 15Ton Refrigerated Truck in China. If you're going to buy high quality Shacman 15Ton Refrigerated Truck, welcome to get more information from our factory. For price consultation, contact us.

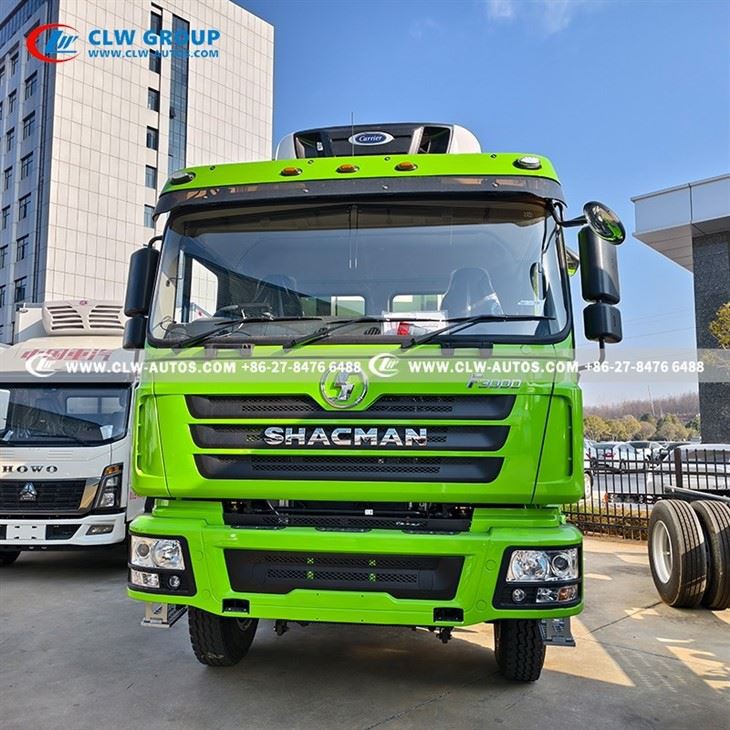

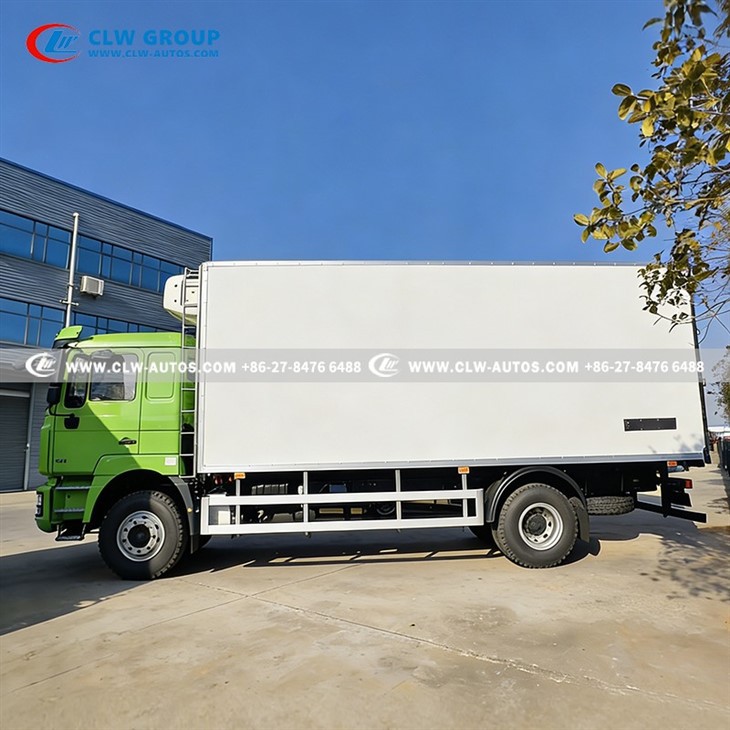

Shacman 42m³ Large Refrigerated Lorry
Meet the Shacman F3000 Cold Chain Master: Your Trusted Partner for Temperature-Controlled Transport !
[Powerhouse Performance]
Built for reliability and efficiency, this truck is equipped with the robust Weichai WP10.300E22 engine, delivering 300HP for strong on-road performance. Paired with the Fast 10JSD180 transmission featuring 10 forward and 2 reverse gears, it ensures smooth and adaptable power delivery across various road conditions, ideal for long-haul or multi-stop冷链 logistics.
[Optimized Chassis & Body]
The 5200mm wheelbase provides a stable platform for the sizable refrigerated cargo box. The body, measuring 6800x2450x2500mm, offers substantial capacity. Its construction allows for exterior cladding choices of fiberglass, aluminum, or stainless steel, all with polyurethane foam insulation of selectable thickness for superior thermal efficiency.
[Advanced Refrigeration & Cargo Care]
Featuring a powerful independent Carrier/Supra 750+ refrigeration unit, temperature within the cargo area can be precisely controlled from a deep-freeze -20°C to a chilled +30°C, accommodating a vast range of perishables. The interior is designed for optimal cold air circulation, ensuring uniform temperature. A key highlight is the ventilated floor channel system, which not only enhances airflow for better cooling performance but also protects the floor, allowing the safe use of wheeled loading equipment.
[Versatile Transport Applications]
This vehicle is engineered to safely and reliably transport temperature-sensitive goods including:
Food Products: Tea, fresh vegetables & fruits, dairy products, frozen foods.
High-Value & Live Cargo: Vaccines, live seafood (fish, lobster), day-old chicks/poults, and other fresh produce.
Key Features:
Shacman F3000 4x2 / Right-Hand Drive / Weichai WP10.300E22 Engine (300HP) / Fast 10JSD180 Transmission (10+2 Gears) / Carrier / Supra 750+ Independent Unit / Wide Temperature Range (-20°C ~ +30°C) / Adjustable Insulation Thickness / Ventilated Floor Channels / Optimal Cold Air Circulation / Versatile Cargo Compatibility
Overall Dimensions: 9370×2600×4000 mm
Brand: Shacman F3000 / RHD
Cab: Single row and half cabin, 2 seat with one sleeper
Wheelbase: 5200 mm
Engine: WP10.300E22
Horsepower: 300HP
Emission standard: Euro II
Gearbox: 10 Forwards and 2 reverse
Gross Vehicle Weight: 18000 kg
Curb weight: 9650 kg
Loading weight: 8350 kg
Suspension: Front/Rear Multi-leaf Spring
Tires: 12.00R20, 6 pcs with one spare
Fuel Tank: 400L Alluminum alloy material
|
Van Box |
||
|
Box Dimension |
6800x2450x2500mm |
|
|
Box Material |
Inner |
FRP |
|
|
Middle |
80mm thickness XPS insulation layer, |
|
|
Outer |
FRP |
|

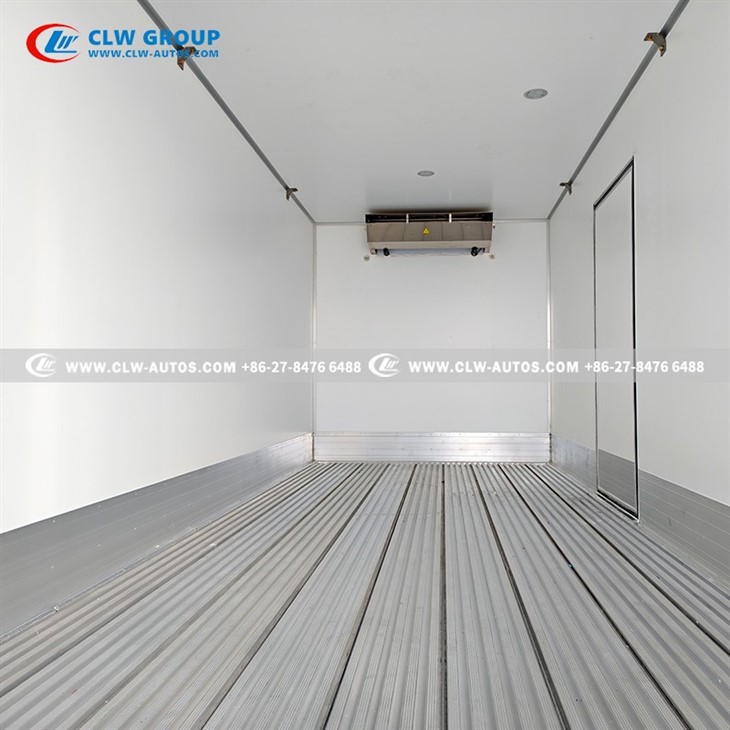

Flooring |
Surface layer |
Aluminum alloy ventilation slot |
|
|
Inner layer |
Waterproof multi-layer board |
|
Refrigerator Unit |
Brand/Modal |
Carrier / Supra 750+ |
|
|
Type |
Independent refrigeration unit |
|
|
Temperature |
-20℃~ +30℃ |
|
Side Door |
Right side, 1.2m width, equipped with sealing strips and door locks |
|
|
Rear Door |
Full Size Double Opening Rear Door |
|
|
Marker Light |
2 sets white on front. & 2 sets Red on rear |
|
|
Celling Light |
2 sets of 24V LED |
|
|
Door frame & lock |
Stainless steel material, corrosion-resistant and does not rust. |
|
|
Drainage |
2 drainage hole |
|
|
Optional equipment |
1.Dual-use units for cooling and heating |
|
|
|
2.Hydraulic lifting tailgate |
|
|
|
3.Center flip partition |
|
|
|
4.Roof guide rail with meat hooks |
|
|
|
5.Stainless steel fixed cargo strip |
|
|
|
6.Sidewall ventilation slot |
|
|
|
7.Rubber curtain |
|
This compact cold chain truck delivers strong performance for efficient urban logistics and multi-stop deliveries.!
Cabin
Single row and half cabin ,2 seat with one sleeper
Shacman F3000 / RHD chassis
10-15 ton load capacity,
42 CBM loading volume
Euro II emission standard
Engine: 300HP diesel, WP10.300E22
Transmission: MLD 10-Speed Manual
Wheelbase: 5200 mm
Cooling box
Cargo Box : 6800x2450x2500mm insulated compartment
Equipped with ventilation slots
Right side door,1.2m width
Equipped with sealing strips and door locks
Marker Light: 2 sets white on front & 2 sets Red on rear

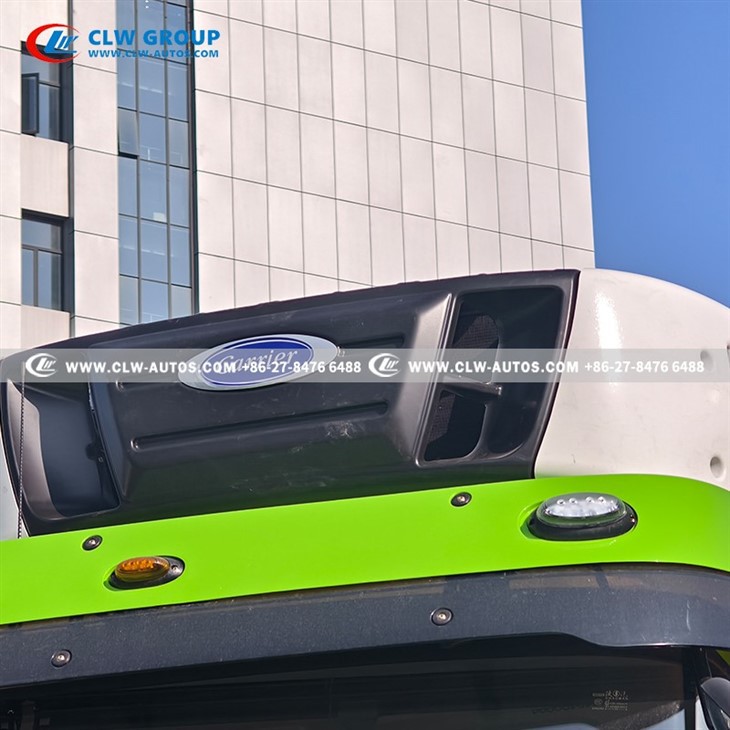

refrigerator unit
Independent Refrigeration Unit: Carrier / Supra 750+
Self-powered refrigeration for continuous cooling.
Deep freeze (-25°C to -18°C) – for seafood, frozen meat
Chill zone (0°C to 5°C) – for dairy, fruits and vegetables
Ambient control (10°C to 25°C) – for pharmaceuticals
400L Aluminum alloy fuel tank
Refrigerated unit engine is connected to the chassis fuel tank.
Real-time fridge fuel consumption displayed on the dashboard.
The 400L large fuel tank enables long-distance travel.
Aluminum alloy anti-corrosion and rust-proof material.
