Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6.3tons beiben 4x4 off road militay crane truck in China. If you're going to buy high quality 6.3tons beiben 4x4 off road militay crane truck, welcome to get more information from our factory. For price consultation, contact us.
Function
-- Beiben military crane truck (also called 4X4 crane truck,off road crane truck,4WD crane truck,Full-wheel-drive crane truck,truck mounted crane,truck with Crane,6.3tons crane Truck,truck mounted kunckle boom crane,truck mounted jib crane,truck mounted hydraulic crane) is used for lifting different kinds of cargo such as heavy equipment,bricks,tree, steel pipeline, telegraph pole and stone etc.
-- crane truck can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC,ISUZU and Beiben/North Benz crane truck;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 crane truck ;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons crane truck
4) According to crane type,there are telescopic/straight arm and knuckle boom/folding arm crane truck .
5) Usually crane is installed between cabin and cargo box and it is available for chinese top brands XCMG,PALFINGER or CLW crane.
Feature
-- Crane: We can supply International brand XCMG and PALFINGER or our own brand CLW for optional.
-- Landing leg: Hydraulic control, top quality, easy for operation.
-- Cargo box: High quality carbon steel Q235
-- Truck chassis:Powerful Beiben Off road Diesel engine truck chassis
-- Tire: 14.00R20 tire with high trafficability.
-- Crane is designed with high-strength steel plate and hexagonal boom, featuring high strength, light dead weight and strong lifting capacity.
-- Arm frame form: folding arm or straight-arm
-- XCMG crane,maximum lifting weight of 6.3tons.
-- turning Angle 360°.
Reference picture

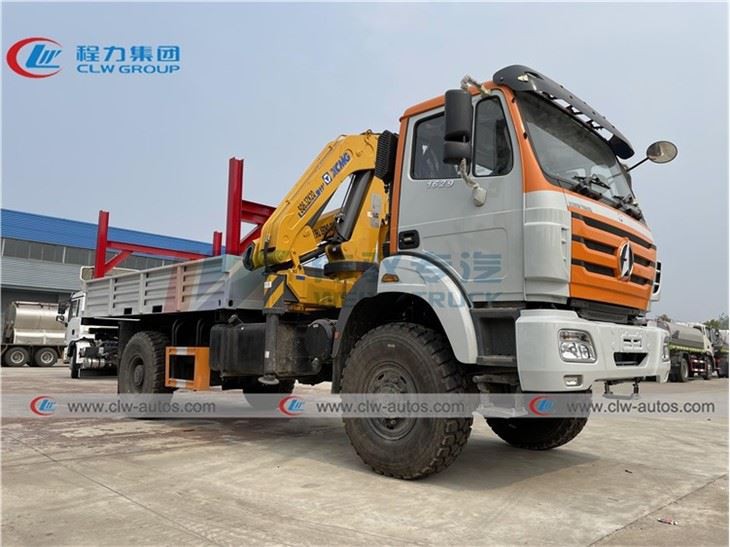

(front side view of Beiben off road crane truck)

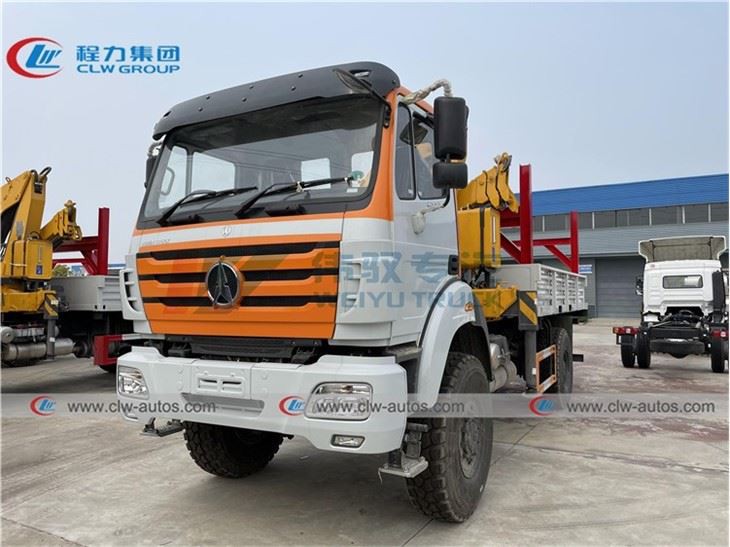

(front side view of Beiben 4X4 military crane truck)

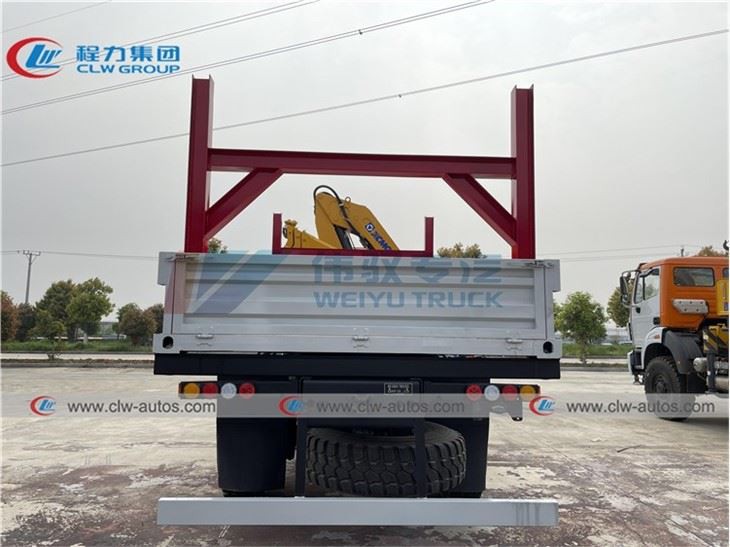

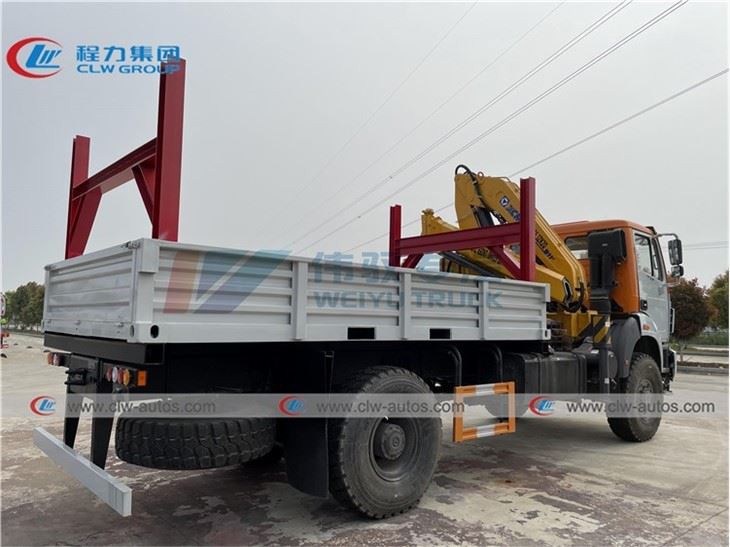

(rear side view of Beiben truck with crane)

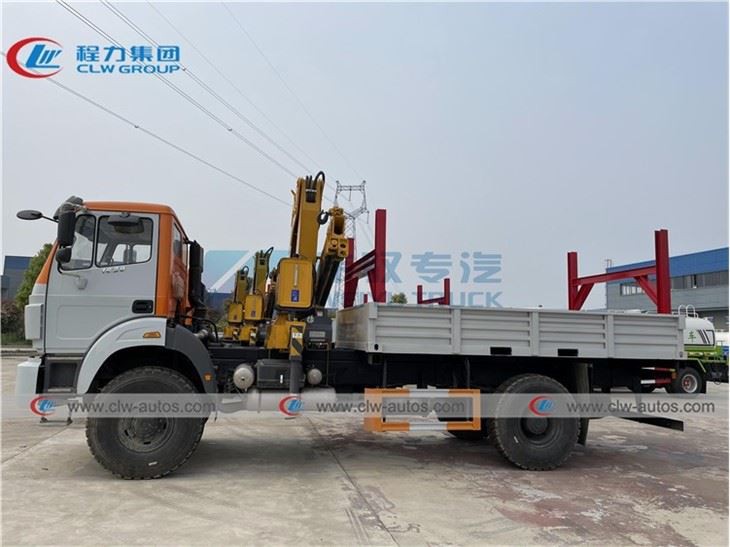

(side view of Beiben off road military crane truck)

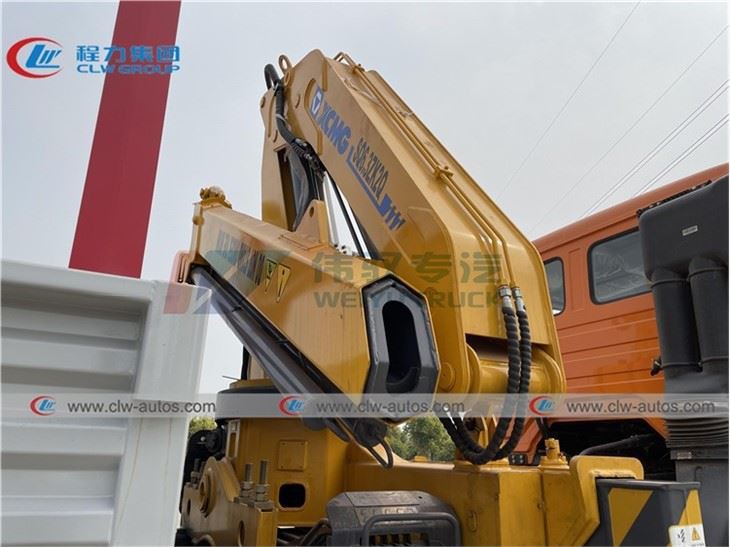

(Beiben off road military truck with XCMG kunckle boom crane 6.3tons SQ6.3K2Q)

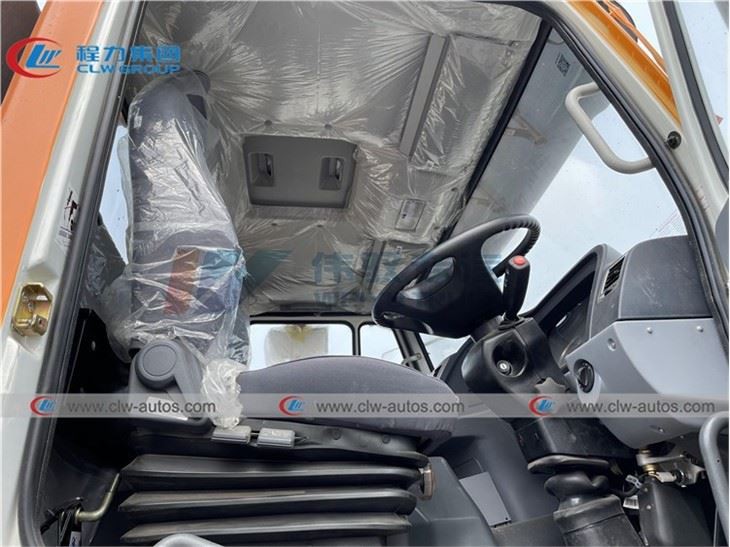

(spacious cabin of right hand drive Beiben off road military crane truck)
(14.00R20 tires of Beiben off road military crane truck)
Specification
BEIBEN 4WD Military Cargo Truck Mounted Crane(6.3Tons Knuckle Boom Crane SQ6.3ZK2Q | ||
Cabin | Beiben NG80 cabin,with Air conditioner,2~3 people allowed | |
Truck brand | CLW/WEIYU TRUCK | |
General | Overall Dimension | 8600X2500X3600 |
Driving Model | 4X4/4WD/All wheel drive | |
GVW/Curb weight | 16,000Kg/8200Kg | |
Max. driving speed(km/h) | 85 | |
Engine | Brand | Weichai Engine |
Model | WP10.290E32 | |
Type | Diesel engine,4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power | 290HP/213KW | |
Emission standard | Euro III | |
Gearbox | FAST 9 forwards & 1 reverse | |
Tire | 14.00R20,4 pcs with 1 spare | |
Cargo box size | 4500X2300X550mm or as required | |
Crane Type | Knuckle Boom Crane | |
Max. Lifting Capacity | 6300Kg | |
Slewing angle | 360 ° All rotation | |
Control panel | English | |
Optional | 1) Telescopic boom crane; 2) Hydraulic tipper box; 3) Box thickness as required; 4) Remote controller is optional; 5) Customized logo and color | |
