Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3-axle 25tons 50000liters lpg tanker trailer in China. If you're going to buy high quality 3-axle 25tons 50000liters lpg tanker trailer, welcome to get more information from our factory. For price consultation, contact us.
Function
--LPG tanker trailer(also calledlpg bridger truck,lpg road tanker,lpg truck trailer,25tons lpg truck,25mt lpg truck,50m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer) is used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
--Optional for tank size from 40,000litera to 61900liters,from 20tons to 30tons.
--Design standard: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump,lpg dispenser machine,filling hose.
--Material: Q345R,Q370R,Q420R;
--Optional for axle brands:BPW,FUWA,L1 and so on.
Feature
--high quality steel specialled for pressure vessel production from chinese top steel company;
--Reliable design for tough road with reliable performance;
--X-ray testing for every welding line before delivery;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--leakage test;
--customized painting and logo design;

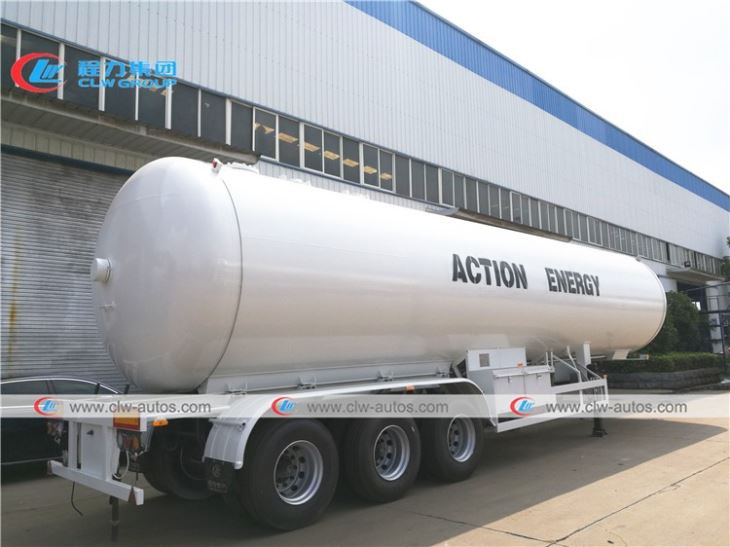

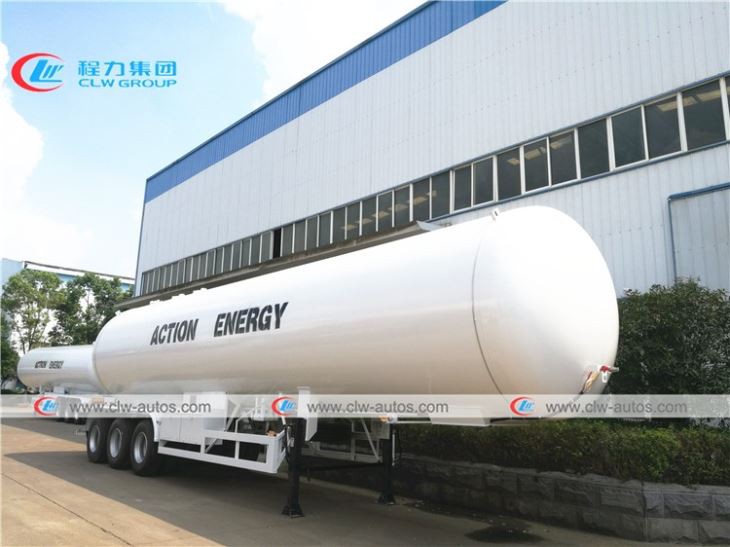

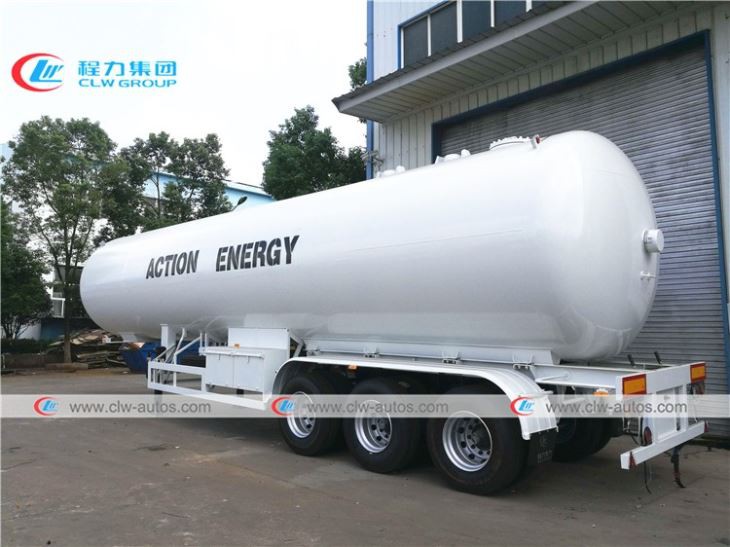

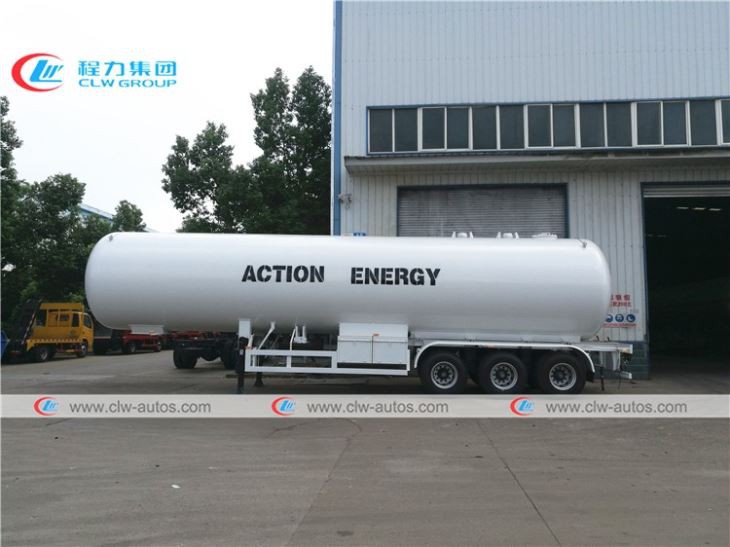

Reference picture
Drawing
Specification
Tanker Essential Information | |
Volume of Tank (cbm) | 49.6 |
Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12372 |
Estimated Tare Weight (kg) | 15300 |
Payload(kg) | 20832 |
Total Weight(kg) | 36132 |
Wheelbase(mm) | 6800+1310+1310 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(℃) | -19℃~50℃ |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
End plate：Q345R,12mm,double ellipse | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test(MPa) | 2.21 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top,DN450 |
Safety Valve(As Customer’s Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN50 or As Customer’s Requirement |
Level Gauge 3*13T Fuwa | |
Type | Manuel rotation type |
Location | At the rear of the end plate |
Running System | |
Axles | 3*12T FUWA brand |
Tire | 12R22.5 Tubeless tire ,12 pcs with one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |
Control System | |
Emergency Cut-off Valves | 3 pcs,2 for liquid phase and 1 for vapour phase |
Ball Valve | 6pcs,can be discharged and loading at two sides. |
Thermometer | 1 |
Pressure Gauge | 1 |
Accessories | |
Tool Box | 2 |
Wheel Carrier | 1 |
Fire Extinguisher | 2 |
Fender | 2 |
Paint | As Customer’s Requirement |
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
