Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman 6x6 550hp airport use fire fighting truck in China. If you're going to buy high quality shacman 6x6 550hp airport use fire fighting truck, welcome to get more information from our factory. For price consultation, contact us.
Aircraft Rescue firefighting truck(ARFF) can be used for rapidly rescuing aircraft passengers and crew, and extinguishing fire, which is also applicable to building firefighting.
ARFF vehicle chassis is 6 × 6 SHACMAN, which is made in China.
This fire vehicle is equipped with 9.000L water tank, 1.000L foam tank, dry powder 250kg and other fire rescue equipment.
Its design allows to take water from external water sources and fire hydrants. And firefighting work can be completed by using its own tank water supply.
Main specification are as follows,
Overall size： ≤10000mm×2550mm×3900mm
Gross vehicle weight： 29000kg
Tank capacity: water 9,000L，foam 1,000L, dry powder 250kg
Max. engine power：405kW (550HP)
Emission standard： EURO III
Max. speed:110km/h
Approach angle:31°
Departure angle :24°
Cold braking efficiency: braking distance of about 9m, at 30km/h.
Acceleration: when this vehicle is under the full loading, accelerating from 0 to 80km / h or more is less than 40s
Pump flow rate： 6000L/min@10bar
Monitor on the roof： 4800L/min@10bar, throw range: water ≥85m,
Seating capacity：1＋2 seats (incl. driver), single cabin
This airport fire truck totally has 2 engines.
One is a chassis engine.
Another is an extra Cummins engine which is used to drive the fire pump. Fire extinguishing system can be carried out simultaneously when the vehicle is running at any speed without stopping.
Fire pump is driven by extra diesel engine
The engine is Cummins
ISLe375 diesel engine with rated power 275kw, Euro 3 emission, and maximum torque is1500N.m. It works independently to drive the water pump. It can drive the water pump to extinguishing fire when the vehicle is stopped and running.

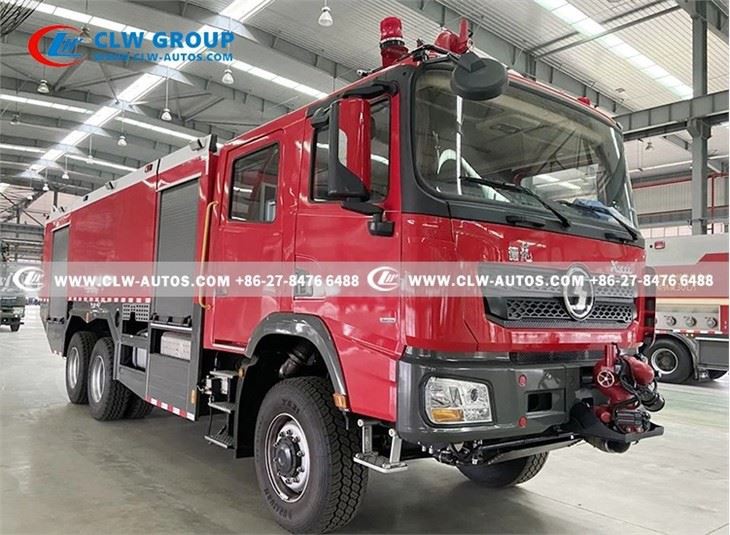

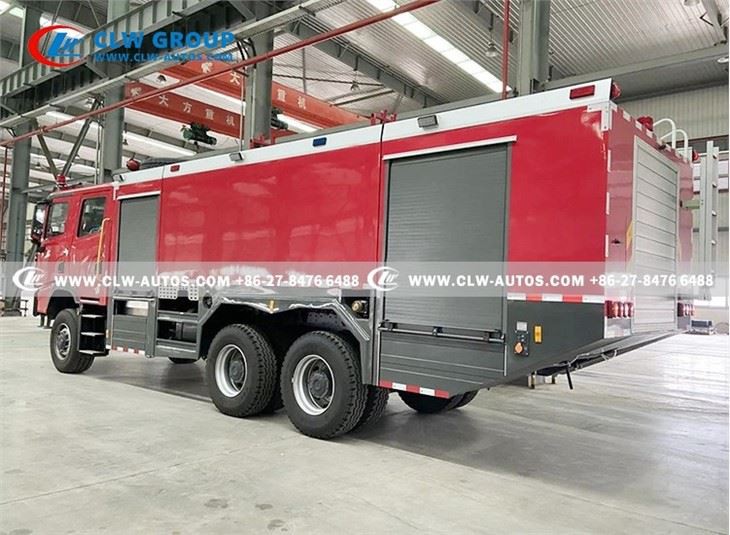

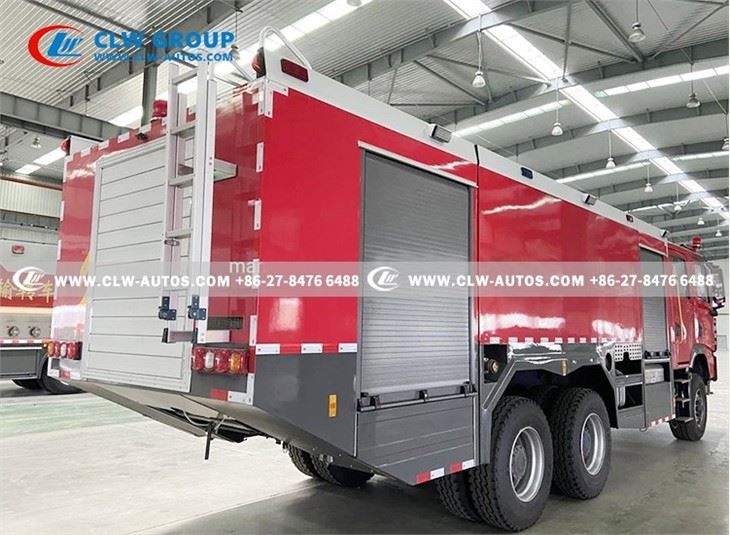

Reference truck picture
