Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu folding boom crane truck in China. If you're going to buy high quality isuzu folding boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

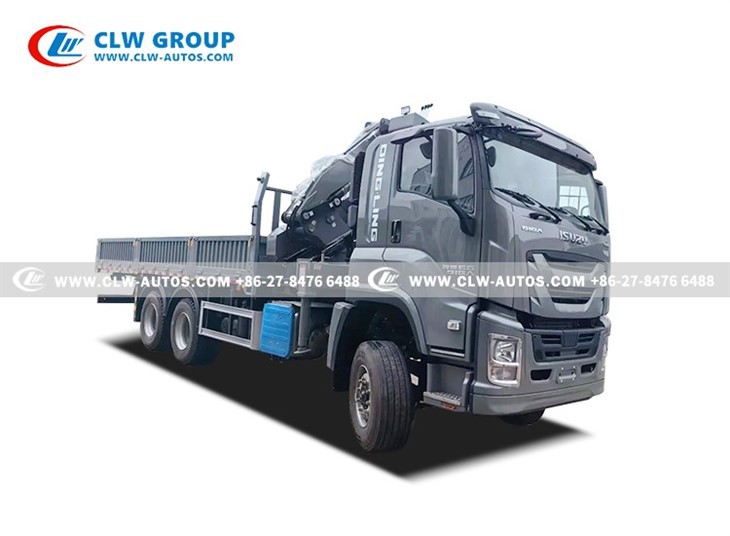

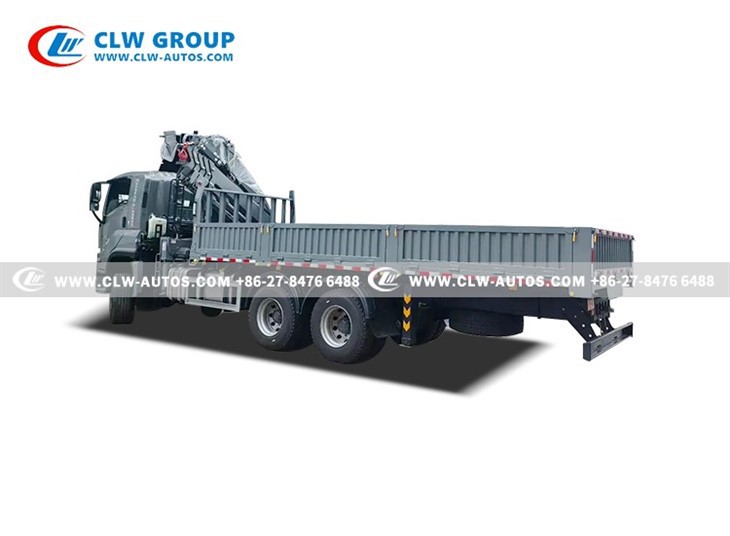

ISUZU FVZ 10 Wheels 6x4 Mounted Truck With 10Ton Folding Boom Crane

product key technologies

ISUZU FVZ Chassis

Designed for heavy loads: The FVZ's robust chassis structure provides an ideal foundation for installing a truck crane. Its frame offers high torsional rigidity, effectively distributing the immense pressure during lifting operations.
Strong load capacity: As a medium-duty truck, its carrying capacity aligns well with the crane's lifting capability. It can handle lifting tasks while maintaining cargo transport function, achieving dual-purpose utility.

Folding Boom Crane

Ideal for tight spaces: Excellent for height-restricted sites like warehouses and under bridges.

Superior lifting capacity: Excels at close-range, low-height lifts by bearing pressure like a weightlifter.

Precise positioning: Enables accurate cargo placement, even behind obstacles, with great flexibility.

8isuzu 6x4 giga folding boom crane truck

Products Parameters

ISUZU Crane Truck With 10Tons Folding Boom Crane
Chassis Specification
Chassis Model	QL118
Driving Model	4x2
Dimension	12000 x 2400 x 3800 mm
Cab	Original ISUZU FVZ Wide cabin With Air Conditioner Left Hand Drive
Wheelbase	5700+1370 mm
Gross vehicle Weight	25000 kg
Curb Weight	8200 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg x2
Axle Number	2
Tire	295/80R22.5
Tire	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6HK1-TCG60
	Horse power: 300 HP
	Displacement: 7790ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
Transmission	9 Forward & 2 Reverse
Fuel Tank Capacity	220L
Upper Parameters
Cargo Box
Size (LWH)	6500 X 2300 X 550 mm
Loading Capacity	15 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
Crane
Model	XCMG - SQZ200
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 5 extendable boom
Crane Type	Folding Boom Crane
Max. Lifting Capacity	Effectively: 10000 kg at 2.0 meters
Max. Working Radius	12.8 meters
Max. Lifting Height	15 meters
Max. Lifting Moment	200 kN.m
Max. Oil Flow of Hydraulic System	40 L/min
Max. Pressure of Hydraulic System	28 Mpa
Crane Weight	2960 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color

Chassis Pictures

Features Of ISUZU FVZ Crane Truck

ISUZU FV Chassis

Mature Powertrain: Typically equipped with an Isuzu 6HK1-TCG61 high-pressure common rail turbocharged diesel engine, with a displacement of 7.9L, delivering robust power and complying with China's National VI emission standards. It is paired with a technologically mature Isuzu manual transmission, ensuring efficient and reliable power delivery.

Professional Commercial Vehicle Chassis: The FVZ is a heavy-duty truck chassis built with a high-strength steel double-layer frame (beam), providing a solid foundation for mounting the superstructure. The 5700+1370 mm wheelbase is specifically designed as an ideal size for 10 ton class truck-mounted cranes.

Excellent Driving Comfort and Safety: The cab is designed with a human-centric approach, offering a wide field of vision, excellent sealing, and low noise levels. Standard safety features include ABS and exhaust brakes, while some higher-end models are equipped with air brakes, parking brakes, power steering, and other features, ensuring easy and safe driving.

XCMG - 10Ton Straight Boom Crane

Powerful Lifting Capacity: As a globally leading construction machinery manufacturer, XCMG's cranes boast robust performance parameters. The 8-ton straight-arm crane typically features a large-section pentagonal or hexagonal boom with high bending resistance, strong lifting capacity, and a large working radius (maximum reach exceeding 15 meters).

Flexible and Efficient Operating System: Hydraulically driven, the crane is operated via manual levers or more advanced electro-hydraulic proportional remote controls, offering fine control, precise handling, and smooth operation. The outrigger configuration, often front H-type and rear double or quadruple box, ensures stable support on various terrains.

Comprehensive Safety Features: Standard safety measures include relief valves (to prevent hydraulic system overload), balance valves (to prevent accidental boom descent), and wire rope overwind protection devices, ensuring safe and reliable lifting operations.

Advantage of Crane Truck

Power Performance: A lighter body allows the 205-horsepower engine to propel the vehicle more effortlessly, resulting in better acceleration and climbing performance, with a greater sense of power reserve.
Braking and Handling: Reduced mass means lower inertia during braking, improving braking effectiveness to some extent and enhancing safety. Additionally, the vehicle becomes more agile and easier to maneuver.
Tire Wear: Reduced pressure on tires helps extend their service life.
