Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5ton crane truck for kazakhstan in China. If you're going to buy high quality isuzu 5ton crane truck for kazakhstan, welcome to get more information from our factory. For price consultation, contact us.

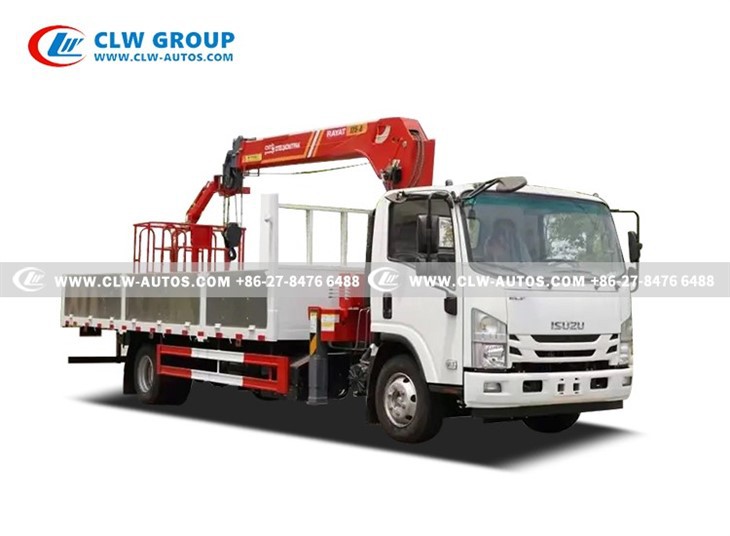

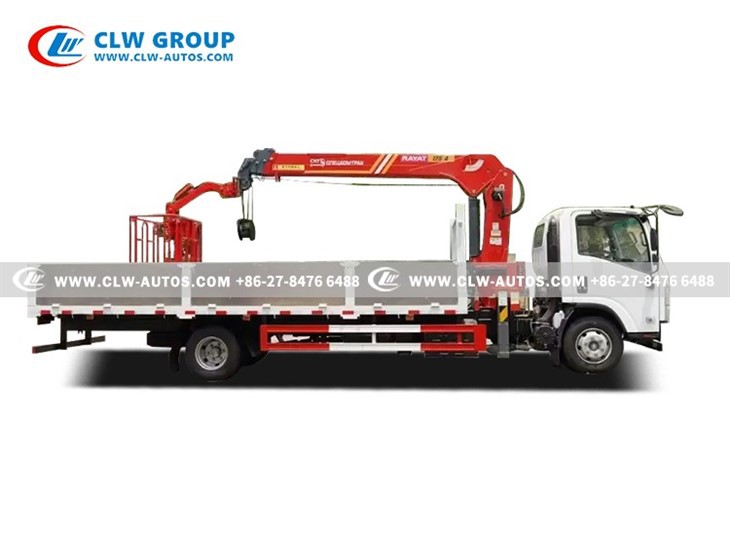

ISUZU 700P 6 Wheels 4x2 Mounted Truck With 5Ton Straight Boom Crane

With Aluminum Alloy Cargo Box Plate / High-Altitude Suspended Basket

product key technologies

8ISUZU 4x2 700P 5Ton Straight Boom Crane Truck

High-Altitude Suspended Basket

Expands operational functionality: Transforms the truck crane from a lifting device into a multi-purpose platform that safely delivers personnel and tools to elevated work sites.

Enhances work efficiency: Personnel can be directly transported to elevated work positions, eliminating the need for scaffolding or specialized aerial work platforms.

Ensures operational safety: Provides a stable platform (300kg capacity secures workers and tools), reducing the risks associated with working at heights.

Aluminum Alloy Cargo Box Plate

Extreme lightweight design, significantly increasing effective payload and profitability.

The aluminum alloy surface forms a dense oxide film, effectively resisting corrosion from the atmosphere, rainwater, and especially de-icing agents.

Aluminum alloy cargo bodies fully meet the load-bearing requirements for conventional goods such as timber, steel, machinery equipment, and building components.

Products Parameters

ISUZU Crane Truck With 5Tons Straight Boom Crane
Chassis Specification
Chassis Model	QL111
Driving Model	4x2
Dimension	10000 x 2400 x 3800 mm
Cab	Original ISUZU 700P Wide cabin With Air Conditioner Left Hand Drive
Wheelbase	5200 mm
Gross vehicle Weight	11000 kg
Curb Weight	4495 kg
Front Axle Loading Capacity	4000 kg
Rear Axle Loading Capacity	7000 kg
Axle Number	2
Tire	235/75R17.5
Tire	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4HK1-TCG61
	Horse power: 190 HP
	Displacement: 5193ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
Transmission	6 Forward & 1 Reverse
Fuel Tank Capacity	220L
Upper Parameters
Cargo Box
Size (LWH)	5500 X 2300 X 550 mm
Loading Capacity	8 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
Crane
Model	SQS125
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 4 extendable boom
Crane Type	Straight Boom Crane
Max. Lifting Capacity	Effectively: 5000 kg at 2.5 meters
Max. Working Radius	11 meters
Max. Lifting Height	12.75 meters
Max. Lifting Moment	125 kN.m
Max. Oil Flow of Hydraulic System	90 L/min
Max. Pressure of Hydraulic System	22 Mpa
Crane Weight	2100 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color

Chassis Pictures

5ISUZU 700P 5Ton Straight Boom Crane Truck

Features Of ISUZU FTR Crane Truck

Isuzu 700P Chassis (5,200mm wheelbase, 190 HP):

Exceptional Reliability: Isuzu is a globally renowned manufacturer of diesel engines and commercial vehicles, known for its robust, durable products and low failure rate. In Kazakhstan, where the service network and parts supply might not be as extensive as for European/American brands, reliability is a primary consideration.

Adequate Power: 190 horsepower is fully sufficient for a truck-mounted crane vehicle with a total weight of approximately 12-15 tons across most plains and hilly areas in Kazakhstan, ensuring good fuel economy.

Maneuverable Dimensions: The 5200mm wheelbase results in a moderately sized vehicle with excellent maneuverability, making it highly suitable for operation on city streets, industrial parks, and general construction sites, avoiding the access issues associated with overly long vehicles.

Aluminum Alloy Cargo Body:

Stacked Advantages: As mentioned previously, it brings extreme lightweight design, corrosion resistance, and long service life to this chassis model.escent), and wire rope overwind protection devices, ensuring safe and reliable lifting operations.

Truck-Mounted Crane:

Versatility: It integrates lifting and transportation functions, solving the "last-mile" loading and unloading challenge and reducing dependence on additional lifting equipment.
